Rebuild Kit Fits Husqvarna GTH2654 LGT2654 YTH2654 54" Lawn Tractor Mower Deck
Rebuild Kit Fits Husqvarna GTH2654 LGT2654 YTH2654 54" Lawn Tractor Mower Deck
Regular price
£162.00 GBP
Regular price
Sale price
£162.00 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Replacement 54" Mower Deck Rebuild Kit
Fits 54� AYP, Fits Husqvarna, Sears Craftsman, and Poulan with 4 bolts and a star pattern blade spindle assembly.
Husqvarana: GTH2654, GTH26V54, LGT2654, YTH2654
Poulan: PB22VA54, PB26H54YT, PBGT2654, PBGT26H54, PBLGT2654, PBGT22H54

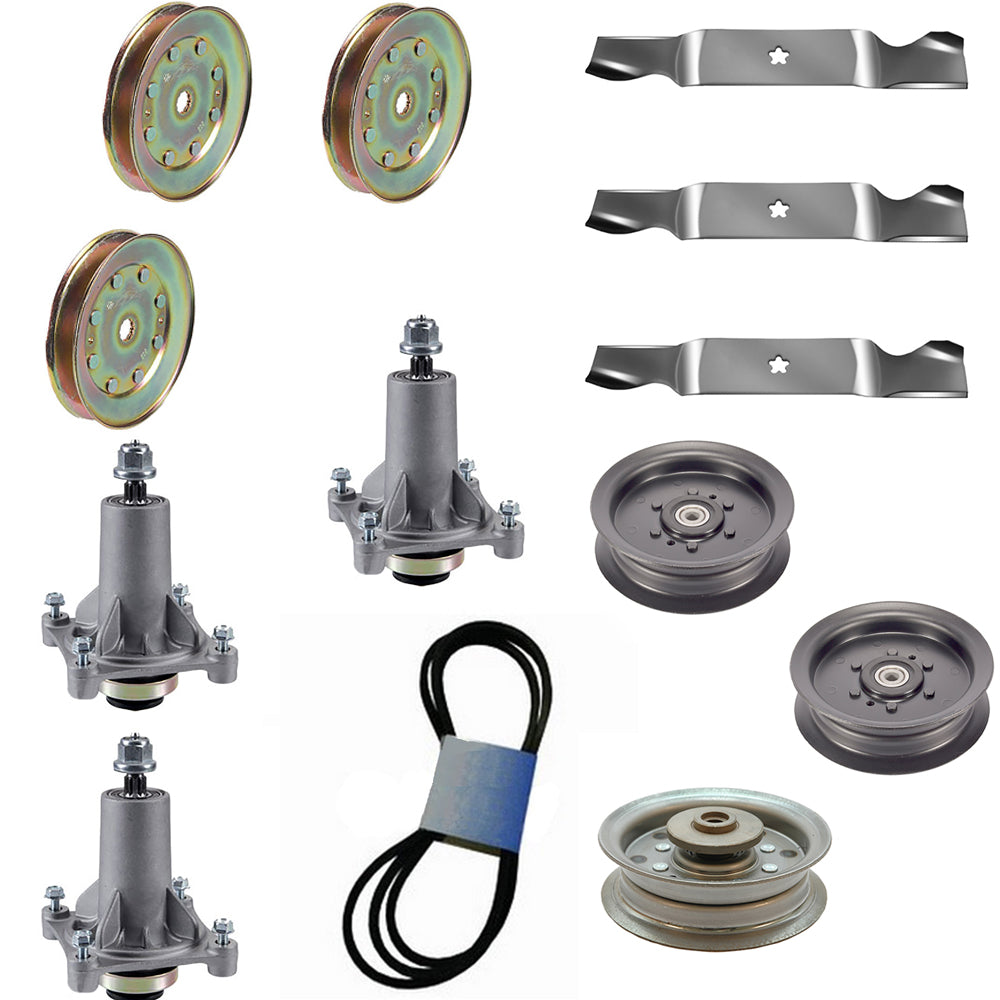

Kit Contains:
(3) Deck Spindles
Replaces Part Number(s):
Ariens: 21546238, 21546299, 21549012
AYP: 187292, 192870, 532192870, 587820301, 587125401, 587819701, 587253301
Dixon: 532187292, 532192870, 587253301
Fits Husqvarna: 192870, 532187281, 532187292, 532192870, 539112057, 587253301, 587819701
McCulloch: 532 19
Fits 54� AYP, Fits Husqvarna, Sears Craftsman, and Poulan with 4 bolts and a star pattern blade spindle assembly.
Husqvarana: GTH2654, GTH26V54, LGT2654, YTH2654
Poulan: PB22VA54, PB26H54YT, PBGT2654, PBGT26H54, PBLGT2654, PBGT22H54
The model numbers listed are for reference only. Please consult your service manual and verify your original part number(s) before ordering.
Kit Contains:
(3) Deck Spindles
Replaces Part Number(s):
Ariens: 21546238, 21546299, 21549012
AYP: 187292, 192870, 532192870, 587820301, 587125401, 587819701, 587253301
Dixon: 532187292, 532192870, 587253301
Fits Husqvarna: 192870, 532187281, 532187292, 532192870, 539112057, 587253301, 587819701
McCulloch: 532 19
Models This Part Fits:
GTH2654 LGT2654 YTH2654Additional Information:

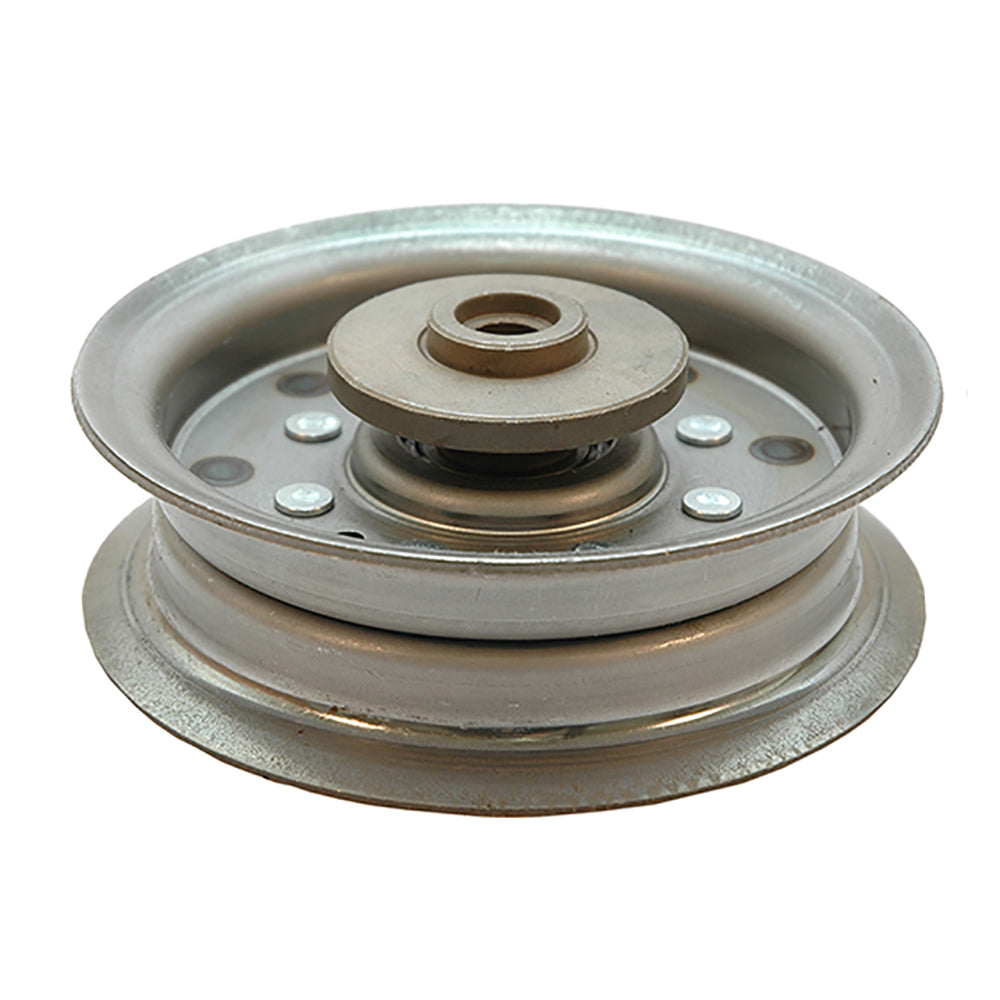

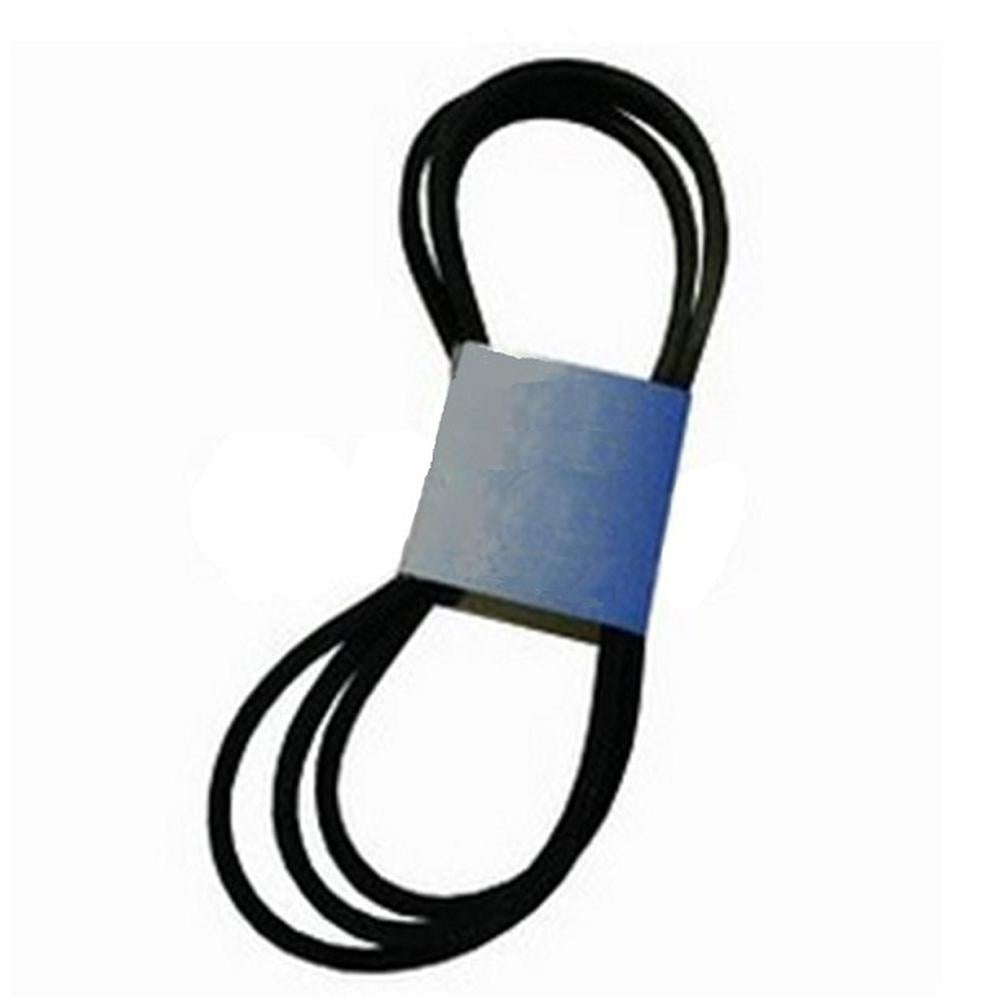

(3) Blades Length: 18-1/2" CH: 5 Point Star Width: 3" Thickness: 0.197" Replaces Part Number(s): 532 18 72-54, 532 18 72-56, 594892901, 000000532187256 (3) Spindle Assemblies 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number(s): 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301 (2) Flat Idler Pullies ID: 3/8" OD: 5-3/8" Height: 1-5/8" Painted Replaces Part Number(s): 196106, 197379, 532196106 (1) Belt 5/8" x 147.75" Wrapped Polyester Cord Replaces Part Number(s): 196103, 532196103, 587686701 (3) Drive Pullies Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Number(s): 532129861, 532153535, 532173436, 539112171 (1) Flat Idler Pulley ID: .457" OD: 5-3/8" Width: 1-11/16" Replaces Part Number(s): 532196104, 196104, 197380, 532197380Reference Numbers:
532 18 72-54, 532 18 72 54, 532187254, 532 18 72-56, 532 18 72 56, 532187256, 594892901, 000000532187256, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 196106, 197379, 532196106, 196103, 532196103, 587686701, 532129861, 532153535, 532173436, 539112171, 532196104, 196104, 197380, 532197380Product Category:
Lawn & GardenView More: Lawn & Garden Replacement Parts
Product Sub Group:
Deck ComponentsView More: Deck Components Replacement Parts
