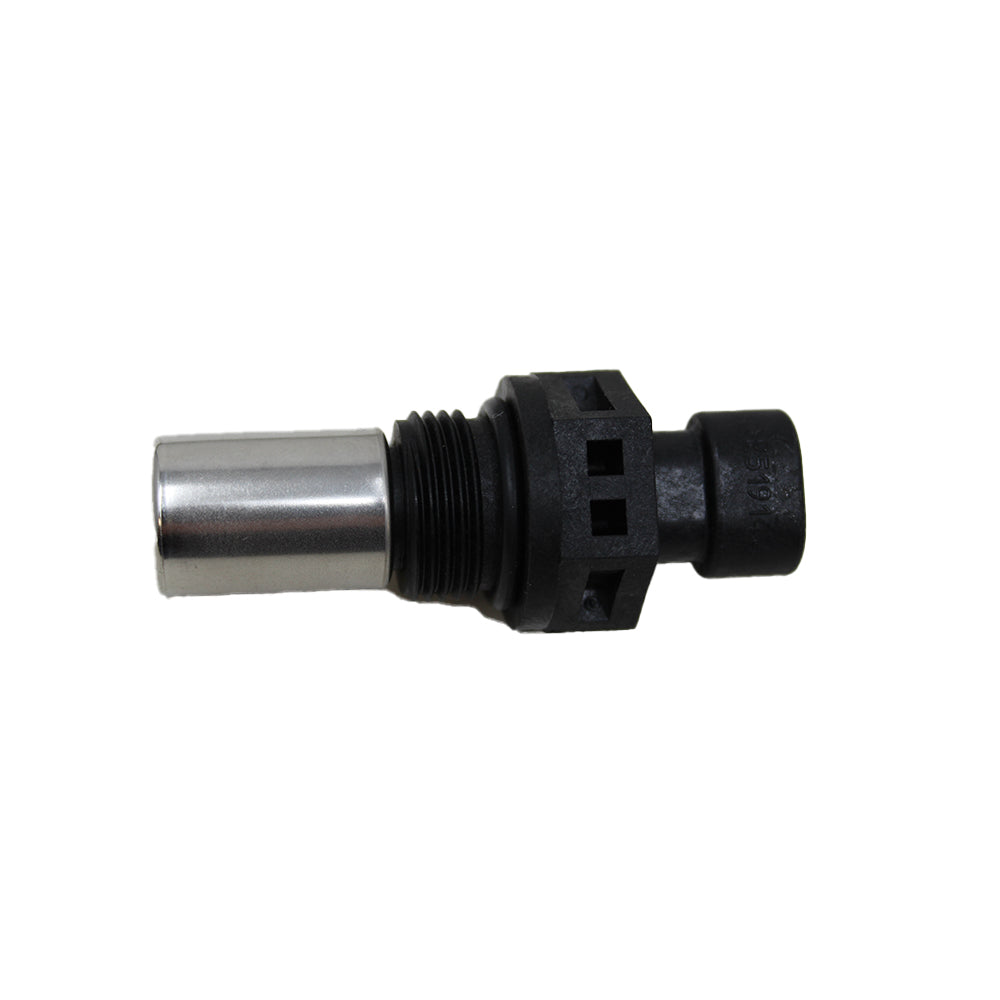

RE519144 Engine Speed Sensor Fits John Deere 8560 7600 7700 7800 5200 5300 +

RE519144 Engine Speed Sensor Fits John Deere 8560 7600 7700 7800 5200 5300 +

£24.00 GBP
£24.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Engine Speed Sensor (Magnetic Pickup) Fits John Deere Tractors, Combines, and Construction Equipment

This magnetic pickup engine speed sensor monitors crankshaft position and rotational speed, supplying tachometer and timing data to the engine control system. It threads directly into the engine block or flywheel housing and is Fits John Deere 3029 and 4045 engine families as well as a wide range of PowerTech and non-PowerTech applications. The sensor uses variable reluctance (VR) technology with a single output and an integral connector. Operating voltage range is 12V-24V, making it suitable across both standard and high-voltage electrical systems.

Specifications

  • Technology: Variable Reluctance (VR)
  • Thread Size: M20 x 1.5 (metric)
  • Mounting Style: Threaded
  • Connector Type: Integral, 2-pin
  • Voltage: 12V-24V
  • Length: 1.417 in (36 mm)
  • Tip Diameter: 0.648 in (16.46 mm)
  • Mounting Diameter: 0.787 in (20 mm)
  • Air Gap: 0.039 in (1 mm)
  • Operating Temperature: -40 to +125 degrees C
  • Function: Tachometer / Crankshaft Position

Note: Some models carry serial number restrictions. Verify serial number applicability before ordering for models 1010E, 1110E, 1210E, and 1910E.

Compatible Models

Fits John Deere Tractors (5000 Series): 5045D, 5045E, 5050E, 5055D, 5055E, 5065E, 5065M, 5070M, 5075E, 5075M, 5076E, 5076EF, 5076EL, 5078E, 5080E, 5080G, 5080GF, 5080GV, 5080M, 5080R, 5080RN, 5082E, 5083E, 5083EN, 5085E, 5085M, 5090E, 5090EH, 5090EL, 5090G, 5090GF, 5090GH, 5090GV, 5090M, 5090R, 5090RN, 5093E, 5093EN, 5095M, 5095MH, 5100GF, 5100GV, 5100M, 5100MH, 5100ML, 5100R, 5100RN, 5101E, 5101EN, 5103, 5103S, 5104, 5105, 5105M, 5105ML, 5115M, 5115ML, 5200, 5203, 5204, 5205, 5210, 5220, 5225, 5300, 5303, 5310, 5310N, 5320, 5320N, 5325, 5325N, 5400, 5400N, 5403, 5410, 5415, 5420, 5420N, 5425, 5425N, 5500, 5500N, 5510, 5510N, 5520, 5520N, 5525, 5525N, 5605, 5615, 5620, 5625, 5705, 5715, 5720, 5725, 5820

Fits John Deere Tractors (6000 Series): 6010, 6020, 6095B, 6100, 6100B, 6100D, 6105J, 6105M, 6110, 6110B, 6110D, 6110E, 6110J, 6110L, 6110M, 6115D, 6120, 6120B, 6120L, 6125D, 6125E, 6125J, 6125M, 6130, 6130D, 6130J, 6135B, 6140B, 6140D, 6140J, 6140M, 6145J, 6150M, 6155J, 6155M, 6165J, 6170M, 6175M, 6180J, 6185J, 6195M, 6200, 6200L, 6205, 6205J, 6210, 6210J, 6210L, 6215, 6220, 6220L, 6225, 6230, 6230 Premium, 6300, 6300L, 6310, 6310L, 6310S, 6320, 6320L, 6325, 6330, 6330 Premium, 6400, 6400L, 6403, 6405, 6410, 6410L, 6410S, 6415, 6420, 6420L, 6420S, 6425, 6430, 6430 Premium, 6500, 6500L, 6505, 6506, 6510, 6510L, 6510S, 6515, 6520, 6520L, 6525, 6530, 6530 Premium, 6534, 6534 Premium, 6600, 6603, 6605, 6610, 6615, 6630, 6630 Premium, 6700, 6715, 6800, 6810, 6820, 6830, 6830 Premium, 6900, 6910, 6910S, 6920, 6920S, SE6010, SE6020, SE6100, SE6110, SE6120, SE6200, SE6210, SE6220, SE6300, SE6310, SE6320, SE6400, SE6410, SE6420, SE6510, SE6520, SE6610, SE6620, SE6920

Fits John Deere Tractors (7000 Series and up): 7130, 7130 Premium, 7180, 7185J, 7195J, 7200, 7205J, 7210, 7210J, 7220, 7225J, 7230, 7230 Premium, 7250, 7280, 7320, 7330, 7330 Premium, 7350, 7380, 7400, 7405, 7410, 7420, 7430 Premium, 7430E Premium, 7450, 7455, 7460, 7480, 7505, 7510, 7515, 7520, 7520 (2003 Thru 2007), 7530 Premium, 7530E Premium, 7550, 7580, 7600, 7610, 7630, 7660, 7710, 7715, 7720, 7730, 7750, 7760, 7780, 7800, 7810, 7815, 7820, 7830, 7920, 7930, 8100, 8120, 8120T, 8200, 8220, 8220T, 8230, 8230T, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8295RT, 8300, 8310R, 8310RT, 8320, 8320R, 8320RT, 8320T, 8330, 8330T, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8370R, 8370RT, 8400, 8420, 8420T, 8430, 8430T, 8500, 8520, 8520T, 8530, 8560, 8570, 8600, 8760, 8770, 8870, 8960, 8970, 9100, 9120, 9200, 9220, 9230, 9300, 9300T, 9320, 9320T, 9330, 9370R, 9400, 9400T, 9410, 9410R, 9420, 9420R, 9420T, 9430, 9430T, 9450, 9460R, 9460RT, 9470R, 9470RT, 9470 STS, 9470RX, 9500, 9510, 9510R, 9510RT, 9510SH, 9520, 9520R, 9520RT, 9520RX, 9520T, 9530, 9530T, 9550, 9550SH, 9560R, 9560RT, 9560 STS, 9560I STS, 9570R, 9570RT, 9570 STS, 9600, 9610, 9620, 9620T, 9630, 9630T, 9650, 9650 CTS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9780 CTS, 9860 STS, 9870 STS, 9880 STS, 9880I STS, 9935, 9965, 9970, 9976, 9986, 9996, 4520, 4560, 4630, 4700, 4710, 4720, 4730, 4760, 4830, 4890, 4895, 4920, 4930, 4940, 4960, 4990, 4995, 3510, 3520, 3522, 3554

Fits John Deere Combines: C670, CH330, CH570, CP690, CTS, CTS II, S540, S550, S650, S660, S670, S670 Hillmaster, S680, S680 Hillmaster, S685, S685 Hillmaster, S690, S690 Hillmaster, T550, T560, T660, T670, W540, W550, W650, W660, 9410, 9450, 9500, 9510, 9510 SH, 9550, 9550 SH, 9560 STS, 9570 STS, 9600, 9610, 9650, 9650 CTS, 9650 STS, 9660, 9660 CTS, 9660 STS, 9750 STS, 9760 STS, 9780 CTS, 9860 STS, 9870 STS

Fits John Deere Cotton Equipment: 9976, 9986, 9996, 608B, 608L, 608S

Fits John Deere Backhoe Loaders: 210K, 210LE, 210LJ, 300D, 310E, 310G, 310J, 310K, 310K EP, 310L, 310L EP, 310SG, 310SJ, 310SK, 310SL, 315SG, 315SJ, 315SK, 315SL, 325J, 325K, 325SK, 325SL, 410E, 410G, 410J, 410K, 410L, 437D, 710G, 710J, 710K

Fits John Deere Wheel Loaders: 244J, 304J, 324J, 344J, 410G, 444G, 444J, 444K, 444K-II, 524K, 524K-II, 544J, 544K, 544K-II, 624J, 624K, 624K-II, 624KR, 640H, 644G, 644H, 644J, 644K, 644LH, 644X, 700H, 700J, 700J-II, 724J, 724K, 744H, 744J, 744K, 770B, 770BH, 770C, 770C II, 770CH, 770D, 772B, 772BH, 772CH, 772D, 772G, 810D, 810E, 824J, 824K, 843J, 843K, 844J, 844K, 870D, 870G, 872D, 872G, 903G, 903J, 903K, 903M, 909J, 909K, 909M, 950, 950K, 953G, 953J, 953K, 953M, 959J, 959K, 959M

Fits John Deere Excavators and Construction: 120, 120C, 120D, 130G, 160C, 160C LC, 160D, 160GLC, 180G, 200CLC, 200DLC, 200G, 210G, 210K, 230CLC, 240DLC, 250D, 250G, 260E, 270CLC, 270DLC, 290GLC, 300D, 318D, 319D, 320D, 323D, 326D, 328, 328D, 329D, 330C, 332, 332D, 333D, 335D, 337E, 350DLC, 360D, 360DC, 370C, 370E, 380G, E130, E140, E210, E210LC, E230, E240, E240LC, E260, E300 II, E300LC, E330, E360, E380, E400, 450CLC, 460D, 460DC, 460E

Fits John Deere Forestry and Other Construction: 1010D, 1010E, 1050K, 1070D, 1070E, 1110D, 1110E, 1170E, 1210E, 1270D, 1270E, 1270G, 1410D, 1470D, 1470E, 1470G, 1490D, 1510E, 1710D, 1910E, 2054, 2154D, 2154G, 2156G, 2454D, 2554, 2654G, 2656G, 2944G (series), 3154G, 3156G, 3522, 3554, 3754D, 3754G, 3756G, 540GIII, 548H, 550H, 550J, 603, 605C, 608BH, 620G, 622G, 640GIII, 643J, 643K, 643L, 643L-II, 648H, 653G, 670C, 670C II, 670CH, 670CH II, 670D, 670G, 672CH, 672CH II, 672D, 672G, 703G, 748GIII, 748H, 750C, 750C-II, 750J, 750J-II, 753G, 753GL, 753J, 755D, 759G, 759J, 792D, 792DLC, 803M, 850C, 850C-II, 850J, 850J-II, 850JR, 850L, 853G, 853J, 853M, 892E, 892ELC, A400, CP690, D450, L512, L514, L524, L534, ML1335, R450, WL53, WL56

Fits John Deere Dozers / Crawlers: 450H, 450J, 550H, 550J, 650H, 650J, 700J, 700J-II, 710G, 710J, 710K, 750C, 750C-II, 750J, 750J-II, 850C, 850C-II, 850J, 850J-II, 850JR, 850L

Fits John Deere Graders: 130G, 670D, 670G, 672D, 672G, 772B, 772BH, 772CH, 772D, 772G, 870D, 870G, 872D, 872G

Fits John Deere Sprayers: 4700, 4710, 4720, 4730, 4830, 4920, 4930, 4940, R4023, R4038, R4045

Fits John Deere Forage Equipment: 7180, 7280, 7380, 7480, 7550, 7580, 7660, 7715, 7750, 7760, 7780

Fits John Deere Skid Steer / Compact Track Loaders: 318D, 319D, 320D, 323D, 326D, 328D, 329D, 332D, 333D, 335D, 337E, CT332

Fits John Deere Fits Gator Utility Vehicles: XUV 550, XUV 625I, XUV 825I, XUV 855D

Replaces Part Number(s):

RE519144, RE43511, RE63919, RE71121, RE508195, RE505989, YZ150115, A-RE519144

Aftermarket Interchange Numbers

AMRE519144 (Abilene Machine), WN-RE519144 (A&I / Worthington Ag Parts), FP-RE519144 (Farm Parts Store)

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

6110B, 909K, 9430T, 5065M, 5080M, 5615, 310K, 9510RT, SE6320, 7720, SE6520, 7550, 9530, E380, 3156G, 6615, 4940, 8335RT, 6J-2054, 6205J, 3154G, 6100, 9570R, 6155J, 6325, 5210, 6225, 2154D, 6415, 6140D, 9600, 6425, 850C, 5403, 8870, 853M, 9460RT, 844K, 310SK, 770CH, 335D, 950K, 953M, 700J, 853G, 748GIII, E300II, 9510SH, 9760STS, SE6110, 1710D, 5715, 7630, 9560 STS, SE6610, 5415, 6010, 6410S, 850C-II, 8970, 9410, 7660, 6110D, 824K, Fits Gator Models: XUV 550, 7180, 6310S, 7505, 7515, 8285R, 605C, 643J, 8345RT, 5090M, 160C, 7730, 6140B, 5100R, 9650CTS, 6530, 332D, 608L, 8360RT, 337E, L514, 8420, 6205, 9630, 850J, E210LC, 6330 PREMIUM, 7220, 6215, 7920, 8200, 9520T, 6525, 5065E, 6095B, 8300, 6130J, 8345R, 670CH II, 9560RT, 824J, 7350, 3522, 6J-1654, 6510S, 6430 PREMIUM, 9530T, 315SL, 6620, 5085M, 9320T, 9420R, 644J, 1210E, 524K, 6100D, 6120B, 6175M, 9660 CTS, 770B, 9996, 9400T, 9560R, 792D, 959J, S670, 909M, 622G, 5430I, W650, S690 HILLMASTER, 3554, 670D, 759J, 6100B, 6155M, T550, T670, 5082E, 6120L, 640H, 9986, 6610, 9220, 9860STS, 750C-II, 6800, 8370RT, 1110E, SE6220, 8260R, 8530, 410J, 8520, 6510, 710J, WL53, 5204, 7610, 444G, 7210, 9970, 8335R, 7430 PREMIUM, 550J, 7930, 5105M, 9880 STS, 4520, 1470E, 6170M, 410E, 210LE, 710G, R4038, 9300T, 6810, 7830, 9470R, 7715, 5105, 7205J, 7810, 1270D, 640GIII, 7480, 5510N, 200CLC, E330, 672CH, 1070D, 4960, 810D, 5080E, 5080G, 6180J, 9400, 759G, 6510L, 6900, 4630, 6120, 6200L, 344J, SE6300, 5620, 6220, 304J, 953J, 9620, 450H, 770D, 8230, 5090GF, 5325, 9300, 6110, 310L EP, 160C LC, 959K, 9650 CTS, 325SL, 5104, 5225, 9660, 325J, 753GL, 903M, 9510, 7600, 5090EH, 250D, 329D, 6530 PREMIUM, 5200, 5725, 8500, SE6410, 6J-2104, 9420T, 644G, 444K, 5420, 7820, WL56, 753J, 8295R, 5090E, 772D, 5080R, SE6200, 7400, S685, 5080RN, 450CLC, 2656G, SE6010, 644H, 1270G, 310K EP, 7250, 300D, 318D, E210, 5045D, 9935, E240LC, 6195M, 6125M, 9570STS, E300LC, 8320, 5300N, 8310R, 5310, 755D, 8330, 5100GV, SE6120, 8520T, C670, 9770STS, 270CLC, 1050K, 750J-II, 5400, 6500, 8220, 9420, 6820, 325SK, 7420, S680 HILLMASTER, 6420S, 7210J, 8130, 6150M, A400, 4730, 9510R, 5100GF, 7405, 724K, 859M, 643L, 6110J, 6310L, 6230 PREMIUM, 6140M, 6420, XUV 625I, XUV 825I, 4990, 9976, 903K, 5055D, 330C, 6110E, 450J, 903J, 8100, 644X, 460E, SE6020, SE6210, 770G, 9500, 328D, E240, 8960, 843K, 1170E, 7815, 5075E, 6B-1404, 6200, 410G, 5325N, 643L-II, 8370R, 6220L, 328, 9550, 872G, 9660STS, 1490D, 608S, 5320, 8225R, 7780, 310SJ, 772G, SE6420, 9430, 6410, 5083EN, 6410L, 6300L, 9610, 333D, 4890, 7530 PREMIUM, 643K, D450, 5115ML, 2954D, 5090RN, 670CH, 120, 6105J, CH330, 843J, 5603, 5625, 6110M, 6910S, 5203, XUV 855D, 8760, 332, 315SG, 6505, 9670STS, 437D, 872D, 9750STS, 650H, 9965, 460DC, 6210J, 315SJ, 7230 PREMIUM, 540GIII, 5101EN, 323D, 670C, 650J, CH570, 750J, 5720, 8430 Model Year 2006-2009, S550, L524, 6210L, 5085E, 9520, 903G, 310SG, 9880I STS, 544J, 624K-II, 6700, 4760, 5525N, 9200, ML1335, 8235R, E360, 7230, 370C, 959M, 310G, 5093E, 9660CTS, 6130D, 4930, 5500N, 7450, 6125D, 9470RX, E140, 6930, 653G, 750C, 5090R, 8430T, 5080GV, 9560STS, 1010E, 544K, 844J, 6185J, 6605, 770C, 5076E, 672CH II, 5090G, 6230, 7510, 724J, 850L, 5090GV, 240DLC, 6430, E230, 5320N, 5076EL, 7700, W660, 7430E PREMIUM, 909J, S540, 5410, 6300, 6320L, R4045, 1270E, 2454D, 8360R, 5520N, 9520R, 210G, 5520, 160GLC, W540, 7200, 5303, 6600, 5820, 8220T, SE6920, 324J, 744J, 953K, 770C II, 810E, 803M, 9470RT, 9100, 460D, 120C, 8770, 792DLC, 5500, 8320RT, 7130, 200DLC, 9410R, 9370R, 6020, 1910E, 2144G, 5105ML, 5076EF, 7580, 644K, 710K, 9320, 853J, 772B, 2154G, 8420T, 6400, 7320, 4700, 230CLC, 6715, CT332, 870G, 7225J, 130G, 6405, 9460R, 7195J, 6320, 5100RN, 2554, 180G, 5101E, 1010D, 6830, 5525, 6534, 744K, 7455, 3510, L512, 6830 PREMIUM, 950, 6130, 7410, 5100MH, 410L, 5080GF, 8230T, 1410D, S650, 7280, 6310, 8570, 6420L, 624K, 7330 PREMIUM, 4720, 5095M, 5115M, 5083E, 8320R, 4560, 4920, 2156G, 770BH, 6603, 6105M, 7185J, 6330, 6534 PREMIUM, 6515, 624J, 3756G, CTS II, 8245R, W550, 350DLC, 5070M, 9570RT, 5103S, 6110L, 120D, SE6400, 9550SH, 5095MH, 9780 CTS, 325, 360DC, 3520, 310E, T560, 250G, 7520 (2003 Thru 2007), 700J-II, E130, 310SL, CP690, 648H, 5605, 326D, 5425, S670 HILLMASTER, 5090GH, 5310N, 5705, 850J-II, 6165J, 290GLC, SE6310, 4995, 3754D, 753G, CTS, 848H, S680, 6930 PREMIUM, L534, 524K-II, 892E, 210K, 670C II, 2654G, 1470D, 260E, 9470 STS, 7460, 4830, 5220, 6135B, 1470G, 5055E, 6125E, 7800, 5045E, 5090EL, 325K, 6920S, 5300, 9230, 5100ML, 5050E, 9450, 748H, 9330, 6630, 7530E PREMIUM, R450, S685 HILLMASTER, 624KR, 560D, 772CH, 244J, 7330, 5103, 444J, 6145J, S660, 6630 PREMIUM, 9630T, 550H, SE6510, 6403, 744H, 700H, 160D, 7760, 672G, 5093EN, 8430, 8600, 6506, 6125J, 6500L, 1510E, 6400L, 410K, 6910, 6J-1854, 8330T, 7710, 9520RX, 703G, 5078E, 8120, 4710, 270DLC, 6520, 200G, S690, 5420N, 892ELC, 9650, 9620T, 9120, 9650STS, 644LH, 4895, 8295RT, SE6620, 8560, 672D, 5075M, 1070E, 9520RT, 1110D, 7380, 320D, 5400N, 9560I STS, 6115D, 9870STS, 953G, SE6100, E260, 7130 PREMIUM, 6520L, 8120T, 608B, 7750, 310L, 5100M, 5205, 6210, 8310RT, 370E, 315SK, 3754G, 2054, 670G, 8400, 319D, T660, 544K-II, 772BH, E400, 6140J, 6920, 900, 870D, R4023, 7520, 5510, 310J, 850JR, 620G, 5425N, 8320T, 360D, 8270R

Additional Information:

Tachometer / Crankshaft Position Thread Size M20 X 1.5 Volt 12V-24V

Reference Numbers:

RE519144, RE43511, RE63919, RE71121, RE508195
