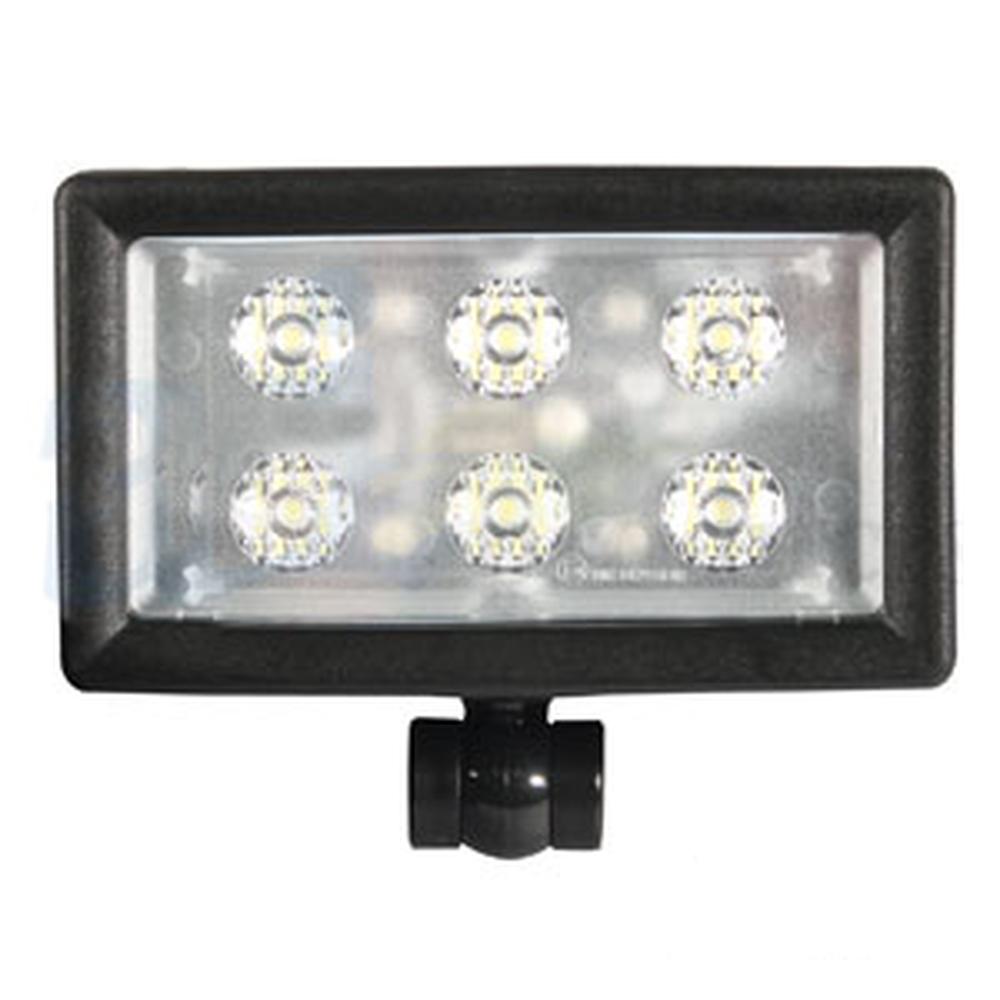

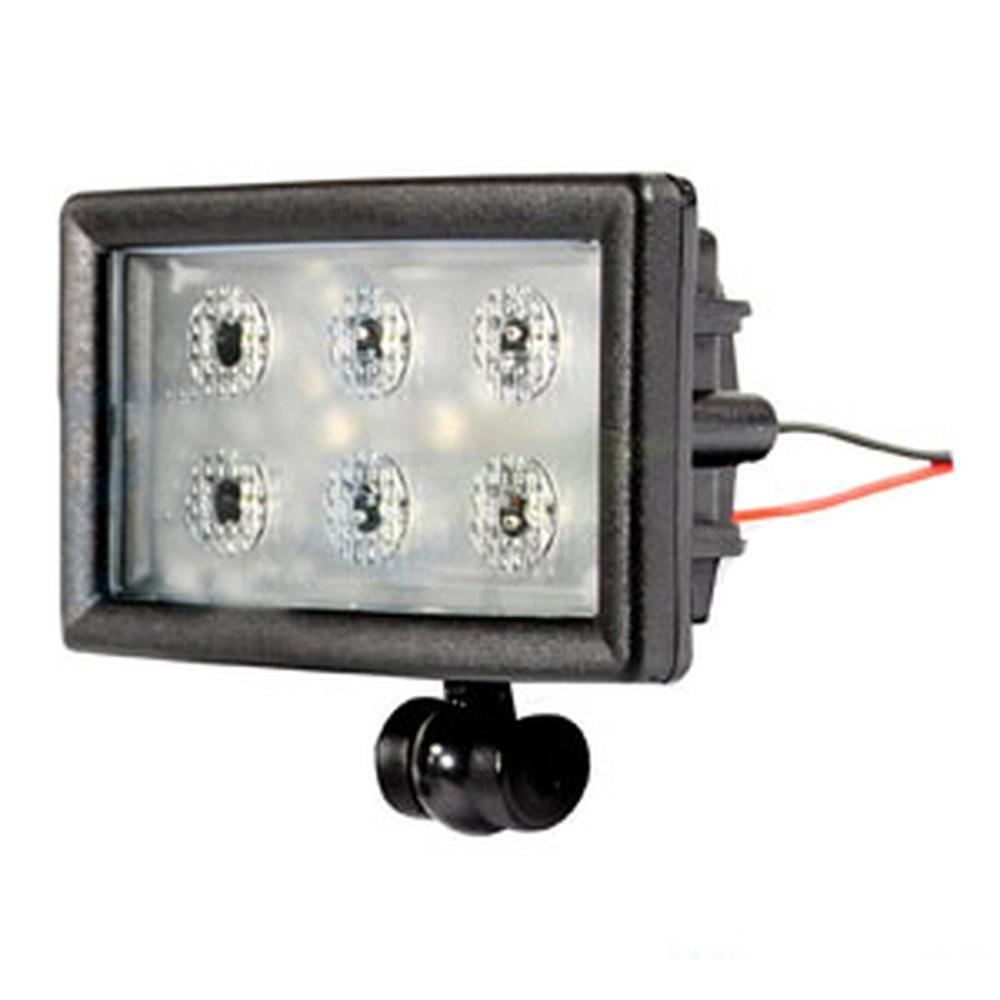

Rectangular LED Headlight Fits John Deere Replaces AR115342
Rectangular LED Headlight Fits John Deere Replaces AR115342
Regular price
£65.00 GBP
Regular price
Sale price
£65.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
One New Aftermarket Rectangular LED HeadlightTech Info:
-For power, use existing tractor harness & plug into lights or use included power harness adapter
-Add lights without overloading electrical system, increase battery and alternator life
-Light provided is similar to sunlight, reduces eyestrain
-Body: Rectangle
-Body Material: Die Cast Aluminum
-Color Temperature: 6000K
-Dimensions: Width 5.67" (14.4cm) X Height 3.3" (8.4cm) X Depth: 2.4" (6.1cm)
-Diode: (6) 5 Watt Cree Diodes
-Draw: 2.50 Amps @ 12 Volts & 1.25 Amps @ 24 Volts (Watts / Volts = Amps)

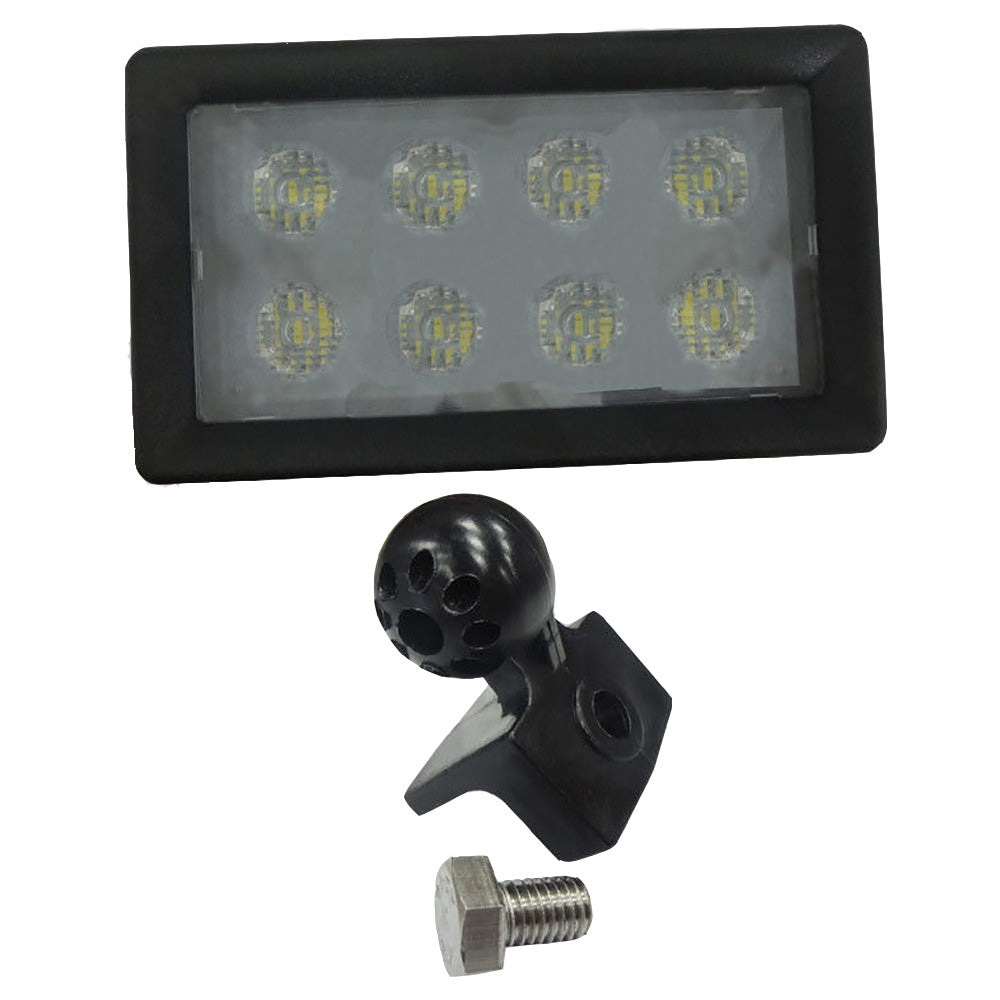

-Includes: Mount brackets & hardware
-Lens: Polycarbonate
-Light Pattern: Flood
-Lumens Effective: 1,325
-Lumens Raw: 1,920
-Supply Voltage: 10-30 Volt DCMade to Fits John Deere:
Sprayer Models: 4700, 4710
Model Breaks: Cab Rear
Replaces Part Number(s): AR115342, RE150422, RE150423, RE150424, RE151345, RE154900, RE232619, RE247298, RE259653, RE264155, RE574752, RE61243, RE61244, RE71422, RE71423
Tractor Models: 7610, 7710, 7810
Model Breaks: Fender Rear, Minor wiring modifications may be required
Replaces Part Number(s): AR115342, RE150422, RE150423, RE150424, RE151345, RE154900, RE232619, RE247298, RE259653, RE264155, RE574752, RE61243, RE61244, RE71422, RE71423
Tractor Models: 8100, 8100T, 8110, 8110T, 8200, 8200T, 8210, 8210T, 8300, 8300T, 8310, 8310T, 8400, 8400T, 8410, 8410T
Model Breaks: Grille & Lower Mid-Body & Rear Fender. Ball Style Mount - If original lamp bezel has been replaced, ball style mounted lamps may not install properly. Original replacement bezels have been found to have slightly smaller cavities for the ball mounts.
Replaces Part Number(s): AR115342, RE150422, RE150423, RE150424, RE151345, RE154900, RE232619, RE247298, RE259653, RE264155, RE574752, RE61243, RE61244, RE71422, RE71423
Windrower Models: 4890, 4895
Model Breaks: Fender Rear
Replaces Part Number(s): AR115342, RE150422, RE150423, RE150424, RE151345, RE154900, RE232619, RE247298, RE259653, RE264155, RE574752, RE61243, RE61244, RE71422, RE71423
Tractor Models: 7610, 7710, 7810, 8100, 8100T, 8110, 8110T, 8200, 8200T, 8210, 8210T, 8300, 8300T, 8310, 8310T, 8400, 8400T, 8410, 8410T, 9100, 9200, 9300, 9300T, 9400, 9400T
Replaces Part Number(s): AR115342, RE150422, RE150423, RE150424, RE151345, RE154900, RE232619, RE247298, RE259653, RE264155, RE574752, RE61243, RE61244, RE71422, RE71423,
Sprayer Models: 4700, 4710
Replaces Part Number(s): AR115342, RE150422, RE150423, RE150424, RE151345, RE154900, RE232619, RE247298, RE259653, RE264155, RE574752, RE61243, RE61244, RE71422, RE71423,
Windrower Models: 4890, 4895
Replaces Part Number(s): AR115342, RE150422, RE150423, RE150424, RE151345, RE154900, RE232619, RE247298, RE259653, RE264155, RE574752, RE61243, RE61244, RE71422, RE71423,
