41CL Five Single Strand Connector Links For Roller Chain 41 CL
41CL Five Single Strand Connector Links For Roller Chain 41 CL
Couldn't load pickup availability

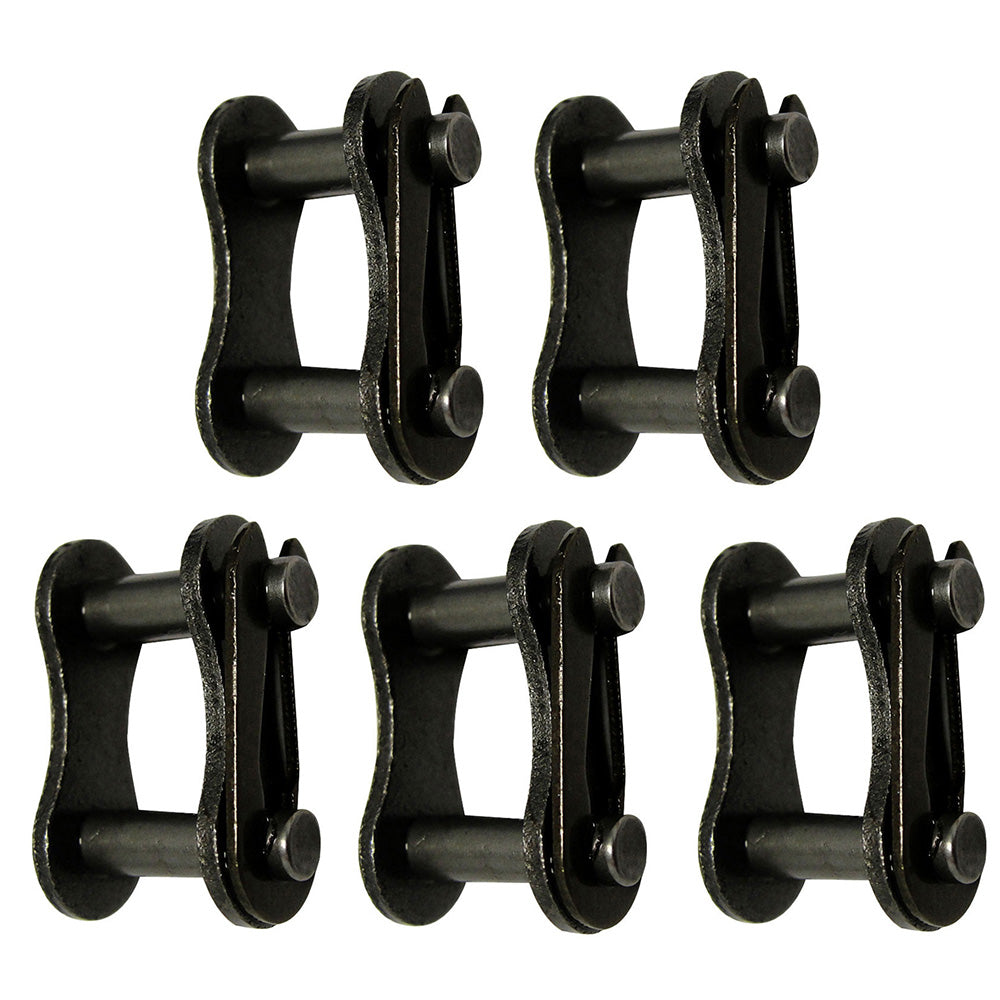

Five New Aftermarket Replacement Connecting Links for No. 41 Single Strand Roller Chain
This listing includes five (5) No. 41 single strand roller chain connecting links, also commonly called master links. Each link uses a spring clip design for quick, secure assembly and is used to join two ends of No. 41 roller chain or make fast field repairs on chain-driven equipment in agricultural, lawn and garden, and industrial applications. Constructed from carbon steel, these links are built to ANSI standards for No. 41 chain. Note: No. 41 chain has no roller -- the diameter specification refers to the bushing diameter. Will not fit No. 40 chain.
Specifications
- Chain Standard: ANSI No. 41
- Strands: Single
- Pitch: 1/2 inch
- Roller/Bushing Diameter: 0.306 in.
- Roller Width: 1/4 inch
- Pin Diameter: 0.141 in.
- Overall Width: 0.57 in.
- Link Plate: Standard
- Material: Carbon Steel
- Fastener Style: Spring Clip
- Quantity: 5 links per order
Compatible Chain
ANSI No. 41 Single Strand Roller Chain
Replaces Part Number(s):
41CL, 202-1041, 41-1CL4, 809-203C, ACL41IMP, CL41, CL41IMP, CS-4341CL-00, SWC41CO
New aftermarket replacement part - not remanufactured, not used.
