CL120IMP New Universal #120 Roller Chain Connector Link fits Several Models
CL120IMP New Universal #120 Roller Chain Connector Link fits Several Models
Couldn't load pickup availability

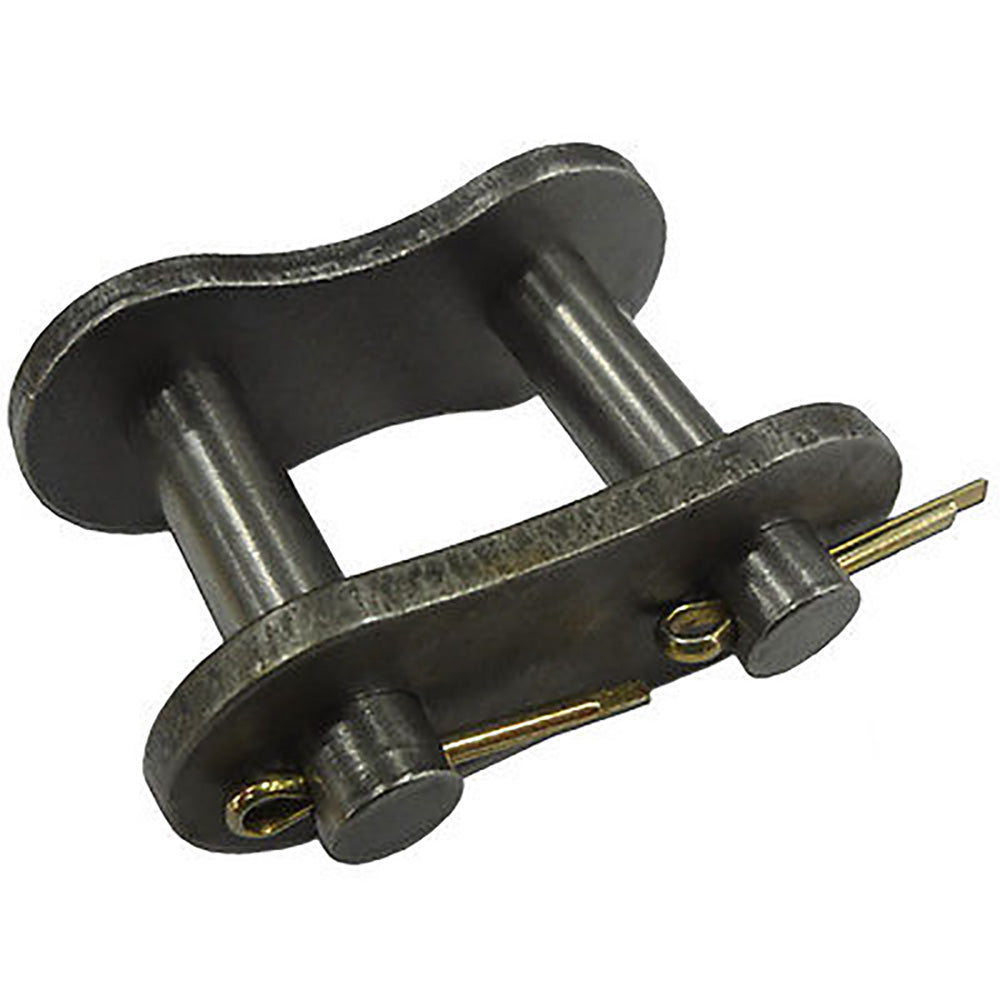

One New Aftermarket Replacement #120 Roller Chain Connector Link - Universal Fit
This #120 roller chain connector link, also known as a #120 master link, is used to connect two ends of ANSI #120 roller chain together or to make quick field repairs on drives and conveyors. It conforms to ANSI B29.1 standards and is a direct interchange for all major #120 chain brands used across agricultural equipment, conveyors, and industrial machinery. Sold individually (1 per pack), import.
Specifications
- Chain Size: #120 (ANSI B29.1)
- Pitch: 1.500 in. (38.1 mm)
- Roller Diameter: 0.875 in. (22.23 mm)
- Inner Width: 1.000 in. (25.40 mm)
- Pin Diameter: 0.437 in. (11.10 mm)
- Link Plate Height: approx. 1.410 in. (35.00 mm)
- Link Plate Thickness: 0.187 in. (4.70 mm)
- Overall Connecting Link Width: 2.300 in. (53.80 mm)
- Quantity: 1 per pack
Compatible Models
Universal Fit: Fits any application using standard ANSI #120 single-strand roller chain, including agricultural combines, grain augers, conveyors, hay equipment, and industrial drive systems from Fits John Deere, Fits Case IH, Fits New Holland, Fits Massey Ferguson, and other manufacturers.
Replaces Part Number(s):
RCC50-0021, CL120IMP, 120CL, 673-CL120, 673CL120, CL120P, RCCL120
New aftermarket replacement part - not remanufactured, not used.
