RC100HIMP 10' Import Roller Chain #100H
RC100HIMP 10' Import Roller Chain #100H
Couldn't load pickup availability

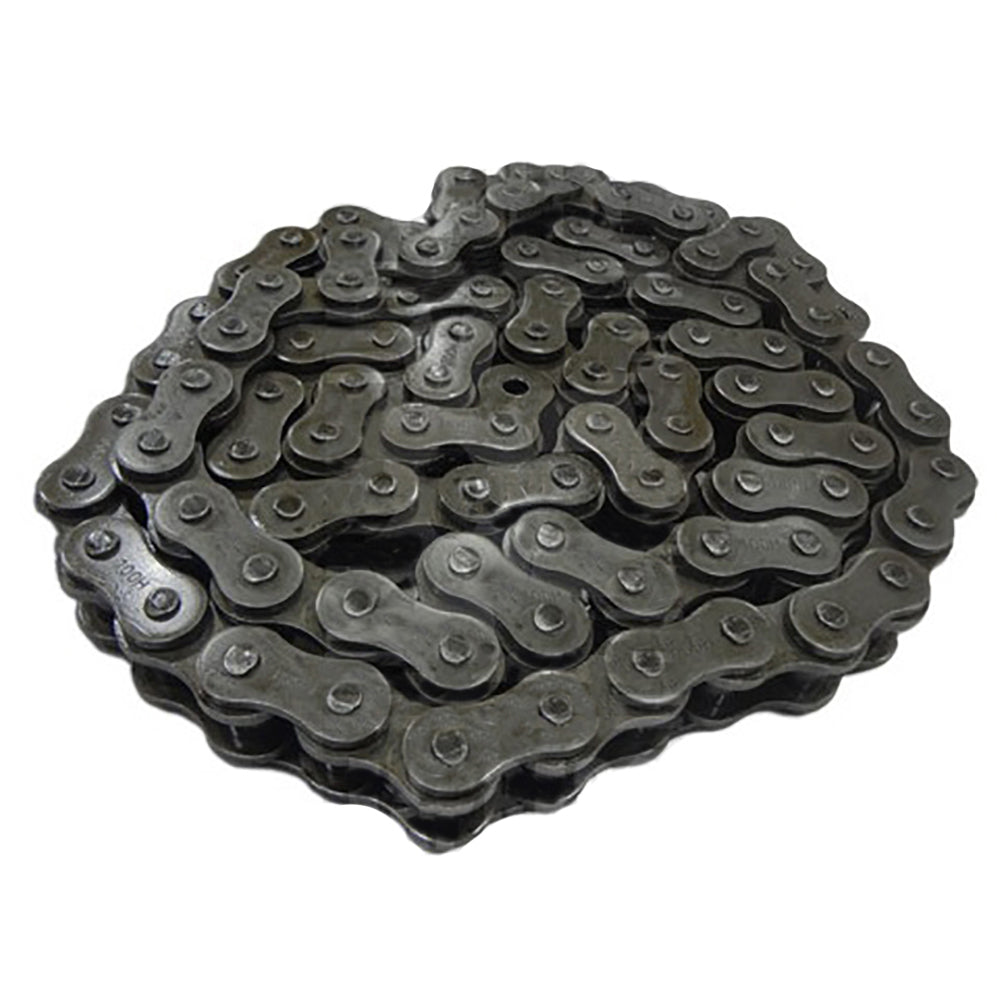

One New Aftermarket Replacement #100H Heavy Roller Chain - 10 Foot Roll (Import)
This ANSI #100H heavy series roller chain is a direct replacement for power transmission drives on tractors, combines, balers, conveyors, and other agricultural and construction equipment. The heavy series designation means thicker link plates over standard #100 chain for greater fatigue resistance and the ability to handle higher shock loads. Sold as a 10-foot roll, this import-grade chain meets ANSI #100H dimensional standards and is compatible with any sprocket designed for #100H chain.
Specifications
- ANSI Chain No.: #100H (Heavy Series)
- Length: 10 feet
- Pitch (P): 1.250 in.
- Roller Width (W): 0.750 in.
- Roller Diameter (D): 0.750 in.
- Link Plate Height (H): 1.188 in.
- Link Plate Thickness (T): 0.157 in.
- Pin Diameter (E): 0.375 in.
- Links Per 10 Feet: 96
- Avg. Ultimate Strength: 25,360 lb
- Avg. Weight: 2.65 lb/ft
- Solid rollers
- Import grade
Compatible Applications
Agricultural Equipment: Tractors, combines, balers, forage harvesters, grain conveyors, feed conveyors, manure handling systems, fertilizer spreaders
Construction and Industrial Equipment: Heavy-duty conveyors, lift systems, power transmission drives across construction, forestry, and poultry processing equipment
Fits any machine using ANSI #100H standard sprockets. Verify pitch, roller width, and plate dimensions against your existing chain before ordering.
Replaces Part Number(s):
RC100HIMP, RC100HIMP-A
New aftermarket replacement part - not remanufactured, not used.
