RA106RR Bearing for Universal Products
RA106RR Bearing for Universal Products
Couldn't load pickup availability

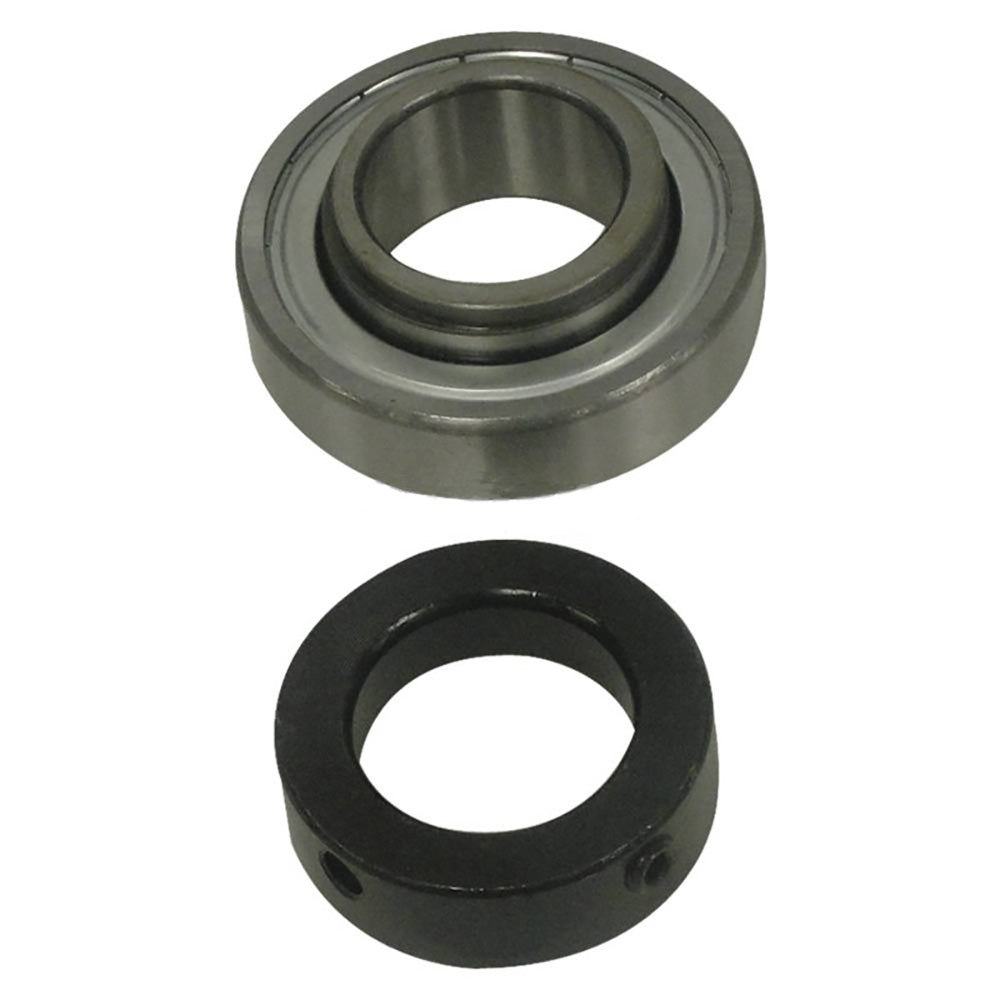

One New Aftermarket Replacement Wide Inner Ring Insert Ball Bearing - Fafnir/Timken RA106RR
This wide inner ring insert ball bearing features an eccentric locking collar and double-contact seals, making it a dependable replacement for agricultural equipment, conveyors, and general industrial machinery. The RA106RR is a factory pre-lubricated, non-relubricatable bearing with a cylindrical outside diameter and a steel cage, engineered to retain lubricant and resist contamination in demanding field conditions.
Specifications
- Bore (Inside Diameter): 1-3/8 in (34.925 mm)
- Outside Diameter: 2.8346 in (72 mm)
- Overall Width: 1.531 in (38.9 mm)
- Bearing Width: 0.748 in
- Inner Ring Width: 1.000 in
- Locking Type: Eccentric Collar
- Seal Type: Double Sealed (Contact/RR) - Non-relubricatable
- Cage Material: Steel/Nylon
- Clearance: Greater Than Normal (C3)
- Precision: Standard (ABEC 1)
- Dynamic Load Rating: 28,500 N (6,400 lb)
- Static Load Rating: 15,100 N (3,400 lb)
- Weight: approx. 0.487 kg (1.07 lb)
Compatible Applications
Agricultural Equipment (General): Wide-application insert bearing used in picker units, upper housing drum drives, conveyor shafts, auger drives, and general implement shaft assemblies across multiple brands and machine types.
John Deere Cotton Pickers: Row Unit (Conventional), Row Unit (PRO 12), Row Unit (PRO 16)
This is a universal-fit bearing used across a broad range of agricultural, industrial, and general machinery applications wherever a 1-3/8 in bore eccentric-collar insert bearing is required. Verify bore, OD, and width dimensions against your application before ordering.
Replaces Part Number(s):
RA106RR, RA106RR-IMP, HIB10-0172, HIB10-0185
Aftermarket Interchange Numbers
Fafnir RA106RR, Timken RA106RR, SKF RA106-RRB, A-RA106RR-I
New aftermarket replacement part - not remanufactured, not used.
