R56175 Rockshaft Lift Arm Fits John Deere 2520 3020 4000 4020 4030 4040
R56175 Rockshaft Lift Arm Fits John Deere 2520 3020 4000 4020 4030 4040
Regular price
£274.00 GBP
Regular price
Sale price
£274.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

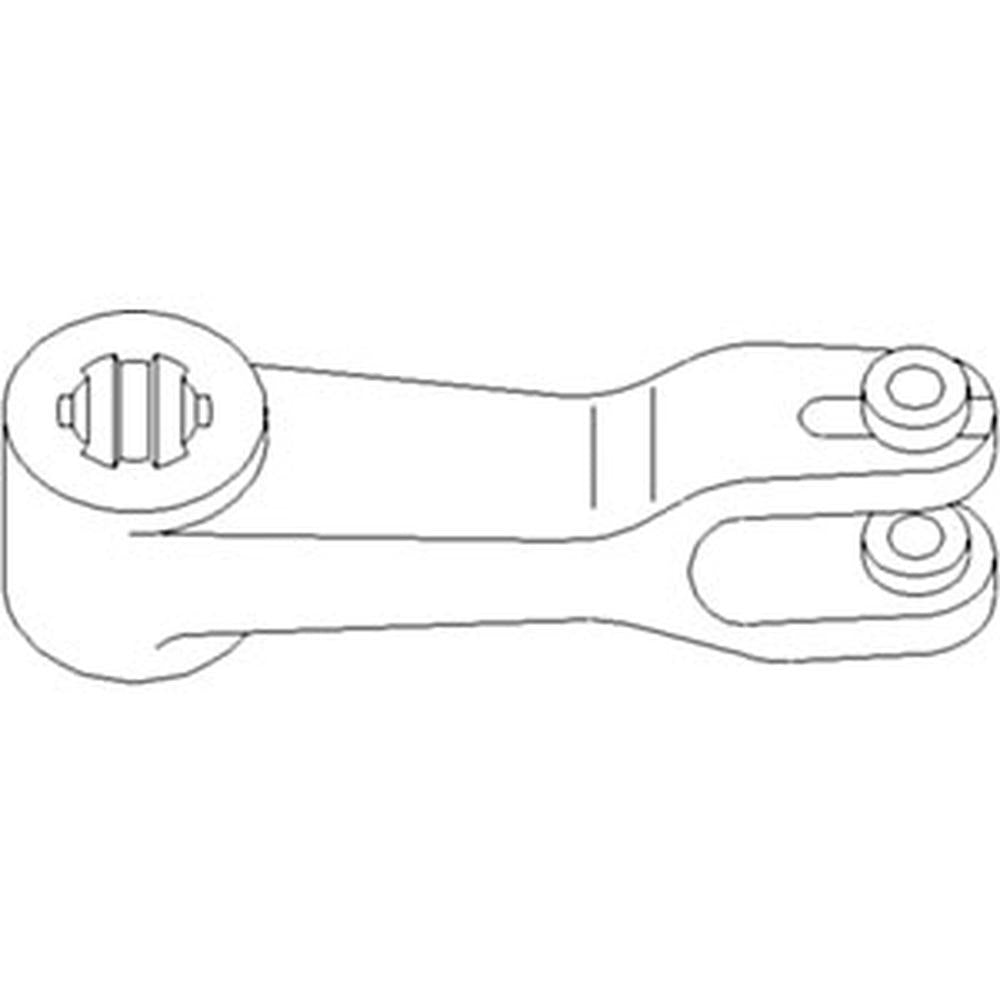

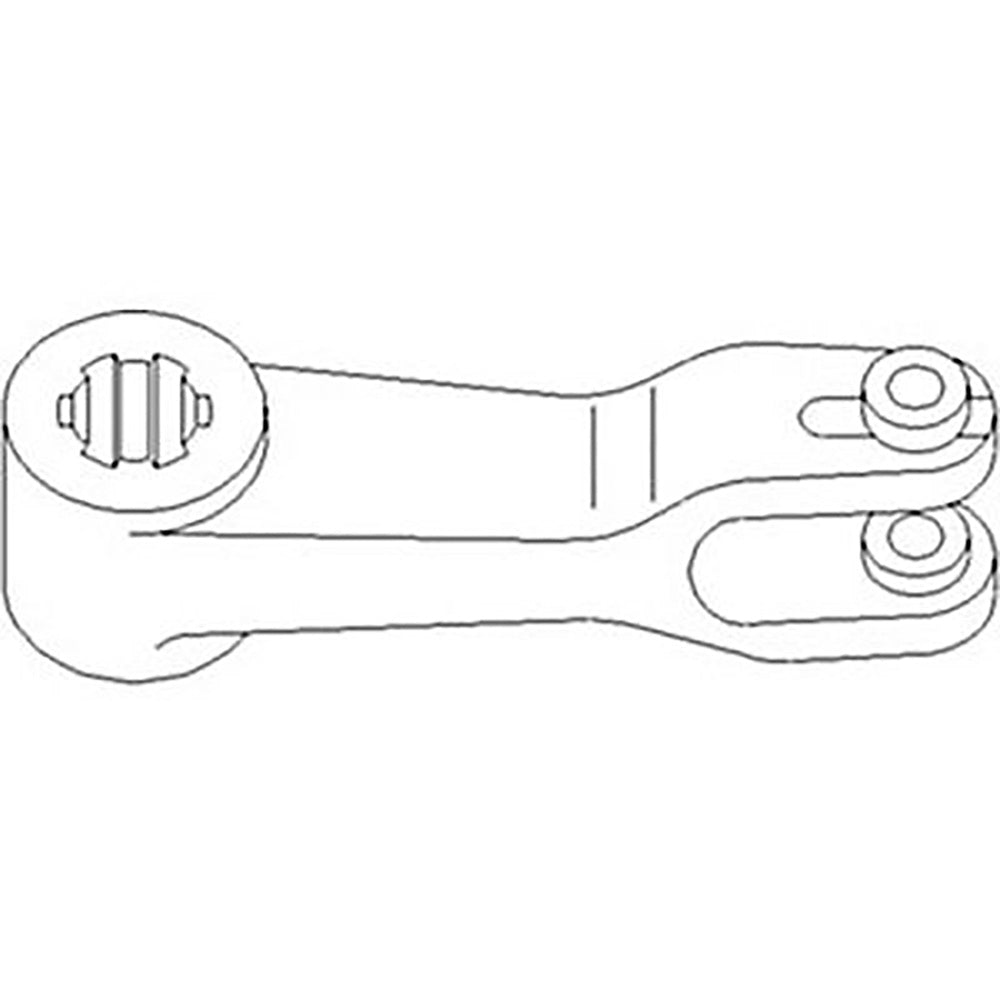

One New Aftermarket Replacement Rockshaft Lift Arm Fits John Deere Tractors
This aftermarket replacement rockshaft lift arm is a key component of the three-point hitch and drawbar/hitch hydraulic lift system on Fits John Deere row crop and standard tractors. The rockshaft lift arm connects to the rockshaft assembly and transfers hydraulic force to raise and lower rear-mounted implements. Part of the Hitch and Drawbar assembly -- Rockshaft Cylinders and Parts section.
Specifications
- Weight: approximately 16.20 lbs
- Application: Three-point hitch / drawbar rockshaft assembly
Compatible Models
Fits John Deere (Fits JD) Tractors:
- 2520 (Row Crop)
- 3020 (SN 123000 and later)
- 4000 (SN 201000 and later, Row Crop and Standard)
- 4020 (SN 201000 and later, Row Crop and Standard)
- 4030
- 4040 (without Lift Assist, L.H. with Lift Assist)
- 4230
- 4240
- 4320
- 4430
- 4440
Note: Serial number restrictions apply to the 3020 (SN 123000 and later), 4000 (SN 201000 and later), and 4020 (SN 201000 and later). Verify your serial number before ordering.
Replaces Part Number(s):
R56175, R56175-A
Aftermarket Interchange Numbers
A-R56175, R41565
New aftermarket replacement part - not remanufactured, not used.
