One New Aftermarket Replacement Tandem Hydraulic Pump Fits Massey Ferguson 4200, 4300, and 5300 Series Tractors

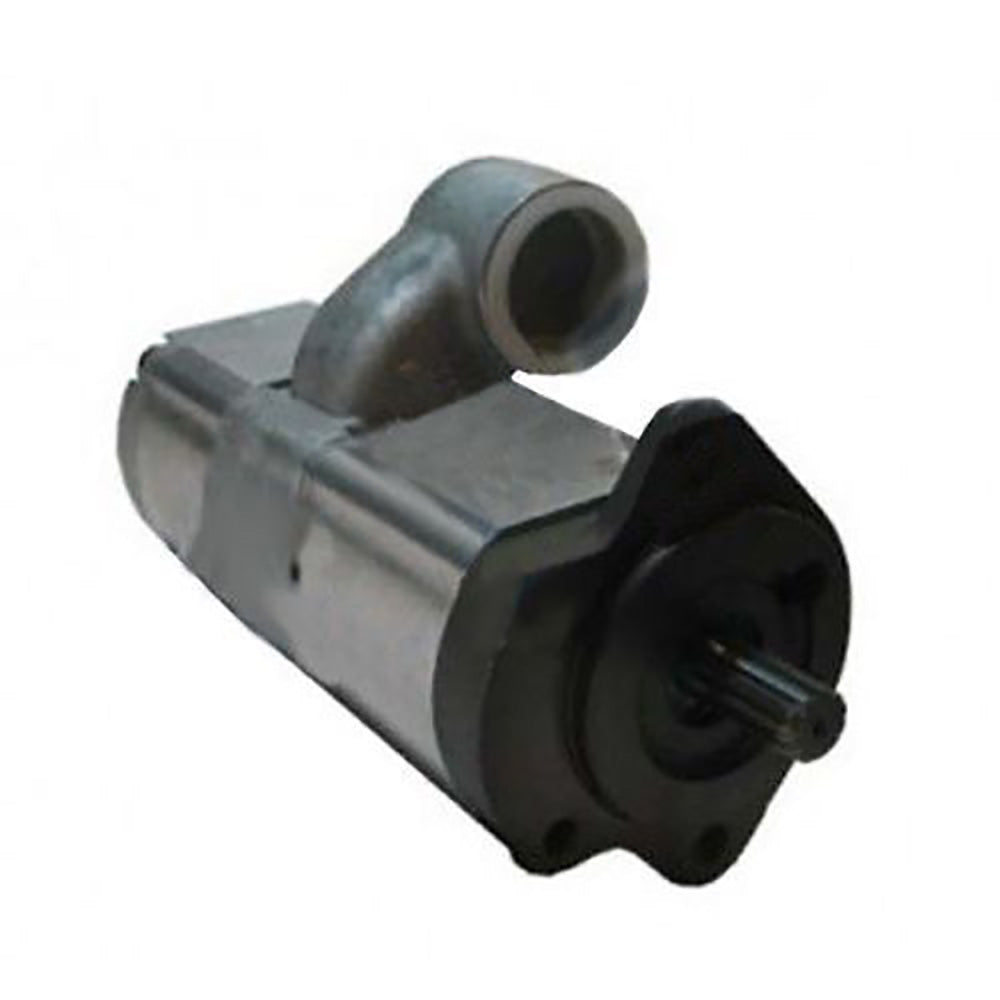

This tandem hydraulic gear pump (part number 3816909M91) supplies both the power steering and hydraulic lift circuits simultaneously on Fits Massey Ferguson 4200, 4300, and 5300 (Brasil) Series tractors. It features clockwise rotation, an 11-spline input shaft, and a dual-section gear design delivering 7.4 GPM to the inner circuit and 5.8 GPM to the outer circuit.
Specifications
- Type: Tandem Hydraulic Gear Pump
- Rotation: Clockwise
- Spline Count: 11
- Displacement: 0.854 + 0.610 CID
- Inner Max GPM: 7.4 (Front: 28 LPM / Rear: 22 LPM)
- Outer Max GPM: 5.8
- Front Inlet: 1.73 in. (44mm)
- Front Outlet: M18 x 1.5
- Top Hole Spacing: 4.17 in. (106mm)
Compatible Models
Fits Massey Ferguson 4200 Series: 4225, 4225HV, 4233, 4235, 4235 (USA), 4235HV, 4235HV (USA), 4240, 4243, 4245, 4245HV, 4253, 4255, 4255HV, 4260, 4265, 4270
Fits Massey Ferguson 4300 Series: 4325, 4325HV, 4335, 4335HV, 4345, 4345HV, 4355, 4355HV, 4360, 4365, 4370
Fits Massey Ferguson 5300 (Brasil) Series: 5290, 5300, 5335, 5340, 5355, 5360, 5365
AGCO: LT70, LT85
Fits Allis Chalmers: 8745, 8765
Challenger: MT425, MT445, MT455, MT465
White: 6410, 6510
Replaces Part Number(s):
3816909M91, 3800194M91, 35219, 3701006M91, 510665120
New aftermarket replacement part - not remanufactured, not used.
