PTO Driveline fits Land Pride FS1000 FS500 FS700 ECC1201

Name: PTO Driveline fits Land Pride FS1000 FS500 FS700 ECC1201
SKU: CS12111_9
Price: 100.0 USD
Availability: InStock

PTO Driveline fits Land Pride FS1000 FS500 FS700 ECC1201

£100.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket Replacement PTO Driveline for Land Pride Fertilizer Spreaders

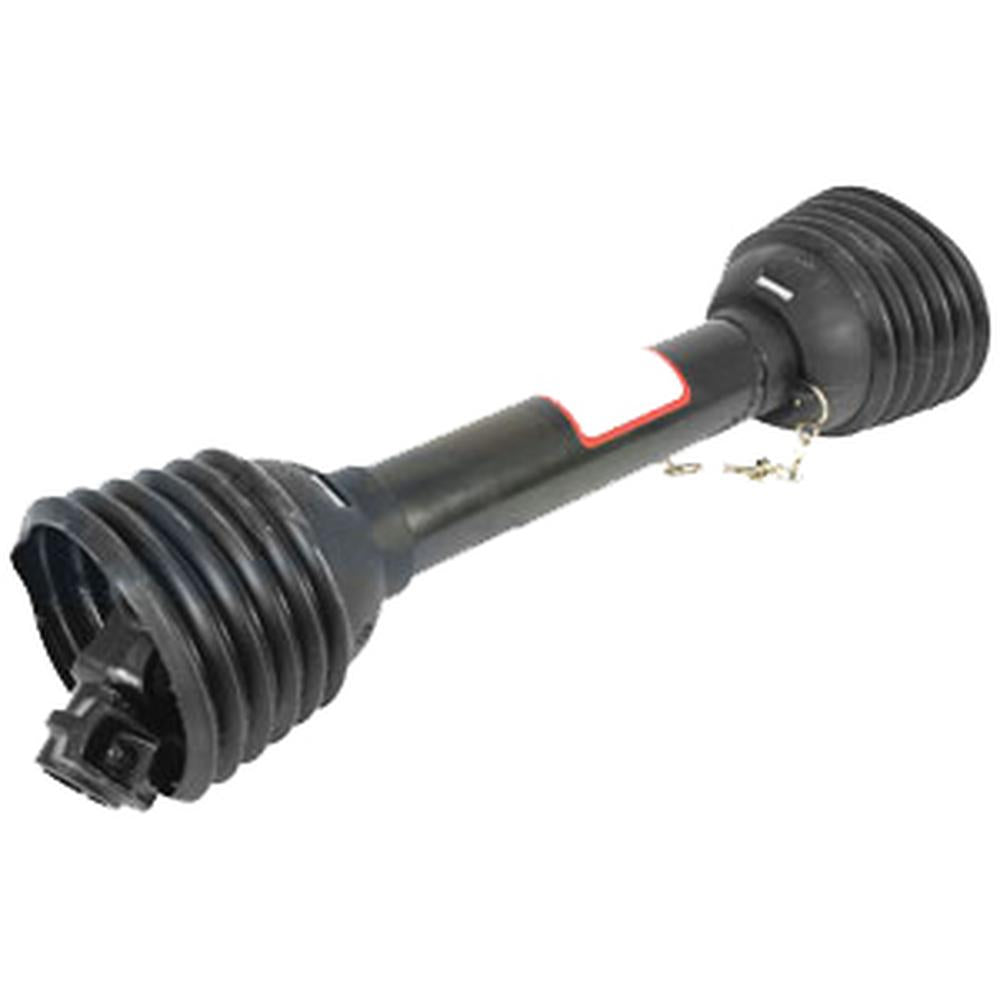

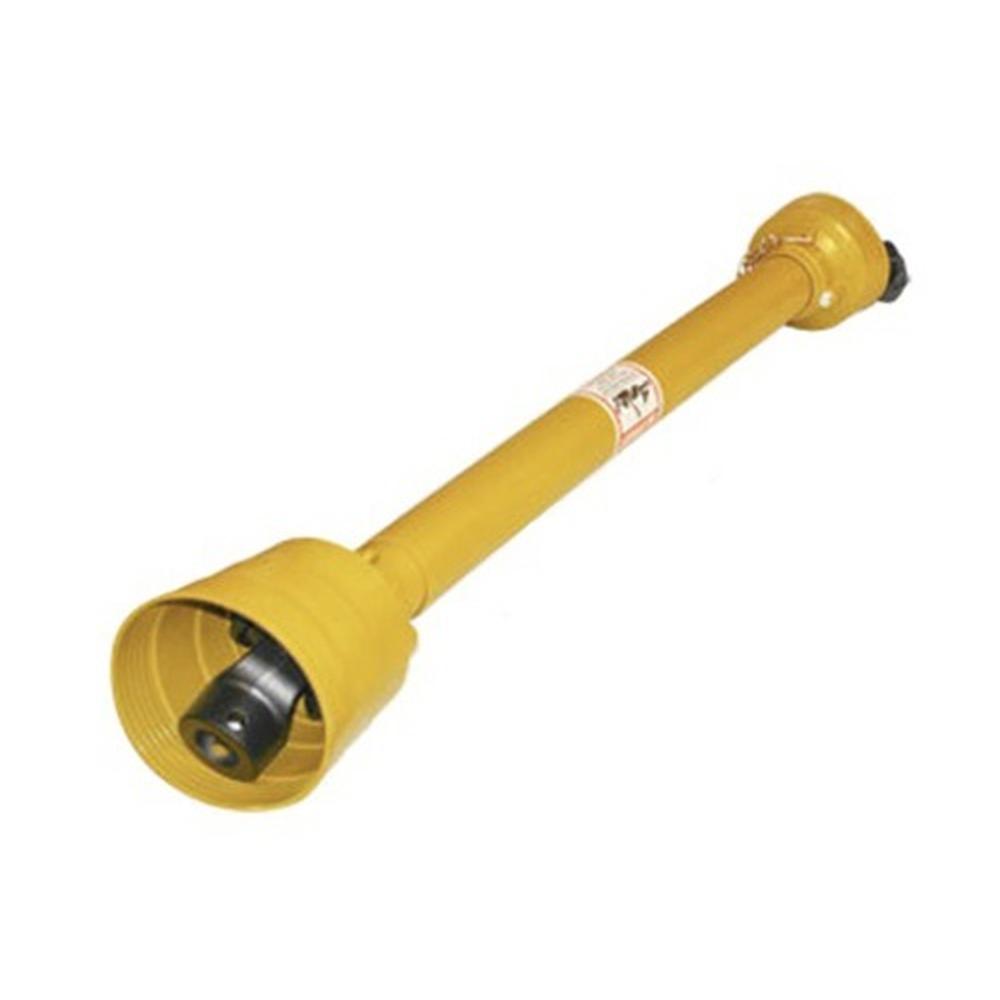

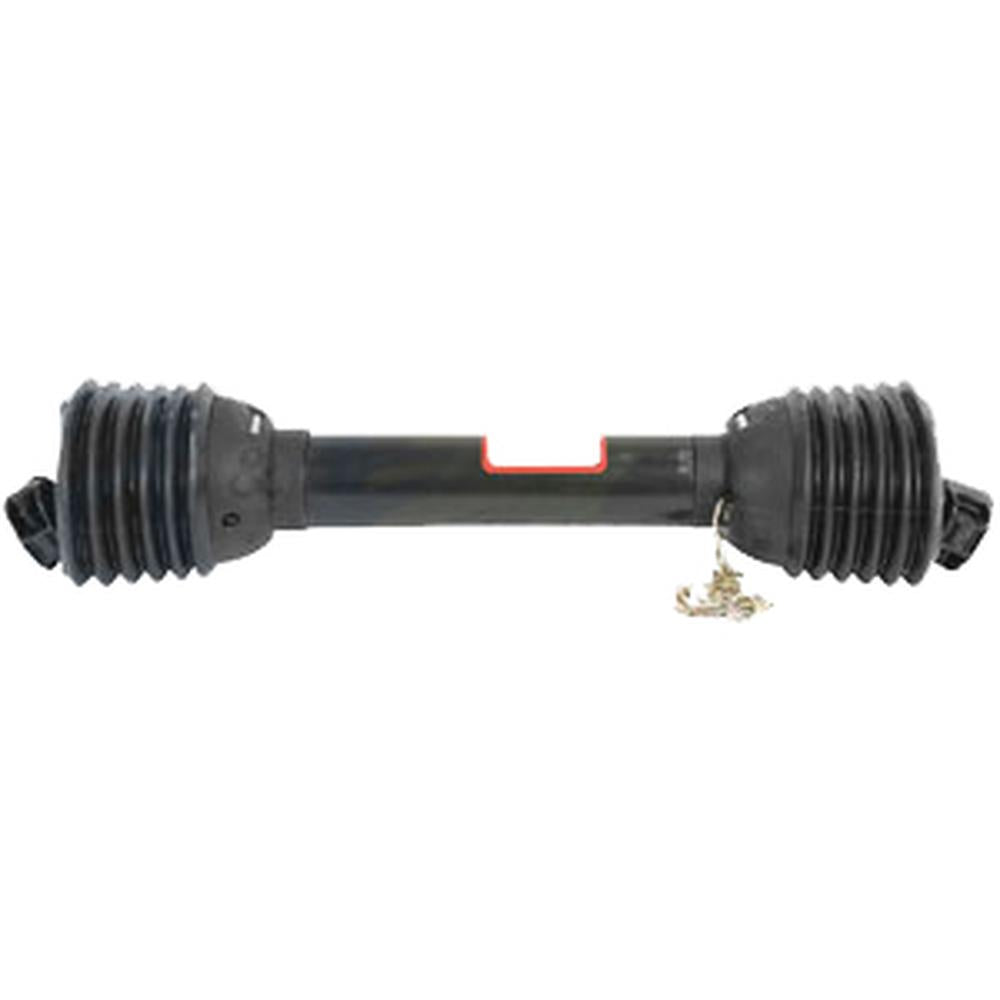

This aftermarket replacement PTO driveline shaft assembly connects your tractor's power take-off to Land Pride FS-series and ECC-series fertilizer spreaders. Manufactured to Series 100 / Category 1 standards, it features Quick Disconnect (QD) yokes on both the tractor and implement ends for fast attachment and removal. The telescoping shaft adjusts between 21" and 29" center-to-center to suit a range of 3-point hitch setups. Note: it may be necessary to cut this driveline to length -- verify sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.

Specifications

Series: 100 | Category: 1 (16 HP)
Yoke Type: Quick Disconnect (QD), both ends
Tractor End: 1-3/8" - 6 Spline
Implement End: 1-3/8" - 6 Spline
Min Center-to-Center Length: 21" (514 mm)
Max Center-to-Center Length: 29" (750 mm)
Total Collapsed Length: 27" (700 mm)

Compatible Models

Land Pride Fertilizer Spreaders: FS500, FS700, FS1000, ECC1201

Also fits: Kuhn, Lely, Sitrex, and Fits Toro fertilizer spreaders using Series 100 / Category 1 PTO drivelines with 1-3/8" 6-spline QD yoke connections. Verify fitment against specifications before ordering.

Replaces Part Number(s):

CS12111, ECC1201, SS0070226, PM14006127, 11111127, 266014006127, 343-103, 658-11111127

Aftermarket Interchange Numbers

A-CS12111, A-CS12111-A, 14006127, 14006127-A, 14006127-ECON, 14006127-ECON-A, 3013-6010

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

FS500, FS700, FS1000, Size 1, Category 1 (16 HP), 100 Series: Size 1

Additional Information:

1 3/8" 6 Spline, QD Yokes Size: 1 Min Center to Center Length: 21" (514 mm) Max Center to Center Length: 29" (750 mm) Total Collapsed Length: 27" (700 mm) Tractor: 1 3/8" -6 Implement: 1 3/8" -6 Series: 100 Category: 1 (16 HP) It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
