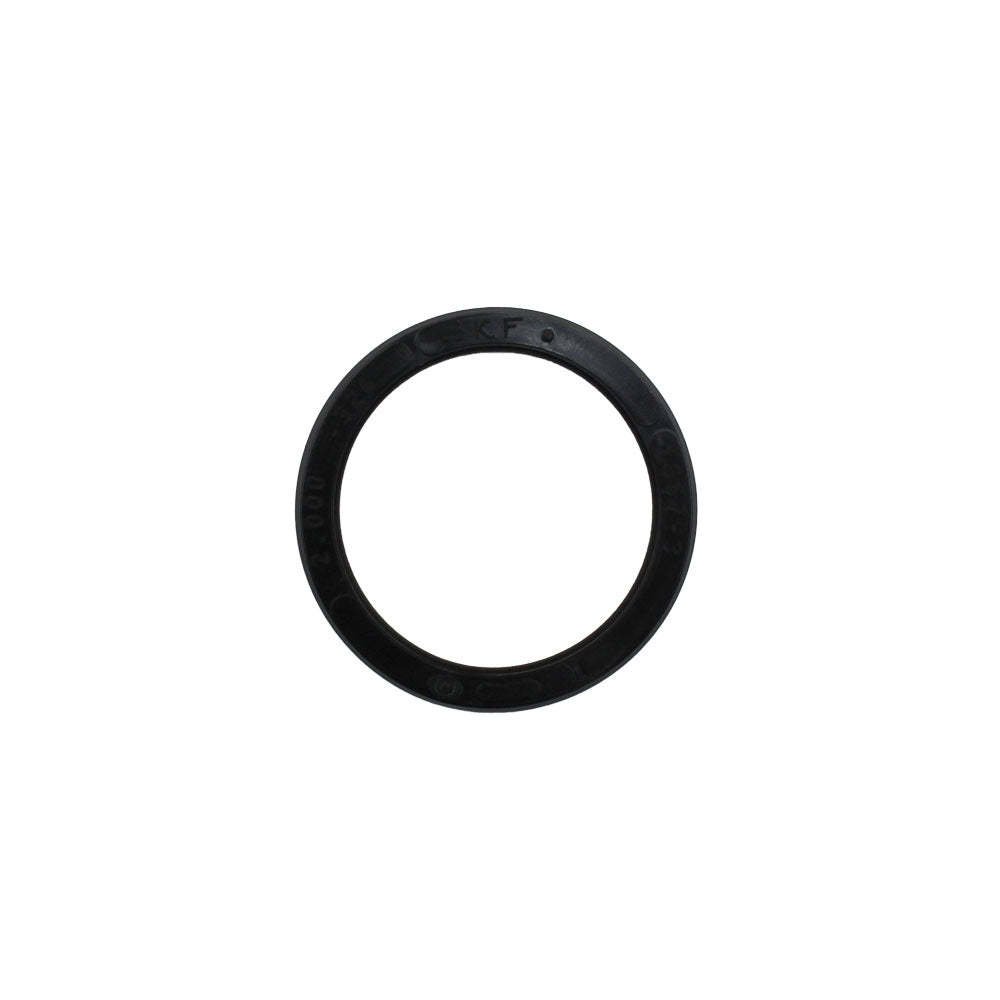

PSC-326 STANDARD T-SEALS

Name: PSC-326 STANDARD T-SEALS
SKU: PSC-326-HER
Price: 15.0 USD
Availability: InStock

PSC-326 STANDARD T-SEALS

£15.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

One New Aftermarket STANDARD T-SEALS

Tech Info:
-A Nom ID: 1-5/8
-SKU: PSC-326
-Weight: 0.01036200 lbs
-A Nom ID: 1-5/8
-B Nom OD: 2
-C Nom Height: .255
-H Groove Diameter: 1.625
-D Groove Width: .280
-MATERIAL: 95A POLYURETHANE SEAL70 A NITRILE ENERGIZER
-TEMPERATURE RANGE: -40° to +200° F
-PRESSURE RANGE: 0 to 5,000 PSI
-SPEED: 3 FT/SEC
-PART NUMBER: (Prefix) - (O-Ring Size) - (Wide Base)
-O Ring Dash Number: -326
-I Piston Diameter: 1.998

Additional Information:

Nom ID - 1 5/8" Nom OD - 2" Nom Height - 0.255" Groove Diameter - 1.625" Groove Width - 0.280" O Ring Dash Number - 326 Bore - 2 I Piston Diameter - 1.998 Temperature Range - -40° TO +200°F Pressure Range - 0 TO 5,000 PSI Speed - 3 FT/SEC
