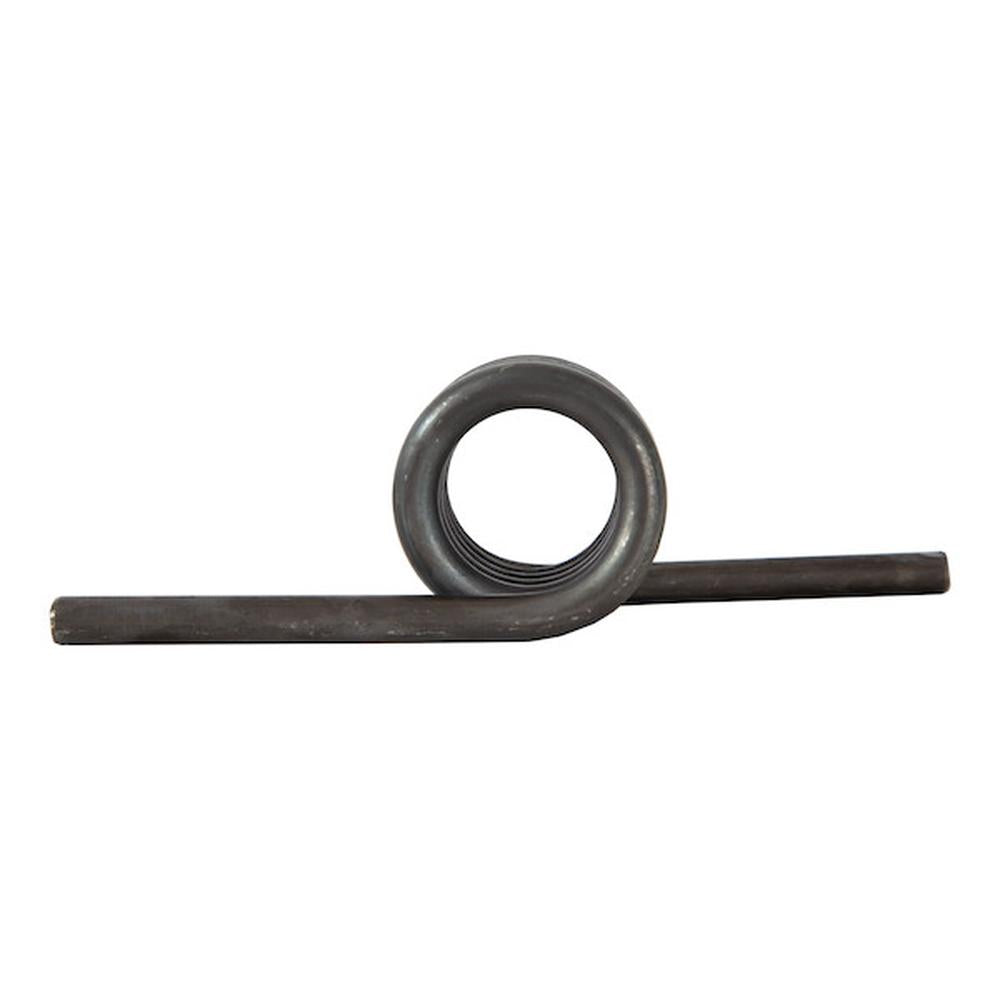

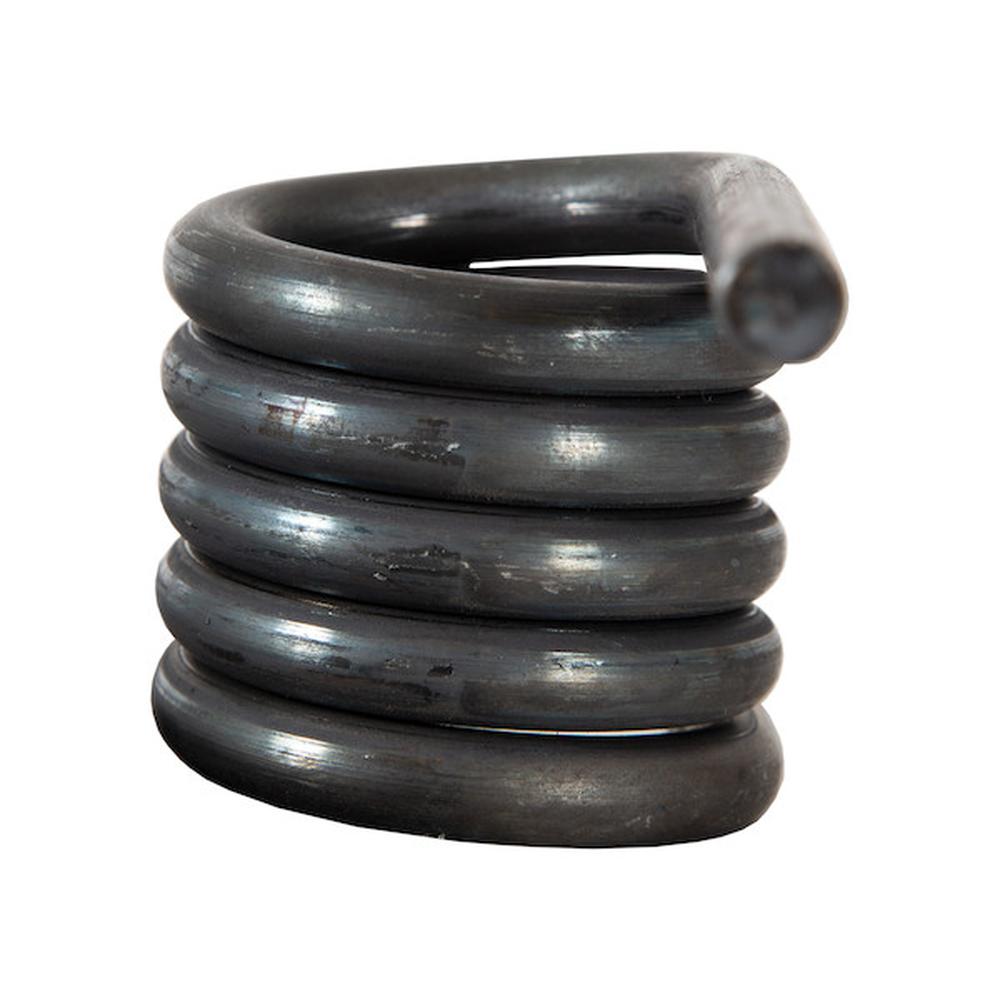

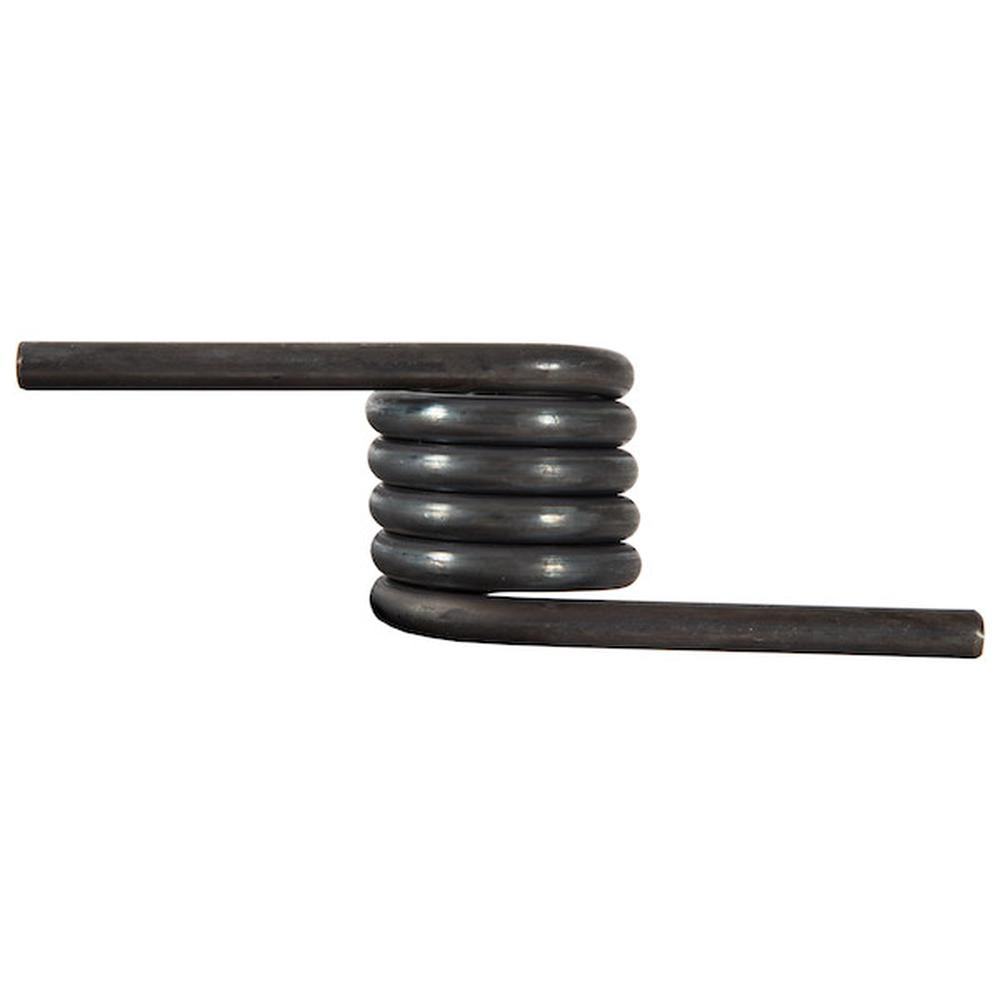

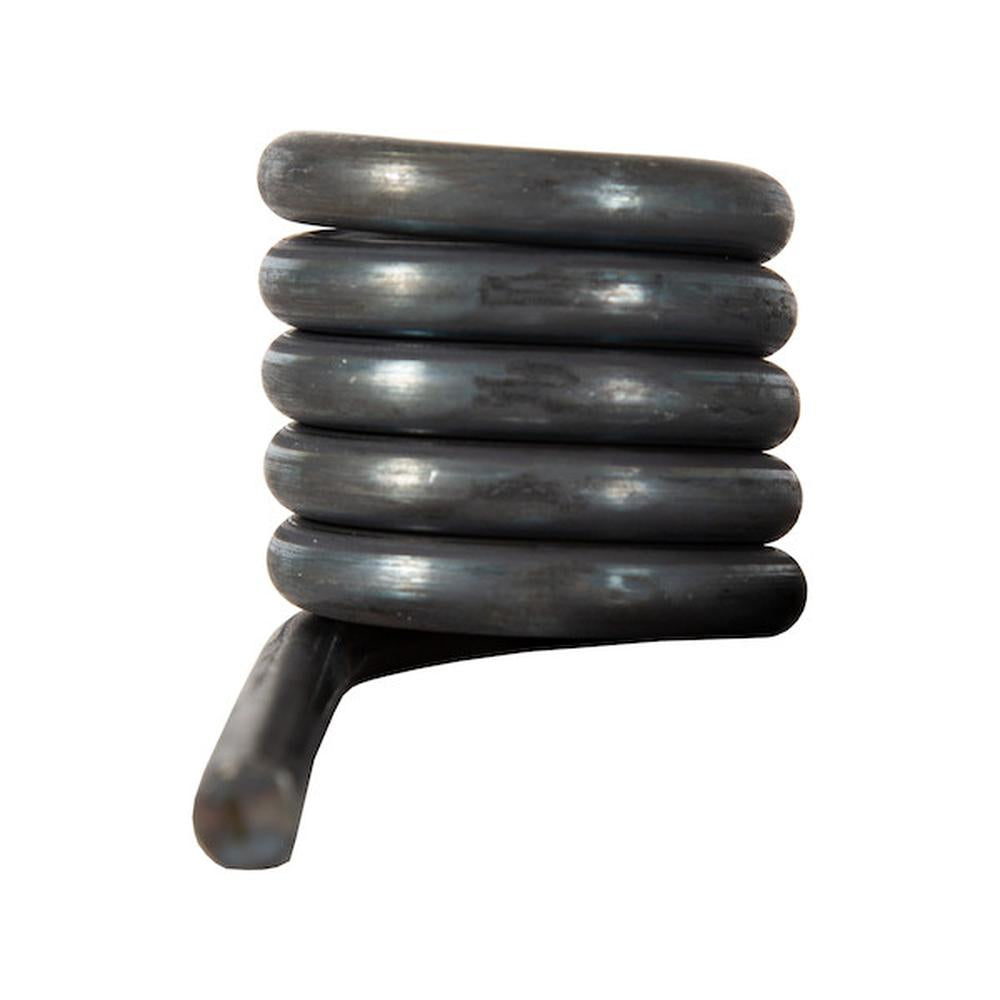

One New Aftermarket Replacement Left Hand Torsion Ramp Spring - Lift Assist for Landscaping and Open Trailers
This left hand torsion coil spring installs at the ramp hinge shaft to reduce the effort required to raise and lower heavy trailer ramps and gates. Designed for manual-deployment ramps on open style and landscaping trailers, it stores energy as the ramp lowers and releases that energy to assist lifting. Sold individually - left hand side only. Verify hand orientation before ordering: standing behind the trailer facing the ramp, the left hand spring is on your left.
Specifications
- Hand: Left Hand Coil
- Total Length: 6"
- Width: 1.875"
- Inside Diameter (ID) of Coil: 1.125"
- Fits Over Shaft Diameter: 1" round shaft
- Ear Length: 2" from coil to end
- Wire/Bar Diameter: 5/16" round steel stock
- Material: Hardened steel, plain finish
- Spring Rate: 23 in-lbs per degree
Compatible Applications
Universal Fit - Landscaping and Open Trailers: Designed as a universal fit for open style and landscaping trailers equipped with a 1" diameter round hinge shaft. Commonly used on utility trailers, lawn and garden equipment trailers, and similar light-to-medium duty trailer ramps.
Replaces Part Number(s):
3034278
Aftermarket Interchange Numbers
Buyers Products 3034278, ST9437L
New aftermarket replacement part - not remanufactured, not used.
