Piston - 101.40 mm Single Cylinder fits Long 510 610 2610 2610 510 610 TX15107

Name: Piston - 101.40 mm Single Cylinder fits Long 510 610 2610 2610 510 610 TX15107
SKU: AGER1826867
Price: 60.0 USD
Availability: InStock

Piston - 101.40 mm Single Cylinder fits Long 510 610 2610 2610 510 610 TX15107

£60.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

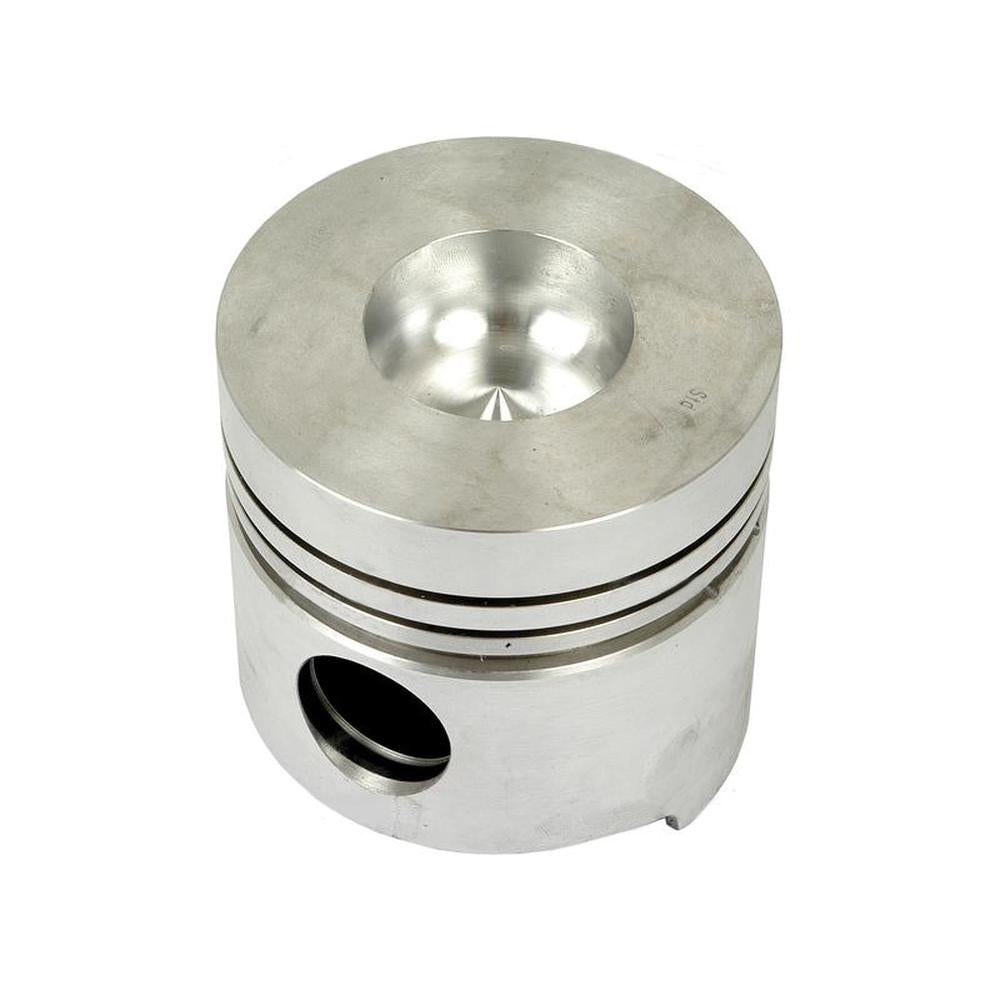

One New Aftermarket Replacement Standard Piston for Long Tractor - 101.40mm (4.01" Bore)

This standard aftermarket replacement piston fits Long tractors powered by the Fiat-sourced diesel engine. Sold as a single cylinder piston (less rings), it is a direct replacement for use during engine rebuilds and overhauls. The piston features a 3-ring design with an offset combustion bowl and is compatible with the UTB-built Long tractor lineup sharing the 101-102mm bore engine family.

Specifications

Piston Length: 3.99 in. (101.40mm)
Compression Height: 2.34 in. (59.44mm)
Bore: 4.01 in. (101.96mm)
Bowl Depth: 0.96 in. (24.40mm)
Chamber: 1.90 in. (48.46mm)
Pin Diameter: 1.25 in. (31.93mm)
Number of Rings: 3
Sold as: Single Cylinder (less rings)

Compatible Models

Long Tractors: 310, 310C, 310DT, 510, 510DT, 610, 610C, 610DT, 610DTE, 2510, 2510DTC, 2510SD, 2510SD-DTE, 2610, 2610DTC, 2610SD, 2610SD-DTC

Replaces Part Number(s):

TX15107, 11503170, 115.03.170, 115 03 170, 8772111

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

510, 2510SD-DTE, 610, 310DT, 510DT, 610C, 2510, 2610SD-DTC, 610DT, 2510SD, 310C, 2610DTC, 610DTE, 2510DTC, 2610SD, 2610, 310

Additional Information:

Piston Length: 3.99” (101.40mm) Compression Height: 2.34” (59.44mm) Bore: 4.01” (101.96mm) Bowl Depth: 0.96” (24.40mm) Chamber: 1.90” (48.46mm) Pin: 1.25” (31.93mm) No. of Rings: 3
