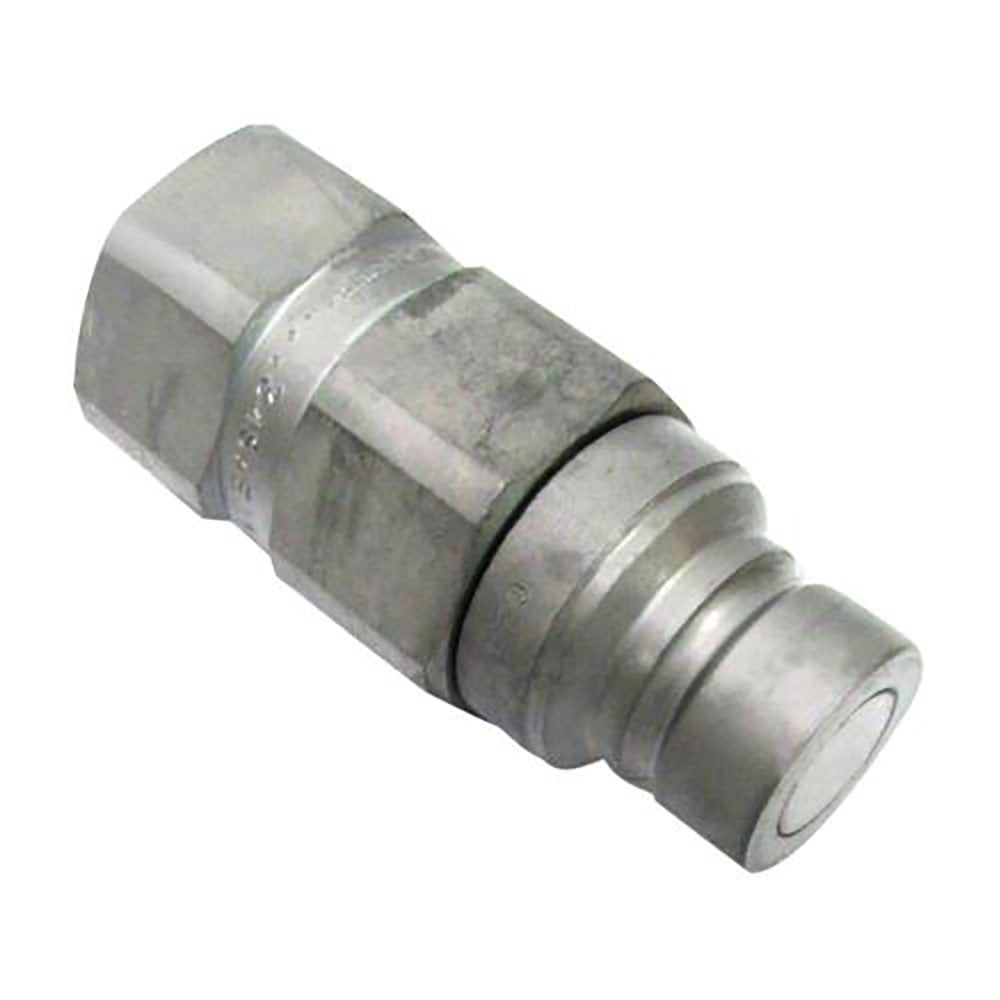

Parker FEM-502-12FO Hydraulic Quick Couoler Nipple Male Flat Face 1/2" 3675 PSI

One New Aftermarket Replacement Parker FEM-502-12FO Hydraulic Quick Coupler Nipple Fits New Holland Skid Steer Loaders

This Parker FEM-502-12FO is a male flat face hydraulic quick coupler nipple (plug) used on the auxiliary hydraulic attachment lines of Fits New Holland (Fits Ford/New Holland) skid steer loaders. It features a push-to-connect, double shut-off, non-spill flat face design that minimizes fluid spillage and air inclusion when connecting or disconnecting hydraulic attachment lines. The flat face design also helps keep connection faces clean and free of contaminants. This coupler is interchangeable with all couplings complying with the ISO 16028 / HTMA flat face standard.

Specifications

• Parker Series: FEM-502-12FO
• Type: Male Nipple (Plug), Push-to-Connect
• Body Size: 1/2"
• Port End: 1-1/16"-12 UN Female Straight Thread (FO)
• Rated Pressure: 3,625 PSI
• Rated Flow Rate: 12 GPM
• Temperature Range: -22 degrees F to +212 degrees F
• Standard: ISO 16028 / HTMA compliant
• Material: Steel

Compatible Models

Fits New Holland Skid Steer Loaders: L140, L150, L160, L170, L180, L190, LS140, LS150, LS160, LS170, LS180, LS180B, LS190, LS190B, LT185B, LT190B

Replaces Part Number(s):

47847135, 86613114

Aftermarket Interchange Numbers

Parker FEM-502-12FO; ISO 16028 / HTMA flat face 1/2" body nipples from other brands are globally interchangeable with this coupler.

New aftermarket replacement part - not remanufactured, not used.
