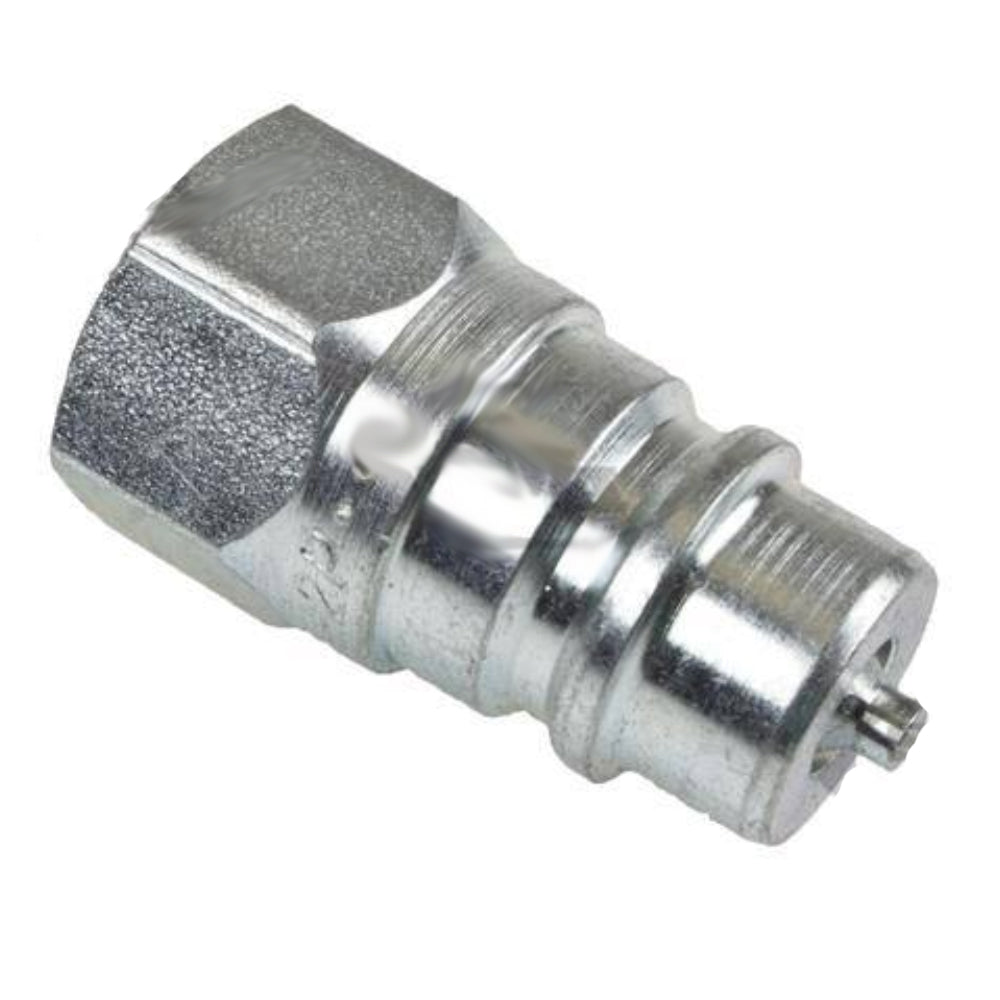

Parker 1/4"-18 Steel Hydraulic Coupler Nipple w/ 1/4" Body Size 4010-2P Farmer

One New Aftermarket Replacement Parker 4000 Series Hydraulic Coupler Nipple (Male Tip) - 1/4" Body Size, 1/4"-18 NPTF

This Parker Hannifin 4000 Series (8010 Series) hydraulic quick-disconnect male tip nipple features a built-in poppet valve and is the universal standard male tip widely used on agricultural tractors, implements, and mobile hydraulic equipment. Commonly referred to as the Pioneer-style tip, it is compatible with ISO 5675 agricultural quick-coupler standards and connects with Parker 4000, 4200, 5000, 8200, and 9200 Series couplers. Zinc-plated steel construction with a hardened locking ball groove resists wear and protects against Brinelling for long service life.

Specifications

• Body Size: 1/4"
• Thread: 1/4"-18 NPTF (Female)
• Valve Type: Poppet
• Material: Steel, Zinc Plated
• Seal Material: Buna-N
• Locking Mechanism: Ball
• Max. Operating Pressure: 3,000 psi
• Max. Flow Rate: 3.0 gpm
• Operating Temperature Range: -40 degrees F to 250 degrees F
• Length: 1-31/64"
• Standard: ISO 5675 (Pioneer-pattern compatible)

Compatible Applications

Designed for use on agricultural tractors and farm implements, hydraulic loaders, add-on hydraulic circuits, hydraulic tools, snow plow attachments, construction equipment, forestry equipment, and other mobile hydraulic applications.

Replaces Part Number(s):

4010-2PGV, 40102PGV

Aftermarket Interchange Numbers

HYM40-1643, PRH4010-2, G-4010-2P, PK4010-2P, 0450-NS-40102P, H060-2001, 96003, 12163, 802231, 4031, 02712-0730, U2712-0730, H33NN, 008455, 105300, E313650, 10917-03512, 555V, N273866S01, N951640S01, 231-63-070-10, ST 045030 00050, 007732C, 13565, 239195, 1231318, HYD0315

New aftermarket replacement part - not remanufactured, not used.
