Outer Tie Rod WN-AL161341 AL161341

Name: Outer Tie Rod WN-AL161341 AL161341
SKU: AGER1096846
Price: 80.0 USD
Availability: InStock

Outer Tie Rod WN-AL161341 AL161341

£80.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

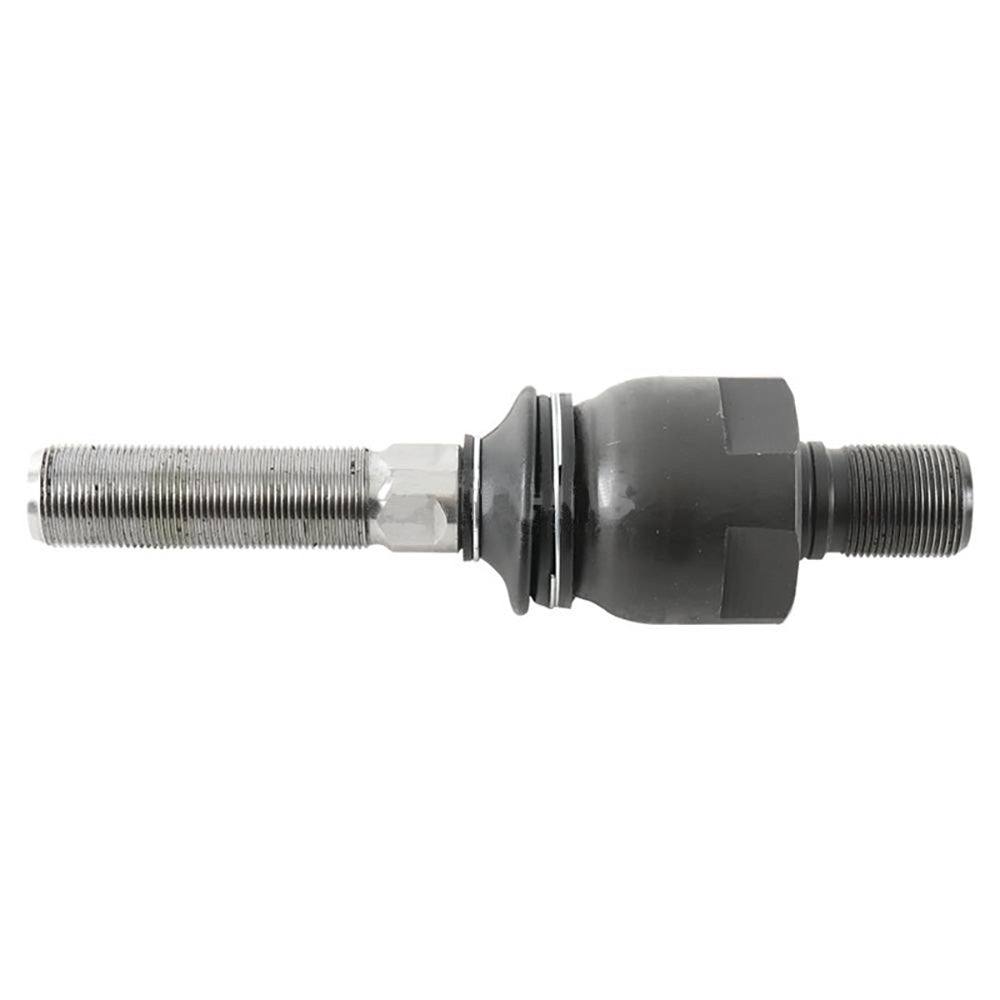

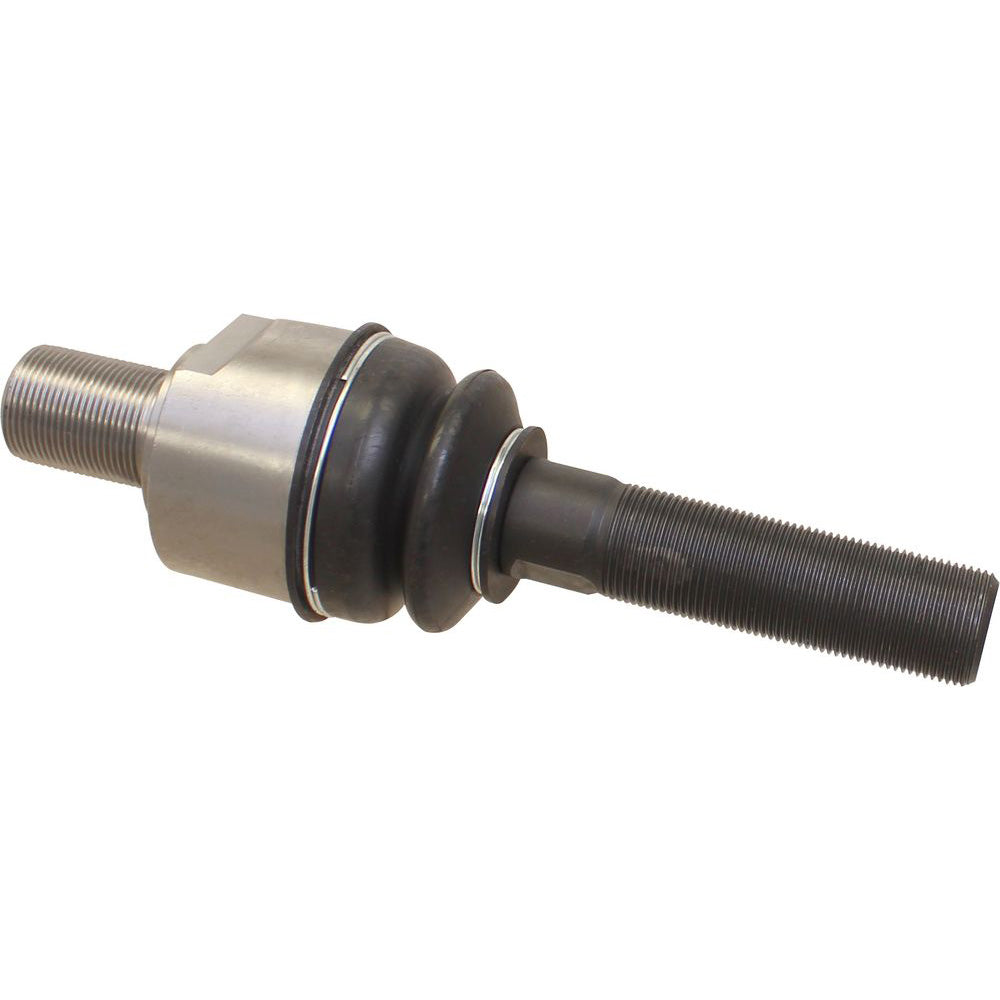

One New Aftermarket Replacement Outer Tie Rod Fits John Deere (Fits JD) 6000 Series Tractors

This outer tie rod is a direct aftermarket replacement for the Fits John Deere OEM part AL161341, fitting the front MFWD (Mechanical Front Wheel Drive) axle steering linkage. It Fits John Deere tractors equipped with the Dana/Spicer 733 axle as well as Dana 730 axle configurations. Left or right hand compatible, making it a single part number for either side.

Specifications

Application: Left or Right Hand
Center to End: 4 5/16 in.
Diameter: 1 3/8 in.
Length: 8 11/16 in.
Thread Size: 24 metric

Compatible Models

Fits John Deere (Fits JD) 6000 / 6020 Series (MFWD w/ Dana 733 Axle): 6020, 6100, 6100D, 6105D, 6110D, 6115D, 6120, 6120L, 6125D, 6130, 6130D, 6140D, 6215, 6220, 6220L, 6225, 6230, 6320, 6320L, 6325, 6330, 6415, 6420, 6420L, 6420S, 6425, 6430, 6520, 6520L, SE6020, SE6120, SE6220, SE6320, SE6420

Fits John Deere (Fits JD) Utility Series (MFWD w/ Dana Axle): 6403, 6603

Replaces Part Number(s):

AL161341, AL161341-A, TPAL161341, WN-AL161341

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

6320, 6330, 6105D, 6120, 6100, 6130, 6125D, 6325, 6520, 6220, SE6020, 6320L, 6230, 6425, SE6320, 6120L, 6140D, 6020, SE6120, 6420S, 6403, 6110D, 6115D, 6225, 6220L, 6420L, SE6220, 6130D, 6215, 6430, 6415, 6603, SE6420, 6520L, 6100D, 6420
