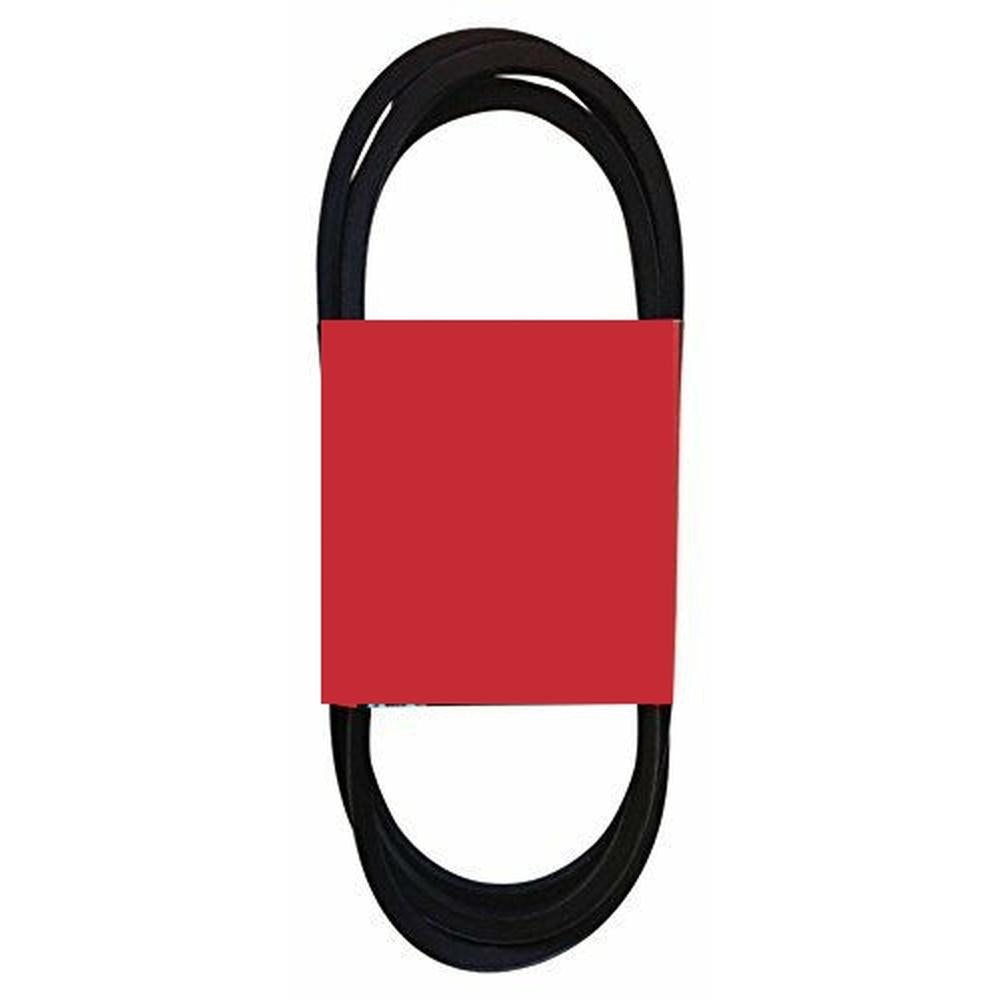

3L160 Replacement General Utility V-Belt 3/8" X 16"

One New Aftermarket Replacement General Utility V-Belt for Agricultural, Lawn & Garden, and Light-Duty Equipment

The 3L160 is a 3L-section fractional horsepower (FHP) wrapped V-belt sized at 3/8" top width by 16" outside circumference. This standard utility belt is used across a wide range of light-duty power transmission applications including lawn mowers, small engine equipment, power tools, air compressors, and agricultural machinery drives. The wrapped construction provides smooth, quiet operation with minimal vibration, and the rubber body with polyester cord reinforcement delivers heat resistance, oil resistance, and static conductivity for reliable everyday performance.

Specifications

• Belt Section: 3L (Fractional Horsepower / FHP)
• Top Width: 3/8" (0.375")
• Outside Circumference: 16" (406.4 mm)
• Belt Depth: 7/32" (0.230")
• Construction: Wrapped (fabric cover, rubber body, polyester cords)
• Number of Ribs: Single
• Properties: Heat-resistant, oil-resistant, static-conductive

Compatible Applications

This is a general utility belt sized to fit any drive requiring a standard 3L160 FHP V-belt. Common applications include lawn mowers and lawn tractors, small engine and garden equipment, power tools (including Grizzly/power tool drives), air compressors, washing machine drives, and light agricultural equipment. Interchangeable across brands including Gates (Truflex 8400-1160), Browning, Goodyear, Carlisle, and Dayco wherever a 3L160 specification is called for.

Replaces Part Number(s):

3L160, 3L160A

Aftermarket Interchange Numbers

Gates 8400-1160 (Truflex), 1160, Metric M16; compatible with any application specifying a 3L section, 3/8" x 16" FHP V-belt.

New aftermarket replacement part - not remanufactured, not used.
