5VX630 Replacement Cogged V-Belt 5/8" X 63"
5VX630 Replacement Cogged V-Belt 5/8" X 63"
Couldn't load pickup availability

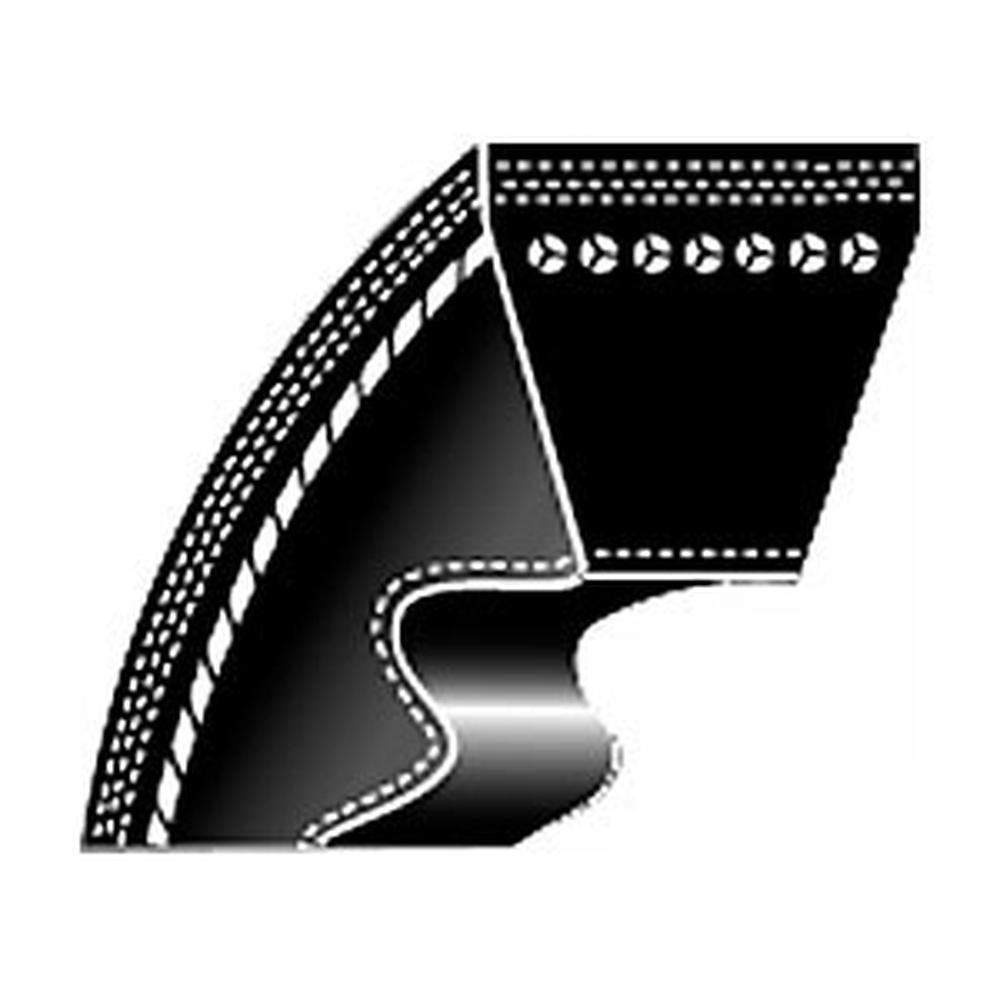

One New Aftermarket Replacement 5VX630 Cogged Wedge V-Belt - 5/8" x 63"
This 5VX630 cogged wedge V-belt is a heavy-duty power transmission belt used across agricultural equipment, plant machinery, HVAC systems, machine shop equipment, and fans. The 5VX section design combines a narrow wedge profile with precision-molded cogs (notches) on the underside, allowing the belt to flex against smaller-diameter sheaves while running cooler and transmitting more power than a standard classical V-belt of the same size. The polyester reinforcing cord provides dimensional stability and uniform load distribution under demanding drive conditions.
Specifications
- Belt Section: 5VX (Cogged Wedge)
- Outside Circumference: 63 in (1600.2 mm)
- Top Width: 5/8" (0.625 in / 15.88 mm)
- Belt Depth: 35/64" (approx. 17/32" / 13.5 mm)
- Reinforcing Cord Material: Polyester
- Edge Construction: Raw Edge
- Belt Type: Single, Cogged Wedge
- Operating Temperature Range: -40 degrees F to 230 degrees F
- Resistance: Heat Resistant, Oil Resistant
Compatible Applications
The 5VX630 is an industry-standard belt size used on a wide range of agricultural, industrial, and lawn and garden equipment drives. Verify your equipment's belt specification (section, outside circumference) before ordering.
Replaces Part Number(s):
5VX630, 5L7704
New aftermarket replacement part - not remanufactured, not used.
