3V500/04 Wedge Banded V-Belt 3/8" x 50" O.C. Length & 21/64" Depth w/o Band
3V500/04 Wedge Banded V-Belt 3/8" x 50" O.C. Length & 21/64" Depth w/o Band
Regular price
£43.00 GBP
Regular price
Sale price
£43.00 GBP
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

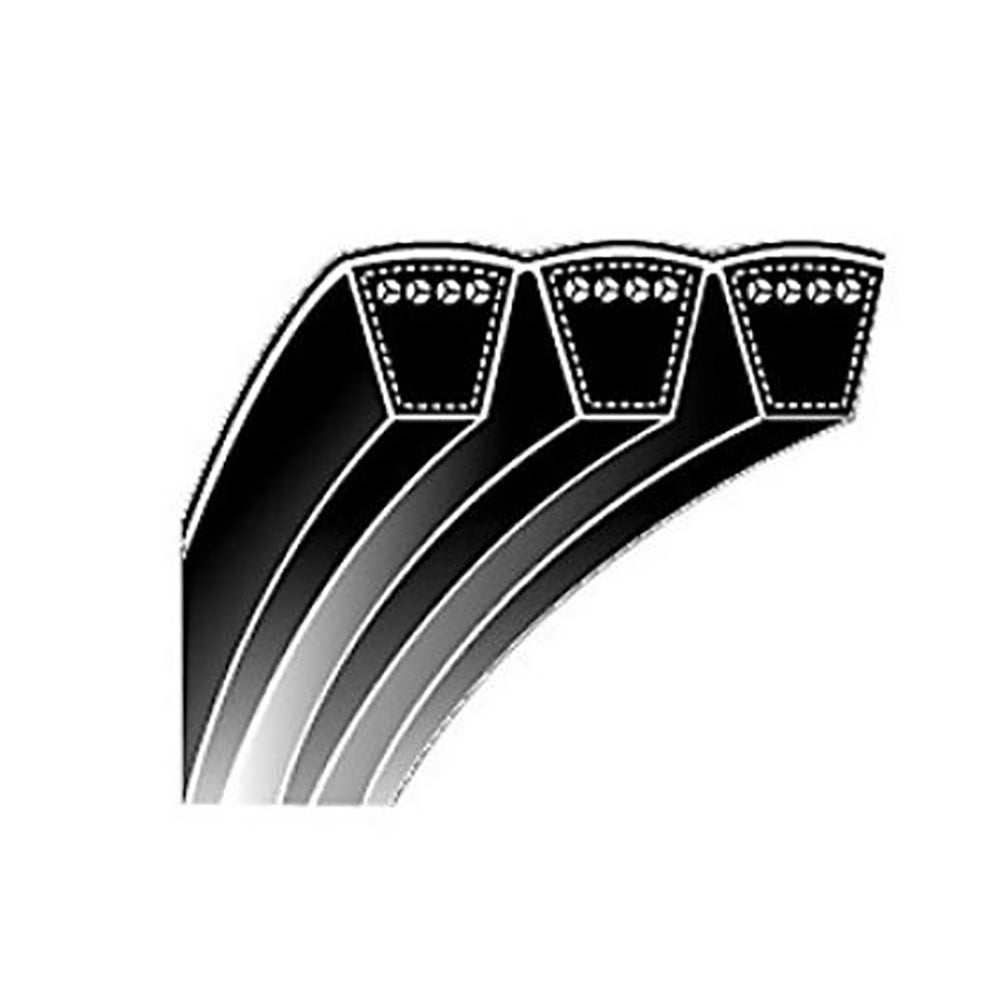

One New Aftermarket Replacement 3V500/04 Wedge Banded V-Belt for Agricultural and Industrial Equipment
This 3V500/04 is a 4-band wedge banded wrapped V-belt designed for drives where vibration, belt whip, or high shock loads make single V-belts impractical. The tie-band backing joins four matched 3V-section belts into a single unit, delivering stable, high-capacity power transmission across the full belt width. Suitable for agricultural machinery, industrial equipment, and other multi-belt drive applications requiring narrow-section wedge geometry.
Specifications
- Belt Type: 3V-Section Wedge Banded (Wrapped)
- Number of Bands: 4
- Top Width: 3/8 in
- Outside Circumference (O.C.) Length: 50 in
- Inside Length: 48 in
- Height (Depth w/o Band): 21/64 in
- Pitch Distance: 13/32 in
- Weight: 1.12 lb (approx.)
- Construction: Rubber cushion with polyester cable cord reinforcement and rubber-impregnated woven cotton-polyester fabric wrap
- Temperature Range: -35 degrees C to +70 degrees C
- Oil resistant, antistatic, dimensionally stable
Replaces Part Number(s):
3V500/04
New aftermarket replacement part - not remanufactured, not used.
