One New Aftermarket Replacement Course Tooth Double Sickle Section H163131

Name: One New Aftermarket Replacement Course Tooth Double Sickle Section H163131
SKU: H163131_1
Price: 10.0 USD
Availability: InStock

One New Aftermarket Replacement Course Tooth Double Sickle Section H163131

£10.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

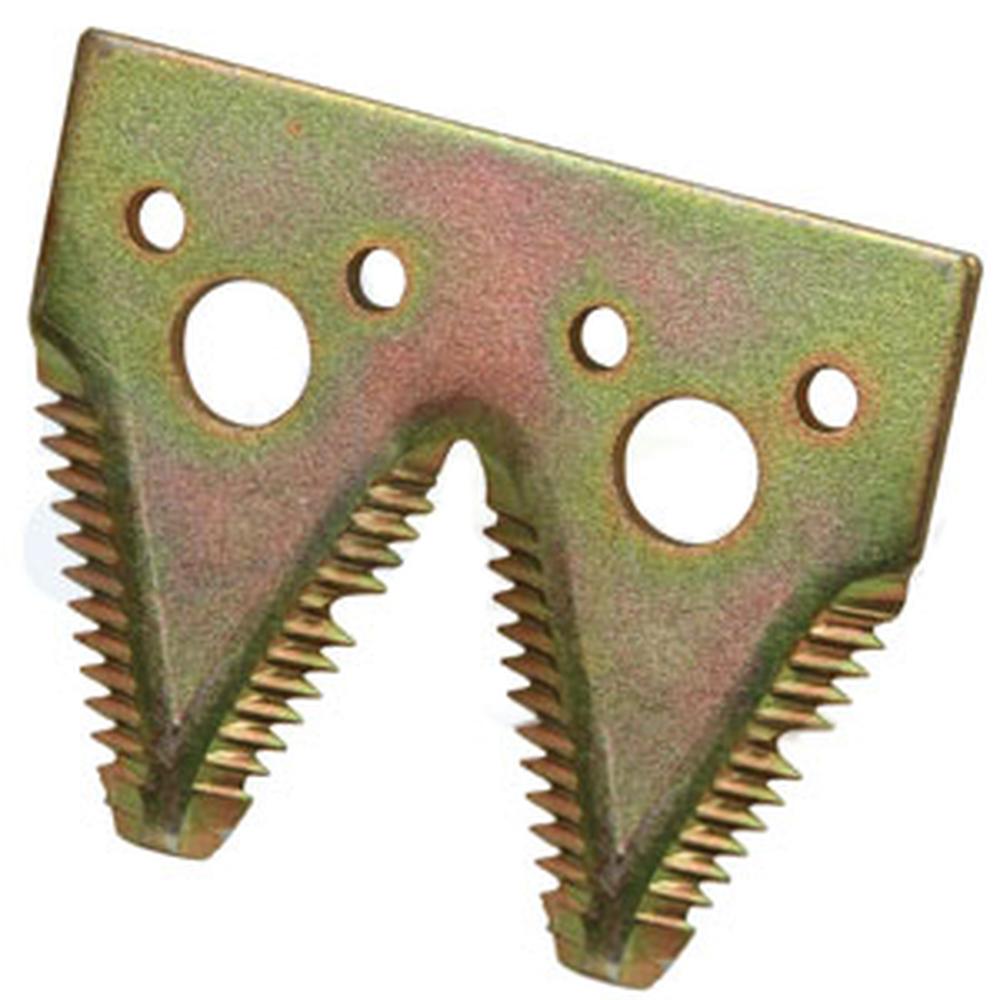

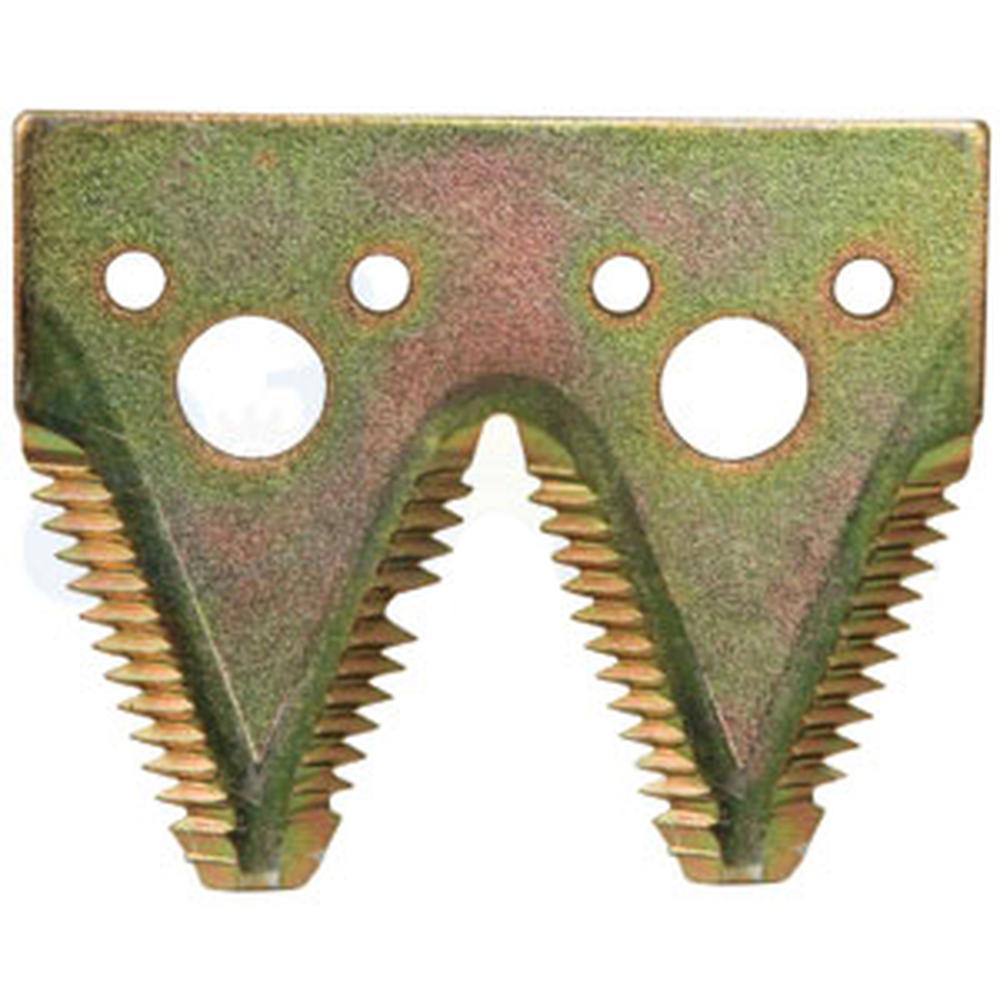

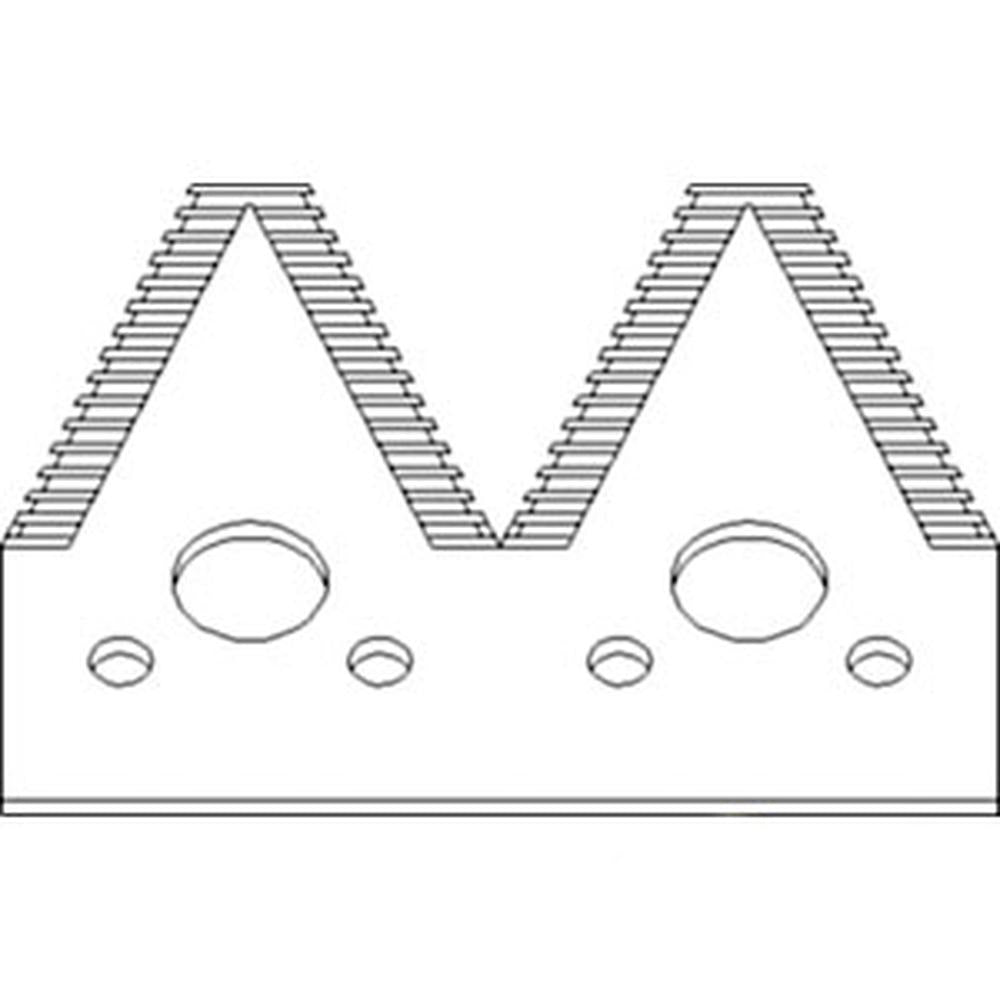

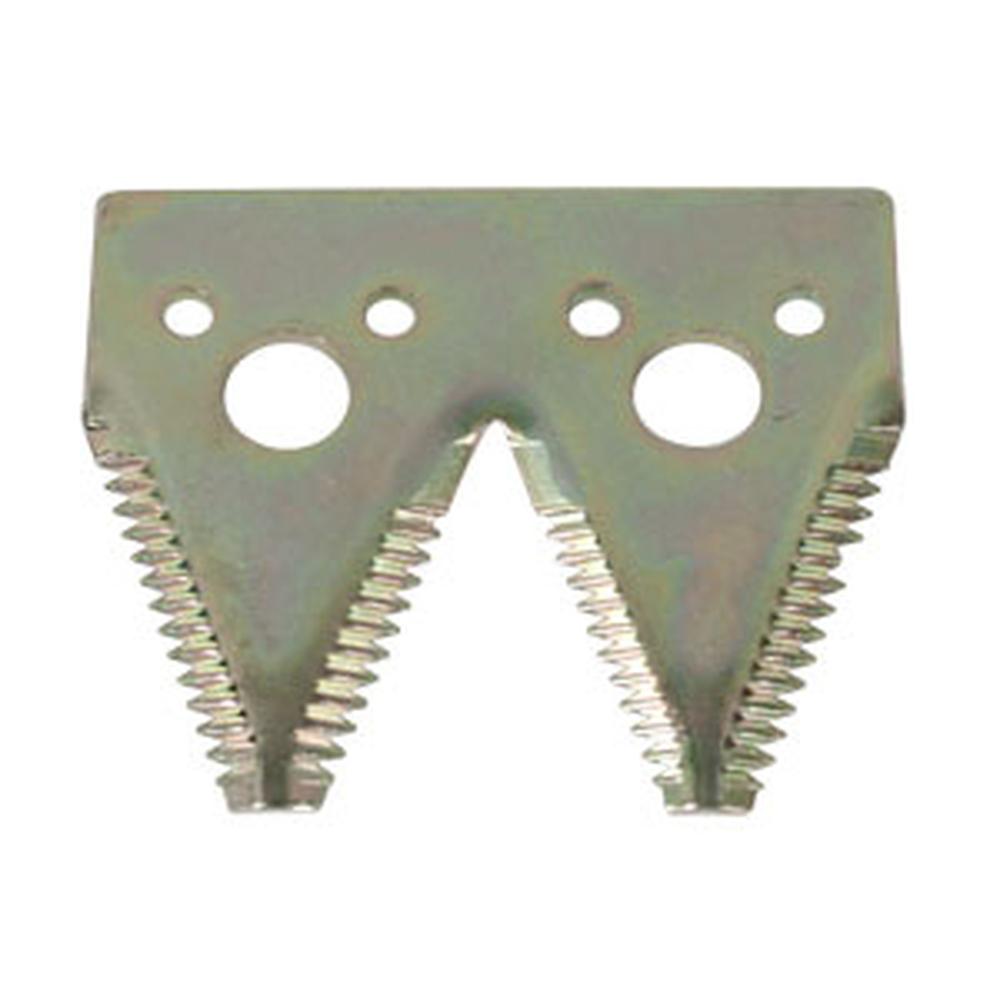

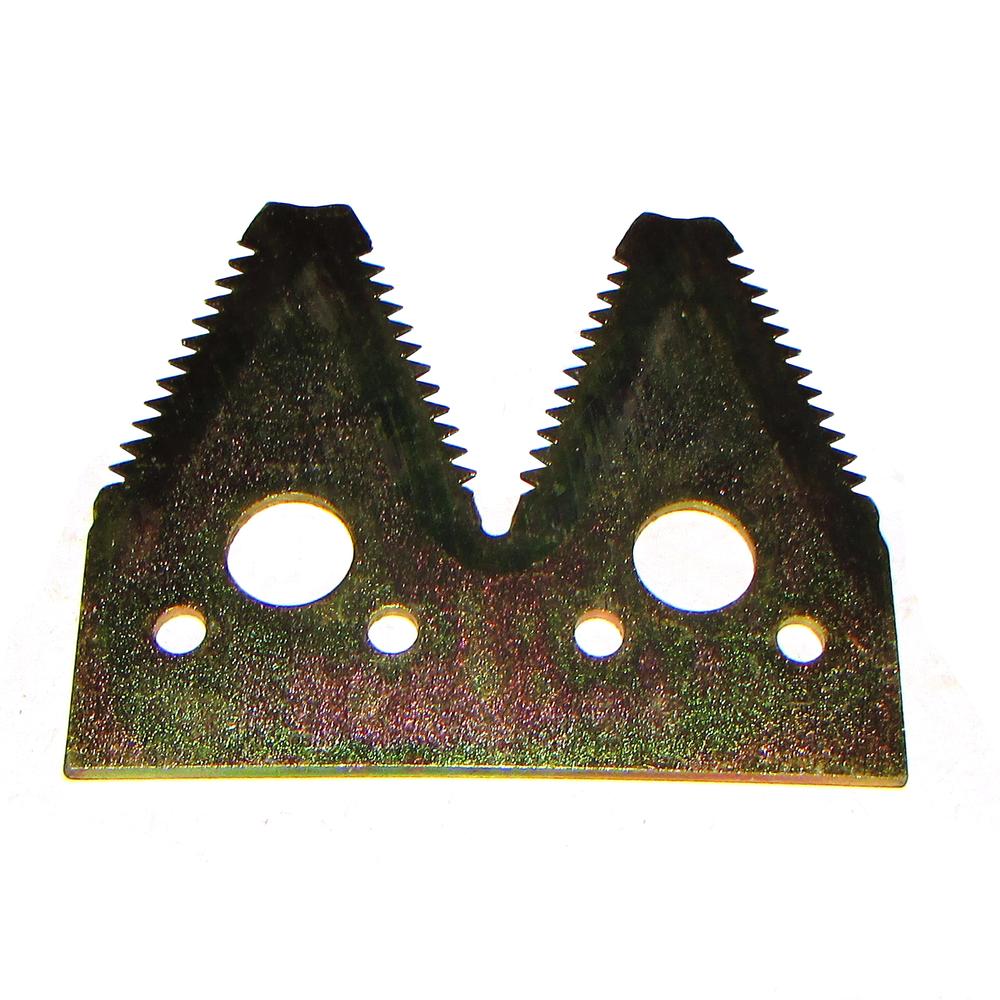

(1) Aftermarket Replacement Course Tooth Double Sickle Section

Fits John Deere Platforms: 213, 215, 216, 218, 220, 222, 224, 230, 615F, 615R, 618F, 618R, 620F, 620R, 622F, 622R, 625F, 625R, 630F, 630R, 635F, 635R, 913F, 913R, 915F, 915R, 918F, 918R, 920F, 920R, 922F, 922R, 924F, 924R, 925F, 925R, 930F, 930R, RD30F, RD35F, RD40F, RD45F

Fits Draper Platforms: 625D, 630D, 630FD, 635D, 635FD, 640D, 640FD, 645FD, 725D, 730D, 730FD, 735D, 735FD, 740D, 740FD, 745FD, 925D, 930D, 936D

Tech Info:
Double Tooth, 7 Tooth
4 Hole
Large Grain and Green Crops
Not Recommended in Rocks
Width - 4.00"
Length - 3.25"
Hole Spacing - 1.00"

Replaces Part Number: H163131

Models This Part Fits:

645FD, 620R, 745FD, HD35R, 630D, 725D, 936D, HD40R, HD40F, 925D, 630R, RD35F, RD30F, 625R, HD45F, 730FD, 640D, 620F, HD35F, RD40F, 625D, 615F, HD50R, 630FD, 740FD, HD45R, 635FD, 630F, 740D, 622R, 640FD, 735FD, 730D, 625F, 615R, 635F, HD50F, 618F, 930D, RD45F, 618R, 622F, 735D, 635D

Additional Information:

Section has 7 teeth per inch. Fastener Size: M6-1.0 x 16.25mm Hole Spacing: 1'' Length: 3-1/4'' Section Finish: Plated Section Thickness: Extra Heavy Serrated Profile: Top Serrated Serration Spec: Extra Coarse - 7 Tooth Shape Series: 17 Width 4''
