One (1) Heavy Duty Rebuild Kit Fits Craftsman 42" Decks

One (1) Heavy Duty Rebuild Kit Fits Craftsman 42" Decks

£108.00 GBP
£108.00 GBP
Sale Sold out
Shipping calculated at checkout.
One (1) New Aftermarket Replacement Heavy Duty Deck Rebuild Kit

Fits Craftsman: 42" Decks

Replaces Part Numbers: 131494, 173437

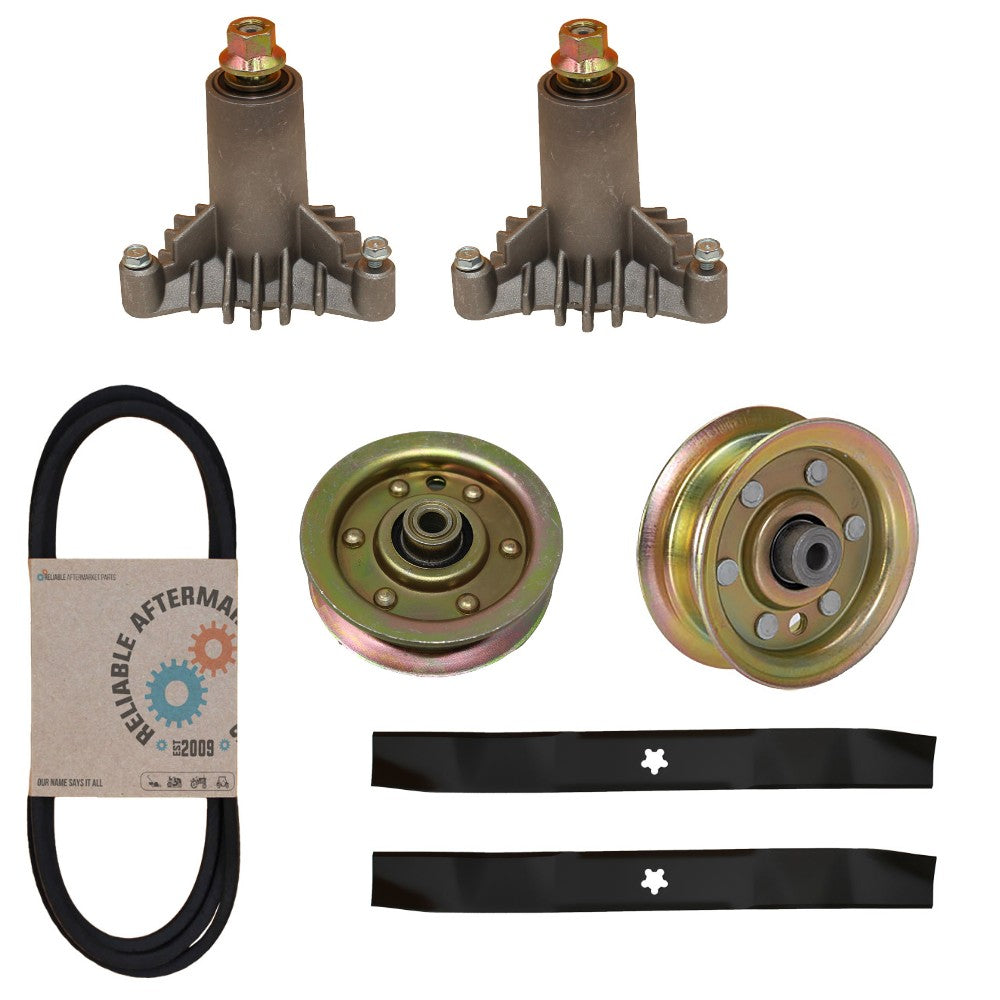

Kit Contains:
(1) Deck V Belt
(2) Mulching Lawn Mower Blade
(1) 131494 Flat Idler Pulley
(1) 173437 Flat Idler Pulley
(2) Spindle Assembly

Deck V Belt -
Color Blue
Depth 5/16"
Length 95
Material Made With Kevlar Cord
OC Length 1/2" X 95"
Thickness .315
Top Width 1/2"
Type A Section Made With Kevlar Cord
Width 1/2

Mulching Lawn Mower Blade -
Requires 2 Blades for 42" Deck
Length: 21"
Width: 2-1/4"
Center Hole: 5 Point Star
Thickness: .134"
Mulching Blade

Flat Idler Pulley -
Flat Idler w/ Flanges
Steel
Drive belt and mower deck pulley on for many 12 through 22 HP front engine tractors
3.875" (3 7/8'') OD
0.375'' (3/8") ID

Flat Idler Pulley -
Flat Idler w/ Flanges.
Steel. Fits 42" Decks,
2000 & Later.
3.06" OD not including flange,
3-7/8" Outside diameter with flanges,
3/8" ID.

Models This Part Fits:

1692493 2512G, 42” Mower Decks, 2512G, 42" Mower Decks, LT133, 1692539 2512G, 24H4B3A, 1692492 2512G

Additional Information:

(1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 104360X, 131494, 131464, 173438, 9585464, 532173438, (1) Flat Idler Pulley Inner Diameter: 3/8" Outer Diameter: 3-7/8" Replaces Part Numbers: 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888 (2) Spindle Assemblies Overall Height: 7" 5 Point Star Blade Mount Replaces Part Numbers: 183170, 130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645 (1) Deck V-Belt Length: 95" Width: 1/2" Thickness: 5/16" Made with Aramid Cord Material Replaces Part Numbers: 144959, 532144959, 1382551, 163817, 21615, 23223, 23796X, 3080, (2) Mulching Lawn Mower Blades Length: 21" Width: 2-1/4" Center Hole Diameter: 5-Point Star Replaces Part Numbers: 21546095, 704429, 131323, 133128, CMXGZAM110021,

Reference Numbers:

M126012, 144959, 144959D, 532144959, 104360X, 131494, 173438, 532173438, 131464, 155191, 532131494, 918131494, 9585464, 173347, 532173437, 165888, 173437, 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94, 127843, 131323, 133128, 134149, 138791, 138498, 24676, 422719, 424752, 139775, CMXGZAM110021, CMXGZAM110136, 917539110460, 917532422719, 954636867, 917777134149, 917532424752, 917532139775, 917532138498, 91724676, 917139775P, 917138498MS, 917131323, 917127843, 777134149, 539110460, 532424752, 532422719, 532139775, 532138971, 532138498, 532134149, 532131323, 531307224, 531307223, 531005085, 521981601,133288, 138971, 144959, 532144959, 1382551, 163817, 23796X, 3080, 1237910X, 21615, 23223, 23749, 37X11, 37X17, STD324950, STD324990, 532131494, 532173438, 532 13 14-94, 532 17 34-38, 532104360, 532155191, 597025001, 173347, 532173437, 165888, 173437, 532 17 34-37, 532165888, 130794, 532130794, 128285, 133172, 137641, 137645, 532 12 82-85, 532128285, 532 13 07-94, 53 213 31-72, 532133172, 532 13 76-45, 532137645, 183170, 532 10 14-77, 532 18 31-70, 532 1307-94, 954636867, 138791, 532134149, 532138971, 532138498, 531307224, 917532138498, 532 13 41-49, 000000532134149, 41-49, 4149, 53-213-41-49, 532-1341-49, 5321341-49, 594892701, 594893101, 777 13 41-49, 532138255,

Product Category:

Lawn & Garden
View More: Lawn & Garden Replacement Parts

Product Sub Group:

Deck Components
View More: Deck Components Replacement Parts
