New Tie Rod End Fits John Deere 110 Compact Loader Backhoe LVA14959
New Tie Rod End Fits John Deere 110 Compact Loader Backhoe LVA14959
Couldn't load pickup availability

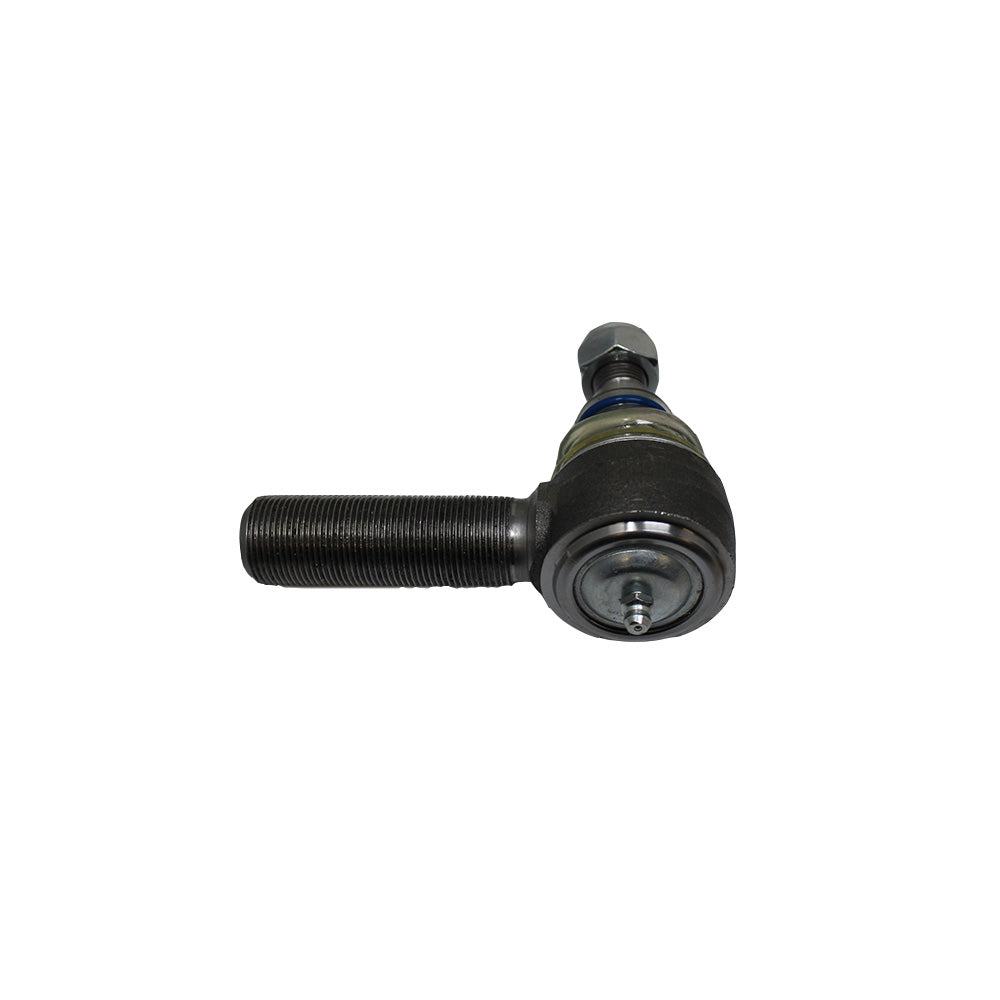

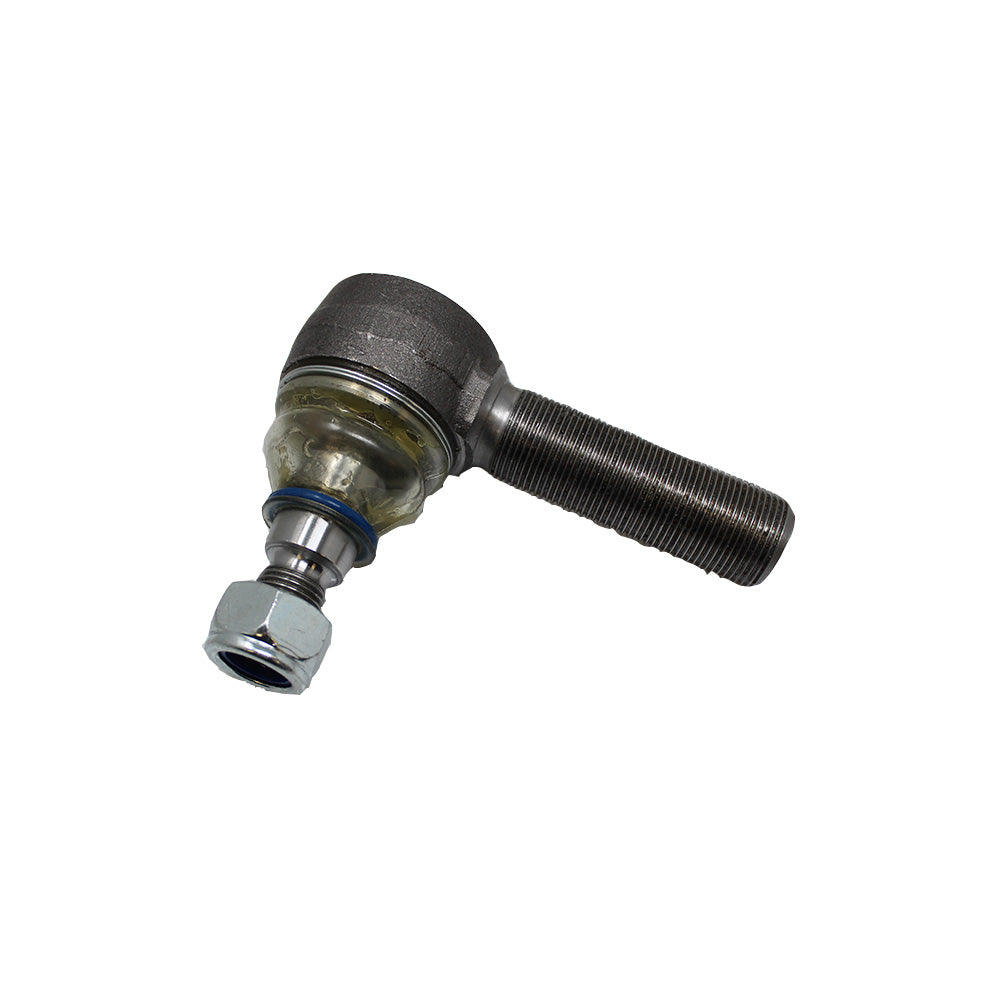

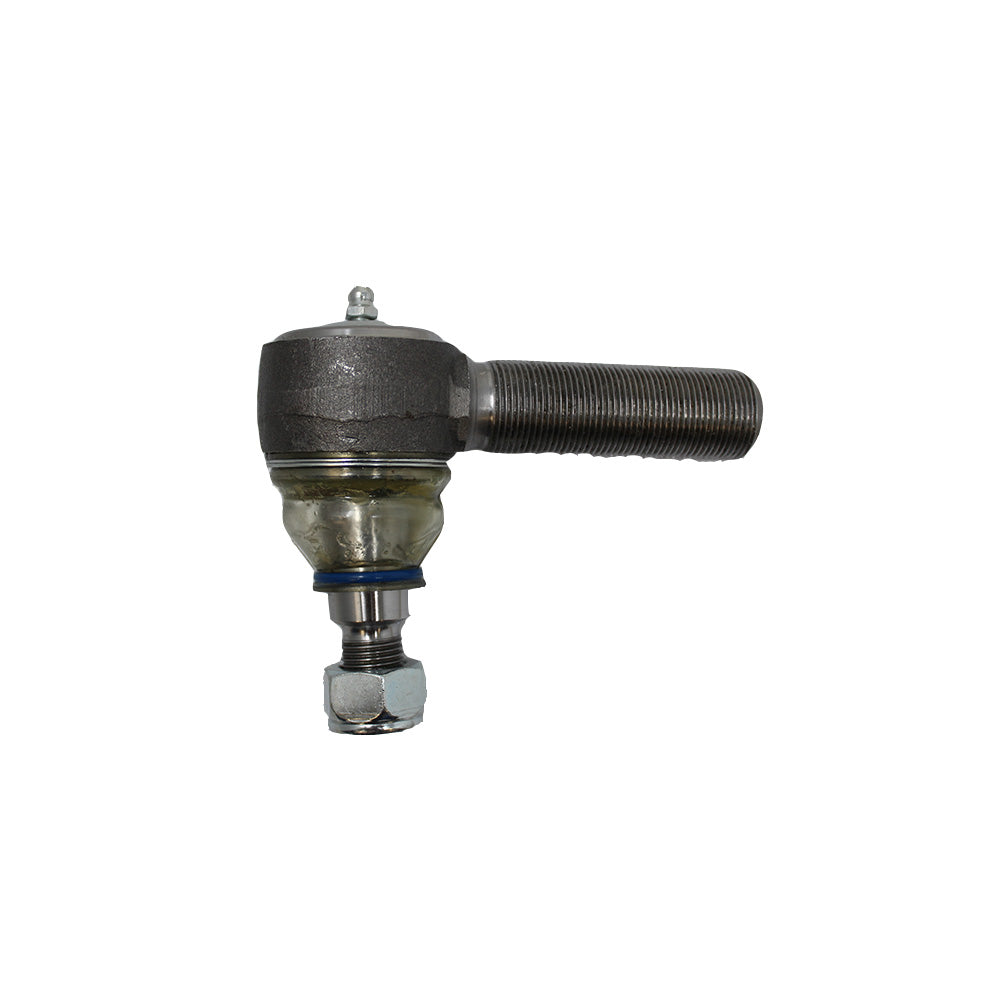

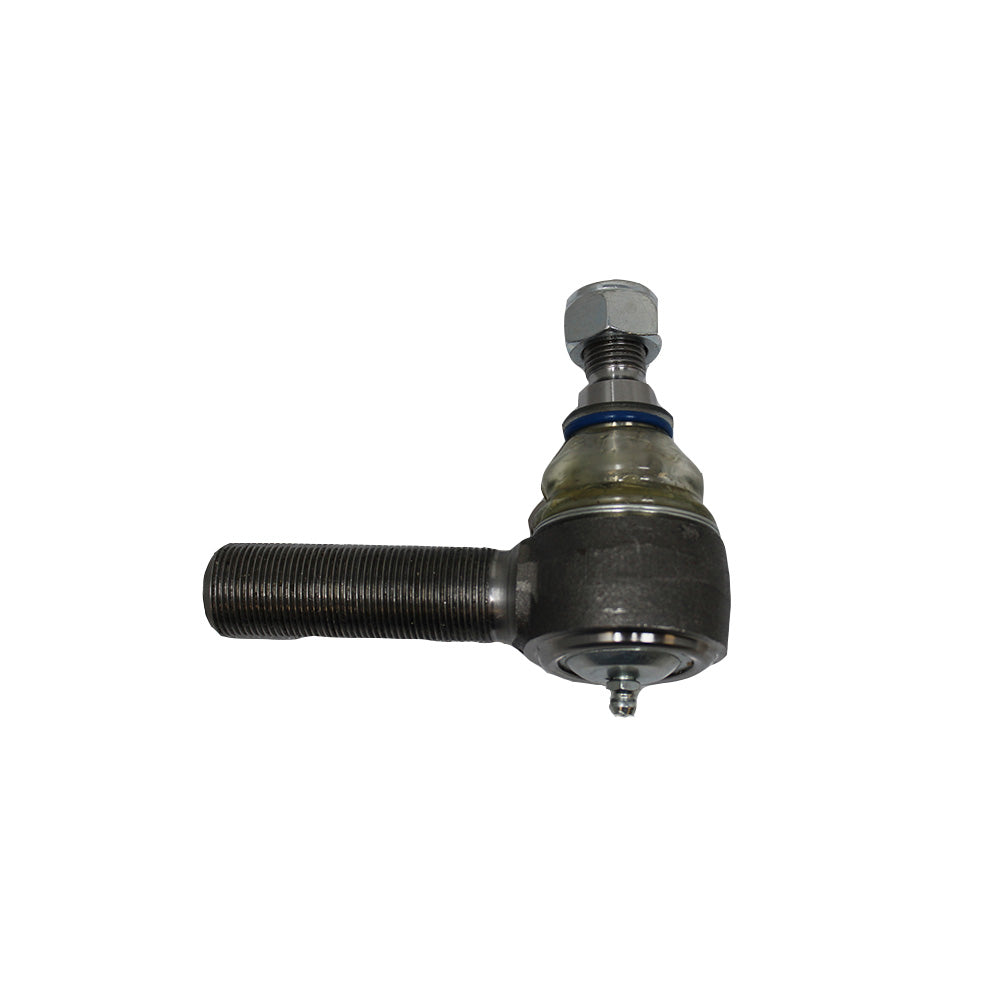

One New Aftermarket Replacement Right Hand (RH) Tie Rod End for John Deere Compact Tractors and Loader Backhoe
This right hand (RH) tie rod end is a direct-fit aftermarket replacement for the John Deere MFWD front axle steering system, used across a wide range of John Deere compact utility tractors and the 110 Compact Loader Backhoe. It features metric threads (M24 x 1.5). Important: Early serial number machines use standard SAE threads -- verify your machine's serial number before ordering. Several models also have axle-specific fitment requirements noted below.
Specifications
- Thread: M24 x 1.5 (Metric)
- Length of Ball Joint (End to Center): 3.87 in.
- Bottom of Taper (going up on Ball Joint): 0.880 in.
- Top of Taper: 0.768 in.
- Hand: Right Hand (RH)
Serial Number and Axle Restrictions
- 4120, 4320, 4520, 4720: ASN 470001 (late serial number machines)
- 4300, 4400: Axle marked S20BZ107-1
- 4700: Axle marked S20BZ108-1 or S20BZ112-1
- Early S/N machines on all models: Standard SAE threads -- this part does NOT fit
Compatible Models
John Deere 100 Series: 110 Compact Loader Backhoe
John Deere 3000 Series Compact Utility Tractors: 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3203, 3320, 3520, 3720
John Deere 4000 Series Compact Utility Tractors: 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4105, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4520, 4600, 4610, 4700, 4710, 4720
Replaces Part Number(s):
LVA14959
Aftermarket Interchange Numbers
1404-1096, FRT40-0090, A-LVA14959, AMLVA14959
New aftermarket replacement part - not remanufactured, not used.
