New Steering Kit Fits John Deere Tractor D100 D105 D110 D120 D125 D130 D140

Models This Part Fits:

D110, D170, X130R, 145, LA150, X115R, 115, LA105, 105, D120, 155C, D150, D125, LA140, LA120, LA175, X155R, D160, 92H, X145, 107H, LA130, LA125, X105, LA165, X125, D140, LA100, LA115, D100, X165, 107S, D105, S240, 190C, 102, 125, D155, D130, X135R, 135, LA110

Additional Information:

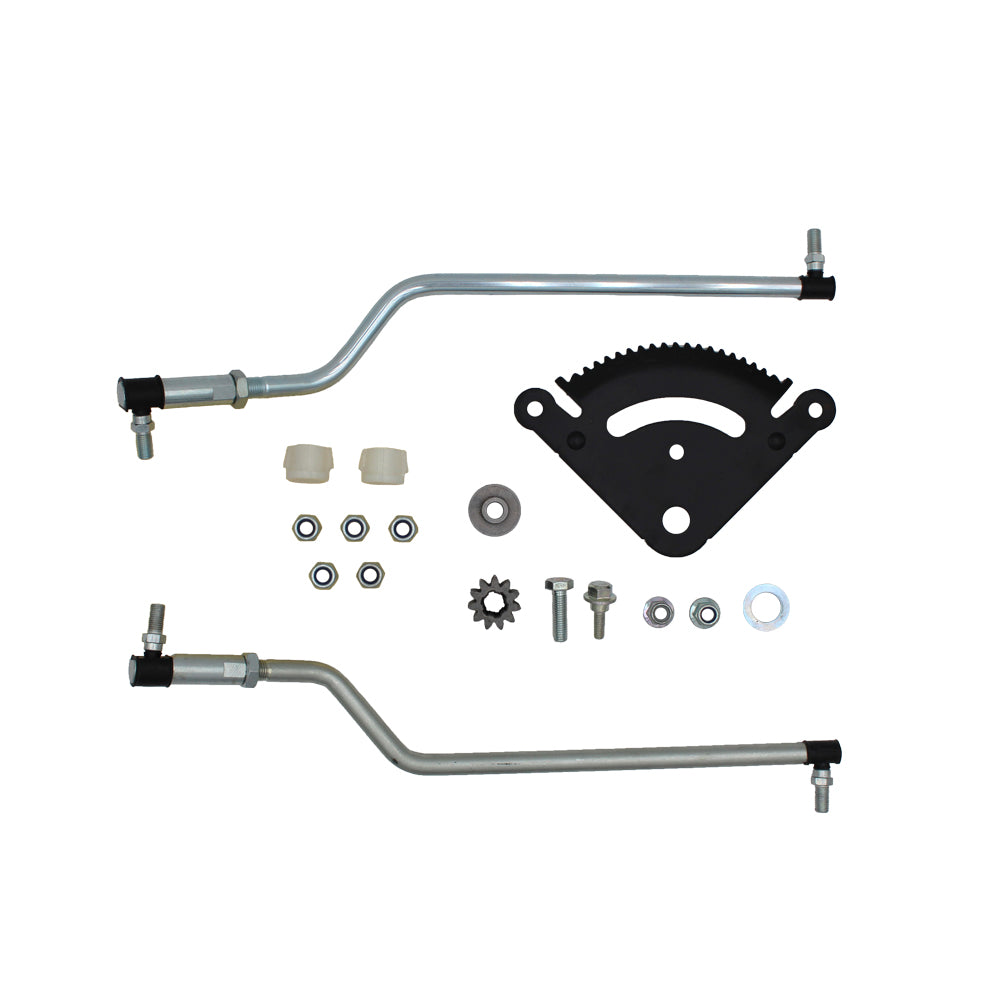

(1) Left Hand Adjustable Draglink Left Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY20770, GY21250 (1) Right Hand Adjustable Draglink Right Hand Length: 18" Thread: M10x1.25mm Replaces Part Number(s): GY21251, GY20771 (1) Pinion Gear Height: 1" OD: 1 3/8" Replaces Part Number(s): GX20053 (1) Steering Sector Gear Teeth: 21 Replaces Part Number(s): GX21924BLE, GX25785BLE, GX25785 (1) Steering Gear Bushing Flange Thickness 0.16" Flange Outside Diameter 1.382" Inside Diameter 0.407" Length 0.45" Outside Diameter 0.710" Replaces Part Number(s): UC13360, GX20054 (1) Steering Bolt Hex Flange Bolt Thread Size: 10mm Length: 35mm Thread Pitch: 1.25mm Replaces Part Number(s): 19M7835 (1) Flat Washer ID: .781" OD: 1.25" Thickness: .036" Material: Steel Replaces Part Number(s): 24M7053 (2) Steering Shaft Bushing I.D.: .625" O.D.: .900" Height: .870" Flange OD: 1" Replaces Part Number(s): GX21994 (1) Hexagonal Lock Nut - M10 Flange Diameter: 21.80mm Wrench Height: 5.60mm Thickness: 13.50mm Replaces Part Number(s): 14M7400 (5) Hexagonal Lock Nut - M10 10mm x 1.25mm Pitch Width Across Flats: 17mm Wrench Height: 7mm Replaces Part Number(s): 14M7455 (1) Locking Flange Nut Thread Size: 8mm Pitch: NC Thread Style: Right Hand Replaces Part Number(s): 14M7396 (1) Shoulder Bolt Thread Size: 8mm Length: 1.1” Replaces Part Number(s): M153513

Reference Numbers:

GY20770, GY21250, 14M7400, GY21251, GY20771, GX20053, GX21924BLE, UC13360, 19M7835, 24M7053, GX21994, 14M7455, M153513

Product Sub Group:

Other Steering Components
View More: Other Steering Components Replacement Parts
