New Starter for Suzuki GSX600F GSX600
New Starter for Suzuki GSX600F GSX600
Couldn't load pickup availability

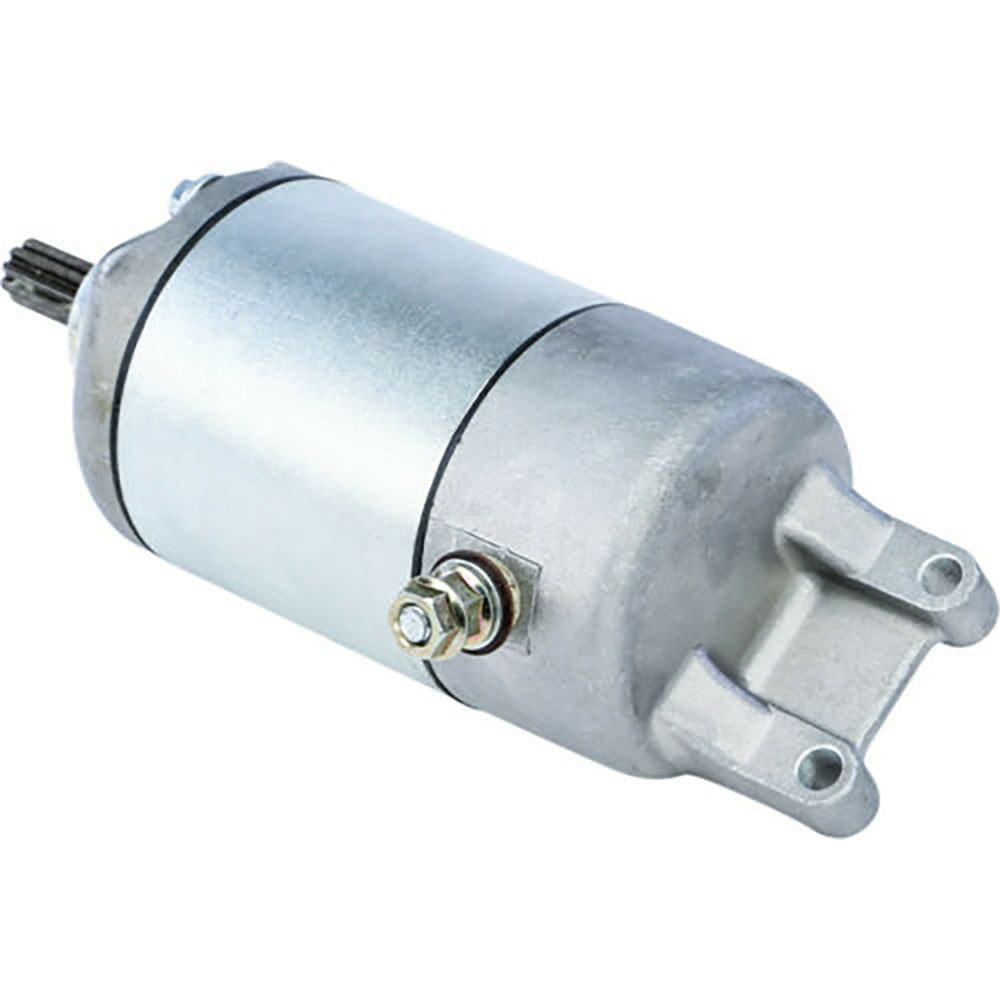

One New Aftermarket Replacement Starter Motor for Suzuki GSX600F Katana Motorcycle
This Mitsuba-type PMDD (Permanent Magnet Direct Drive) starter motor is a direct-fit aftermarket replacement for the Suzuki GSX600F Katana 600cc street motorcycle. It mounts in the same location as the original unit with no modifications required, restoring reliable electric start function to your Katana.
Specifications
- Type: PMDD (Permanent Magnet Direct Drive)
- Voltage: 12V
- Rotation: Counterclockwise (CCW)
- Number of Teeth: 9
- Gear OD: 11.8mm / 0.465 in
- Mounting Ear 1: 6mm ID Unthreaded
- Mounting Ear 2: 6mm ID Unthreaded
- Weight: 3.29 lbs / 1.50 kg
- OEM Manufacturer: Mitsuba
Compatible Models
Suzuki GSX600F Katana: 1988 (J), 1989 (K), 1990-1991 (L, M), 1992-1994 (N, P, R), 1995 (S), 1996-1997 (T, V)
Replaces Part Number(s):
SM13218, 191-467, 31100-06B00, 31100-06B01, 31100-06B02, 3110019C00, 3110019C01, 3110019C02, 3110019C03, SMU0143, 18782, 71-26-18782
Aftermarket Interchange Numbers
Mitsuba SM13-218, Arrowhead SMU0143, Lester 18776, Lester 18782, Stockers SS-7, Stockers SS-12, Societa Generale Ricambi 17.81105, Tucker Rocky 464104 / 46-4104, J&N 410-54081
New aftermarket replacement part - not remanufactured, not used.
