New Replacement Thermostat Kit C-15 C15 247-7133 2477133 Fits CAT 6NZ MBN

One New Aftermarket Replacement Thermostat and Gasket Kit for Caterpillar (Cat) C-Series and 3400-Series Engines

This thermostat kit services the engine cooling system on a wide range of Caterpillar (Cat) diesel engines, regulating coolant temperature to maintain optimal operating conditions and prevent overheating. The kit includes two temperature regulators (thermostats), two lip-type seals, one housing regulator gasket, and one additional gasket -- everything needed for a complete thermostat replacement. Two thermostats are required per engine on C15 and related applications. Available in 76 degrees C (for hotter climates) and 82 degrees C (for colder climates) opening temperature variants; confirm the correct temperature rating before ordering.

Kit Contains

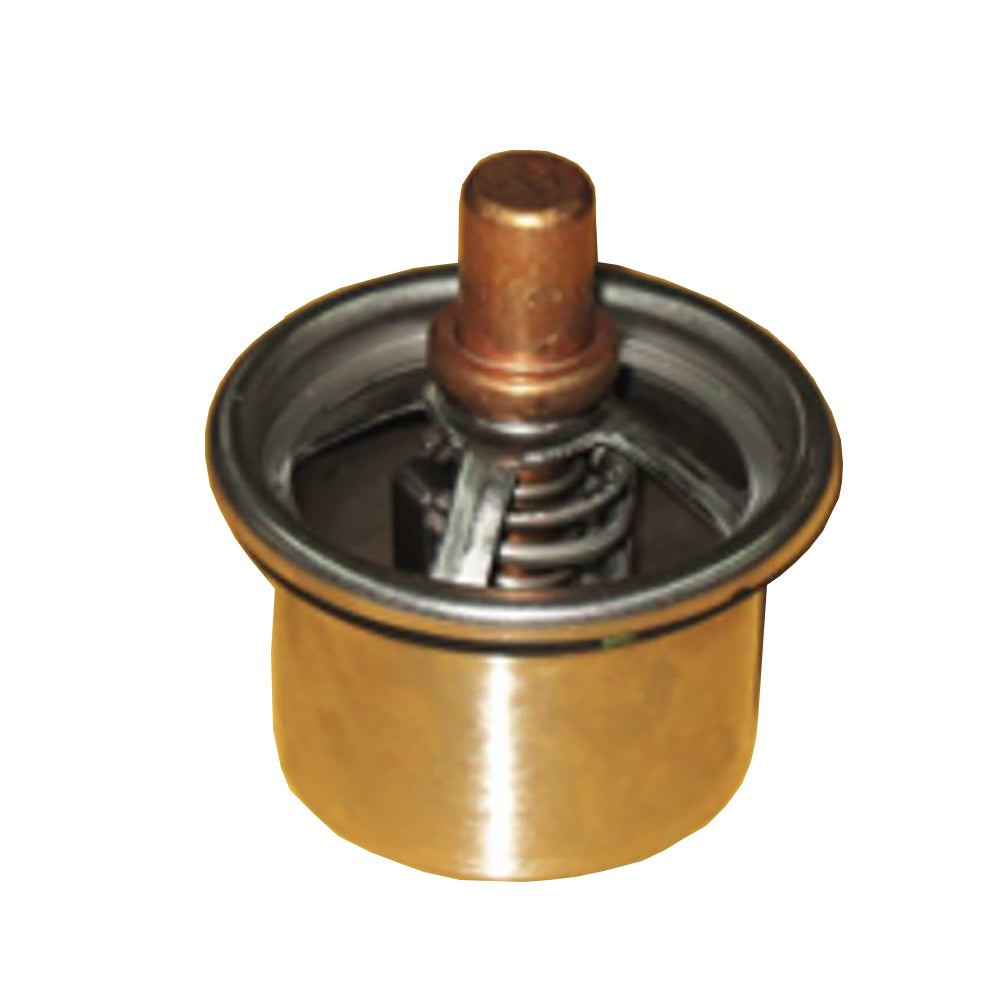

• (2) Temperature Regulators / Thermostats -- replaces 247-7133, 2477133
• (2) Lip-Type Seals -- replaces 139-3550, 1393550
• (1) Housing Regulator Gasket -- replaces 4N-1156, 4N1156
• (1) Gasket -- replaces 3S-9643, 3S9643

Specifications

• Opening Temperature: 76 degrees C (169 degrees F) or 82 degrees C (180 degrees F) -- verify rating for your application
• Quantity: 2 thermostats per kit (2 required per engine)

Compatible Models

Caterpillar Engines (C-Series): C-9, C9, C-10, C11, C-12, C12, C13, C-15, C15, C-16, C16, C-18, C18, C7

Caterpillar Engines (3000/3400-Series): 3126B, 3176, 3176B, 3176C, 3196, 3306, 3306C, 3406E, 3408, 3456

Caterpillar Excavators: 330D, 330D L, 330D MH, 330DFMGF, 330DFMLL, 330DFMLLA, 336D, 336D L, 336D LN, 336D2, 336D2GC, 336D2L, 336D2LXE, 336D2XE, 340D2L, 340DL

Caterpillar Motor Graders: 14H, 16H, 140HNA, 143H, 163H

Caterpillar Challenger / Agricultural Tractors: 65E, 75D, 75E, 85E, 95E, MT835, MT845, MT855, MT865, MTC835, MTC845, MTC855, MTC865

Caterpillar Track-Type Tractors: D7R II, D7RIILGP, D7RIIXR, D9R, D9RLRC, D10R

Caterpillar Mining / Off-Highway Trucks: 793C, 797, 797B

Caterpillar Hydraulic Excavators / Mining Shovels: 6015, 6015FS, 6018

Caterpillar Cold Planers: PM620, PM620LRC, PM622

Caterpillar Load Haul Dump: R1600G

Caterpillar Wheel Dozers / Compactors: 814F II, 815F II, 816F II

Caterpillar Pipelayers: 587R, 586CLRC

Caterpillar Petroleum Power Train Packages: CX31, CX31 DB, CX35, TH31, TH35

Caterpillar Gas Engines / Generators: G3406, G3408, G3408B, G3408C, G3412, G3412C, G3508, G3512, G3512E, G3512H, G3516, G3516B, G3516C, G3516E, G3516H, G3516J, G3520, G3520B, G3520C, G3520E, G3520H, G3524, G3532, SR4, XQG400, XQP500, CG137-8, CG137-12

Caterpillar Forestry: MD5075, MD5125, MD5150C, MD6290

Note: This kit fits C-15 engines with serial number prefixes 6NZ and MBN.

Replaces Part Number(s):

247-7133, 2477133, 139-3550, 1393550, 4N-1156, 4N1156, 3S-9643, 3S9643

Aftermarket Interchange Numbers

CA2477133, CT21-147-06, CT2114706, 7C-3095, 7C3095, 4W-4842, 4W4842, 9Y-5330, 9Y5330

New aftermarket replacement part - not remanufactured, not used.
