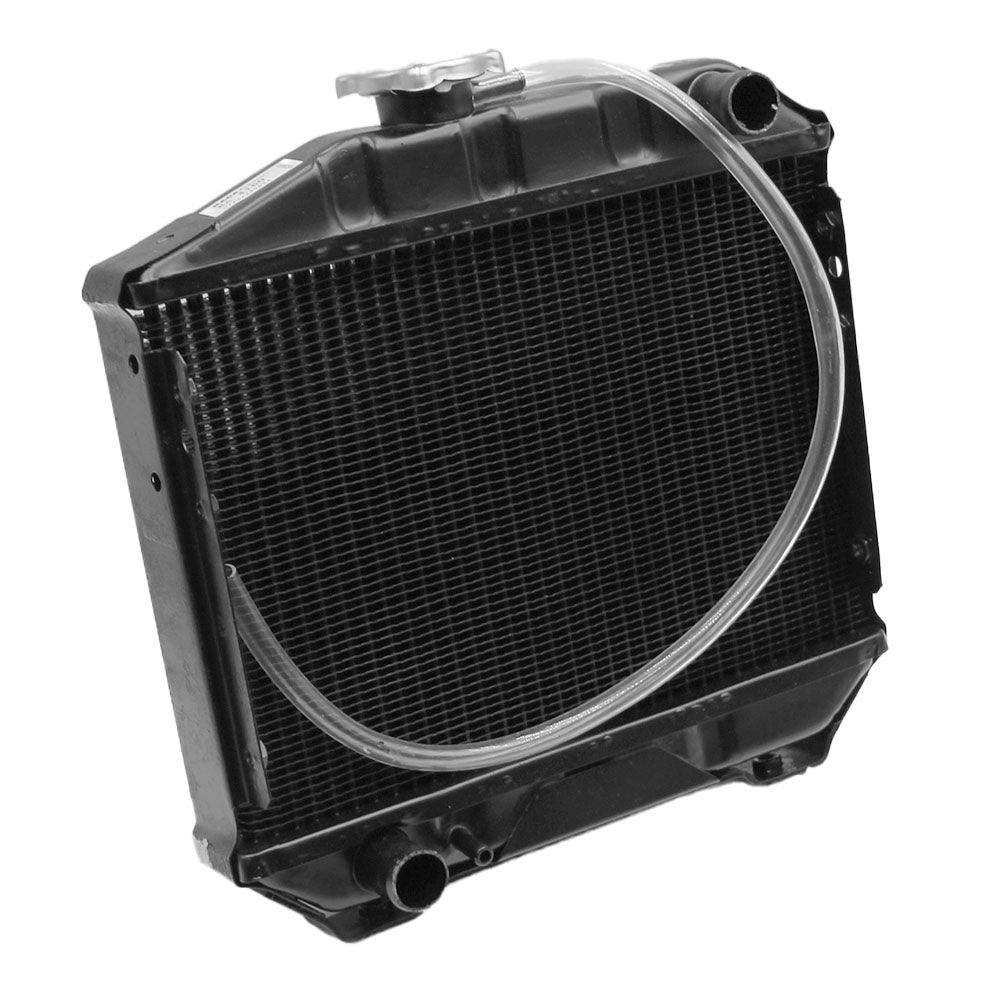

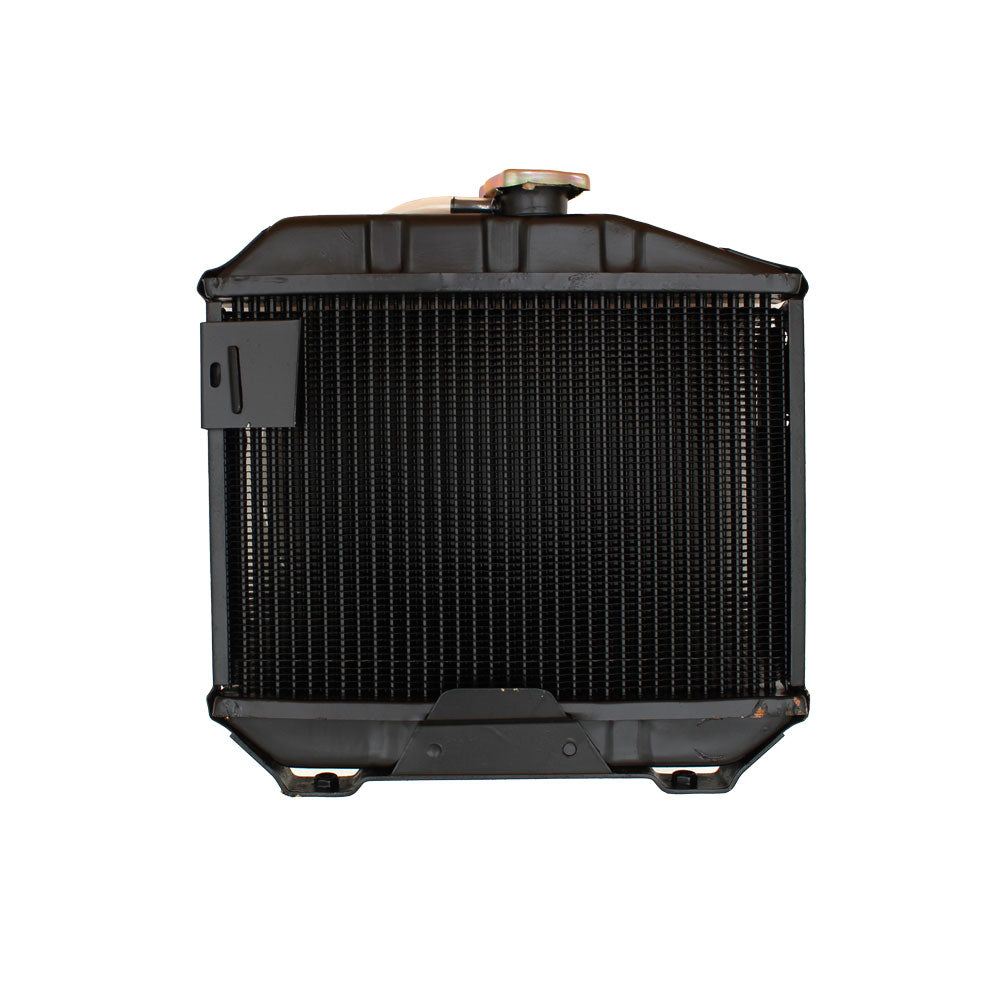

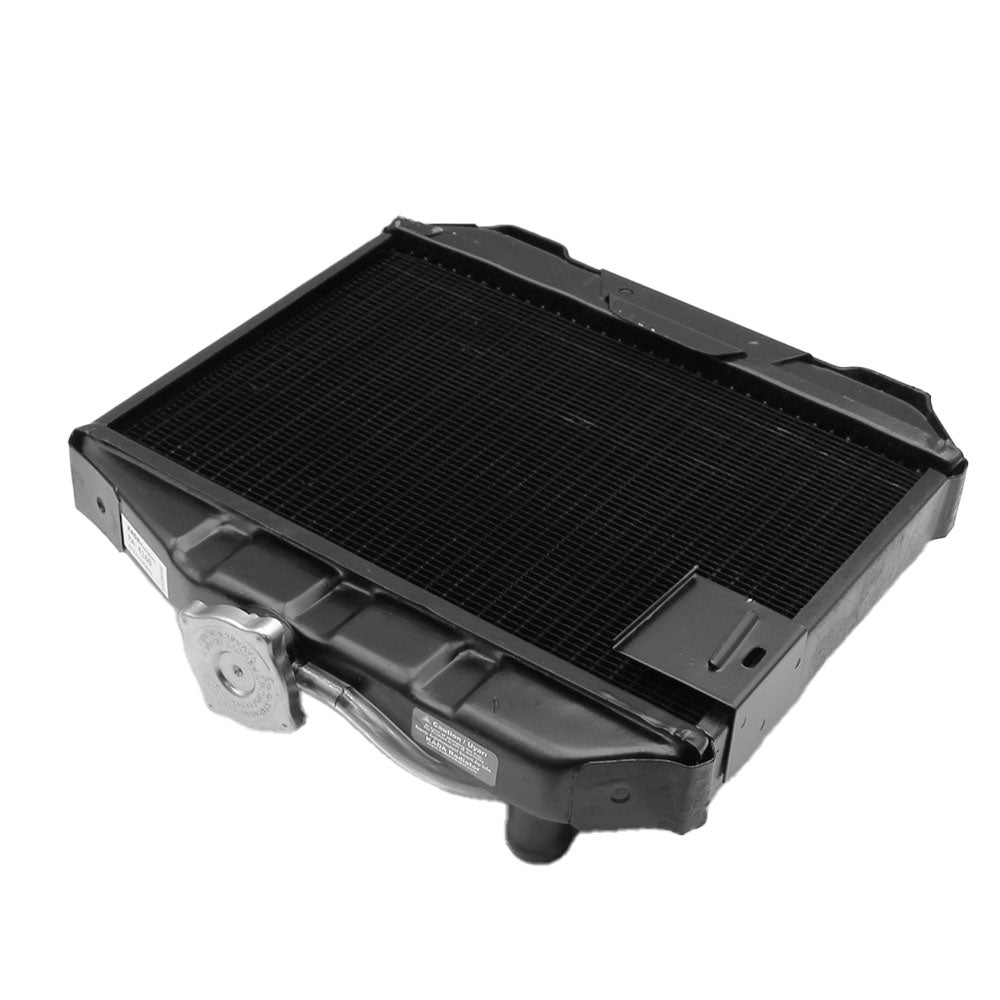

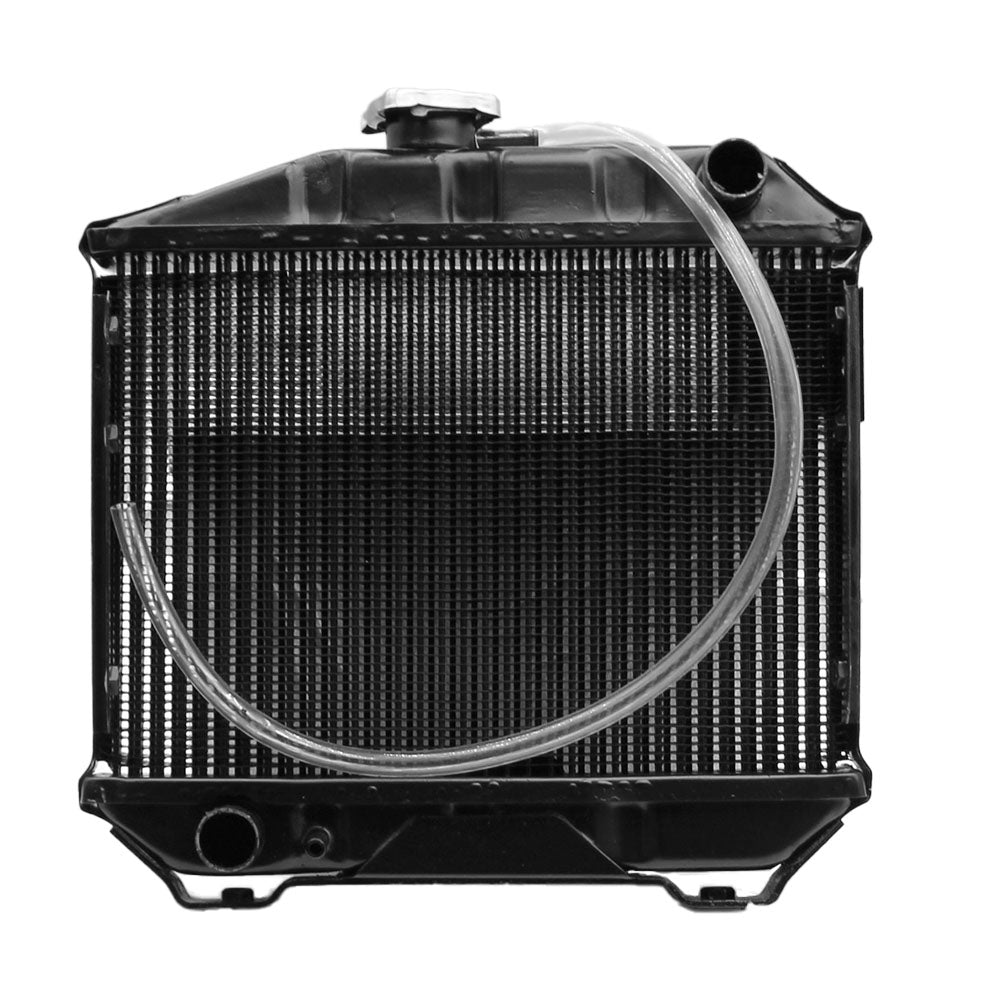

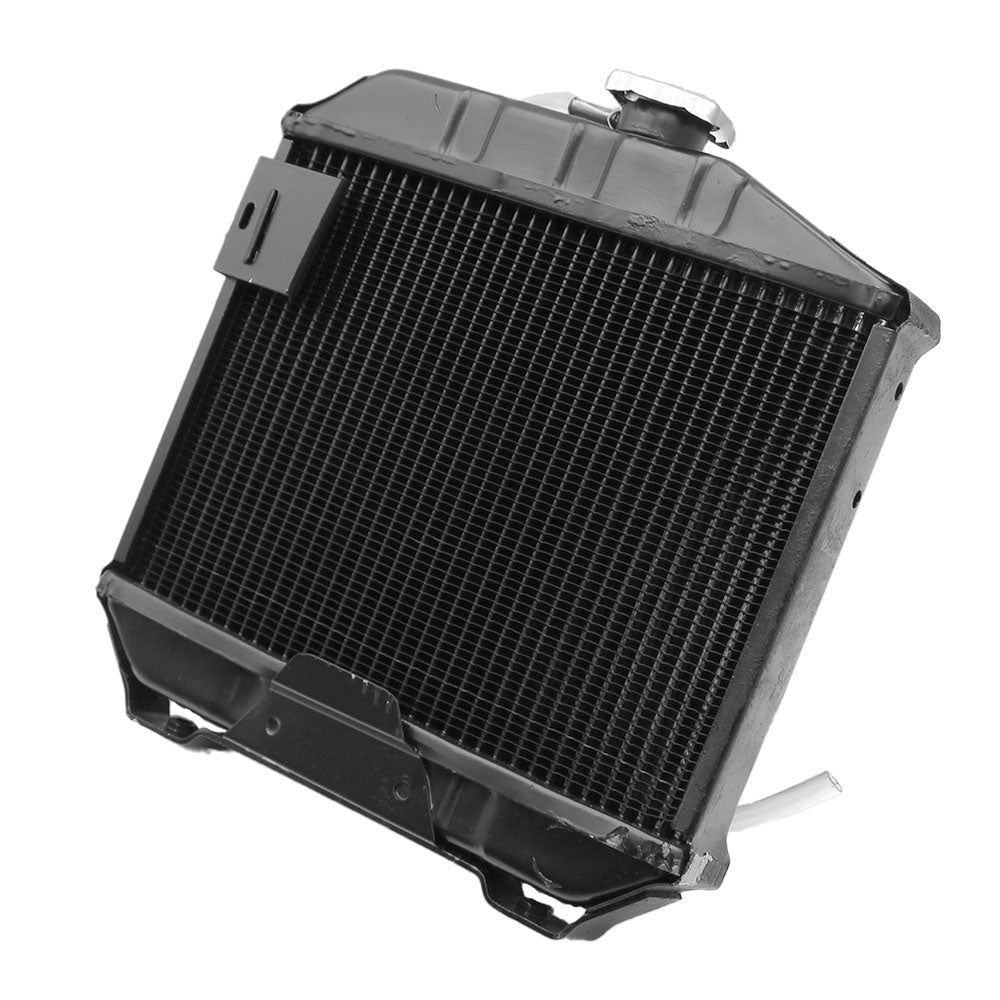

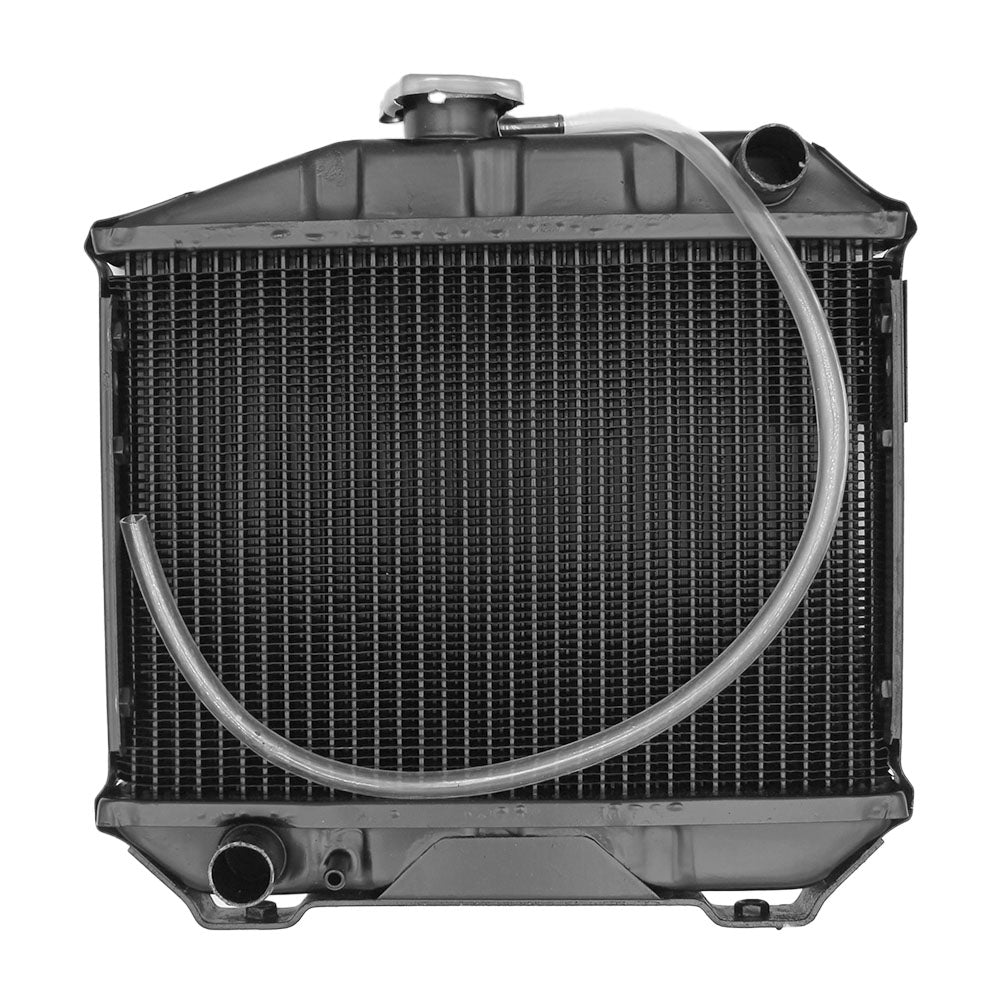

New Radiator with cap for Yanmar YM155 124160-44501
New Radiator with cap for Yanmar YM155 124160-44501
Couldn't load pickup availability
One New Aftermarket Replacement Radiator with Cap for Yanmar YM-Series Compact Tractors
This aftermarket replacement radiator with pressure cap fits Yanmar YM-series compact tractors and is a direct replacement for OEM part number 124160-44501. The radiator keeps engine coolant temperatures in check during demanding field work and mounts in the factory location. Includes a pressure cap for a complete, ready-to-install cooling system repair. Copper core construction with welded seams for reliable, leak-free performance. Note: A late-production design change on some of these models resulted in a slightly wider bolt spacing; if your tractor has the wider-spaced mounting, minor slot modification may be required.
Specifications
- Core Material: Copper
- Rows: 2
- Fins per Inch: 7
- Overall Height (with bracket): 14-1/2 in.
- Overall Height (without bracket): 14-3/8 in.
- Overall Width: 13-3/8 in.
- Side Frame Width: 2-3/4 in.
- Core Height: 9-1/2 in.
- Inlet/Outlet Outside Diameter: 1.09 in.
- Includes: Radiator cap
Compatible Models
Yanmar YM-Series: YM135, YM155, YM1100, YM1300, YM1500
Replaces Part Number(s):
124160-44501, 12416044501
Aftermarket Interchange Numbers
2806-6205 (Complete Tractor)
New aftermarket replacement part - not remanufactured, not used.
