New Blade Deck Spindle Fits Toro 107-8504 fits Z Master Z400 Z500 Grandstand
New Blade Deck Spindle Fits Toro 107-8504 fits Z Master Z400 Z500 Grandstand
Couldn't load pickup availability

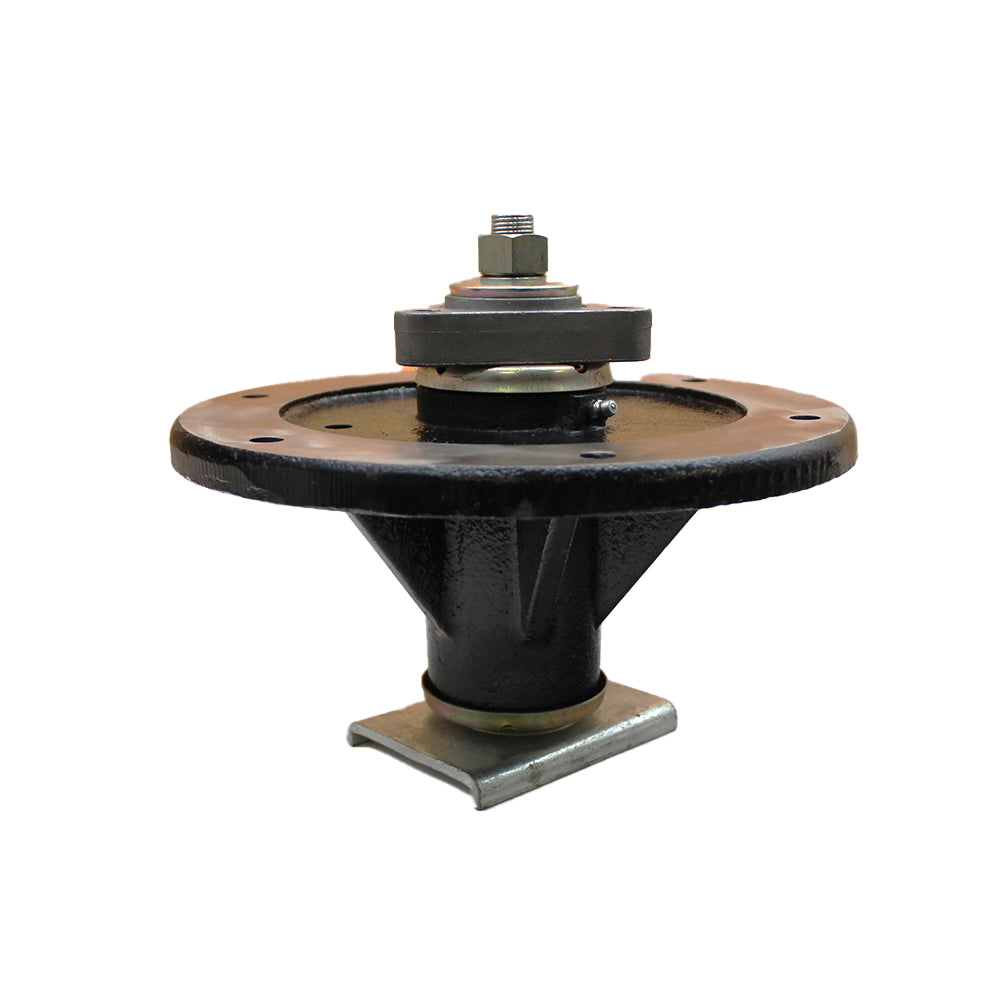

One New Aftermarket Replacement Blade Deck Spindle Assembly Fits Toro Z Master Zero-Turn Mowers
This aftermarket replacement spindle assembly Fits Toro Z Master Z400, Z500, and Grandstand zero-turn mowers equipped with 48", 52", and 60" cutting decks (7-Gauge and Turbo Force). The spindle assembly is a critical deck component -- it houses the bearings that allow the blade shaft to rotate. Replacing a worn or damaged spindle restores smooth, even blade rotation and protects the cutting deck from further damage.
Specifications
- Outer Diameter (OD): 9-3/8"
- Height: 7-1/2"
- Sealed bearing -- no grease fitting
- No threads in housing -- use self-tapping screws for installation
- Blade mounting hardware not included
Compatible Models
Fits Toro Z Master Z400 Series: Z400, Z410, Z441, Z449, Z450, Z453 -- including model numbers 74237 (Z528 52" 7-Gauge), 74238 (Z528 60" 7-Gauge), 74248 (Z500 52" 7-Gauge), 74249 (Z500 60" 7-Gauge), 74291 (Z500 52" 7-Gauge), 74292 (Z500 60" 7-Gauge), 74410 (Z400 52" 7-Gauge), 74412 (Z400 48" 7-Gauge), 74413 (Z449 48" Turbo Force), 74414, 74415, 74416, 74417, 74418, 74441, 74442, 74448, 74449
Fits Toro Z Master Z500 Series: Z500, Z528
Fits Toro Grandstand: GrandStand 48" Turbo Force (74558, 74568, 79558), GrandStand 52" Turbo Force (74559, 74567TE, 74569, 79559)
Fits Toro Z Master G3: G3 48" Turbo Force, G3 52" Turbo Force, G3 60" Turbo Force
Additional model numbers: 74901, 74903, 74915, 79558, 79559
Replaces Part Number(s):
107-8504, 1078504
Aftermarket Interchange Numbers
Fits Stens 285-881, Rotary 14703, 8TEN 810-CSP2249N
New aftermarket replacement part - not remanufactured, not used.
