New Aftermarket Replacement Deck Rebuild Kit Contains Spindle/Blades/Belt/Pulley

Name: New Aftermarket Replacement Deck Rebuild Kit Contains Spindle/Blades/Belt/Pulley
SKU: 1001200REBUILD-TRI
Price: 107.0 USD
Availability: InStock

New Aftermarket Replacement Deck Rebuild Kit Contains Spindle/Blades/Belt/Pulley

£107.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

42" Deck Rebuild Kit Fits Several Murray Riders Made after 2000

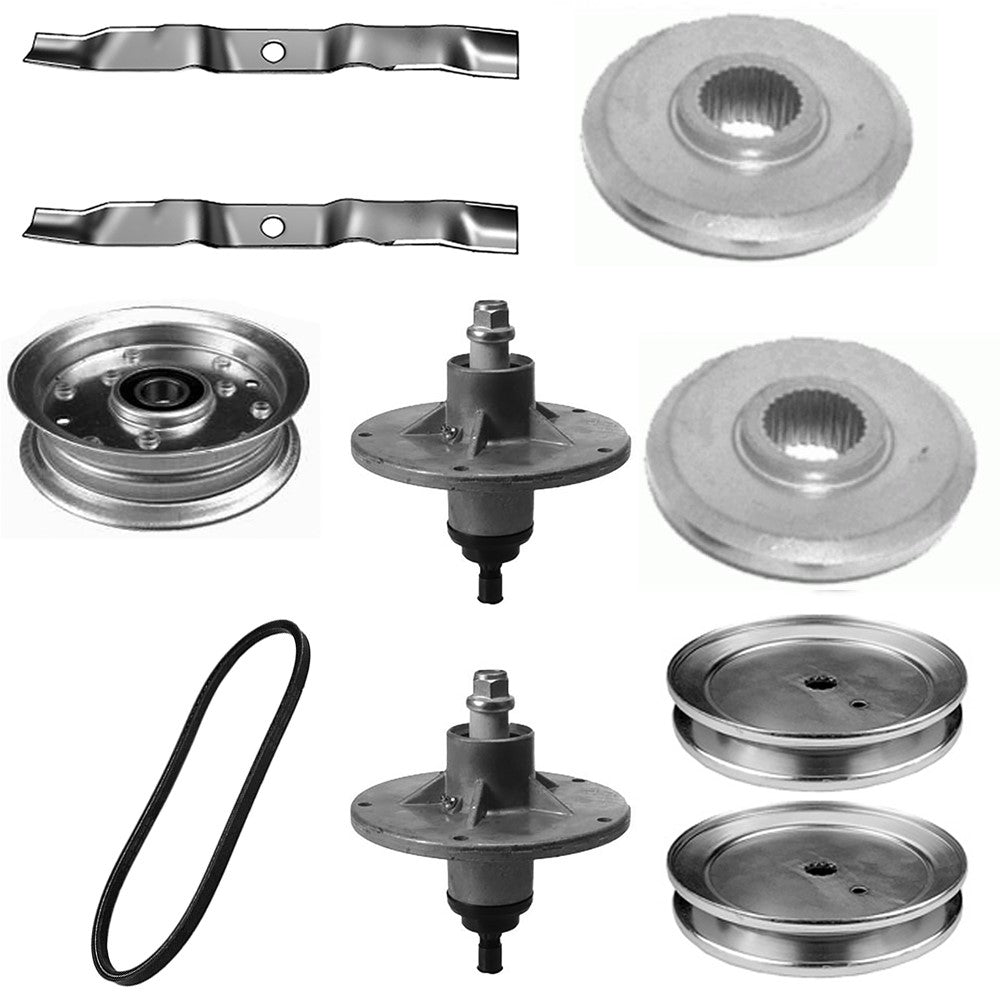

KIT INCLUDES:

(2) Jack Shaft Housings (Replaces Part # 10189, 1001200)

(2) Jack Shaft Pulleys (Replaces Part # 10820, 94199)

(1) Idler Pulley (Replaces Part # 9542, 690387)

(2) Blades 6476

(1) Deck Belt (Replaces Part # 8972, 37X88)

(2) Adaptors (Replaces 10957)

Tech Info:

Blade:
Length: 21-3/16"
Width: 2-1/4"
Thickness: .134"
Center Hole: .85"

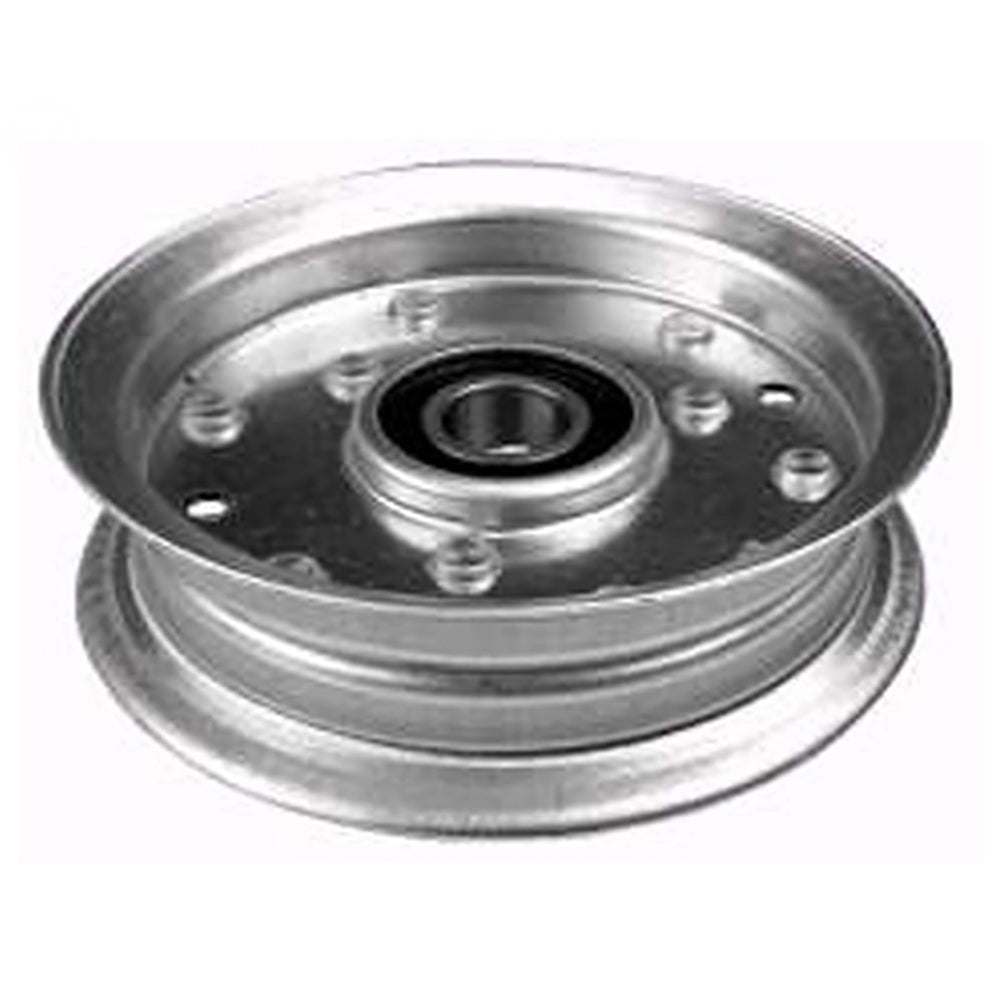

Flat Idler Pulley:
OD: 4-11/16"
ID: 11/16"
Width: 1-3/8"

Jackshaft Pulleys:
OD: 5-3/8"
ID: 9/16" Splined
Pulley Groove Width: 1/2"

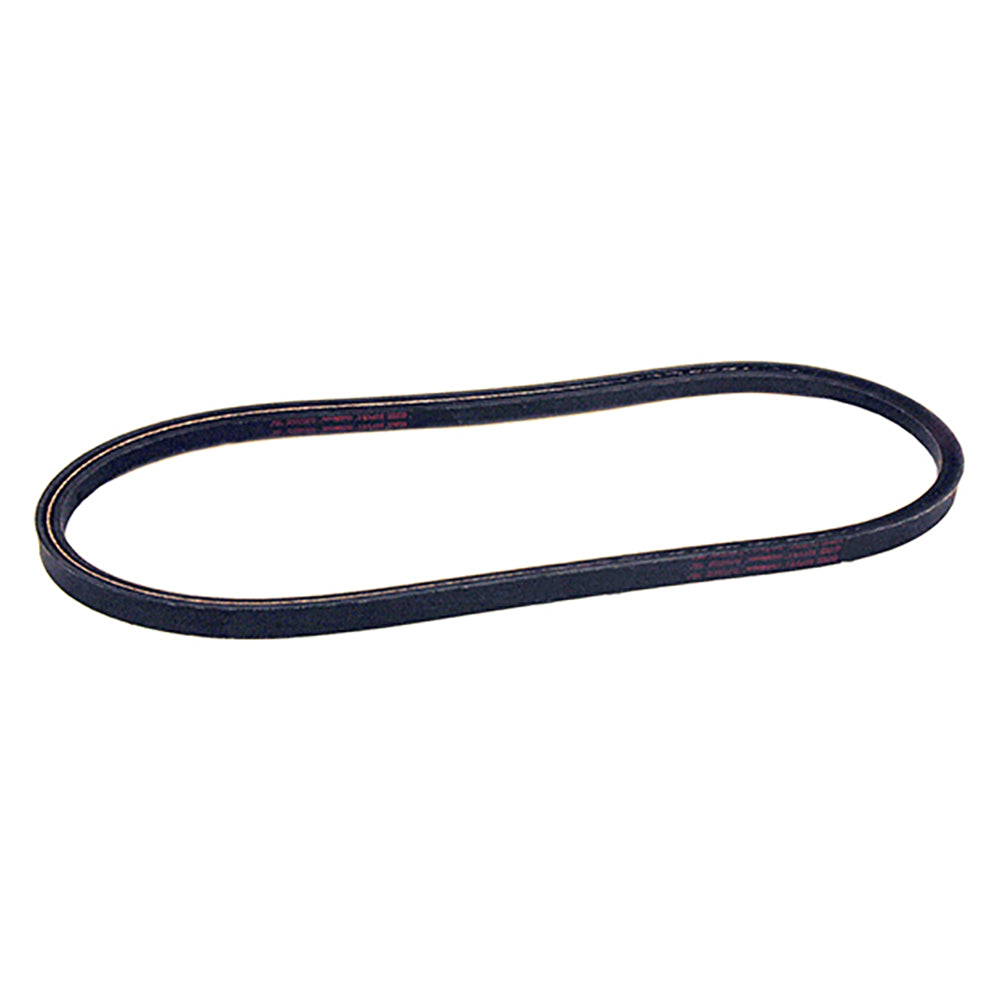

Belt:
Length: 89-1/2"
Width: 1/2"

Adaptors:
OD: 1-15/16"
Center Hole: .600"

Additional Information:

Kit Includes: (2) Spindle Assembly w/ Shaft OD 6-7/8" HEIGHT 7-1/4" 9/16"-18 UNF thread at each end of shaft Includes housing, shaft, bearings, grease fitting and dust cover over one bearing Replaces Part Numbers: 1001200, 10001709MA, 1001200MA (2) 3 in 1 Mower Blade Length: 21-3/16" Width: 2-1/4" Thickness: .134" Center Hole: .85" Replaces Part Number: 092545E701MA, 095100E701MA (1) Deck Belt 1/2" x 89.38" Thickness: 0.468" Wrapped Polyester Cord Replaces Part Numbers: 037X88, 037X88MA, 37X88, 37X88MA, 710213 (2) Jackshaft Pulley OD: 5-3/8" ID: 9/16" Splined Pulley Groove Width: 1/2" Replaces Part Number: 23347, 37X18 (1) Flat Idler Pulley OD: 4-11/16" ID: 11/16" Width: 1-3/8" Replaces Part Numbers: 754-0146, 754-0252, 754-262 (2) Splined Blade Adaptor Length 2-5/32" C. H. DIA 0.6000" Top ID 7/8" Diameter 1-15/16" Contains Only the Splined Adapter, not the washers or nuts Replaces Part Numbers: 690411

Reference Numbers:

710213, 495100, 95100, 95100E701, 1001046, 23347, 37X18, 690411,1001200, 10001709MA, 1001200MA, 092545E701MA, 095100E701MA, 2027, 2027MA, 456252, 456252MA, 495100, 4951003, 4951003MA, 495100MA, 5539, 5539MA, 56252E701, 56252E701MA, 7769203, 92545E701, 92545E701MA, 95100, 95100-853, 95100E701, 95100E701MA
