New Aftermarket Chain Connecting Links for #35 Chain Set of (10) Ten

Name: New Aftermarket Chain Connecting Links for #35 Chain Set of (10) Ten
SKU: A-B1SB400-AI_x10-RIT
Price: 10.0 USD
Availability: InStock

New Aftermarket Chain Connecting Links for #35 Chain Set of (10) Ten

£10.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

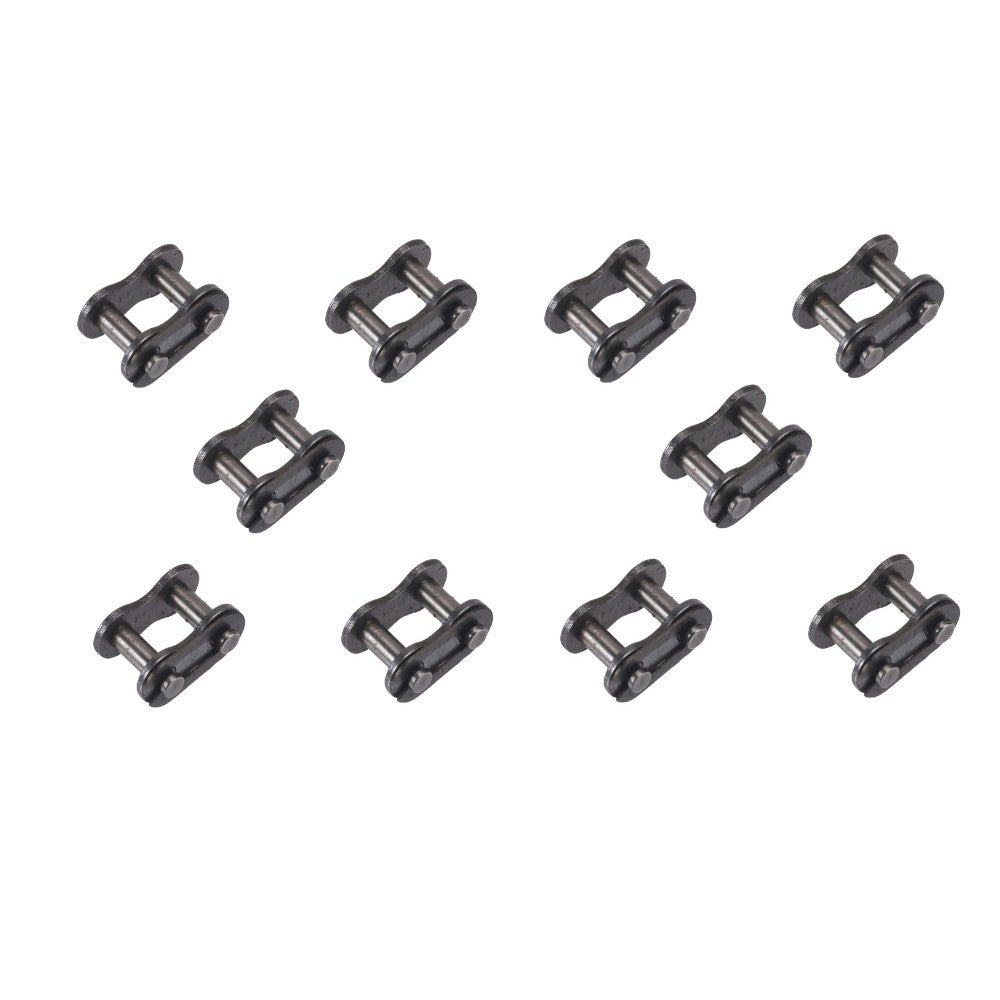

(10) Ten New Aftermarket Replacement Connecting Links For Chain #35

Item Specs:
#35
Pitch (P): 0.375 inch (9.525 mm)
Roller Diameter (d1 max): 0.2 inch (5.08 mm)
Width Between Inner Plates (b1 min): 0.188 inch (4.77 mm)
Pin Diameter (d2 max): 0.141 inch (3.58 mm)
Pin Length (L max): 0.488 inch (12.40 mm)
Pin Length (Lc max): 0.518 inch (13.17 mm)
Inner Plate Depth (h2 max): 0.354 inch (9.0 mm)
Plate Thickness (T max): 0.051 inch (1.30 mm)
Ultimate Tensile Strength (Q min): 7.90/1795 kN/LB
Average Tensile Strength Qo): 10.8 kN
Weight (q): 0.221749 lb/ft (0.33 kg/m)

Replaces Part Number: B1SB400

Models This Part Fits:

346T/WS, 678, 210-310-000, Walk-Behind Mowers, 035, RB-210, 030, TX, 210-031, 459, 210-020-192, Fits Gator: TS, 466T/WS, 342, 459T, 466, 342T/WS, Snow Throwers, 466AWS, 359, 359WS, 456T/WS, 342AWS, 456AWS, Tillers, 020, 459WS, 210-020-000, 031, RB-510, 342AT, #35, 456A, 210-031-009, 466A, Rear-Engine Riding Mowers, 210-031-000, 466AT, 210-020-205, RB-300, 210-031-192, 031-206, 456AT, 177-930, 1666234, 210-031-205, 456, 346
