Exhaust Elbow & Gasket Set Fits Ford/New Holland Replaces NAA55232A

Exhaust Elbow & Gasket Set Fits Ford/New Holland Replaces NAA55232A

£34.00 GBP
£34.00 GBP
Sale Sold out
Shipping calculated at checkout.

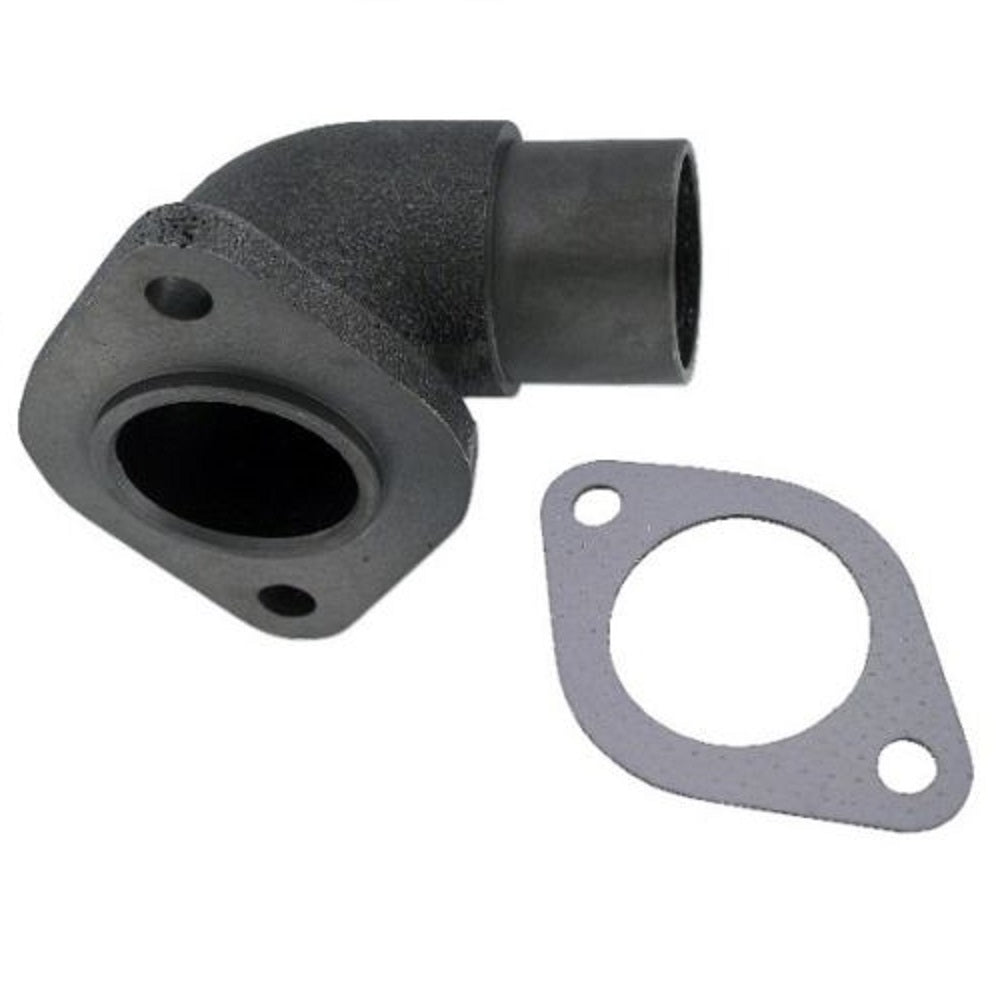

One New Aftermarket Exhaust Elbow & Gasket Set

Tech Info:
 -Kit Contains:
 -(1) Exhaust Elbow
 -Body Length 3 15/16"
 -ID 2 3/4"
 -Length 1 7/8"
 -OD 1 5/8"
 -Overall Length 4 3/8"
 -
 -Please measure before ordering.--This elbow fits all of the 134 cubic inch engines and the early 172 cubic inch engines thru 1957.
 -
 -Replaces Part Number: NAA55250B, NAA55250BWGGV
 -
 -(1) Elbow Gasket
 -3-5/8" Center to Center Bolt Holes
 -2" Center Hole Diameter
 -4-1/4" Extreme Outside Diameter, from the End of One Bolt Hole Outer Edge to the Other Bolt Hole Outer Edge
 -2-13/16" Outside Diameter, Outer Edge Diameter Around Center Hole
 -1/16" Thick, Approximately
 -
 -Replaces Part Number: NAA55232A

Made to Fits Ford/New Holland:
 Tractor Models: NAA, 2000, 2031, 2111, 2120, 2130, 2131, 4000, 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 701, 740, 741, 771, 800, 801, 820, 840, 850, 860, 900, 950, 960, Jubilee, 2030, 2110, 901
 Replaces Part Number(s): NAA55250B, NAA55250BWGGV, NAA55232A

Models This Part Fits:

621, 660, 541, 900, 2110, 950, 600, 740, Jubilee, 901, 840, 960, 2111, 650, 771, 2130, 820, 800, 611, 630, 671, 631, 2031, 850, 2120, 501, 661, 801, 681, 860, 2000, 620, NAA, 641, 2131, 601, 700, 4000, 2030, 640, 651, 701, 741

Additional Information:

Kit Contains: (1) Exhaust Elbow Body Length 3 15/16" ID 2 3/4" Length 1 7/8" OD 1 5/8" Overall Length 4 3/8" Please measure before ordering.--This elbow fits all of the 134 cubic inch engines and the early 172 cubic inch engines thru 1957. Replaces Part Number: NAA55250B, NAA55250BWGGV (1) Elbow Gasket 3-5/8" Center to Center Bolt Holes 2" Center Hole Diameter 4-1/4" Extreme Outside Diameter, from the End of One Bolt Hole Outer Edge to the Other Bolt Hole Outer Edge 2-13/16" Outside Diameter, Outer Edge Diameter Around Center Hole 1/16" Thick, Approximately Replaces Part Number: NAA55232A

Reference Numbers:

NAA55250B, NAA55250BWGGV, NAA55232A
