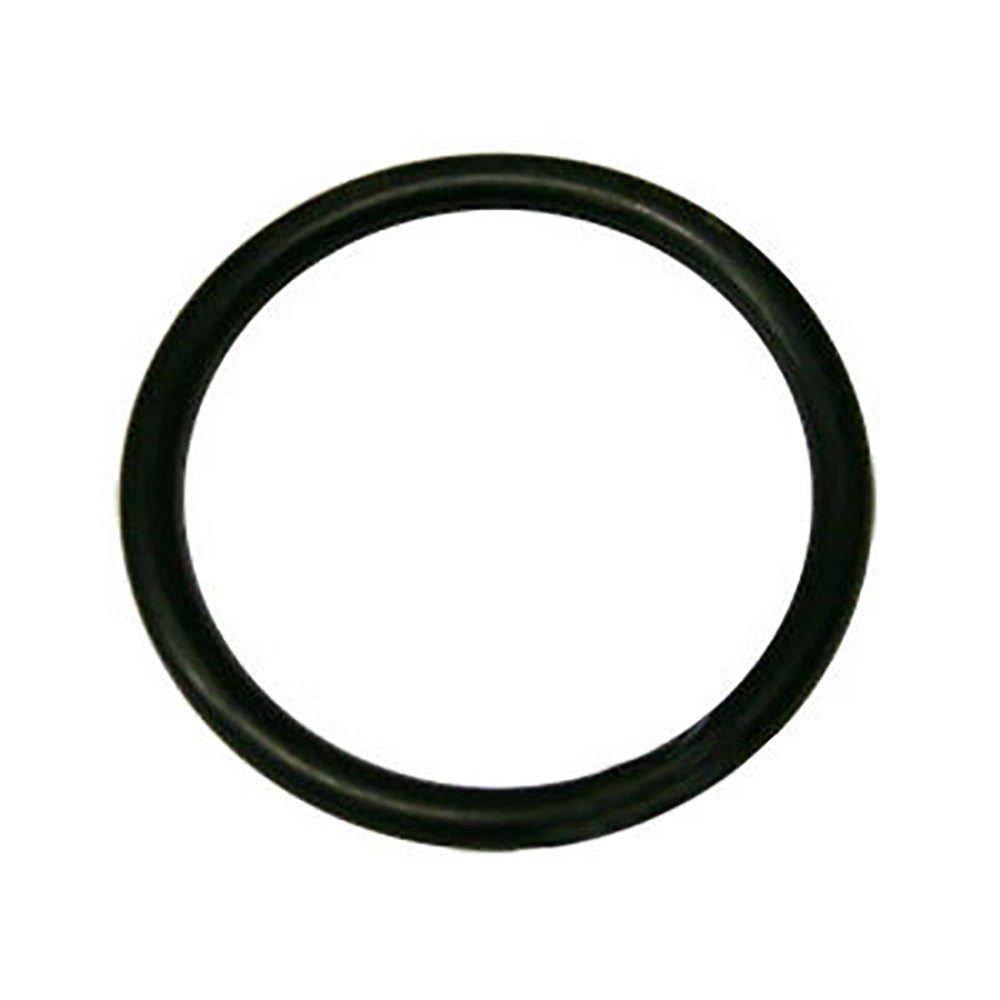

NAA533A - O Ring for Hydraulic Lift Piston - NAA Fits Ford Tractors

NAA533A - O Ring for Hydraulic Lift Piston - NAA Fits Ford Tractors

£10.00 GBP
£10.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement O-Ring Fits Ford and Fits Massey Ferguson Hydraulic Lift Piston

This aftermarket replacement O-ring (NAA533A) seals the hydraulic lift piston on Fits Ford N-series and Jubilee tractors as well as early Fits Massey Ferguson models. It installs toward the head of the lift cylinder piston and is used in conjunction with the backup/lift piston washer (NAA473A) -- the leather washer installs first, then this O-ring. Fits the 2-1/2" diameter lift piston (piston part number NAA530B).

Note Fits Massey Ferguson TO35: Fits to serial number 179304 only, when equipped with 2-1/2" diameter piston. Fits TE20, TEA20, TO20, TO30, F40, and Fits Massey Harris 50 when using the 2-1/2" diameter piston.

Specifications

  • Application: O-Ring for 2-1/2" Diameter Hydraulic Lift Piston
  • Inner Diameter: 2-1/8" (2.100")
  • Outer Diameter: 2-1/2" (2.500")
  • Width / Thickness: 3/16" (0.210")

Compatible Models

Fits Ford / Fits Ford New Holland: 2N, 8N, 9N, NAA (Golden Jubilee, 1953-54), NAB (Jubilee)

Fits Massey Ferguson: TE20 (when using 2-1/2" dia. piston), TEA20 (when using 2-1/2" dia. piston), TO20 (when using 2-1/2" dia. piston), TO30 (when using 2-1/2" dia. piston), TO35 (to SN 179304, when using 2-1/2" dia. piston), F40 (when using 2-1/2" dia. piston)

Fits Massey Harris: 50 (when using 2-1/2" dia. piston)

Replaces Part Number(s):

NAA533A, 235760, 44R330, 238-5330, 350657R1, 835126M1, 33-OR, 14471380, A30971

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

Super AV-1, 80-66DT, TEA20, 6635, 6640, 4610N, 7635, 7910, MXU130, 55-46DT, 4835, 2N, 7810S, 130, C, 8N, 6810, 4010S, 7530, 7810, L65, 9N, 5530, Super A-1, MXU125, 5640, 200, 7840, 8160, MXU135, 8010, 8240, TO20, 65-93DT, MXM130, Super A, 5110, Jubilee, 7740O, MXU110, MXU100, NAA, 7840O, 6610S, MXM120, 82-94DT, 8210, 7010, 50, MXM140, 8260, 72-93DT, F40, 85-90DT, Super C, 7810O, MXU115, 88-93DT, 5610S, 202, TO35, NAB, 6530, TE20, 88-94DT, 140, 6810S, 3010S, 5635, F110DT, TO30, 7610S, 100, Super AV, 66 Series, 8340

Additional Information:

O-Ring Only for 2-1/2" Diameter Hydraulic Lift Piston Width: 3/16" Inner Diameter: 2-1/8" Outer Diameter: 2-1/2"

Reference Numbers:

14471380, 238-5330, 350657R1, 33-OR,44R330, A30971, 238-5330, 350657R1, 235760, NAA533A, 835126M1
