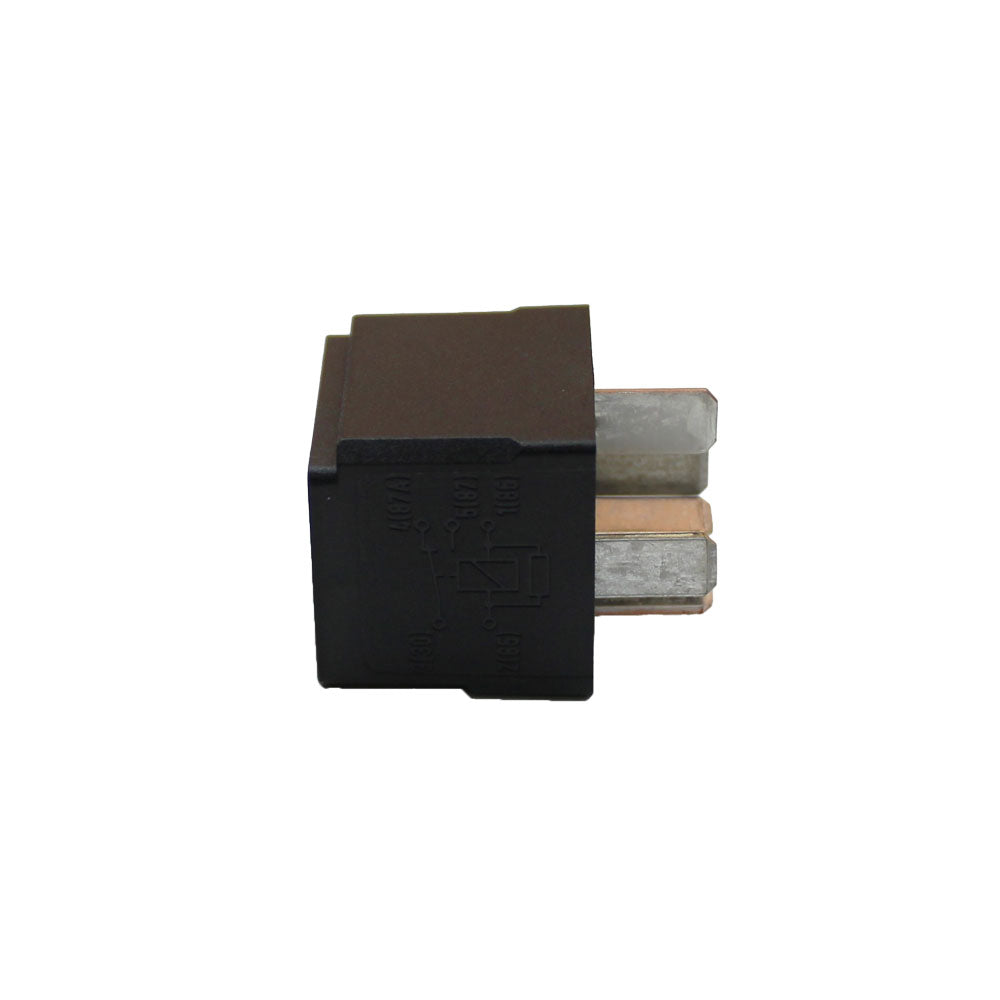

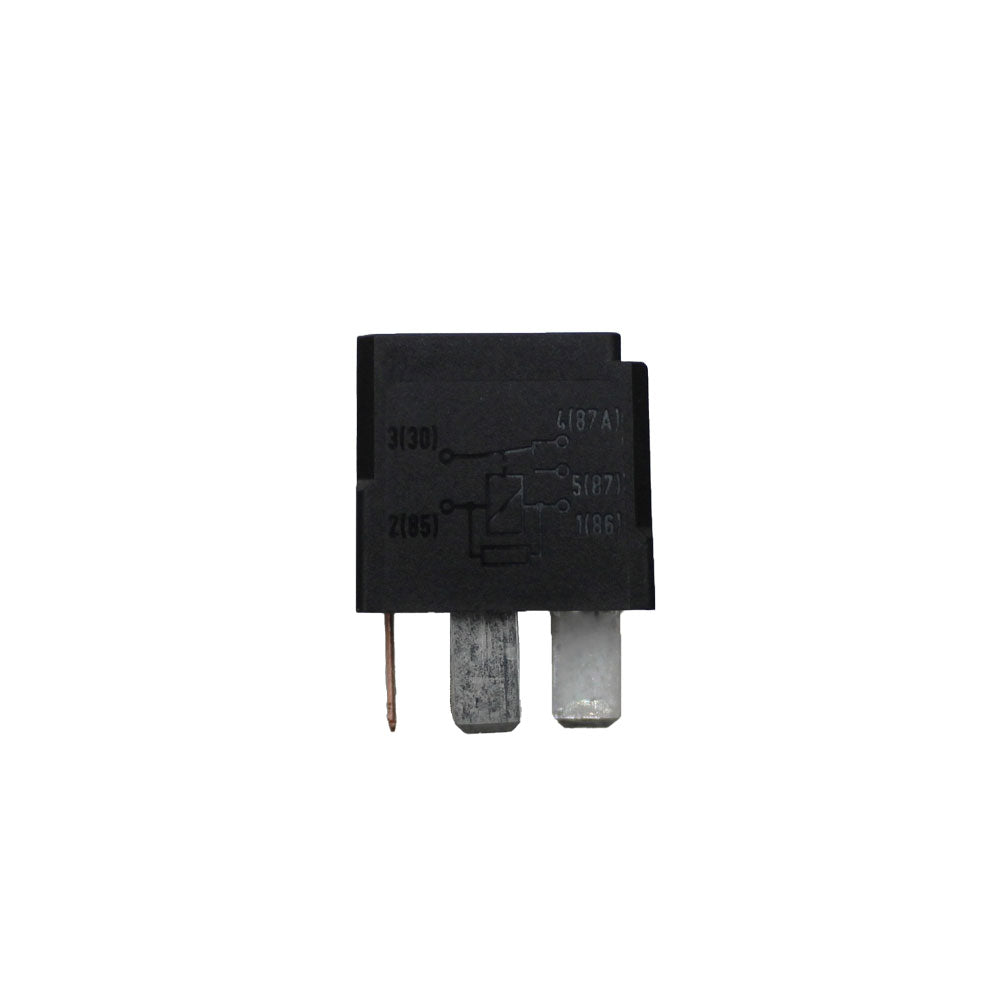

Multi Purpose Micro Plug Relay 007794021 007794027 7794021 87530 Fits Hella

One New Aftermarket Replacement Multi Purpose Micro Plug Relay

Suitable For:
Engine Cooling Fan Motor, Idle Speed Control, Horn, A/C Compressor Control, HVAC Blower, HVAC System, Window Defroster, A/C Condenser Fan Motor, A/C Compressor Throttle Cut-Off, HVAC Blower Motor, Accessory Power, Auxiliary Lighting, Turn Signals, Power Windows, Rear Window Defogger, and More.

Tech Info:
Volts: 12
Amps: 40
Terminal ID 2: 30
Terminal 2 Size: 6.3mm X 0.8mm
Terminal ID 3: 85
Terminal 3 Size: 6.3mm X 0.8mm
Terminal ID 4: 86
Terminal 4 Size: 6.3mm X 0.8mm
Terminal ID 5: 87
Terminal 5 Size: 6.3mm X 0.8mm
Terminal ID 6: 87a
Terminal 6 Size: 6.3mm X 0.8mm
Cap Composition: Plastic
Contact Config: Single Pole, Double Throw (SPDT)
Duty Cycle: Continuous
Includes: Change Over Contacts
No of Terminals: 5
Plated Terminals: False
Resistance Type: Resistor

Replaces Part Numbers:
Fits Bosch: 0332209137
Fits Hella: 007794021, 007794027, 7794021, 87530, H41510151
Fits Massey Ferguson: 4272432M1
Fits Volkswagon: 2E0-937-099
