Fits John Deere Parts Blade CW W45326 MX10, HX15 (LH Wing, SN <004
Fits John Deere Parts Blade CW W45326 MX10, HX15 (LH Wing, SN <004
Couldn't load pickup availability

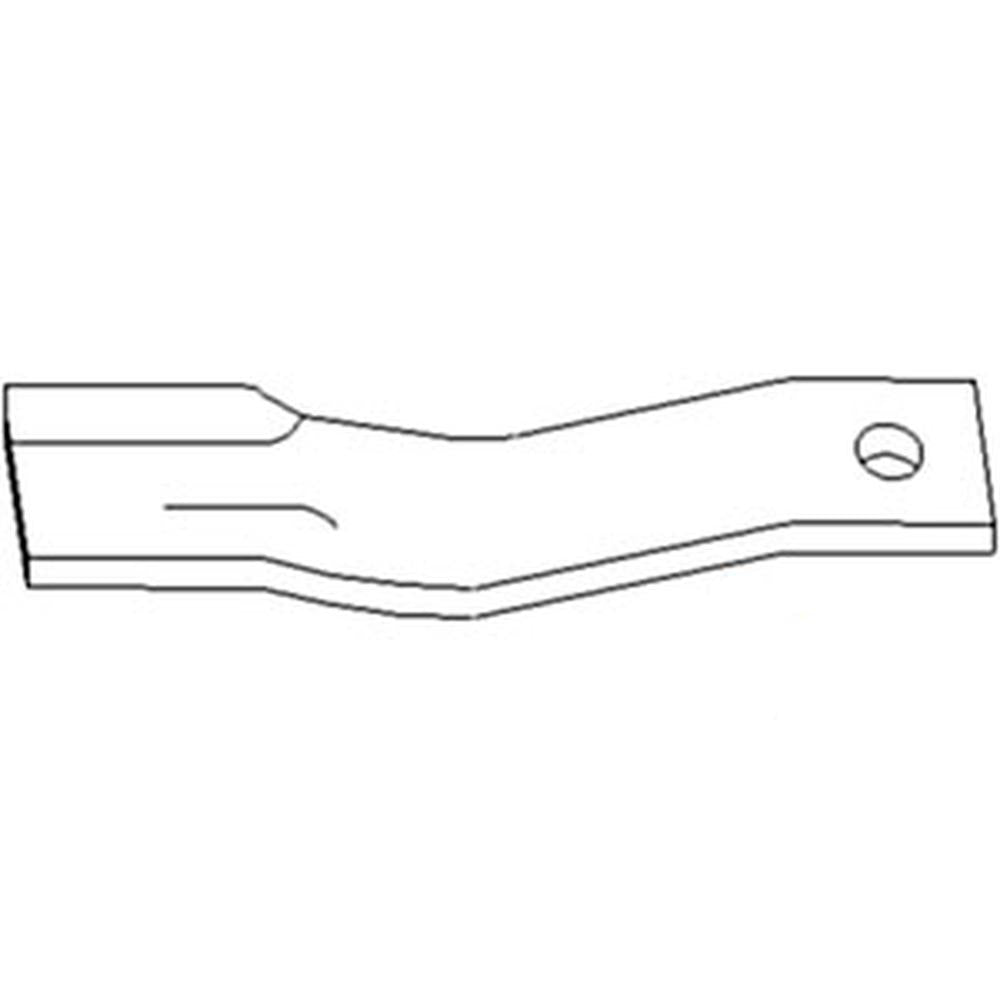

One New Aftermarket Replacement CW Suction Rotary Cutter Blade Fits John Deere Rotary Cutters
This clockwise (CW) suction rotary cutter blade is a left-hand (LH) wing blade designed Fits John Deere pull-type and flex-wing rotary cutters. The suction-style design lifts and cuts vegetation efficiently. This blade installs on the left-hand wing position only -- confirm fitment against serial number restrictions before ordering.
Specifications
- Overall Length: 21.500"
- Width: 4.000"
- Thickness: 0.500"
- Hole Diameter: 1.500"
- Center of Hole to End: 19.500"
- Offset Height: 3.000"
- Rotation: Clockwise (CW) - Suction/Updraft
- Position: Left-Hand (LH) Wing
Compatible Models
Fits John Deere Rotary Cutters (Serial Number Restrictions Apply):
- CX15 -- LH Wing, SN <002229
- HX10
- HX15 -- LH Wing, SN <004529
- MX10
Note: For HX15 and CX15, this blade fits LEFT-HAND WING position only on machines with serial numbers BELOW the listed cutoffs. Machines at or above those serial numbers require a different blade. Verify your serial number before ordering.
Replaces Part Number(s):
W45326, FH329913
Aftermarket Interchange Numbers
HAW45326 (Herschel)
New aftermarket replacement part - not remanufactured, not used.
