Minor Starter Repair Kit Fits Delco Starters

Minor Starter Repair Kit Fits Delco Starters

£19.00 GBP
£19.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket Replacement

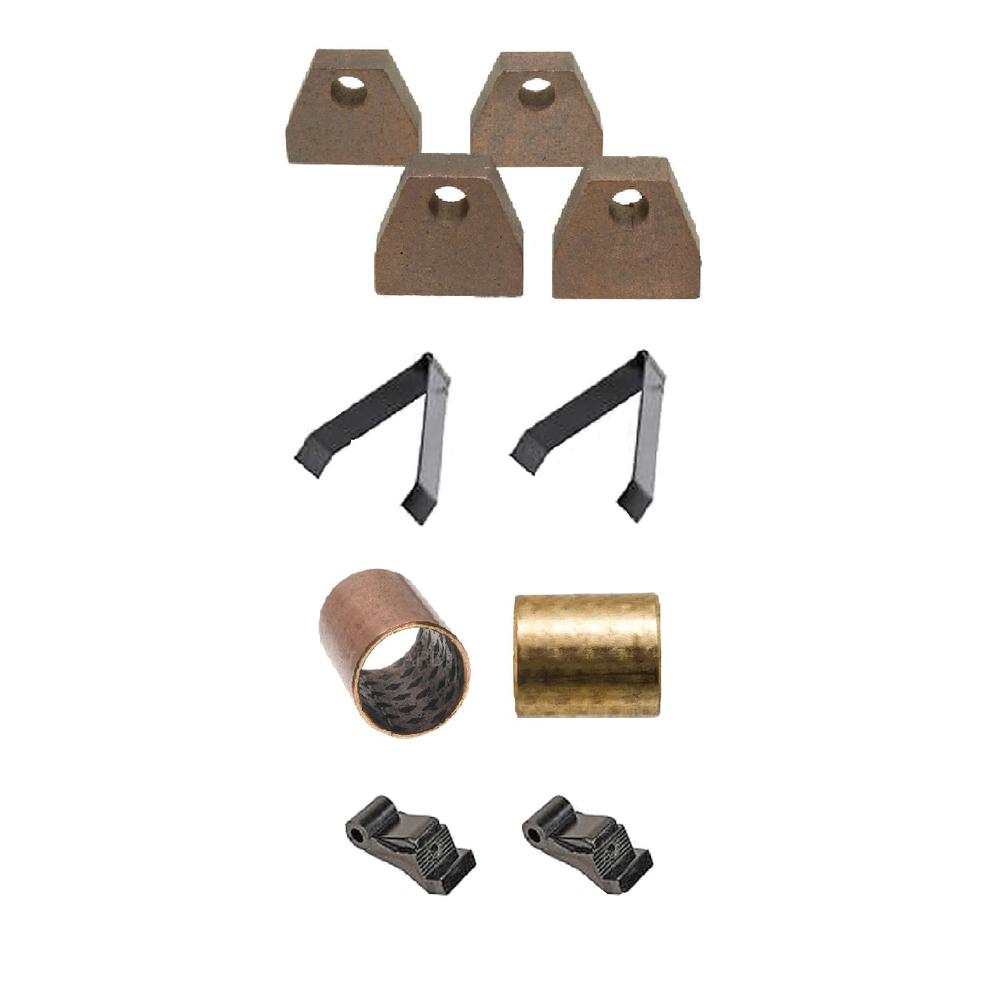

Minor Starter Repair Kit


Tech Info:
(2) Brush Holder (SDR1302)
(4) Starter Brush (D760)
(2) Brush Spring (D4954)
(1) Starter Bushing (D1680)
(1) Commutator End Bushing (D1689)

Replaces Part Number: SDR1302, D760, D4954, D1680, D1689

Models This Part Fits:

D4, 10MT, 27MT, 920, 30MT, D2, D6, 35MT, 20MT, 14 Motor Grader, 25MT, 12 Motor Grader

Additional Information:

(2) Brush Holders For Starters Insulated & Tapped with 8-32 Threads Replaces Part Numbers: 5M3294, 665545 (4) Starter Brushes Length: 0.63' / 16mm Width: 0.748" / 19mm Height: 0.256" / 6.5mm Replaces Part Numbers: 1906945, 1906966, 1946400 (2) Brush Springs 20-27MT Series w/ Step-Down Field Case Replaces Part Numbers: 1926622 (1) Starter Bushing ID: 0.503" / 12.78mm OD: 0.565" / 14.35mm Width: 0.781" / 19.84mm Replaces Part Numbers: 62-1500 (1) Commutator End Bushing Location Used: DE Housing ID: 0.501" / 12.73mm OD: 0.627" / 15.93mm Width: 0.776" / 19.7mm Bushing Type: Oilite Bushing Size: Standard Replaces Part Numbers: 10470767, 1857960, 1862383, 1862391, 1906945

Reference Numbers:

1926618, 1950546, 1988414, 1938587, S1851, SDR1302, 151-12008, 21401, 69-1202, 55-460, 5540-460, 419-19305NT, 52-1021, 5m3294, 665545

Product Category:

Misc.
View More: Misc. Replacement Parts

Product Group:

Electrical
View More: Electrical Replacement Parts
