MG86534249 MG86563887 Radiator Fits John Deere Skidsteer 4475 7775 5575

MG86534249 MG86563887 Radiator Fits John Deere Skidsteer 4475 7775 5575

£642.00 GBP
£642.00 GBP
Sale Sold out
Shipping calculated at checkout.

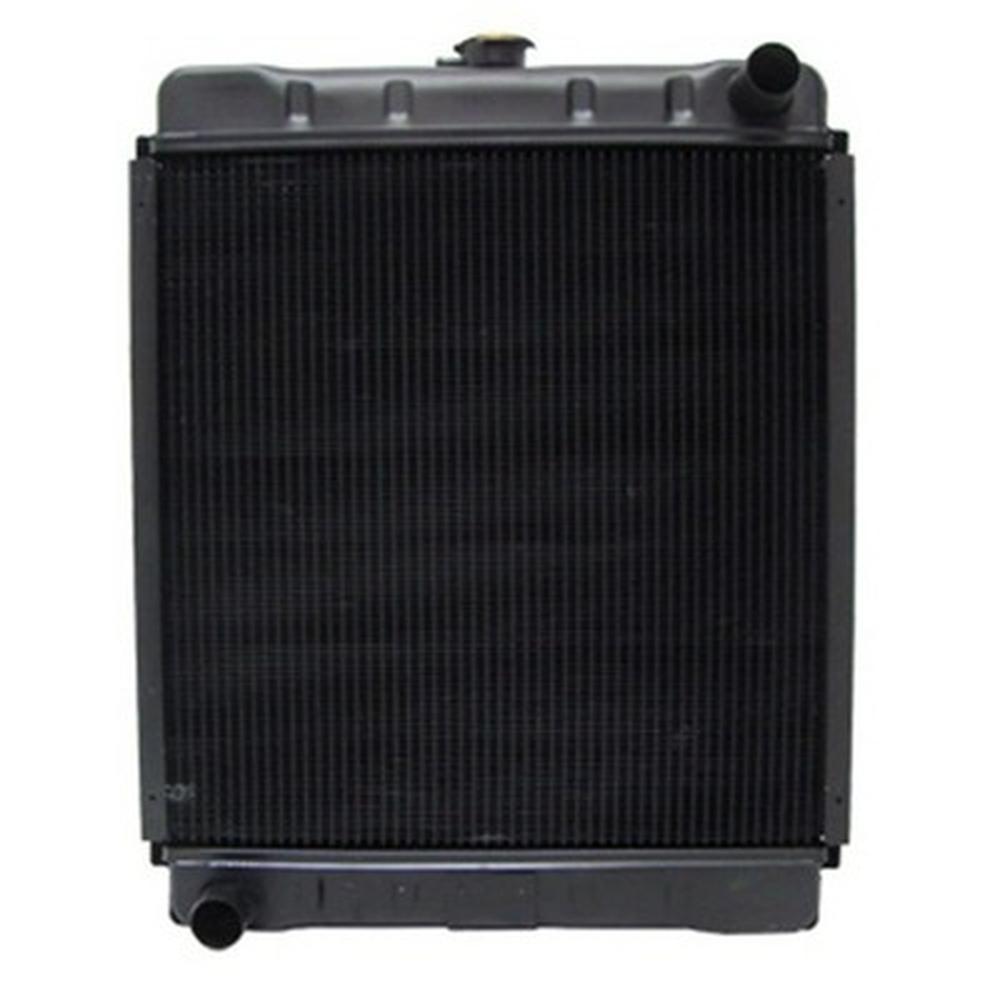

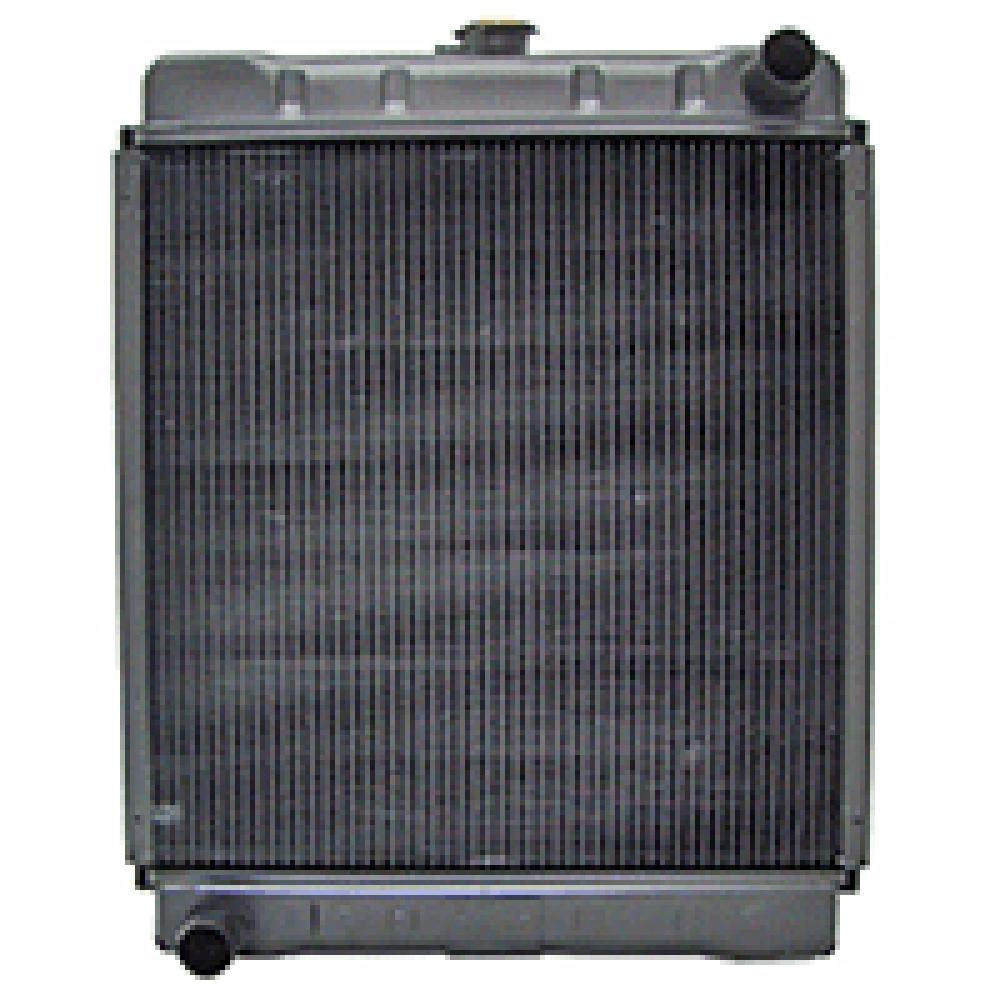

One New Aftermarket Radiator Made to Fits John Deere Skid Steer Models

Fits John Deere Skid Steer Models: 4475, 5575, 6675, 7775

Item Specs:
Core Height: 18 5/16
Core Width: 18
Depth: 3 1/4
Fill Neck Height: 3/4
Fins Per Inch: 7 Flat Fin
Inlet: 1 3/8
Outlet: 1 3/8
Overall Height: 23
Overall Width: 18 3/4
Rows: 5
Uses: RW0021-1 Radiator Cap
*Has Stud Mounts on Bottom
*Threaded Inserts on Side Channel

Replaces Part Number(s): MG86534249, MG86563887, 86534248, 86534249, 9842126, 86563887

Models This Part Fits:

LX465, L565, 4475, LX565, LS170, LS150, LS170E, LS140, LS160, LX665, LS150E, LS160E, L465, LS140E, L665, LX485, 7775, 6675, 5575

Additional Information:

Core Height: 18 5/16 Core Width: 18 Depth: 3 1/4 Fill Neck Height: 3/4 Fins Per Inch: 7 Flat Fin Inlet: 1 3/8 Outlet: 1 3/8 Overall Height: 23 Overall Width: 18 3/4 Rows: 5 Uses: RW0021-1 Radiator Cap *Has Stud Mounts on Bottom *Threaded Inserts on Side Channel

Reference Numbers:

86534248,8653877, 219833, MG86534249, MG86563887, 86534248, 86534249, 9842126, 86563887, MG86534249, MG86563887, 86534248, 86534249, 9842126, 86563887
