MARVEL SCHEBLER ECONOMY CARBURETOR KIT W/ FLOAT MINNEAPOLIS MOLINE Z 4 JET STAR

MARVEL SCHEBLER ECONOMY CARBURETOR KIT W/ FLOAT MINNEAPOLIS MOLINE Z 4 JET STAR

£26.00 GBP
£26.00 GBP
Sale Sold out
Shipping calculated at checkout.

One New Aftermarket Replacement Economy Carburetor Kit with Float for Marvel Schebler Small Bowl Carburetors - Minneapolis Moline Tractors

This economy carburetor rebuild kit with brass float is designed for Marvel Schebler small bowl carburetors used on Minneapolis Moline (MM) tractors and a wide range of other classic agricultural equipment. The kit includes gaskets, needle, and seat to restore proper fuel metering and carburetor function. The included brass carburetor float is used with small bowl carburetors and does not include the hinge pin; the dimension from center of pin hinge to end of pontoon is 2.375 inches in length. Also Fits John Deere tractors equipped with Marvel Schebler TSX-series carburetors - verify your carburetor tag number before ordering.

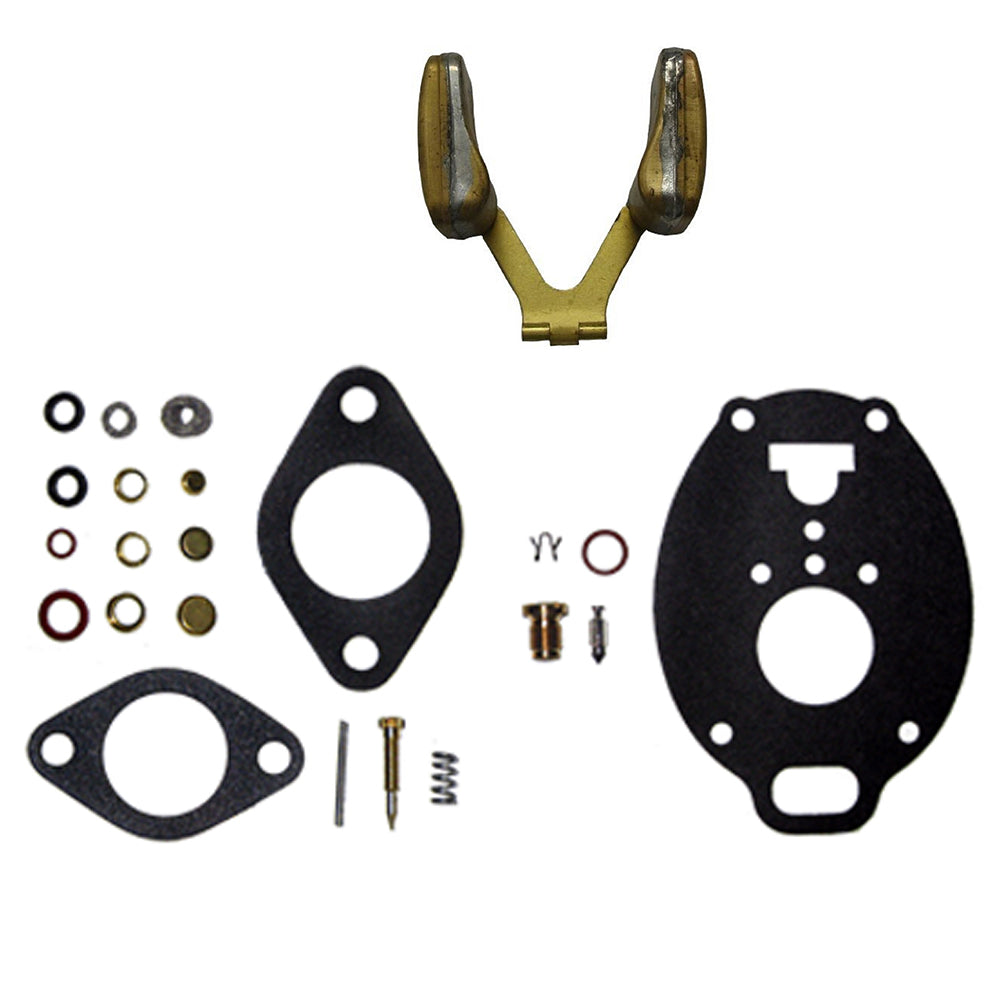

Kit Includes

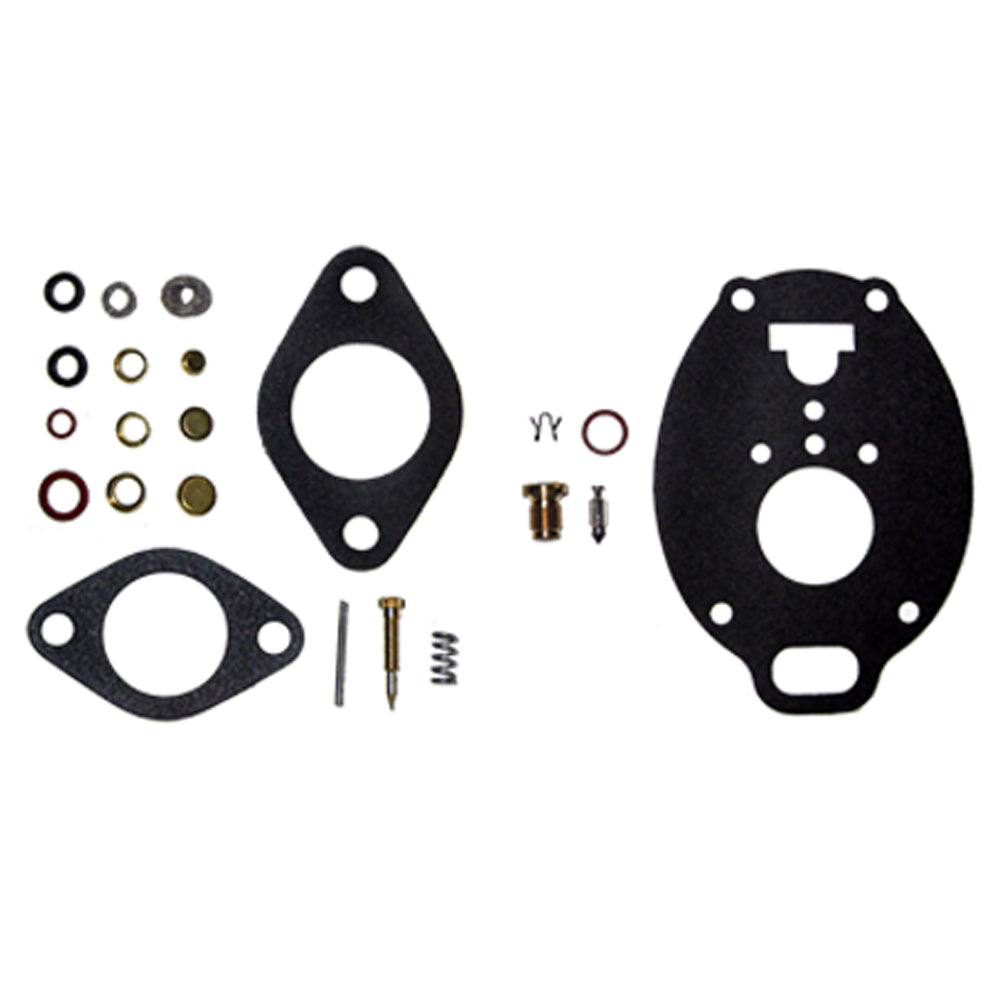

  • (1) Economy Carburetor Rebuild Kit - includes gaskets, needle, and seat

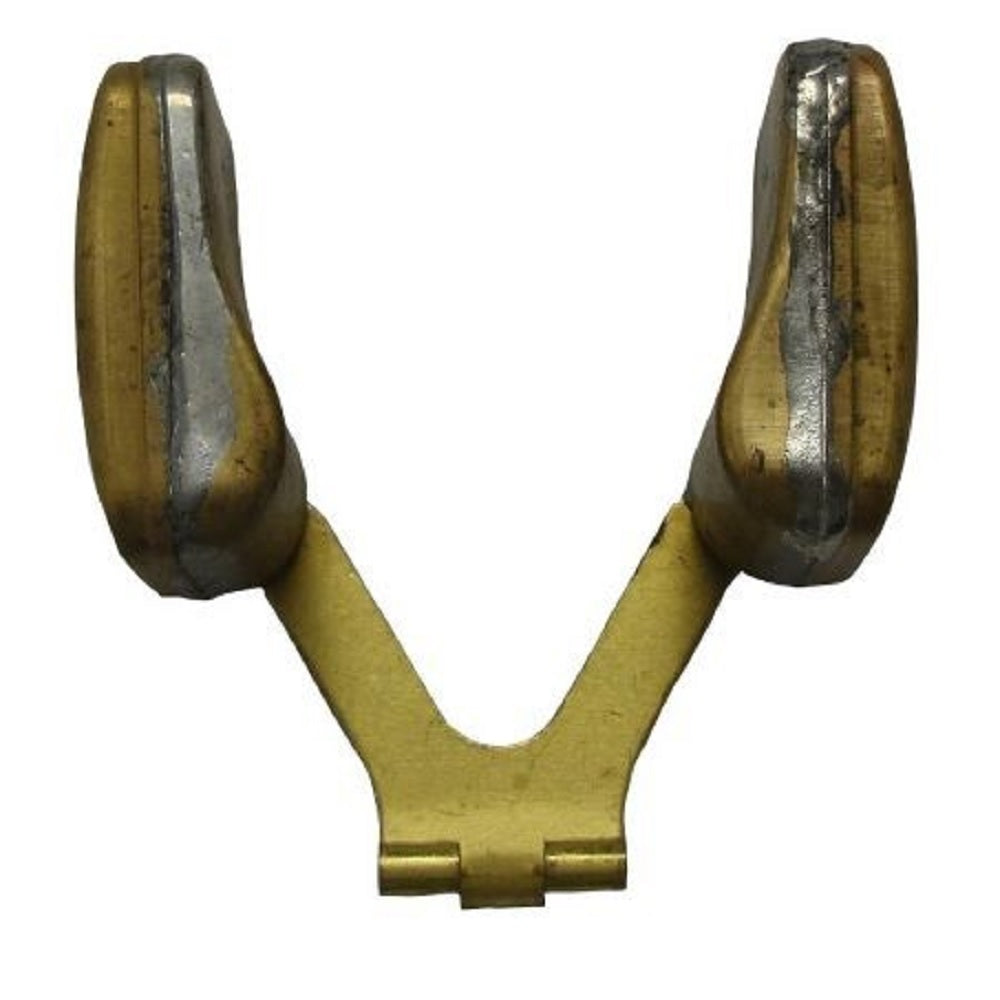

  • (1) Carburetor Float - brass material, small bowl carburetors, without pin, 2.375" pontoon length (center of pin hinge to end of pontoon)

Specifications

  • Float material: Brass
  • Bowl type: Small bowl carburetors
  • Float pin: Not included (without pin)
  • Float pontoon length: 2.375" (center of pin hinge to end of pontoon)

Compatible Models

Minneapolis Moline: Z, ZA, ZB, 335, 445, 4 Star, Super 4 Star, Jet Star, Jet Star 3, KT, U302, M4, Big Mo 400, Big Mo 500, Big Mo 600, Power Units

Fits John Deere: M, MC, MT, MI, 40, 320, 330, 420, 430, 440, 1020, 1520, 2010, 2020, 2030, 2510, 2520

Compatible Marvel Schebler Carburetor Tag Numbers: TSX97, TSX181, TSX221, TSX245, TSX374, TSX414, TSX464, TSX475, TSX505, TSX506, TSX506A, TSX530, TSX561, TSX562, TSX592, TSX596, TSX610, TSX633, TSX641, TSX662, TSX678, TSX688, TSX689, TSX695, TSX713, TSX719, TSX738, TSX755, TSX756, TSX768, TSX769, TSX772, TSX773, TSX775, TSX797, TSX798, TSX799, TSX808, TSX810, TSX811, TSX813, TSX853, TSX856, TSX857, TSX869, TSX871, TSX877, TSX878, TSX884, TSX885, TSX893, TSX894, TSX899, TSX903, TSX904, TSX904SL, TSX905, TSX905-1, TSX907, TSX920, TSX920SL, TSX925, TSX927, TSX928, TSX933, TSX934, TSX938, TSX938SL, TSX939, TSX939SL, TSX940, TSX943, TSX944SL, TSX945SL, TSX947SL, TSX952, TSX959, TSX961, TSX974, TSX974SL, TSX975, TSX975SL, TSX977, TSX980, TSX984SL, TSX985SL, TSXU836, TSXU963

Note: Verify your carburetor manufacturer tag number is listed above before ordering.

Replaces Part Number(s):

Economy Kit replaces: 4022815
Float replaces: 15480A, 69919D
AL20225T, AL20290T, AL2283T, AL2630T, AL2848T, AL2849T, AL2850T, AL2851T, AL2859T, AT11963T, AT12743T, AT12903, AT16332T, PP21819, R0069

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

MT, TSX506A, 2010, TSX738, TSX884, TSX974SL, TSX939, TSX985SL, TSX678, TSX959, 2520, TSX221, TSX797, TSX857, TSX975, 440, TSX920, TSX505, MI, TSX940, TSX808, TSX414, TSX904, TSX798, M, TSX662, TSX773, TSX97, 330, TSX984SL, 2030, TSX933, TSX934, TSX927, TSX928, TSX561, TSX925, 2510, TSX947SL, TSX641, TSX530, TSX562, TSX871, TSX695, TSX905, TSX975SL, TSX633, MC, 430, TSX475, TSX755, TSX894, TSX907, TSX506, TSX944SL, TSX610, TSX245, TSX938, TSX893, TSX596, TSX813, TSX810, TSX869, 1020, TSX799, TSX592, TSX775, TSX920SL, 2020, TSX980, TSX181, TSX905-1, TSX811, TSX899, TSX719, TSX977, TSX939SL, TSX877, TSX464, TSX974, TSX903, TSX878, TSX943, TSXU963, 320, 1520, TSX688, TSX961, TSX904SL, 40, TSX374, TSX768, TSX769, TSX952, TSX885, TSX713, TSXU836, TSX689, TSX772, TSX756, TSX938SL, TSX856, TSX777, TSX853, 420, TSX945SL

Additional Information:

(1) Economy Carburetor Kit Includes Gaskets, Needle, & Seat Replaces: 4022815 (1) Carburetor Float Used With Small Bowl Carburetors Brass Material Float Chambers Without Pin The dimension from center of pin hinge to end of pontoon is 2.375" in length Replaces: 15480A, 69919D

Reference Numbers:

AL20225T, AL20290T, AL2283T, AL2630T, AL2848T, AL2849T, AL2850T, AL2851T, AL2859T, AT11963T, AT12743T, AT12903, AT16332T, PP21819, R0069
