MARVEL SCHEBLER ECONOMY CARBURETOR KIT W/ FLOAT Fits Case 530 540 600 640 641

MARVEL SCHEBLER ECONOMY CARBURETOR KIT W/ FLOAT Fits Case 530 540 600 640 641

£26.00 GBP
£26.00 GBP
Sale Sold out
Shipping calculated at checkout.

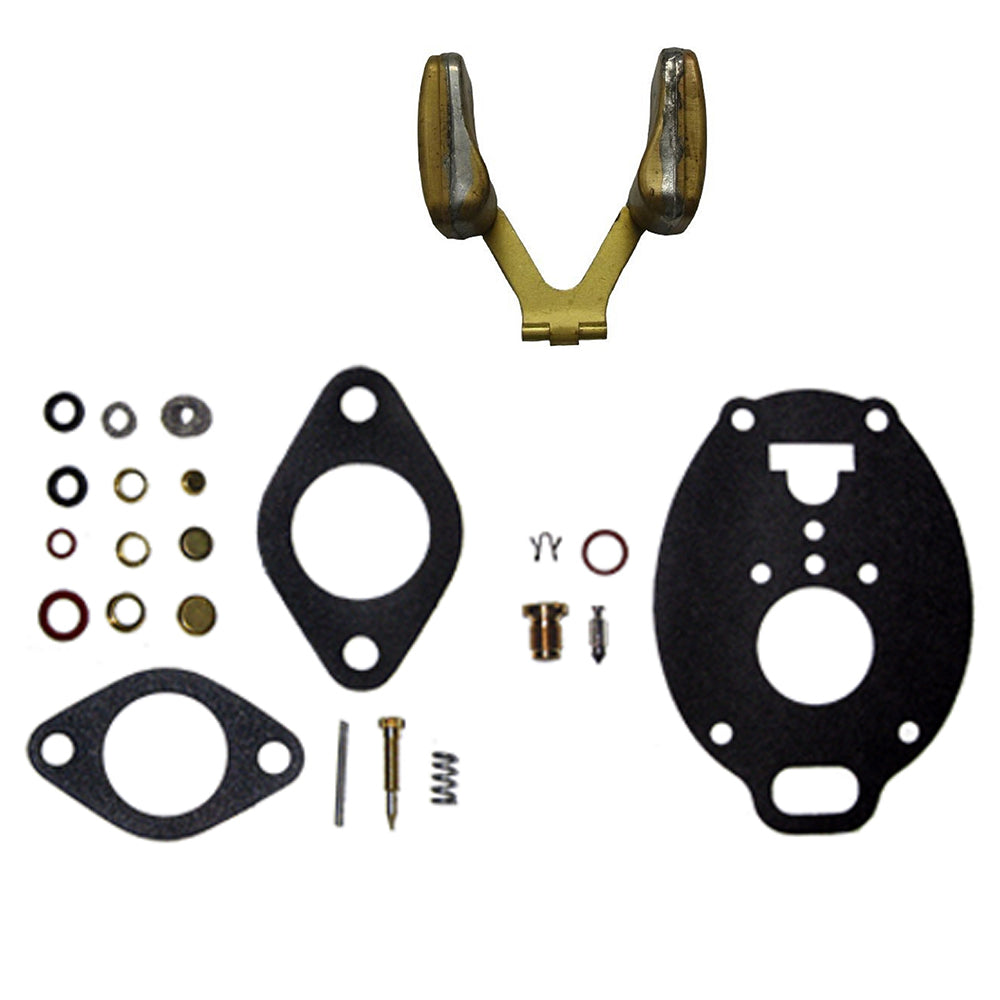

One New Aftermarket Replacement Marvel Schebler Economy Carburetor Kit with Float Fits Case, Fits John Deere, Fits Allis Chalmers, IH/Fits FARMALL, Fits Massey Ferguson, Minneapolis Moline, Oliver Tractors

This economy carburetor rebuild kit is designed for Marvel Schebler "big bowl" TSX-series carburetors found on a wide range of agricultural tractors. The kit includes gaskets, needle and seat, and float lever pin to restore proper fuel delivery. The brass carburetor float (without pin) is included and is designed for use with small bowl carburetors; the float pontoon measures 2.375 inches from the center of the pin hinge to the end of the pontoon.

Kit Contents

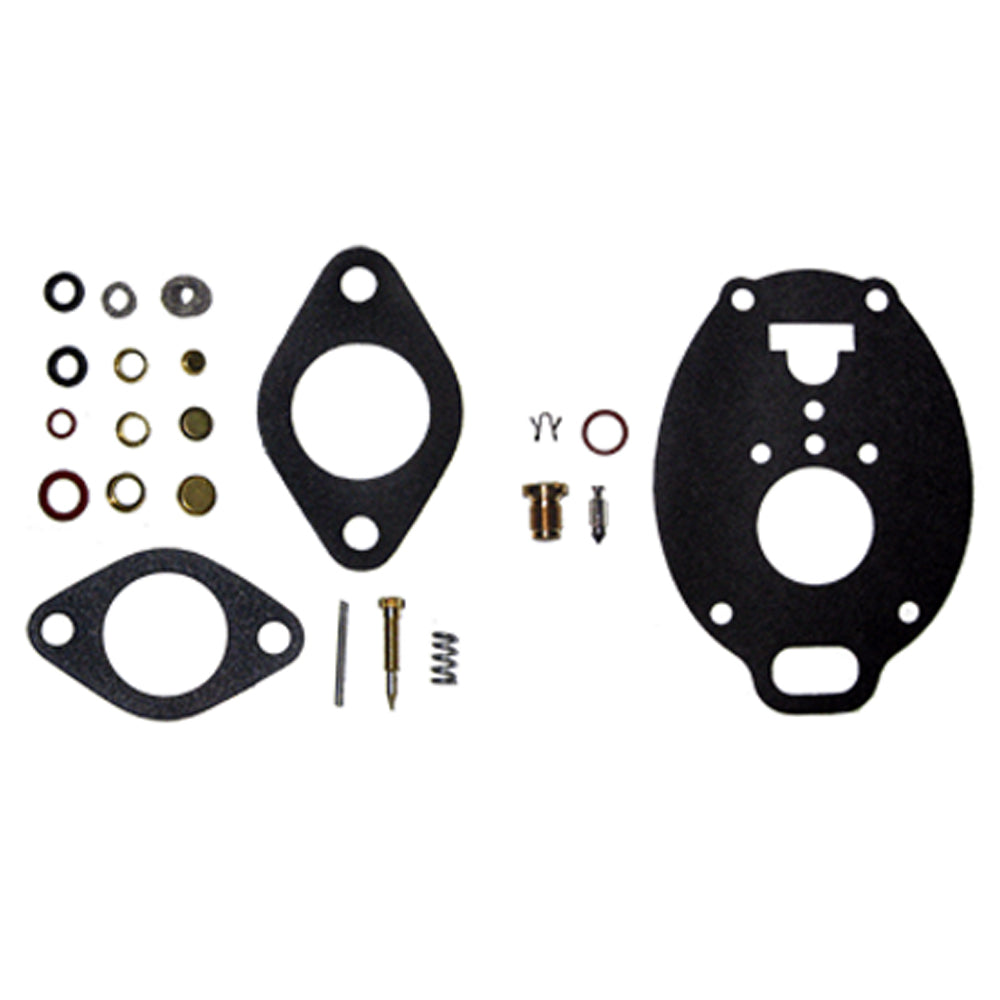

  • Economy Carburetor Kit: Gaskets, Needle, and Seat

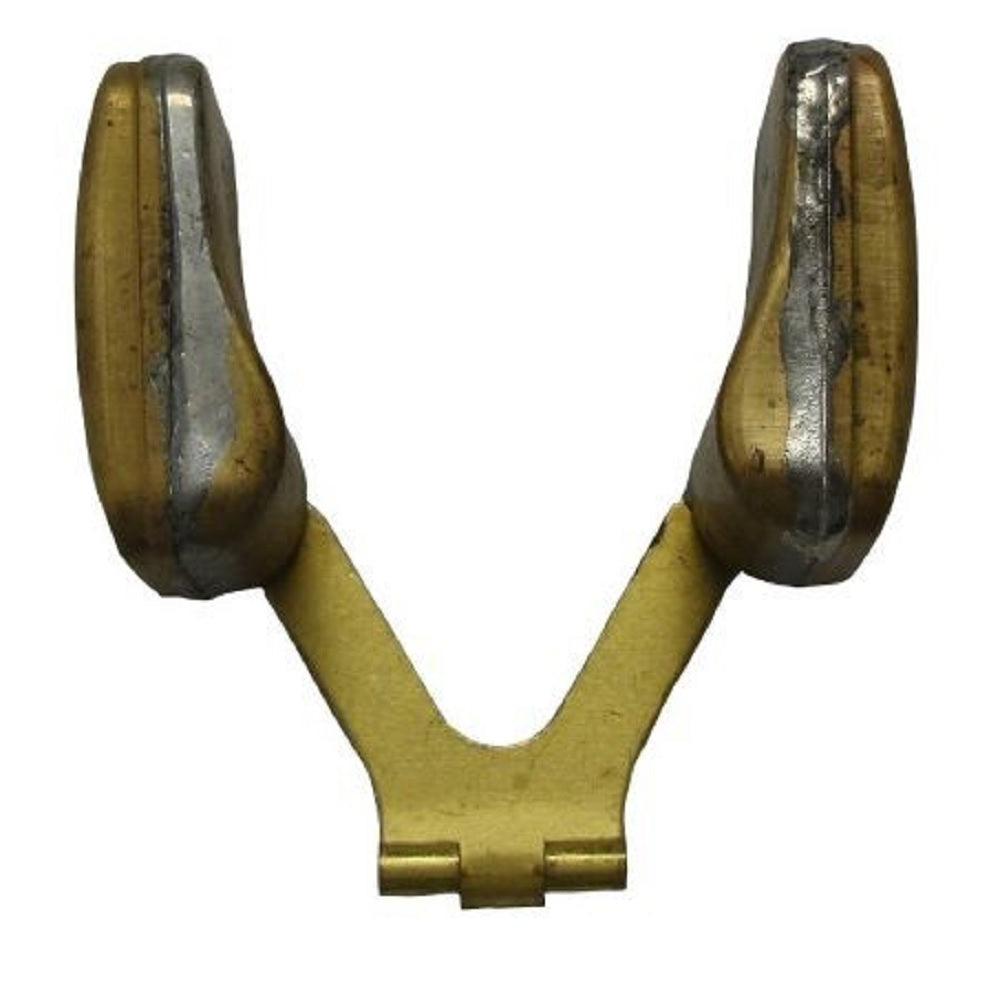

  • Carburetor Float: Brass, for small bowl carburetors, without pin, pontoon length 2.375" from center of pin hinge to end of pontoon

Compatible Marvel Schebler Carburetor Numbers

TSX97, TSX181, TSX221, TSX245, TSX374, TSX414, TSX464, TSX475, TSX505, TSX506, TSX506A, TSX530, TSX561, TSX562, TSX592, TSX596, TSX610, TSX633, TSX641, TSX662, TSX678, TSX688, TSX689, TSX695, TSX713, TSX719, TSX738, TSX755, TSX756, TSX768, TSX769, TSX772, TSX773, TSX775, TSX777, TSX797, TSX798, TSX799, TSX808, TSX810, TSX811, TSX813, TSX853, TSX856, TSX857, TSX869, TSX871, TSX877, TSX878, TSX884, TSX885, TSX893, TSX894, TSX899, TSX903, TSX904, TSX904SL, TSX905, TSX905-1, TSX907, TSX920, TSX920SL, TSX925, TSX927, TSX928, TSX933, TSX934, TSX938, TSX938SL, TSX939, TSX939SL, TSX940, TSX943, TSX944SL, TSX945SL, TSX947SL, TSX952, TSX959, TSX961, TSX974, TSX974SL, TSX975, TSX975SL, TSX977, TSX980, TSX984SL, TSX985SL, TSXU836, TSXU963

Important: Verify your carburetor manufacturer number is in the list above before ordering.

Compatible Models

Fits Case: 480B, 480CK, 530, 540, 541C, 600, 640, 641

Fits John Deere: M, MC, MI, MT, 40, 320, 330, 420, 430, 440, 1020, 1520, 2010, 2020, 2030, 2510, 2520

Fits Allis Chalmers: WD45, D15, D17, 170, 175, 180, 185

IH/Fits FARMALL: 454, 464, 504, 544, 574, 656, 666, 674, 686, 2400A, 2400B, 2500A, 2500B, 2544, 3514, Hydro 70, Hydro 86

Fits Massey Ferguson: 50, 65, 150, 165, 175, 180, 302, 303, 304, 356, 1001, 3165

Fits Massey Harris: 33, 333

Minneapolis Moline: 4 Star, 335, 445, Big Mo 400, Big Mo 500, Big Mo 600, Jet Star, Jet Star 3, Super 4 Star, U302, Z, ZA, ZB, KT

Oliver: 66, 77, Super 77, 88, Super 88, 550, 660, 770, 880, 1550, 1555, OC-4

Replaces Part Number(s):

AL20225T, AL20290T, AL2283T, AL2630T, AL2848T, AL2849T, AL2850T, AL2851T, AL2859T, AT11963T, AT12743T, AT12903, AT16332T, PP21819, R0069, 4022815, 15480A, 69919D

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

TSX596, 2510, 430, TSX221, TSX857, MC, 2520, 320, TSX756, TSX905, TSX799, TSX943, TSX464, TSX893, TSX945SL, TSX772, TSX505, TSX944SL, TSX871, TSX885, TSX920, TSXU836, TSX695, TSX899, TSX975SL, TSXU963, 330, TSX414, TSX773, TSX975, TSX768, TSX974, TSX755, MT, TSX934, TSX719, TSX689, TSX245, TSX775, TSX961, TSX940, TSX974SL, TSX977, 40, TSX904, TSX769, TSX925, TSX947SL, TSX808, TSX374, TSX928, TSX869, 440, TSX506, TSX927, TSX475, TSX688, TSX562, TSX894, TSX980, TSX678, TSX939SL, 1520, MI, TSX797, 1020, TSX610, TSX633, M, TSX561, TSX530, TSX592, TSX938SL, TSX181, TSX662, TSX904SL, TSX985SL, TSX884, TSX933, TSX853, 420, TSX813, TSX810, TSX905-1, TSX856, TSX738, TSX811, TSX506A, TSX713, TSX97, 2010, TSX984SL, TSX920SL, 2030, TSX641, TSX959, TSX878, TSX939, 2020, TSX777, TSX952, TSX907, TSX798, TSX877, TSX938, TSX903

Additional Information:

(1) Economy Carburetor Kit Includes Gaskets, Needle, & Seat Replaces: 4022815 (1) Carburetor Float Used With Small Bowl Carburetors Brass Material Float Chambers Without Pin The dimension from center of pin hinge to end of pontoon is 2.375" in length Replaces: 15480A, 69919D

Reference Numbers:

R0069, AL20225T, AL20290T, AL2283T, AL2630T, AL2848T, AL2849T, AL2850T, AL2851T, AL2859T, AT11963T, AT12743T, AT12903, AT16332T, PP21819
