Manifold with Gaskets & Nuts Fits Minneapolis-Moline Replaces 06833

Manifold with Gaskets & Nuts Fits Minneapolis-Moline Replaces 06833

£105.00 GBP
£105.00 GBP
Sale Sold out
Shipping calculated at checkout.

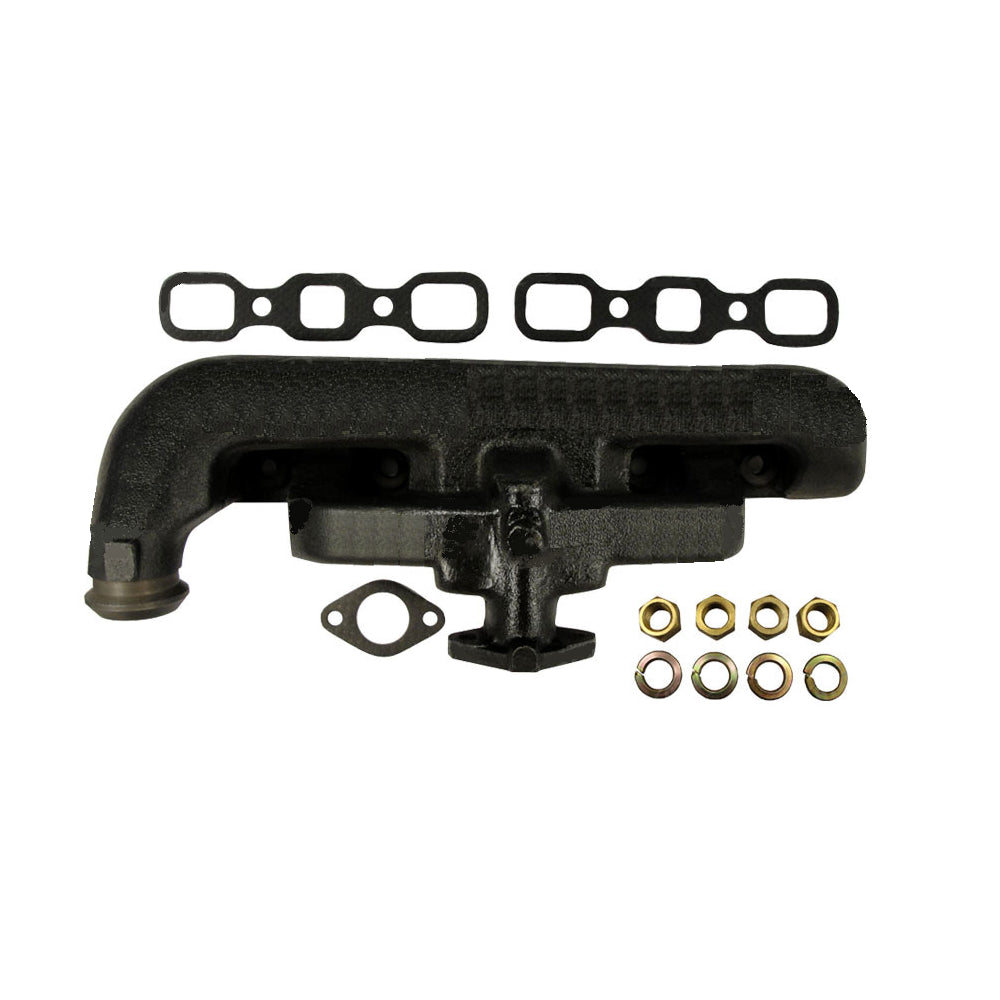

One New Aftermarket Manifold with Gaskets & Nuts

Tech Info:
 -(1) 4-pc Nut Kit for Manifolds
 -This kit includes brass nuts and yellow zinc plated washers
 -7/16" x 20 pitch, brass w/lock washer
 -
 -(2) Manifold Gaskets
 -Replace Part Number: 9N-9448
 -

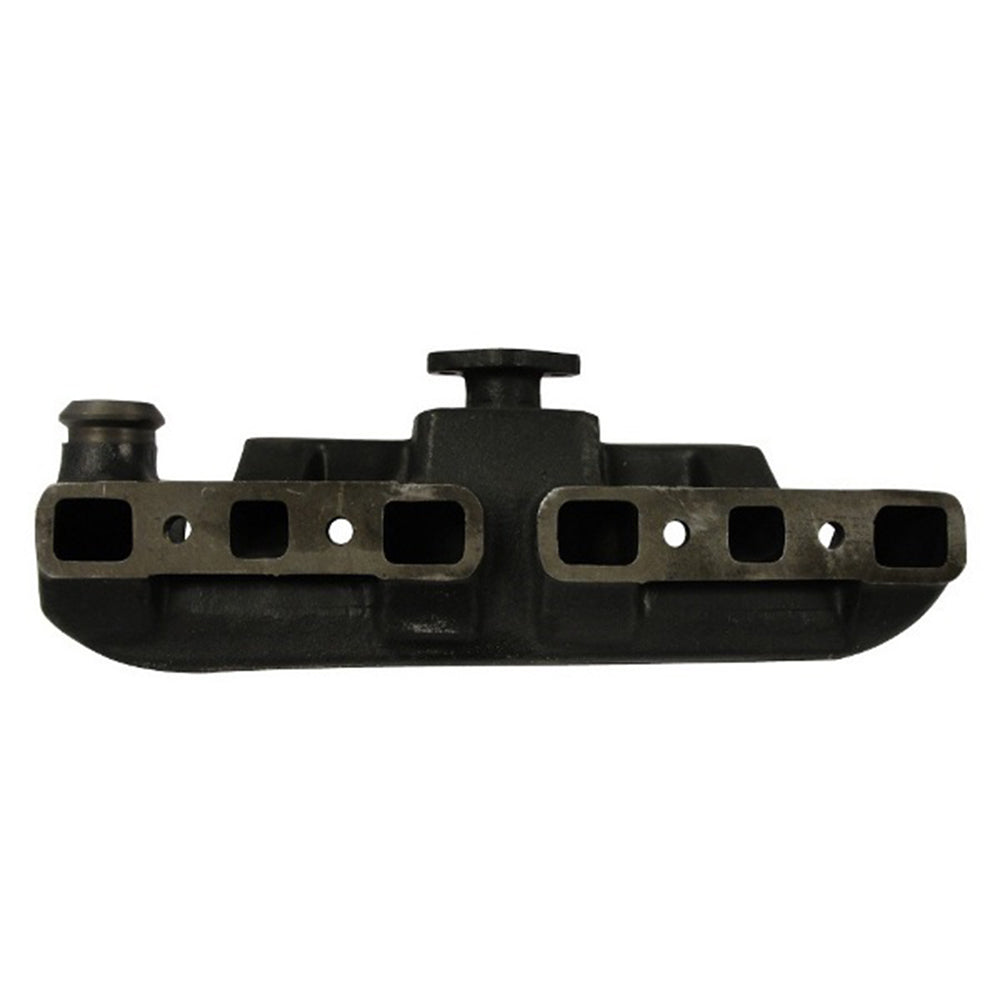

 -(1) Manifold
 -The center to center bolt holes are 2 1/2" on the flange
 -The Inner Diameter on the flange is 1"
 -The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter
 -Overall length is 17" Approximately
 -Replaces Part Numbers: 9N9425WG
 -
 -(1) Carburetor to Manifold Gasket
 -2-7/8" x 1-34"
 -2-1/4" Center to Center
 -Replaces Part Numbers: 15162A, 1506634M1, 181531M2

Fits Minneapolis-Moline:
 Tractor Models: BF, BG, BIG
 Replaces Part Number(s): 112232, 06833

Models This Part Fits:

SC, MUSTANG, 310, O12, 33, F40, VC, VAO, 2200, 20C, VAO-15, U2, A1, E3, D10, 101 JR, 200B, LI, BN, SUPER C, 30, 210B, 311B, 312, 420C, COLT, 211B, SUPER 77, PACER 16, SUPER 44, 70, 330, I14, VAC-12, 880, W14, 440, D15, 300B, 320, 310E, VAC-13, HG, I40, IB, 430, A, BF, 35 Blackhawk, 320B, LA, RC, VAH, 300, OC-3, 175, 310F, 30B, 310C, I60, S, SUPER AV, SUPER A, U2A, 50 Deluxe, 1555, 40 Deluxe, 620, H3, VAC-11, 135, 660, I600, 22, I12, 740, B, 81, 60, 550, 2135, 77, 66, 200, E2, 130, 50 Blackhawk, L, F12, 50, SI, NAB, SUPER 66, TO20, 35, CA, 150, T340, NAA, 430CK, 441, D17, VAIW, VO, 770, WF, VAC-14, 2404, LUC, 2-62, SO, 230, W12, 100, 312B, 20, WC, 650, JUBILEE, 340, I400, AV, 9N, 140, 88, GOLDEN ARROW 35, 350B, SUPER A-1, 600, TE20, 210, WD45, 700, 4500, GOLDEN JUBILEE, C, VAS, BG, TO30, 40 Blackhawk, 333, VA, VAC, SC-4, 8N, TO35, WD, 2N, 40, BIG, 404, 310D, 350, 170, VI, 211, 351, VAI, 640, SUPER 55, F14, VAE, 204, 540, D12, 630, O14, SC-3, 311, 202, SUPER AV-1, 20 Deluxe, D14, VAIW-3, 1550, SUPER 88, 2500, 310B, 102 JR, 240

Additional Information:

(1) 4-pc Nut Kit for Manifolds This kit includes brass nuts and yellow zinc plated washers 7/16" x 20 pitch, brass w/ lock washer (2) Manifold Gaskets Replace Part Number: 9N-9448 (1) Manifold The center to center bolt holes are 2 1/2" on the flange The Inner Diameter on the flange is 1" The exhaust is 1 3/16" ID and 2 1/16" Outer Diameter Overall length is 17" Approximately Replaces Part Numbers: 9N9425WG (1) Carburetor to Manifold Gasket 2-7/8" x 1-34" 2-1/4" Center to Center Replaces Part Numbers: 15162A, 1506634M1, 181531M2

Reference Numbers:

CAPN5200A, 86559265, 9N9447, 9N9448, AM1613T, AM1794T, AM2067T, AM3061T, AM3227T, AM3611T, AM3612T, AM366T, AR62244, AT10181T, AT10576T, AT11158T, AT11637T, AT11680, AT11680T, AT11756T, AT12357, AT12357T, AT13064T, AT14028T, AT14095, AT14095T, AT17629, AT18098T, AT21142, AT21142T, AT21729, AT21784, AT21785T, AT21848, AT21848T, AT22994, AT23000, AT29295, AT29427, AT30264T, AT359T, 1 AT420T, AT453T, B396, 15162A, 1506634M1, 181531M2, T7036, O562AB, 382116R2, 70233208, 70233209, 233208, 233209, 112232, 06833
