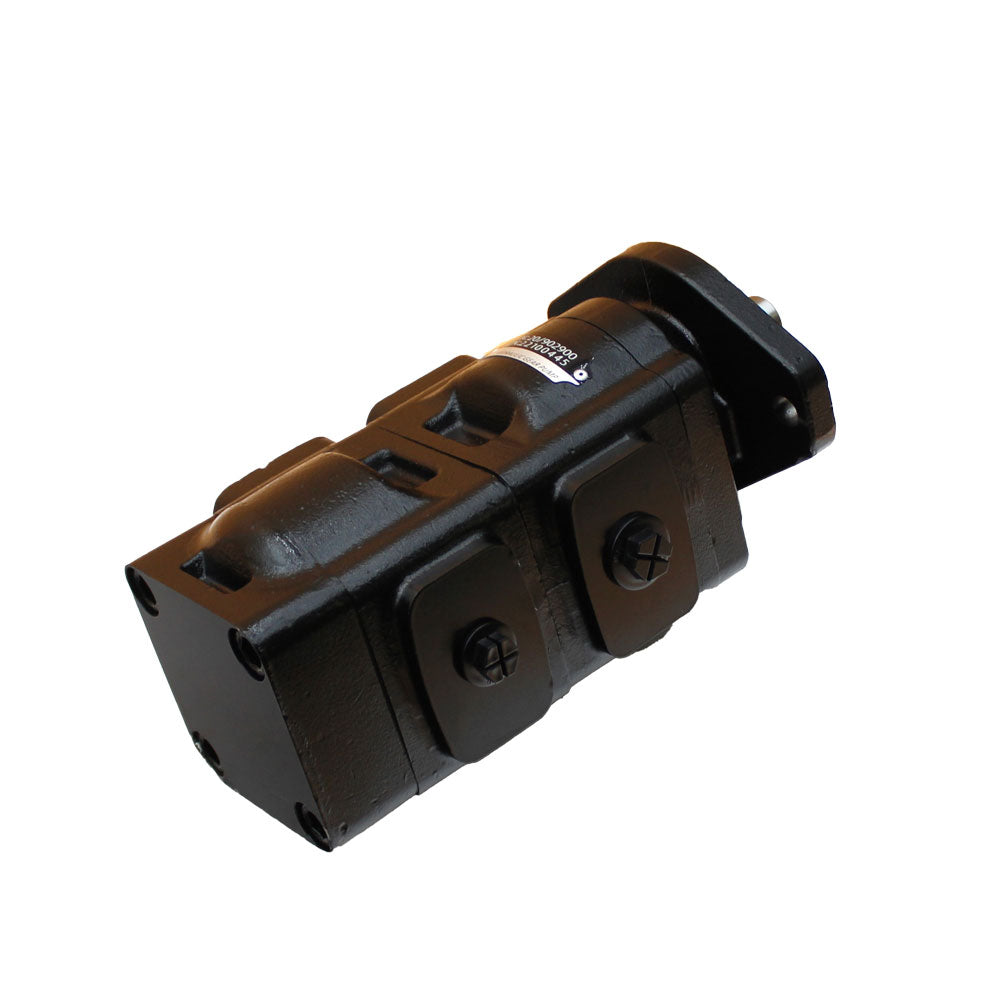

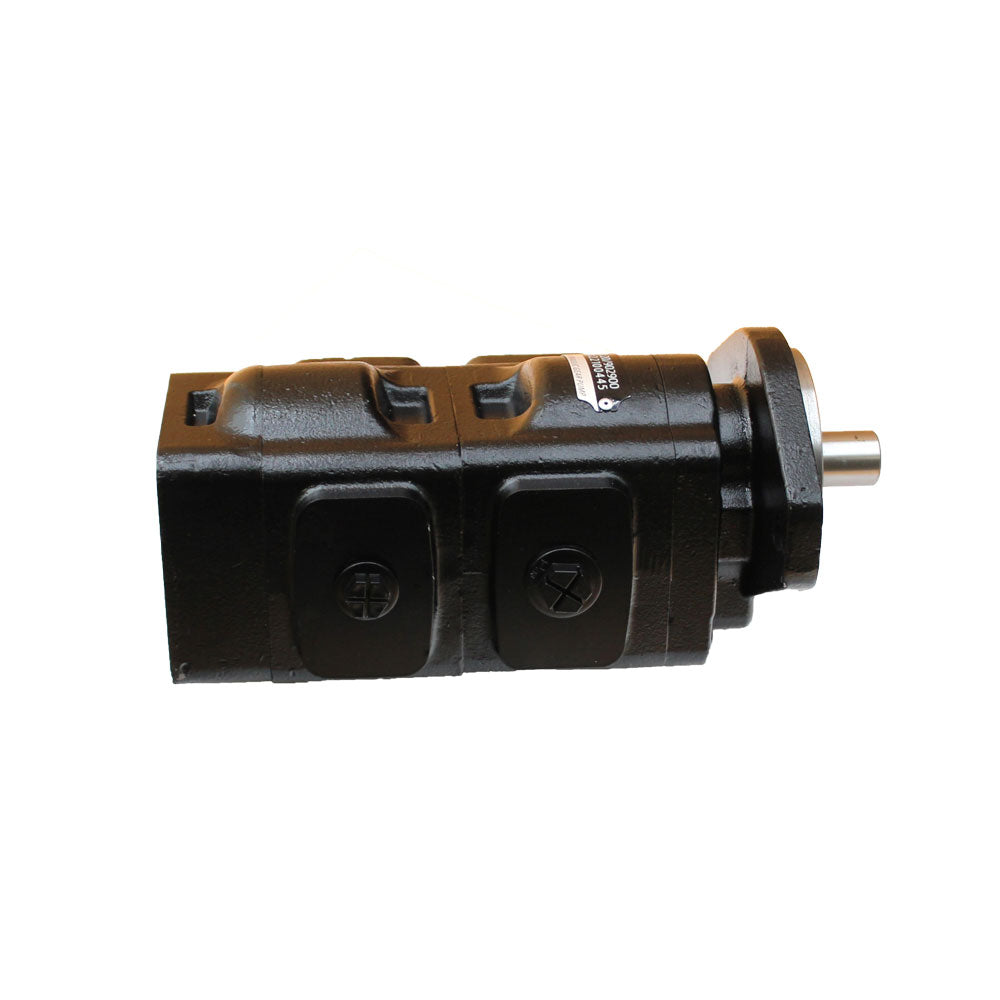

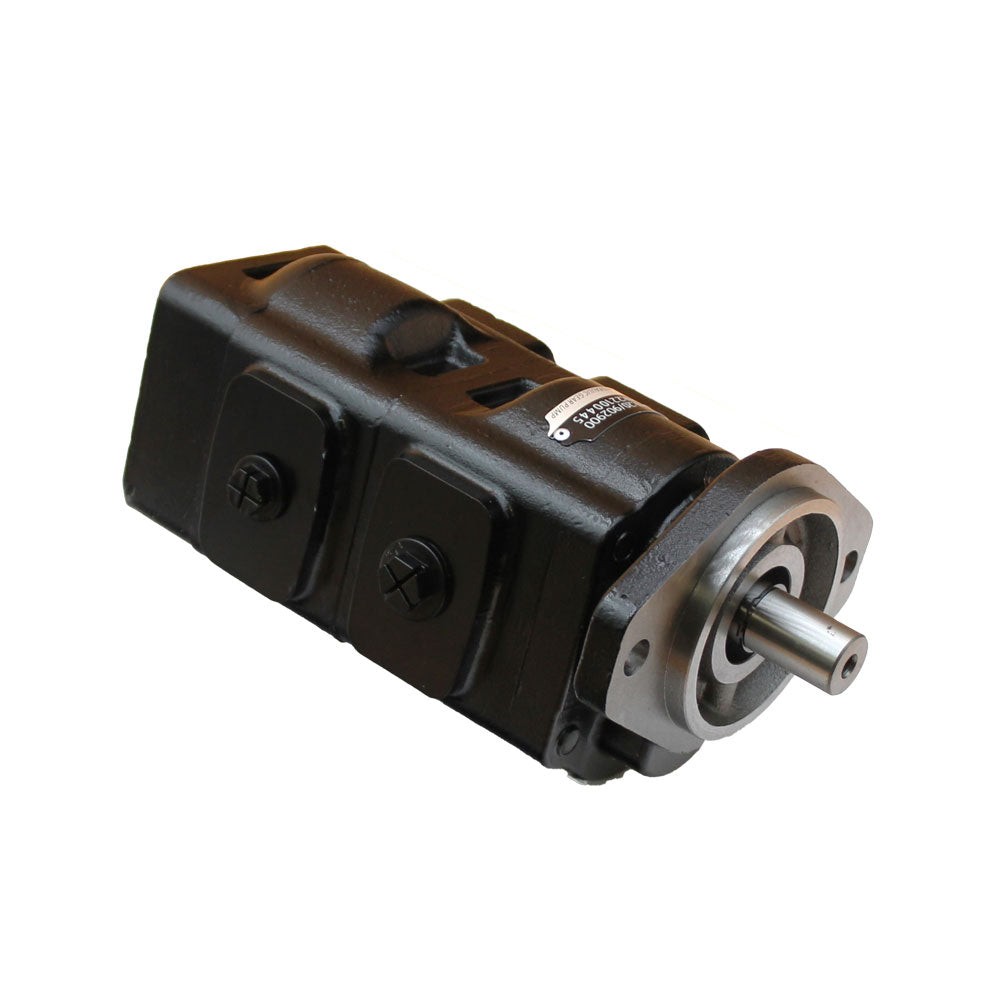

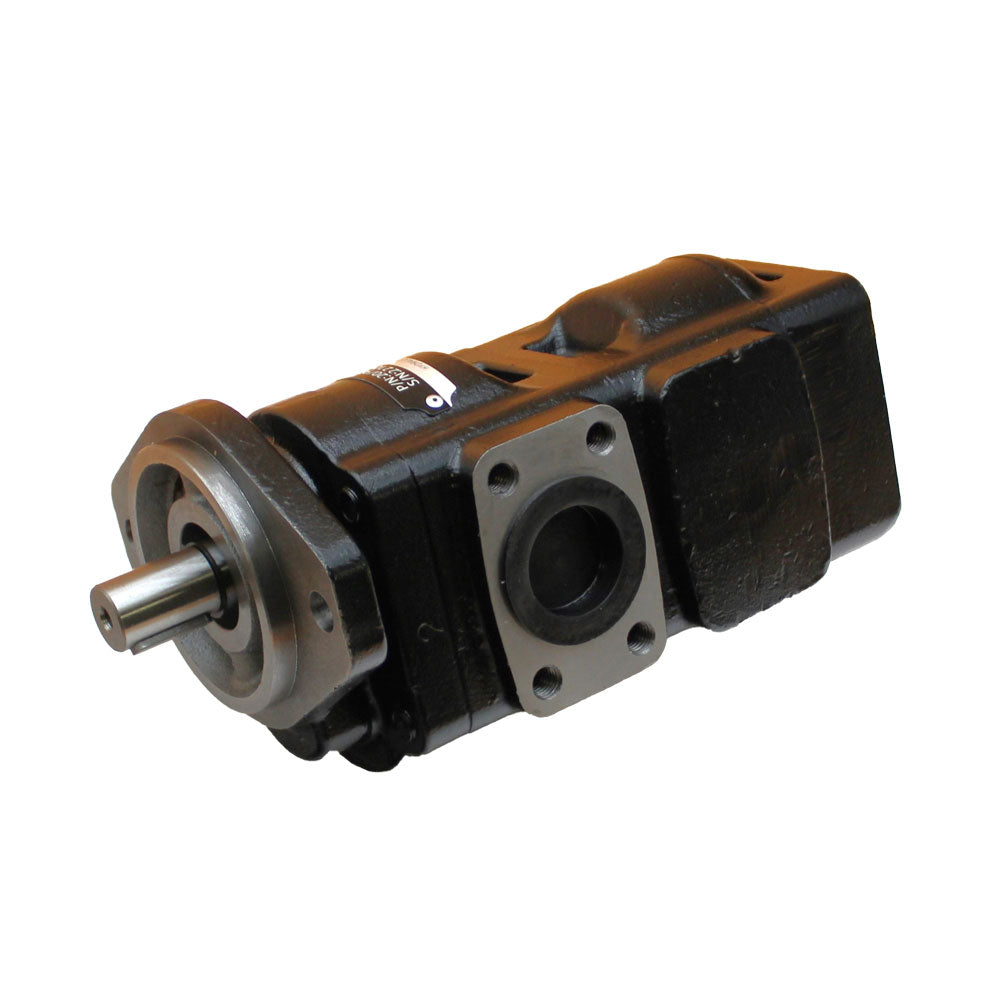

20/902900-20/903100 Counter-Clockwise 3CX Twin Hydraulic Pump Fits JCB
20/902900-20/903100 Counter-Clockwise 3CX Twin Hydraulic Pump Fits JCB
Couldn't load pickup availability
One (1) New Aftermarket Replacement Main Hydraulic Pump
Tech Information:
3CX Twin Hydraulic Pump 33 + 29 CC/REV
Rotation: Counter-Clockwise (looking from shaft end)
1” Diameter parallel keyed shaft
SAE B 2 hole mounting flange
Front pump displacement: 33 cc/rev (33L/Min per 1000 rpm)
Rear pump displacement: 29 cc/rev (29L/Min per 1000 rpm)
Combined 2” SAE flange inlet
Front pump outlet: 1 1/16”-12 UNF threaded
Rear pump outlet: 7/8”-14 UNF threaded
Maximum working pressure on rear pump: 275 bar
Max. Input shaft torque: 325 Nm
Fits JCB Construction & Industrial Models (Code 4070):
3CXSM Sideshift AR AK Engine 9802/9750,
Gear Pump 3CX Sideshift AA AB Engine 9802/9730,
Gear Pump 3CX Contractor Sideshift AA AB Engine 9802/9730,
3CX-4T Centremount AR AK Engine 9802/9760,
3CX (CM) Centremount AA AB Engine 9802/9720,
3CX PC Sideshift Servo AR/AK Engine 9802/9770,
Gear Pump 3CXSM Sideshift AA AB Engine 9802/9730,
3CX-4T PC Centremount Servo AR/AK Engine 9802/9780,
3CX Sideshift AR AK Engine 9802/9750,
3CXSM PC Sideshift Servo AR/AK Engine 9802/9770
Replaces Part Numbers:
20/902900 - 20/903100 - 20/912800 -7470 - 4070 - 4072
