Left Hand Tie Rod End (metric threads) Fits John Deere Replaces LVA14960

Left Hand Tie Rod End (metric threads) Fits John Deere Replaces LVA14960

£70.00 GBP
£70.00 GBP
Sale Sold out
Shipping calculated at checkout.

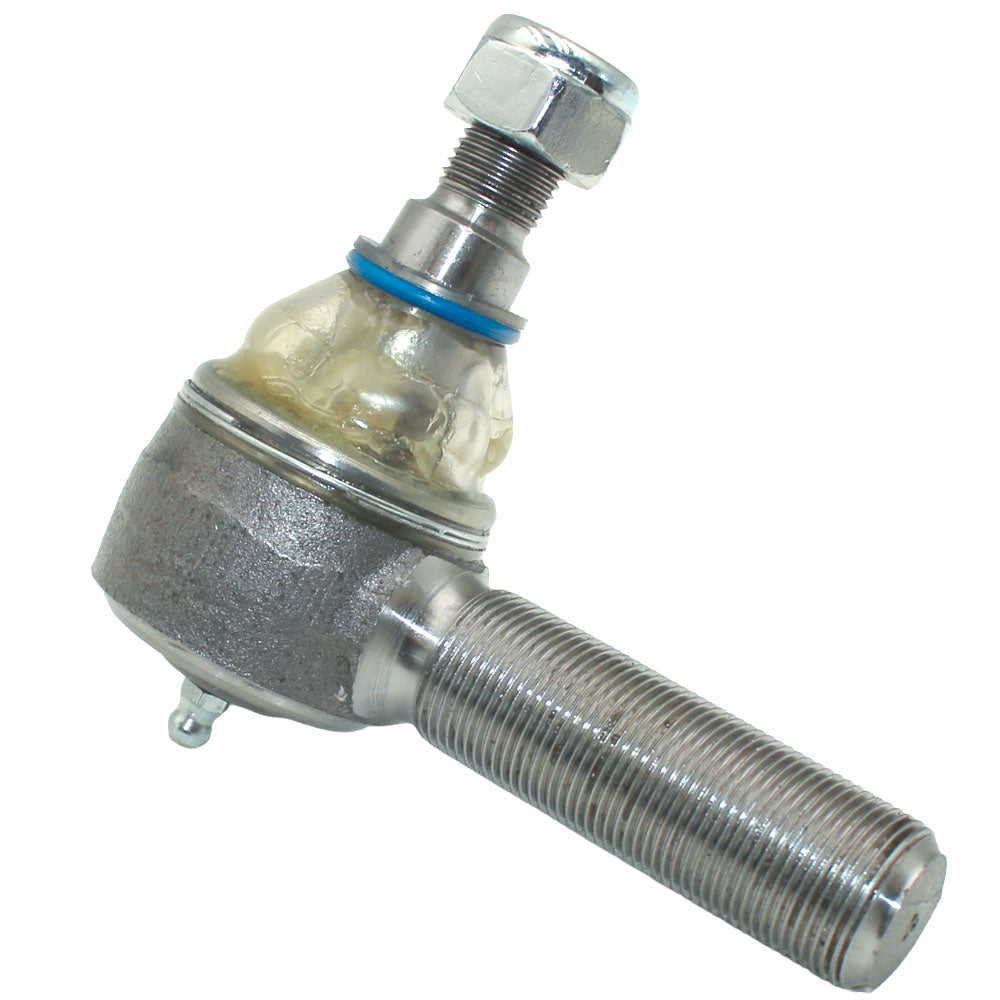

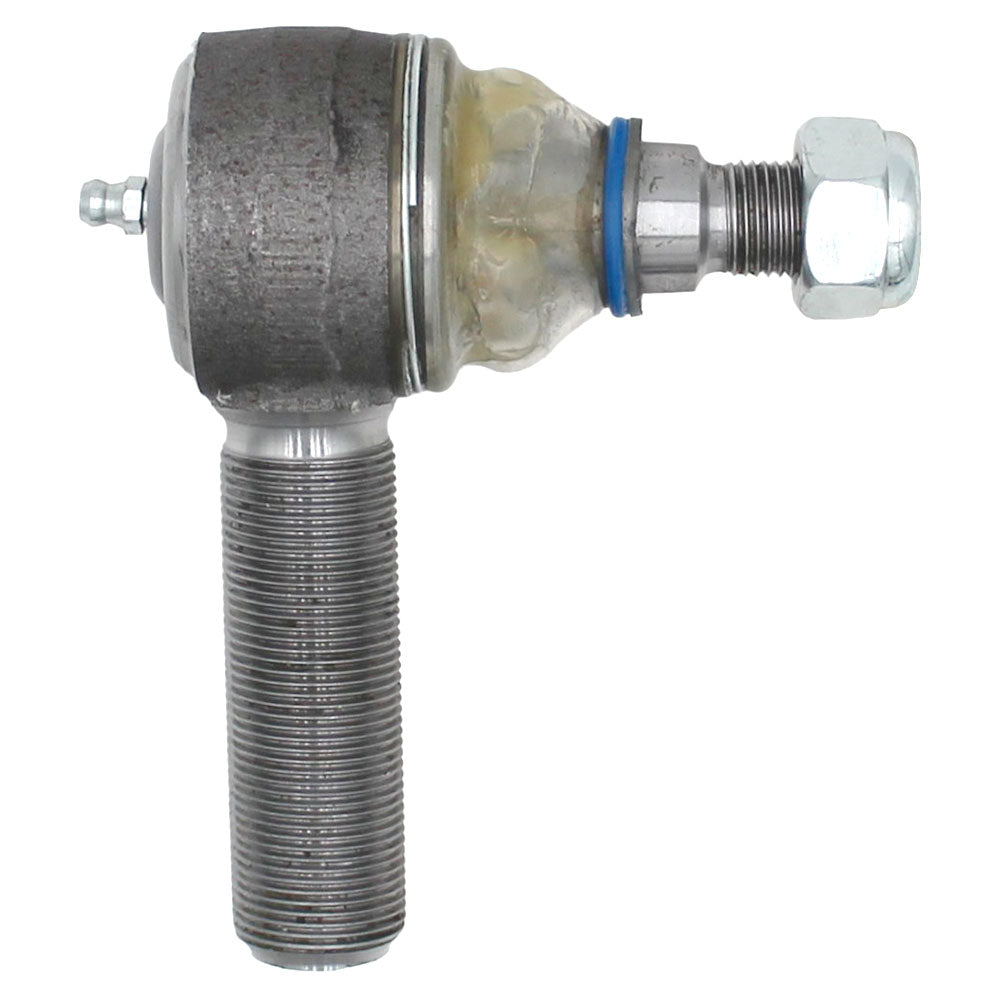

One New Aftermarket Left Hand Tie Rod End (metric threads)

Tech Info:
 -Thread: M24 x 1.5
 -Length of Ball Joint (from End to Center) 3.87"
 -Bottom of Taper (going up on Ball Joint): 0.880"
 -Top of Taper: 0.768"
 -
 -Metric Threads. Early S/N machines have Standard SAE Threads.

Made to Fits John Deere:
 Excavator Models: 110
 Replaces Part Number(s): LVA14960

 Compact Tractor Models: 3033R, 3038R, 3039R, 3045R, 3046R, 3120, 3203, 3320, 3520, 3720, 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4105, 4120, 4200, 4210, 4300, 4310, 4320, 4400, 4410, 4500, 4520, 4600, 4610, 4700, 4720
 Model Breaks: All MFWD,4120 (after SN 400000),4300 (Axle Marked S20BZ107-1),4320 (after SN 400000),4400 (Axle Marked S20BZ107-1),4520 (after SN 400000),4700 (Axle Marked S20BZ108-1 Or S20BZ112-1),4720 (after SN 400000)
 Replaces Part Number(s): LVA14960

Models This Part Fits:

4500, 3203, 3038R, 4320, 4600, 4066R, 3046R, 4210, 3039R, 4120, 3120, 4410, 4520, 4310, 4052R, 3045R, 4066M, 4720, 4200, 4049M, 3720, 4044M, 3320, 4400, 110, 4052M, 4610, 4105, 4044R, 4300, 3520, 4049R, 3033R, 4700

Additional Information:

Thread: M24 x 1.5 Length of Ball Joint (from End to Center) 3.87" Bottom of Taper (going up on Ball Joint): 0.880" Top of Taper: 0.768" Metric Threads. Early S/N machines have Standard SAE Threads.

Reference Numbers:

LVA14960
