LM 11949 New Bearing Free Shipping LM11949

Name: LM 11949 New Bearing *Free Shipping * LM11949
SKU: LM11949
Price: 10.0 USD
Availability: InStock

LM 11949 New Bearing Free Shipping LM11949

£10.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

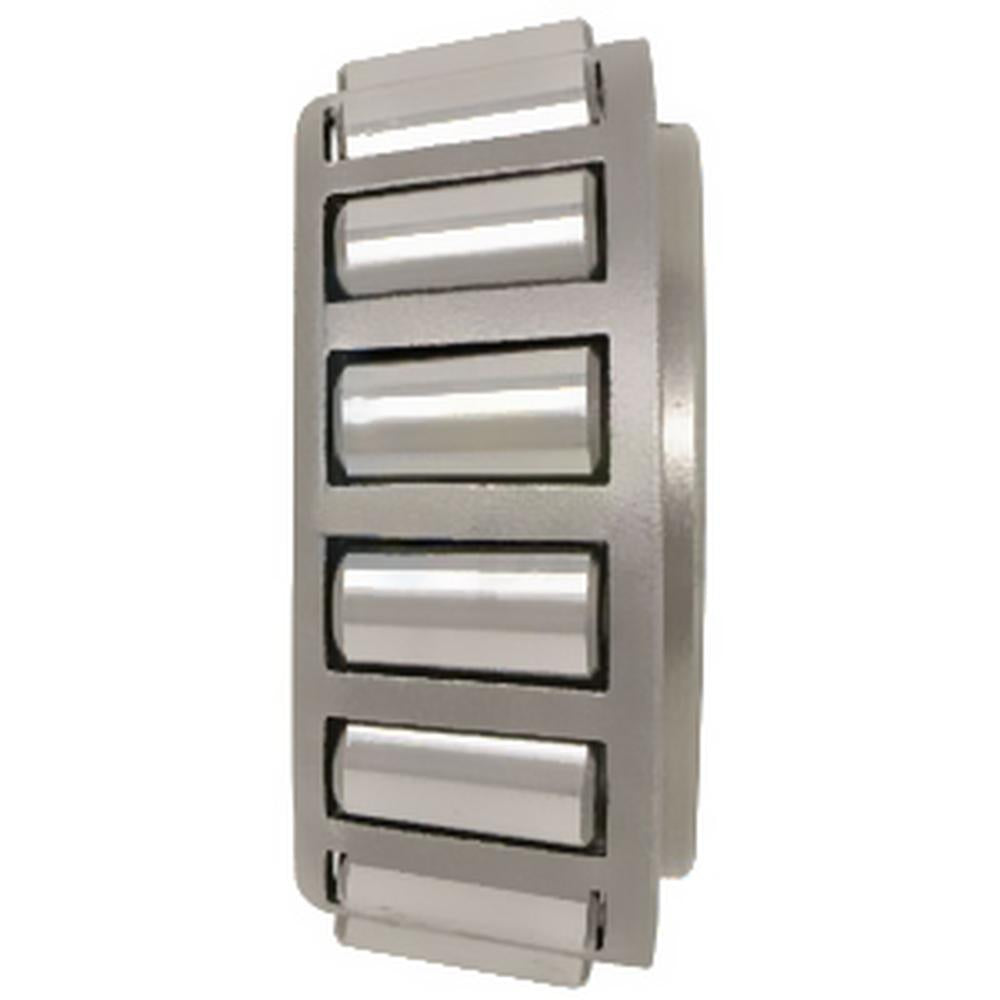

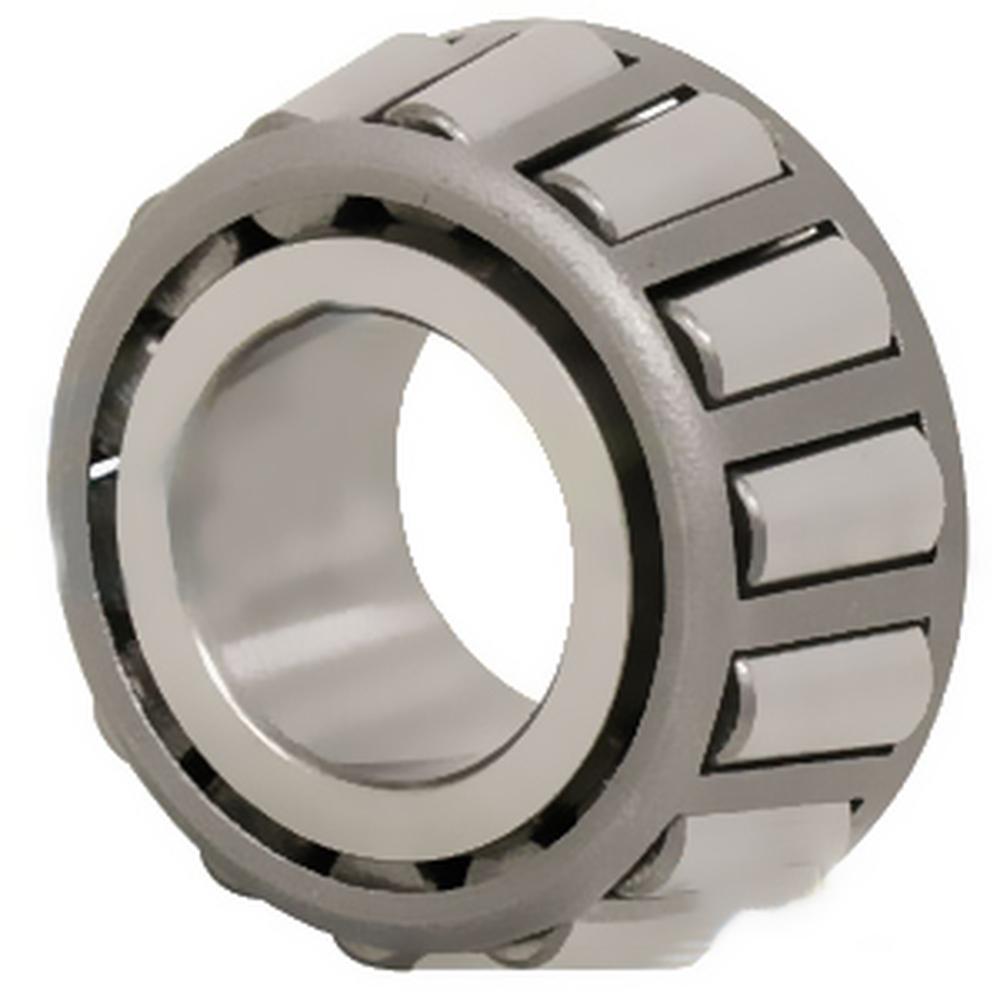

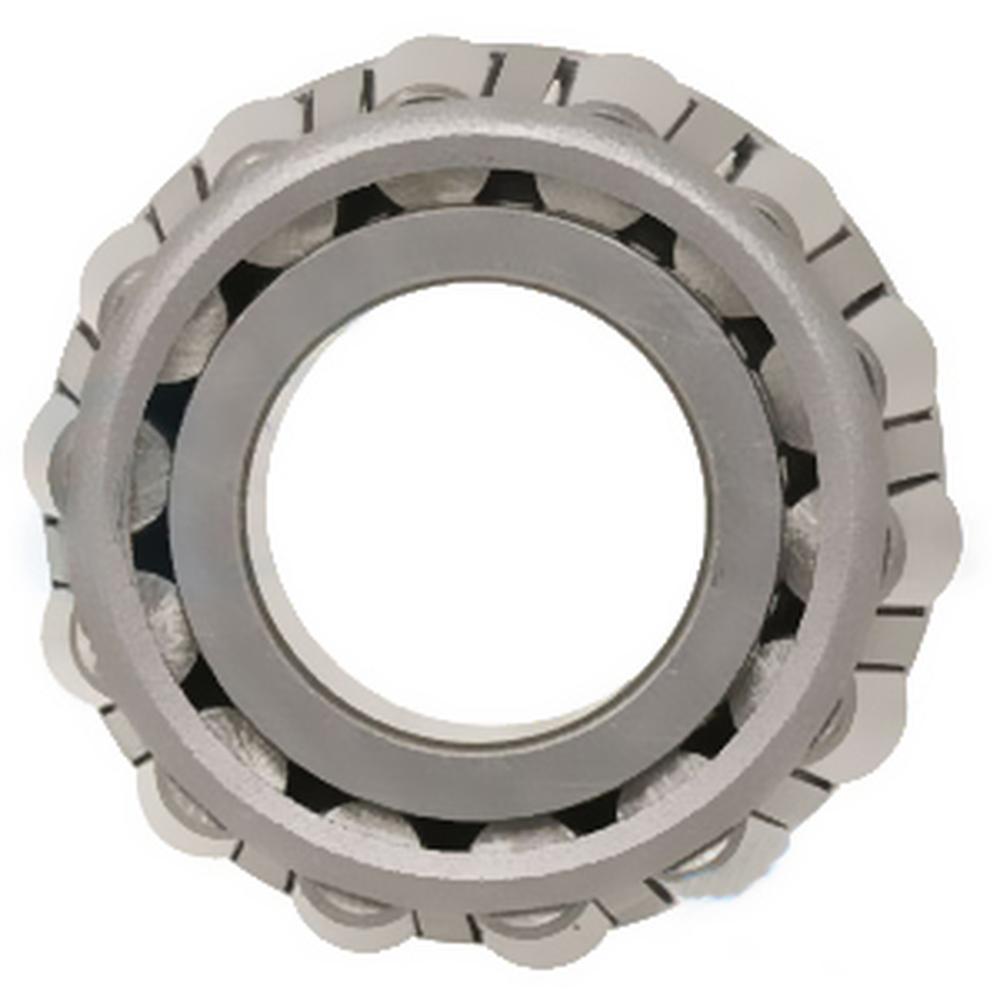

One New Aftermarket Replacement LM11949 Tapered Roller Bearing Cone for Agricultural, Construction, and Industrial Equipment

The LM11949 is an industry-standard single-row tapered roller bearing cone (inner ring assembly) designed to handle both radial and axial loads in high-load, moderate-speed applications. It is widely used in wheel hubs, axle assemblies, gearboxes, rotary cutters, and other demanding agricultural and industrial equipment. This bearing mates with cup (outer ring) part number LM11910, which is sold separately.

Specifications

Type: Single-Row Tapered Roller Bearing Cone (Inner Ring)
Bore (Inner Diameter): 0.750 in (19.05 mm)
Outer Diameter: 1.781 in (45.24 mm)
Width: 0.655 in (15.49 mm)
Corner Radius: 0.050 in
Compatible Cup: LM11910 (sold separately)
Operating Temperature: -65 to +250 degrees F

Compatible Models

Fits Massey Ferguson: 135, 140, 150, 165, 175, 180, 185, 200, 202, 203, 204, 205, 230, 231, 233, 234, 235, 240, 245, 255, 265, 275, 285, 303, 333, 334, 335, 340, 430, 431, 451, 461, 470, 503, 503I, 504, 504I, 504I SILAGE, 505I, 531, 541, 543, 550, 570, 584, 600 Series, 611, 615, 621, 631, 640, 641, 650, 651, 660, 674, 700 Series, 800 Series, 815, 900 Series, 915, 1080, 1085

Fits Ford/New Holland: 2000, 2031, 2100, 2110, 2120, 2131, 2150, 2243, 2300, 2310, 2400A, 2404, 2424, 2444, 2500, 2600, 2610, 2653, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3190, 3230, 3300, 3310, 3330, 3550, 3600, 3610, 3900, 3910, 3930, 4000, 4031, 4100, 4110, 4120, 4130, 4131, 4190, 4330, 4340, 4410, 4500, 4600, 4610, 4630, 4830, 5030, 5110, 6000, 6610, 6710, 6810, 7410, 7610, 7700, 7710, Dexta, Super Dexta

Fits John Deere: 66, 84, 500B, 600B

Fits Case/International Harvester: 2504, 403, 403F, 403G, 404, 424, 444, 454, 501, 503, 531

White: 2111, 4200

Vermeer: PH13, PH15

Fits Woods: 84

New Idea: 20C

Additional Machine Types: Greens Mowers, Rotary Cutters, Combines, Round Balers, Cutting Platforms, Forklifts, Industrial/Construction Equipment, Tractors

Replaces Part Number(s):

LM11949, LM 11949, 831055M1, 1851799M91, JD8188, 2304WD, 1650003, 1650005, 102840A, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 651815R1, 651815R91, G10815

Aftermarket Interchange Numbers

LM11949/10 (cone and cup set designation); compatible cup/race: LM11910, LM11919

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

1830, 205, 461, 20C, 315, 651, 2110, 403G, 3930, 230, 3910, 6000, 4830, 6810, 265, 2400A, 630, 340, 203, 2310, 4100, 430, 900 Series, 2243, 5030, 470, 2150, 4130, 641, 2500, 550, 700 Series, 451, 3190, 255, 5110, 431, 135, 2131, 403F, 2600, 165, 4500, Super Dexta, 3120, 4330, 2300, 570, 4600, 3230, 4190, 3610, 3150, 202, 4120, 444, 403, 7610, 504I, 504I SILAGE, 541, 285, 2444, 2910, 180, 543, 1085, 530, 335, 501, 660, 3100, 601, 674, 600B, 2504, 4110, 631, 3330, 4000, 175, 4200, 2610, 6710, Dexta, 230A, 275, 500B, 404, PH15, 300, 615, 333, 800 Series, 621, 2031, 66, 915, 4340, 234, 204, 7410, 2111, 185, 84, 140, 6610, 334, 584, 2000, 3310, 2120, 620, 424, 650, 235, 231, 3600, 503I, 3550, 4031, 150, 3055, 3000, 4131, 7700, 505I, 611, 1080, 3300, 245, 503, 454, 4410, 233, 2404, PH13, 815, 2653, 303, 4630, 640, 330, 4610, 600 Series, 240, 3110, 531, 504, 7710, 2424, 2100, 2810, 200, 3900

Additional Information:

Bore: .750" Radius: .05" Width: .655"

Reference Numbers:

651815R1, 651815R91, G10815, JD8188, 1650003, 1650005, D5NN1215A, D5NN1216A, 204E1216A, 204E1217A, 36724, 8A1216B, 81708383, 81708395, 83910704, 83910705, 83992410, 2304WD, 831055M1, 1851799M91, 102840A, 831055M1
