Lift Link Assembly AR44552 Fits John Deere 1020 1120 1130 1140 1520 1530
Lift Link Assembly AR44552 Fits John Deere 1020 1120 1130 1140 1520 1530
Couldn't load pickup availability

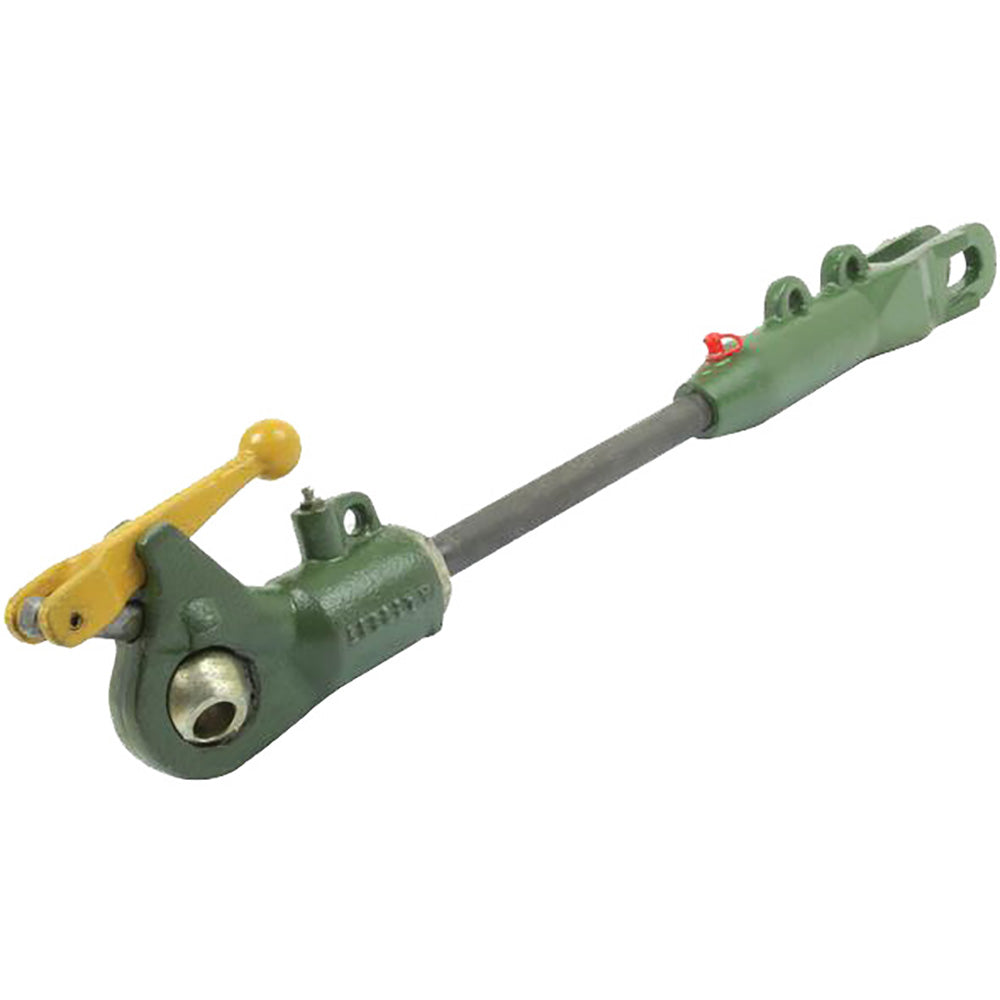

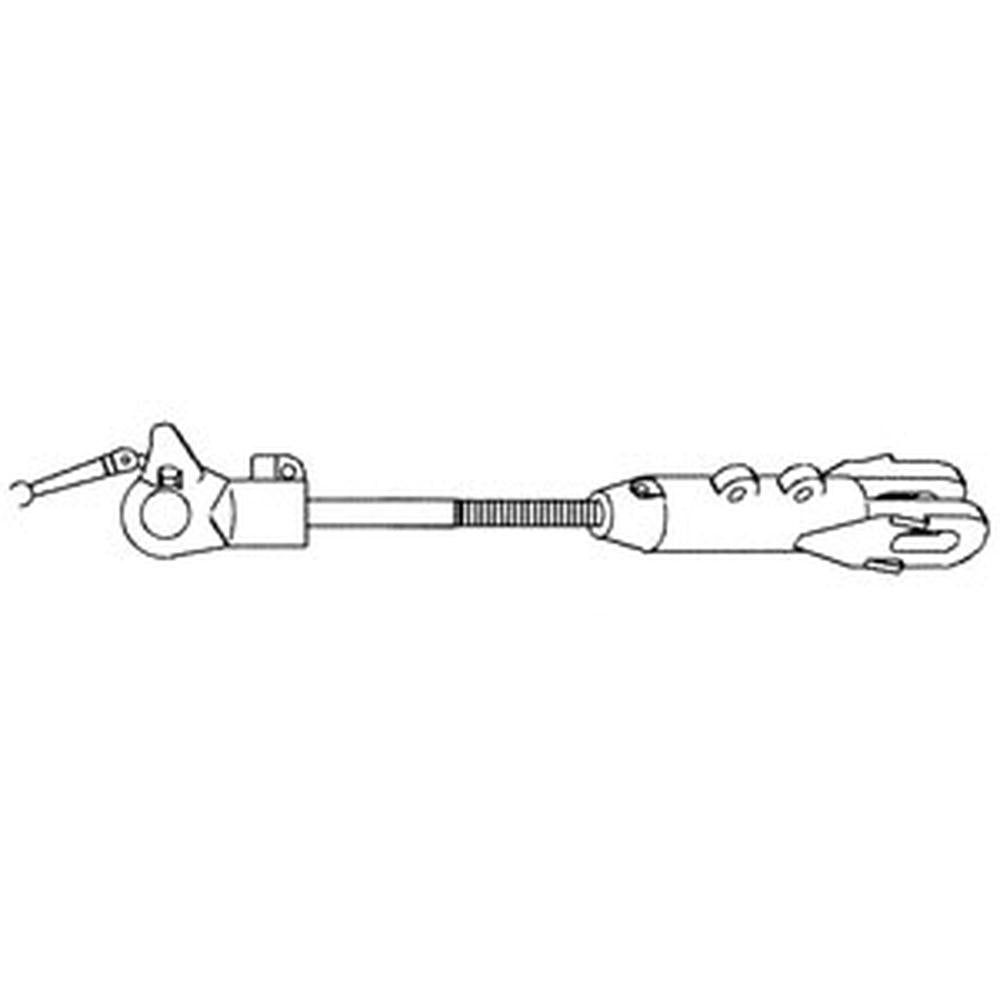

One New Aftermarket Replacement Lift Link Assembly for John Deere Tractors
This adjustable right-hand (RH) lift link assembly -- also known as a leveling box assembly -- is a Category 1 three-point hitch component used to raise, lower, and level implements on John Deere tractors. Designed for use with telescoping 3-point pull arms, it provides the adjustable link between the tractor hitch and the implement.
Specifications
- Right Hand (RH)
- Category 1, 3-Point Hitch
- Adjustable
- Closed Length: 21-1/4"
- Extended Length: 27-1/2"
- Housing Assembly: 15"
- I.D. of Fork: 1"
- Diameter of Bore Hole in Ball Joint: 3/4"
Compatible Models
John Deere Utility Tractors: 820, 830, 920, 930, 940, 1020, 1030, 1040, 1120, 1130, 1140, 1520, 1530, 1630, 1830, 2020, 2030, 2040, 2120, 2130, 2150, 2155, 2240, 2255, 2350, 2355, 2440, 2550, 2555, 2630, 2640, 2750, 2755, 2840, 2855, 2940, 2955, 3055, 3150, 3155, 3255
John Deere Industrial/Utility: 300, 300B, 301, 302, 310, 400, 401, 410, 820, 830
Replaces Part Number(s):
AR44552, L28374, L2837415, R3122, RE16370, R48595, T24908
Aftermarket Interchange Numbers
A-AR44552, WN-AR44552, MTCC-AR44552
New aftermarket replacement part - not remanufactured, not used.
