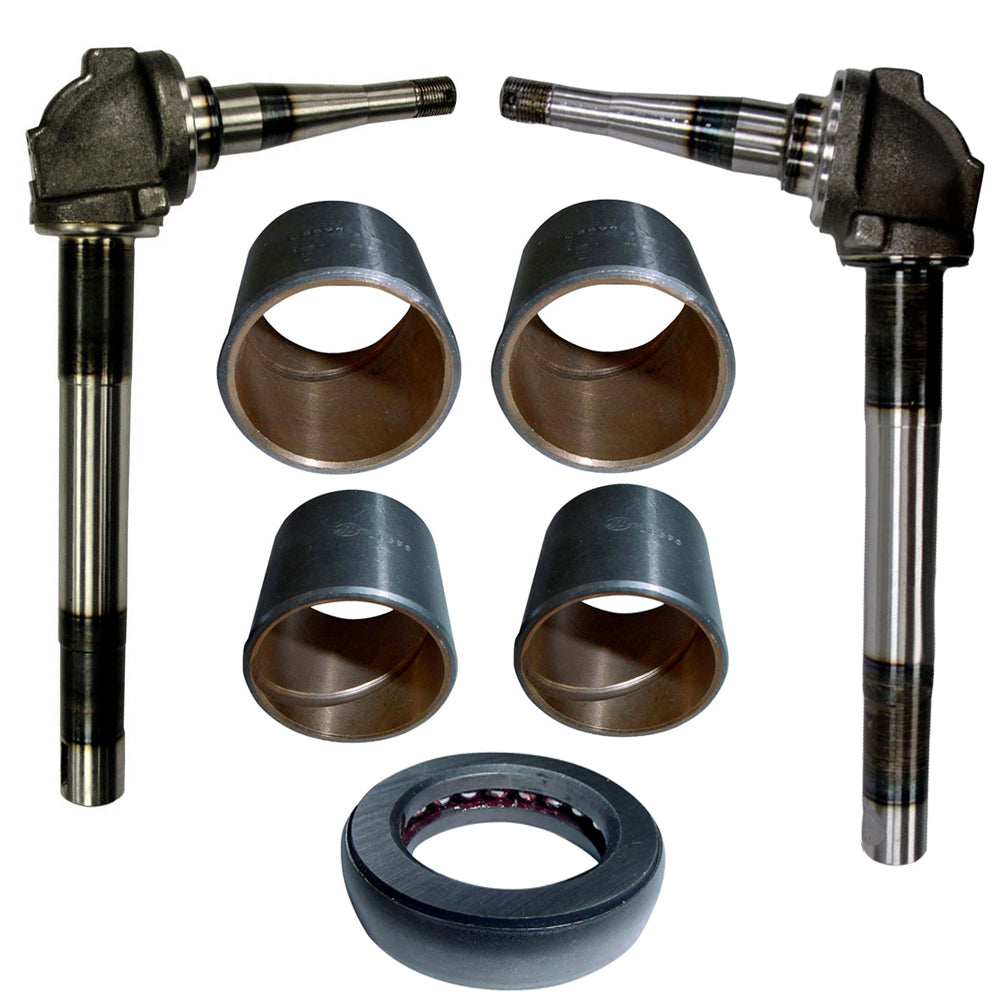

LH / RH Spindle Bushing Kit Fits Ford/New Holland Replaces 2N2109

LH / RH Spindle Bushing Kit Fits Ford/New Holland Replaces 2N2109

£113.00 GBP
£113.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket LH / RH Spindle Bushing Kit

Tech Info:
 -(1) Right Hand Spindle
 -Tech Info:
 -Right side as sitting in the tractor seat
 -10.750" machined upright shaft
 -1.250" shaft outside diameter
 -1.187" inner bearing diameter
 -0.750" outer bearing diameter
 -Machined for 1/4" x 7/8" key
 -Replaces Part Numbers: F3NN3105AA, 8N3105
 -
 -(1) Left Hand Spindle
 -Tech Info:
 -Keyed
 -Side
 -Axle Length 5 1/4"
 -Diameter 1 1/4"
 -ID 1 3/16"
 -OD 3/4"
 -Shaft Length 10 11/16"
 -Type Left Hand
 -Replaces Part Numbers: F3NN3106AA
 -
 -

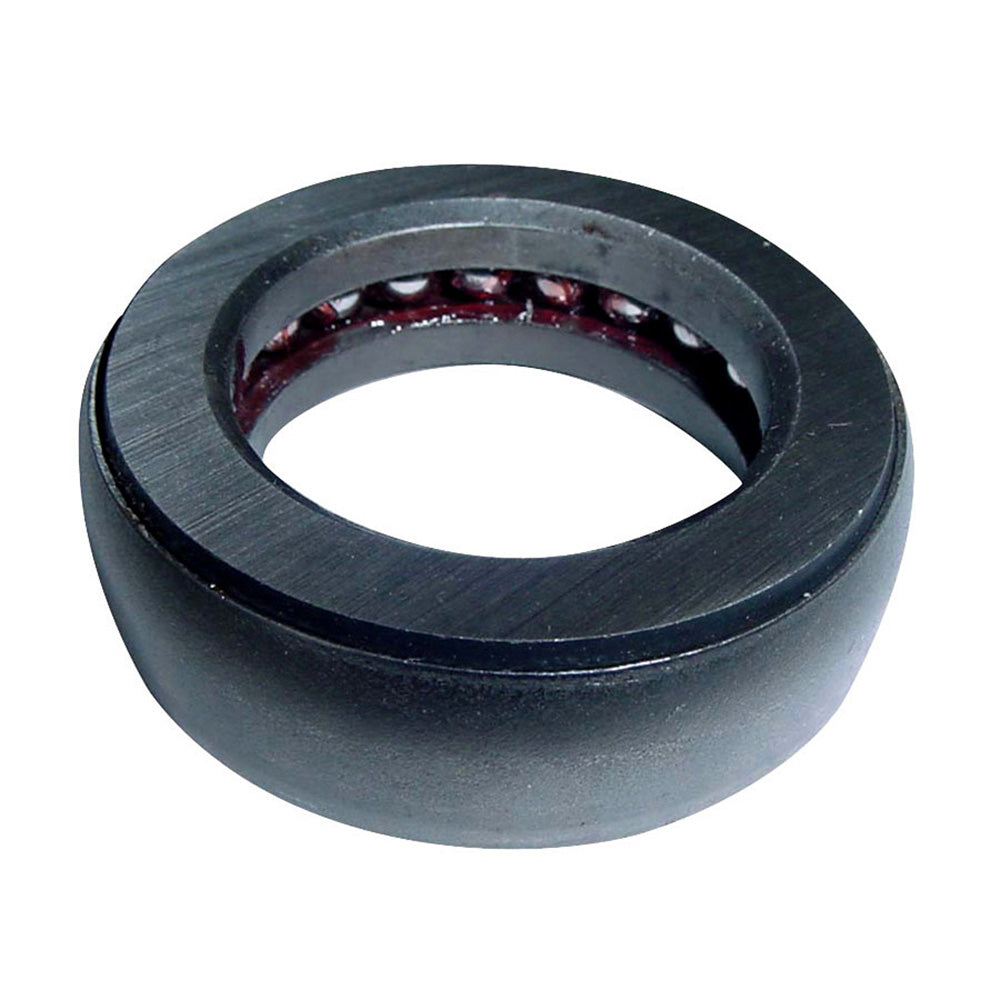

 -(2) Thrust Bearing
 -Tech Info:
 -Bearing Type Spindle Bearing
 -Grease Greaseable
 -ID 1.350"
 -ID Type Round
 -OD 2.200"
 -Sourced Import
 -Width Overall 0.620"
 -Replaces Part Number: 957E3123A
 -

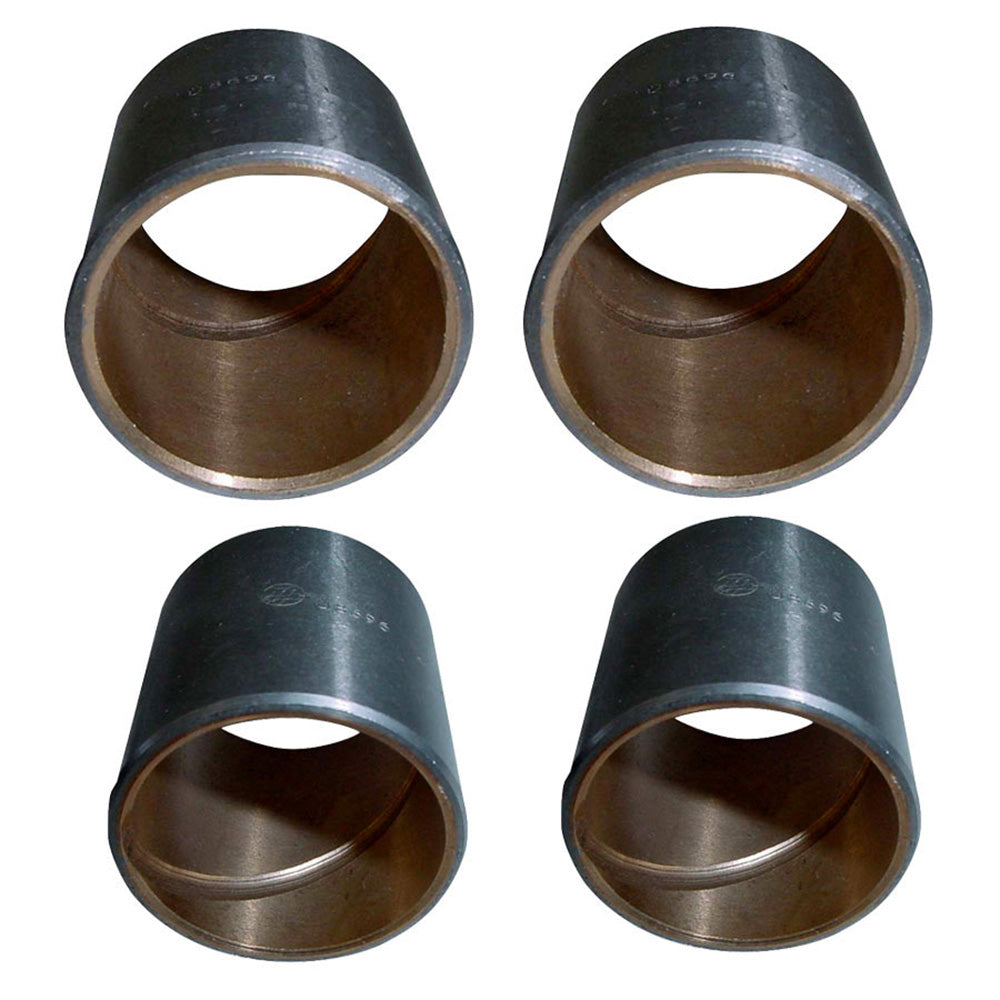

 -(1) Spindle Bushing Kit
 -Kit Includes:
 -Front Spindle Bushing
 -Tech Info:
 -4 used per tractor,
 -1.255" inside diameter,
 -1.378" outside diameter,
 -1.498" long,
 -Must be honed or reamed to size when installed
 -
 -
 -Spindle Bushing
 -Tech Info:
 -ID 1.350"
 -Material Steel
 -OD 1.480"
 -Width 1.500"
 -
 -Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940

Made to Fit Ford/New Holland:
 Tractor Models: 9N, 2N, 8N, Jubilee, NAA
 Model Breaks: Fits Upper & Lower
 Replaces Part Number(s): 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109

 Tractor Models: 501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 701, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 941, 950, 951, 960, 961, 971, 981, 2000 3 cylinder, 2000 4 cylinder, 2031, 2100, 2111, 2121, 2131, 2150, 2300, 2310, 2600, 2600V, 2610, 2810, 2910, 3000, 3055, 3100, 3110, 3120, 3150, 3300, 3310, 3330, 3600, 3600V, 3610, 3900, 3910, 4000 3 cylinder, 4000 4 cylinder, 4000SU, 4031, 4100, 4110, 4120, 4131, 4600, 4600SU, 4610, 6000
 Model Breaks: Upper only, With Standard adjustable wide front, not for heavy duty or industrial axle
 Replaces Part Number(s): 2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109

Models This Part Fits:

3110, 4120, 2000 3 cylinder, 641, 671, 771, NAA, 2131, 3600V, 2600V, 3600, 2810, 4000 4 cylinder, 821, 661, 2610, 6000, 4000SU, 3310, 621, 801, 681, 941, 2150, 4000 3 cylinder, 2600, 630, 881, 620, 851, 2300, 651, 850, 961, 650, 8N, 4610, 4600SU, 611, 3610, 501, 900, 811, 700, 951, 4100, 600, 2111, 3150, 3055, 640, 840, 2100, 3120, 820, 841, 871, 901, 2N, 741, 3330, 4131, 861, 3100, 3000, 950, 660, 631, 800, 3300, 2121, 3900, 4031, 2910, 601, 860, 2031, 971, 2000 4 cylinder, 701, 541, 740, 4110, 3910, Jubilee, 2310, 981, 9N, 960, 4600

Additional Information:

(1) Right Hand Spindle Tech Info: Right side as sitting in the tractor seat 10.750" machined upright shaft 1.250" shaft outside diameter 1.187" inner bearing diameter 0.750" outer bearing diameter Machined for 1/4" x 7/8" key Replaces Part Numbers: F3NN3105AA, 8N3105 (1) Left Hand Spindle Tech Info: Keyed Side Axle Length 5 1/4" Diameter 1 1/4" ID 1 3/16" OD 3/4" Shaft Length 10 11/16" Type Left Hand Replaces Part Numbers: F3NN3106AA (2) Thrust Bearing Tech Info: Bearing Type Spindle Bearing Grease Greaseable ID 1.350" ID Type Round OD 2.200" Sourced Import Width Overall 0.620" Replaces Part Number: 957E3123A (1) Spindle Bushing Kit Kit Includes: Front Spindle Bushing Tech Info: 4 used per tractor, 1.255" inside diameter, 1.378" outside diameter, 1.498" long, Must be honed or reamed to size when installed Spindle Bushing Tech Info: ID 1.350" Material Steel OD 1.480" Width 1.500" Replaces Part Numbers: 2N2109, 2N3109, 81717387, 81802940

Reference Numbers:

2N2109, 2N3109, 81717387, 81802940, 81941357, 83928346, 957E3109B, HC2N3109
