Left Hand Spindle Fits Case IH Replaces 67535C91

Name: Left Hand Spindle Fits Case IH Replaces 67535C91
SKU: 67535C91_03
Price: 133.0 USD
Availability: InStock

Left Hand Spindle Fits Case IH Replaces 67535C91

£133.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

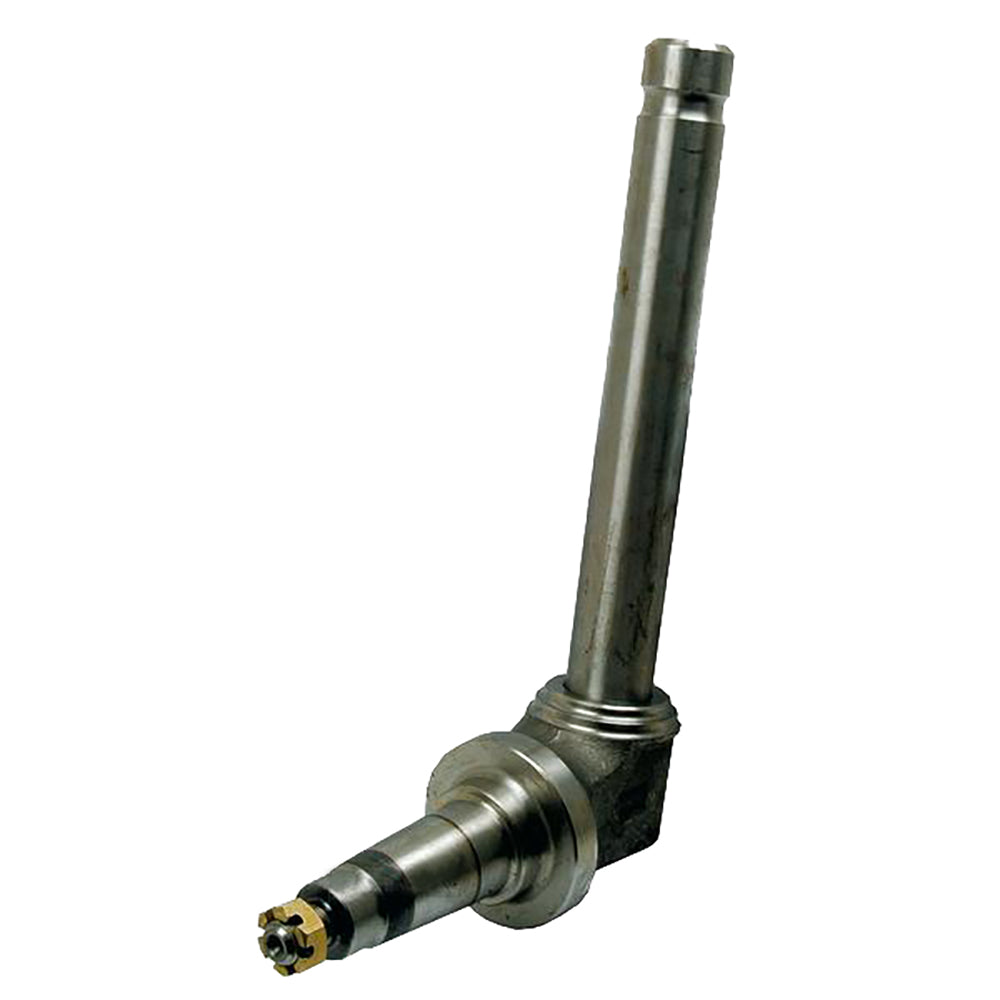

One New Aftermarket Left Hand Spindle

Tech Info:
Spindle:Low (LH/RH) Heavy Duty
(Shaft Length - 12 1/8'' - 308mm)
Adjustable Front Axle - Straight (52-82 Tread Width)

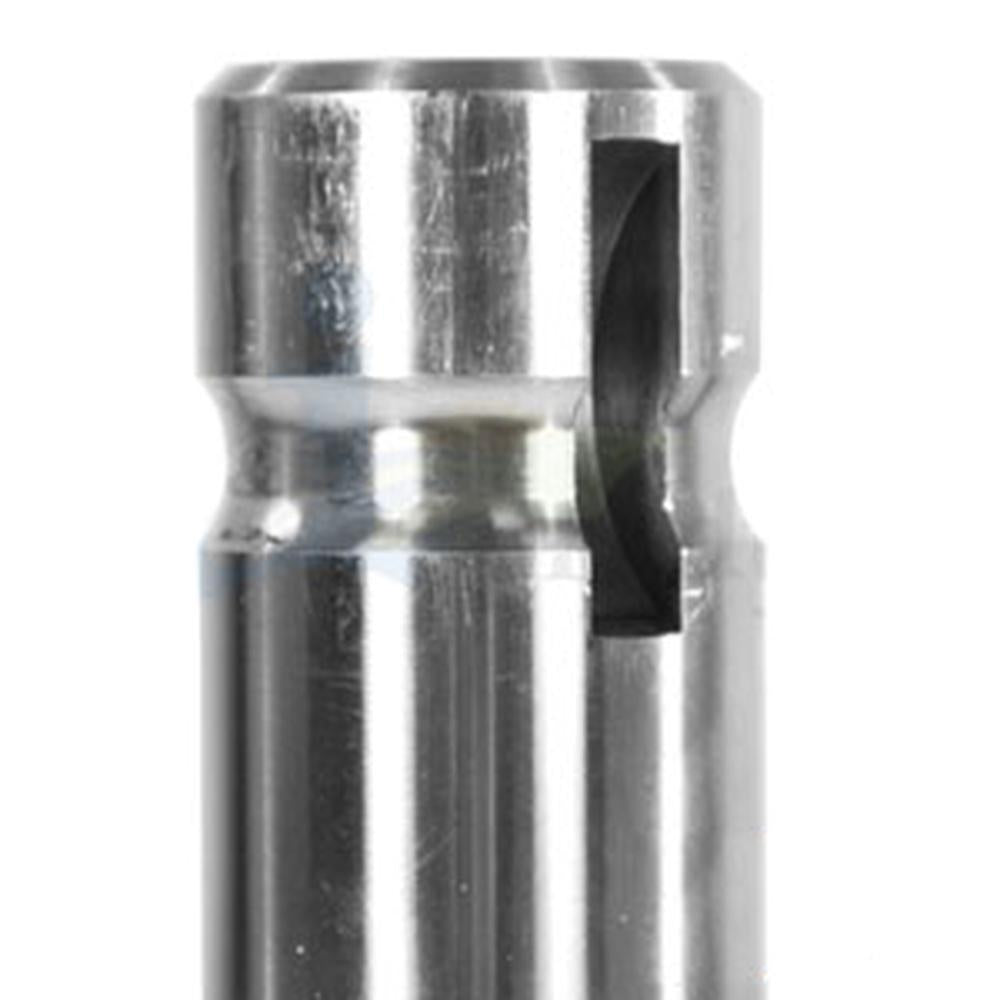

A: Spindle Shaft (Vertical Spindle)
The long vertical shaft that goes up into the axle support
Allows the wheel hub to pivot for steering
B: Spindle Diameter / Bearing Surface
The machined area where bushings or bearings ride inside the axle
Critical for smooth steering rotation
C: Steering Arm / Spindle Arm Area
The section where the steering arm is integrated or attaches
Transfers motion from the tie rod to turn the wheel
D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)

Made to Fits Case IH:
Tractor Models: 3220, 3230, 4210, 4230, 4240, 695, 895, 995, C100, C70, C80, C90, CX100, CX50, CX60, CX70, CX80, CX90
Replaces Part Number(s): 67535C91

Tractor Models: 385, 485, 585, 595
Model Breaks: w/ 1.780" Inner Wheel Hub Bearing ID
Replaces Part Number(s): 67535C91

Tractor Models: C50, C60
Model Breaks: Straddle Mount Models
Replaces Part Number(s): 67535C91

Models This Part Fits:

695, C80, CX50, 595, CX100, C90, 4210, C60, 3230, 385, 895, C70, CX60, 485, CX70, 4240, CX80, 585, 995, C100, C50, 3220, CX90, 4230

Additional Information:

Spindle:Low (LH/RH) Heavy Duty (Shaft Length - 12 1/8'' - 308mm) Adjustable Front Axle - Straight (52-82 Tread Width) A: Spindle Shaft (Vertical Spindle) The long vertical shaft that goes up into the axle support Allows the wheel hub to pivot for steering B: Spindle Diameter / Bearing Surface The machined area where bushings or bearings ride inside the axle Critical for smooth steering rotation C: Steering Arm / Spindle Arm Area The section where the steering arm is integrated or attaches Transfers motion from the tie rod to turn the wheel D: Tie Rod Connection (Tapered Stud / Tie Rod End Mount)
