3 Spindles Fits Cub Cadet MTD 46" Deck 618-0660 918-0660 LT1045 LT1046 i1046

Name: 3 Spindles Fits Cub Cadet MTD 46" Deck 618-0660 918-0660 LT1045 LT1046 i1046
SKU: LAS20-0029_x3
Price: 67.0 USD
Availability: InStock

3 Spindles Fits Cub Cadet MTD 46" Deck 618-0660 918-0660 LT1045 LT1046 i1046

£67.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

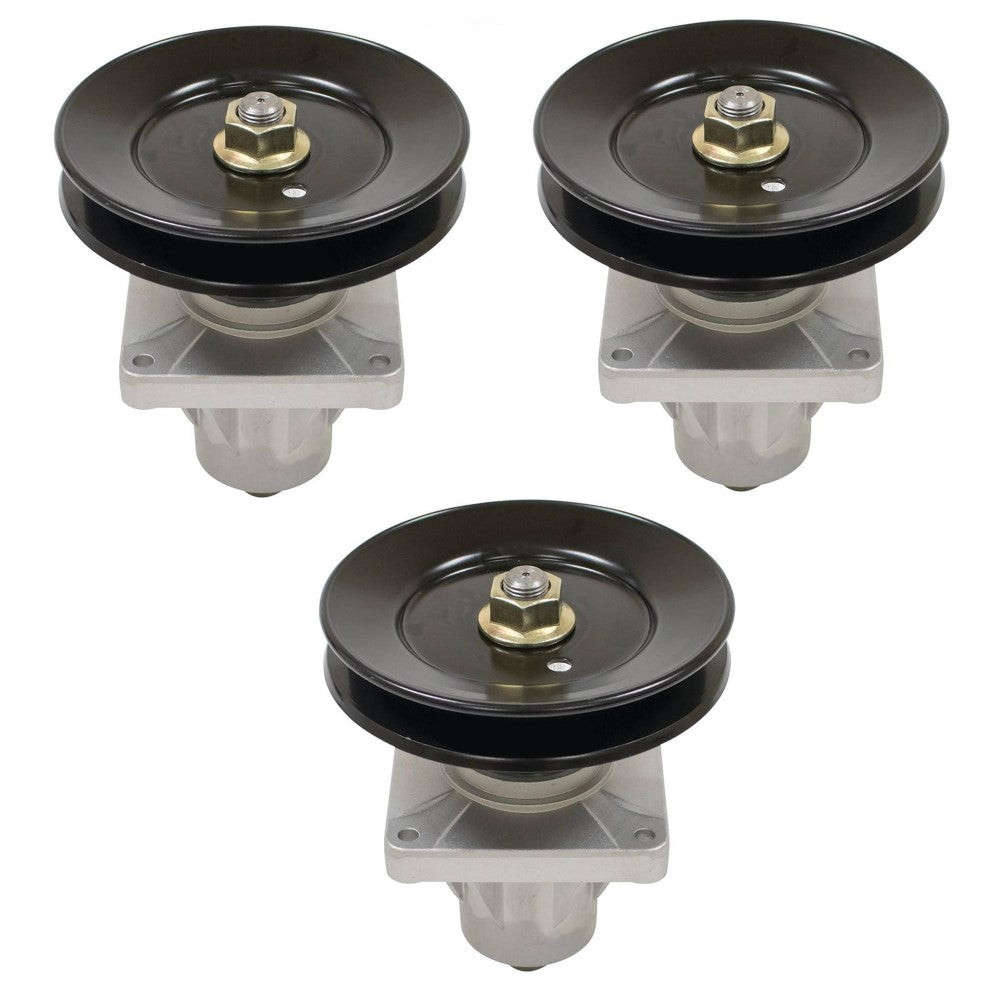

Three New Aftermarket Replacement Spindle Assemblies Fits Cub Cadet (MTD, Troy-Bilt, Yard Man) 46" Cutting Deck

This listing includes a set of three (3) aftermarket replacement spindle assemblies Fits Cub Cadet, MTD, Troy-Bilt, and Yard Man lawn and garden tractors equipped with a 46-inch cutting deck. The spindle assembly mounts to the deck housing and supports the blade shaft, transferring power from the pulley and belt system to spin the cutting blade. These spindles are designed for 46-inch decks using the special 6-point star center hole blade design. Each spindle includes a grease zerk fitting for routine maintenance, plus a nut and spacer. Note: no threads in housing -- installation uses self-tapping screws.

Specifications

Quantity: Set of 3 spindle assemblies
Overall Height: 6-3/4"
Pulley Outer Diameter: 5-5/8"
Blade Mount: 6-point star center hole design
Includes: Grease zerk, nut, spacer, and pulley
Housing: No threads -- use self-tapping screws for installation

Compatible Models

Fits Cub Cadet LT Series (Serial Number Restriction Applies): LT1045 (2008 and newer, SN 1A267H and after); LT1045 (2007 and earlier) model numbers 13AX11CH710, 13AX11CH712, 13AX11CH709, 13AX11CH756, 13BP11CH710, 13BP11CH709, 13BP11CH756, 13RX11CH756 using spindle 618-0660 SN 1A267H and after; LT1045 (2008 and after) model numbers 13AX11CH009, 13AX11CH010, 13RX11CH056, 13RX11CH256, 13AX11CH056, 13AX11CH256; LT1046 (2007 and earlier) model numbers 13AP11CH710, 13AP11CH709 using spindle 618-0660 SN 1A267H and after; LT1046 (2008 and after) model number 13AP11CH010; LT1046, i1046 with 46" decks using 6-point star center hole blades

MTD: 46-inch deck models using 6-point star center hole blades (see part numbers below)

Troy-Bilt: 46-inch deck models using 6-point star center hole blades

Yard Man: 46-inch deck models using 6-point star center hole blades

Also fits model: 13AP605H755

Replaces Part Number(s):

618-0660, 618-0660A, 618-0660B, 618-0625A, 618-0625B, 918-0625B, 918-0660, 918-0660A, 918-0660B, 918-04137

Aftermarket Interchange Numbers

Rotary: 12967; Fits Stens: 285-145; Oregon: 82-409

New aftermarket replacement part - not remanufactured, not used.

Models This Part Fits:

i1046, 13AP605H755, LT1045, LT1046

Additional Information:

6 pt. star design Includes grease zerk Height 6 3/4" Pulley Outer Diameter 5 5/8" *Includes nut, spacer, grease zerk and pulley, 6 pt. star design, No threads in housing, use self-tapping screws*

Reference Numbers:

618-0660, 618-0660A, 618-0660B, 918-0625B, 918-0660, 918-0660A, 918-0660B, 918-0625B, 618-0625A, 618-0625B, 618-0660, 618-0660A, 618-0660B, 918-04137, 918-0660, 918-0660A, 918-0660B
