SPINDLE Fits Cub Cadet for MTD for TROYBILT 618-04822 918-04822 918-04950

SPINDLE Fits Cub Cadet for MTD for TROYBILT 618-04822 918-04822 918-04950

£57.00 GBP
£57.00 GBP
Sale Sold out
Shipping calculated at checkout.

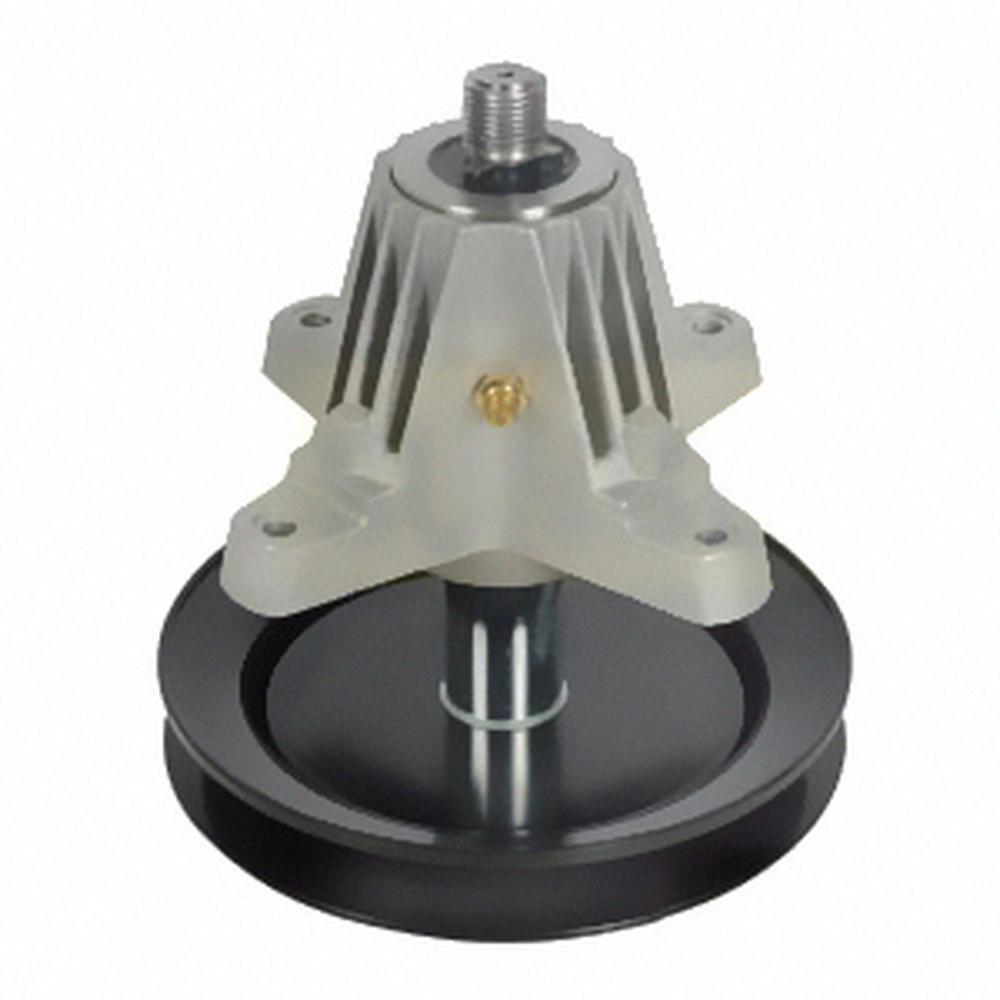

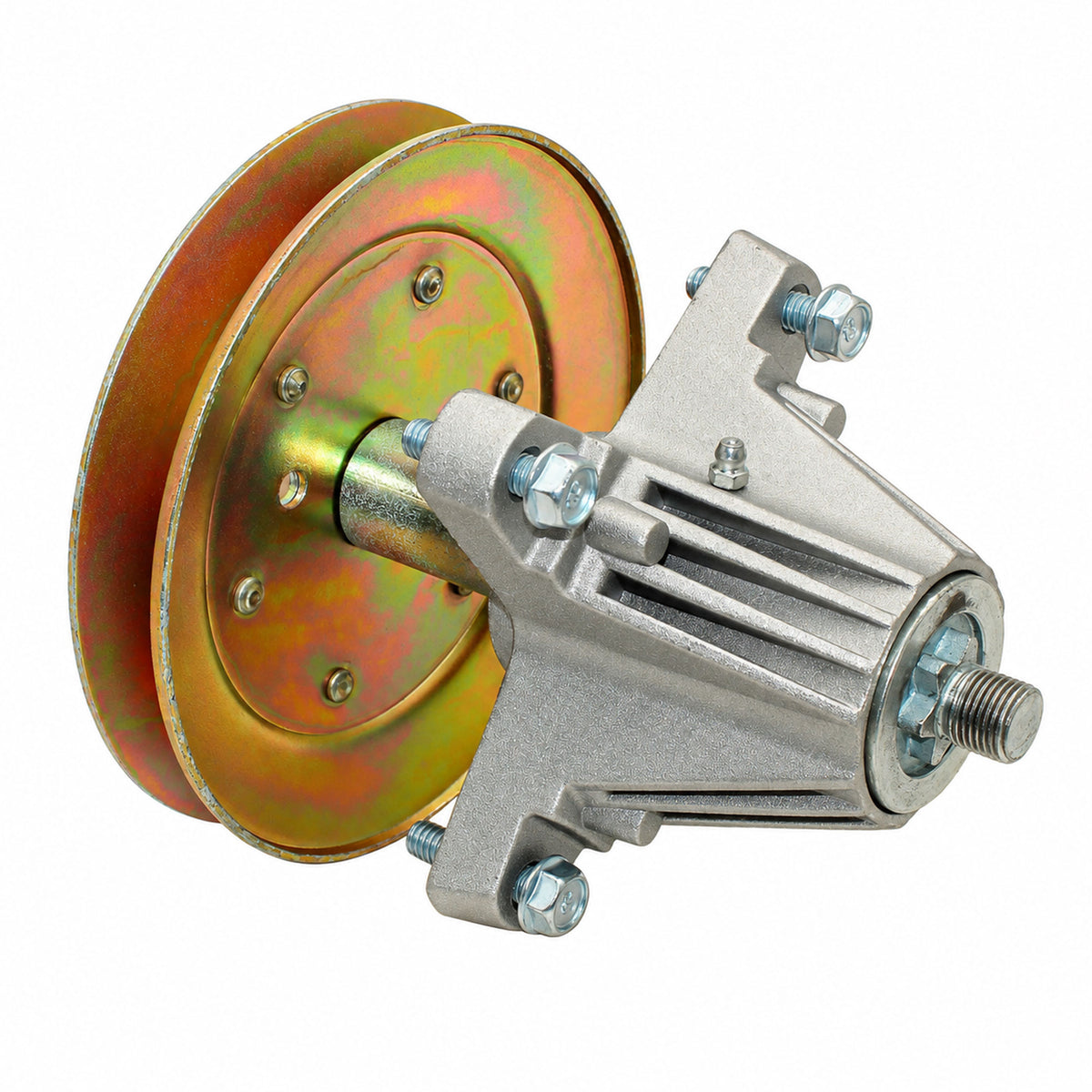

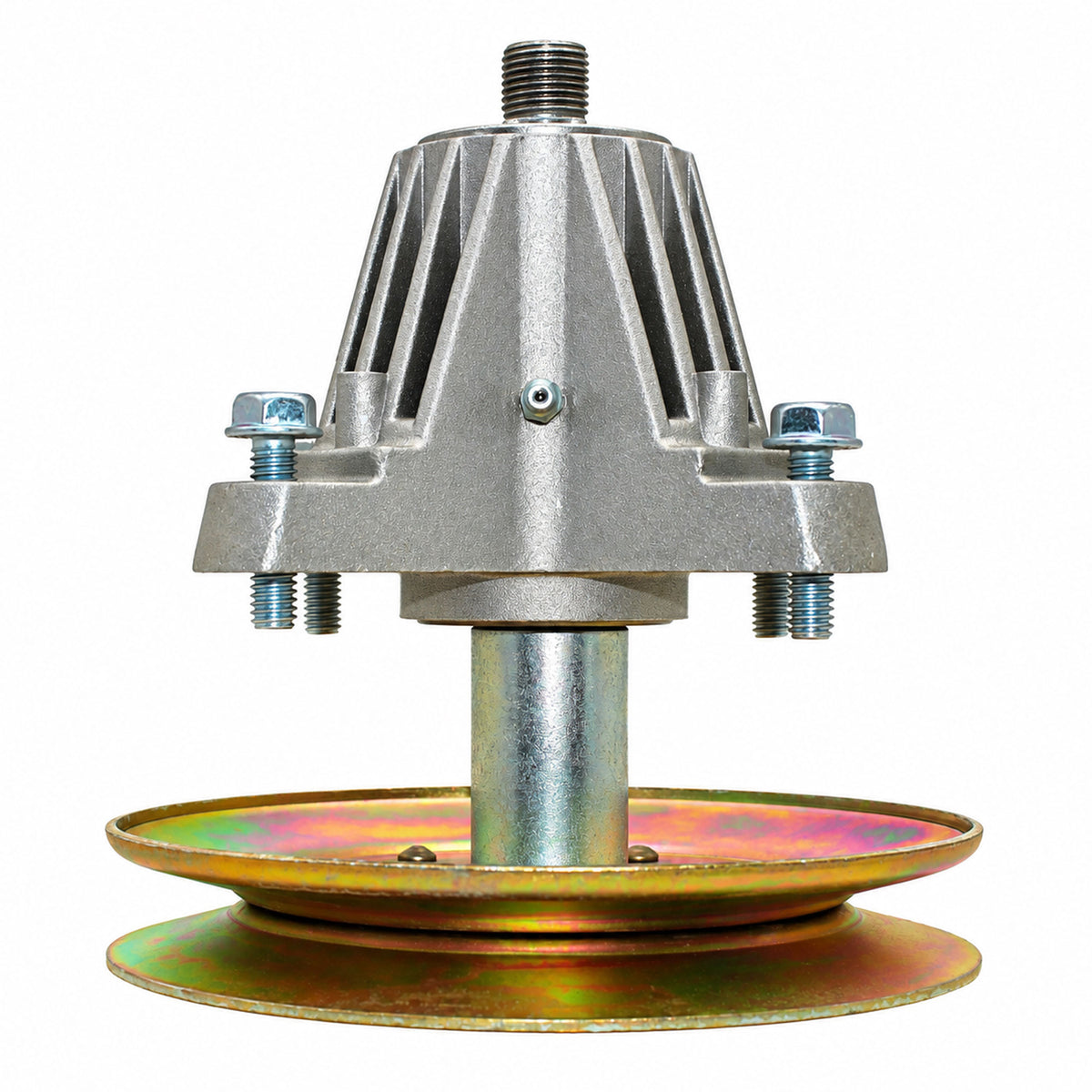

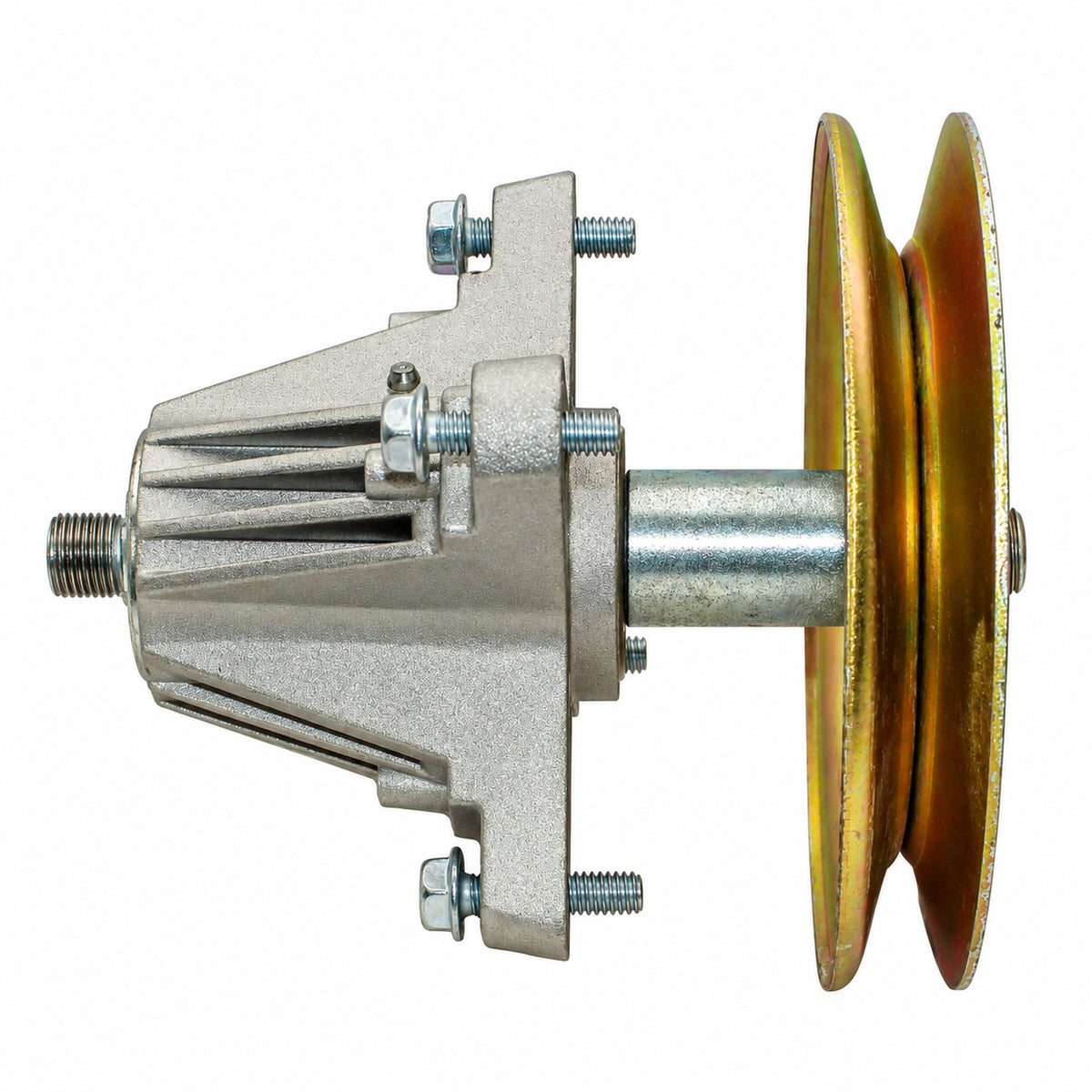

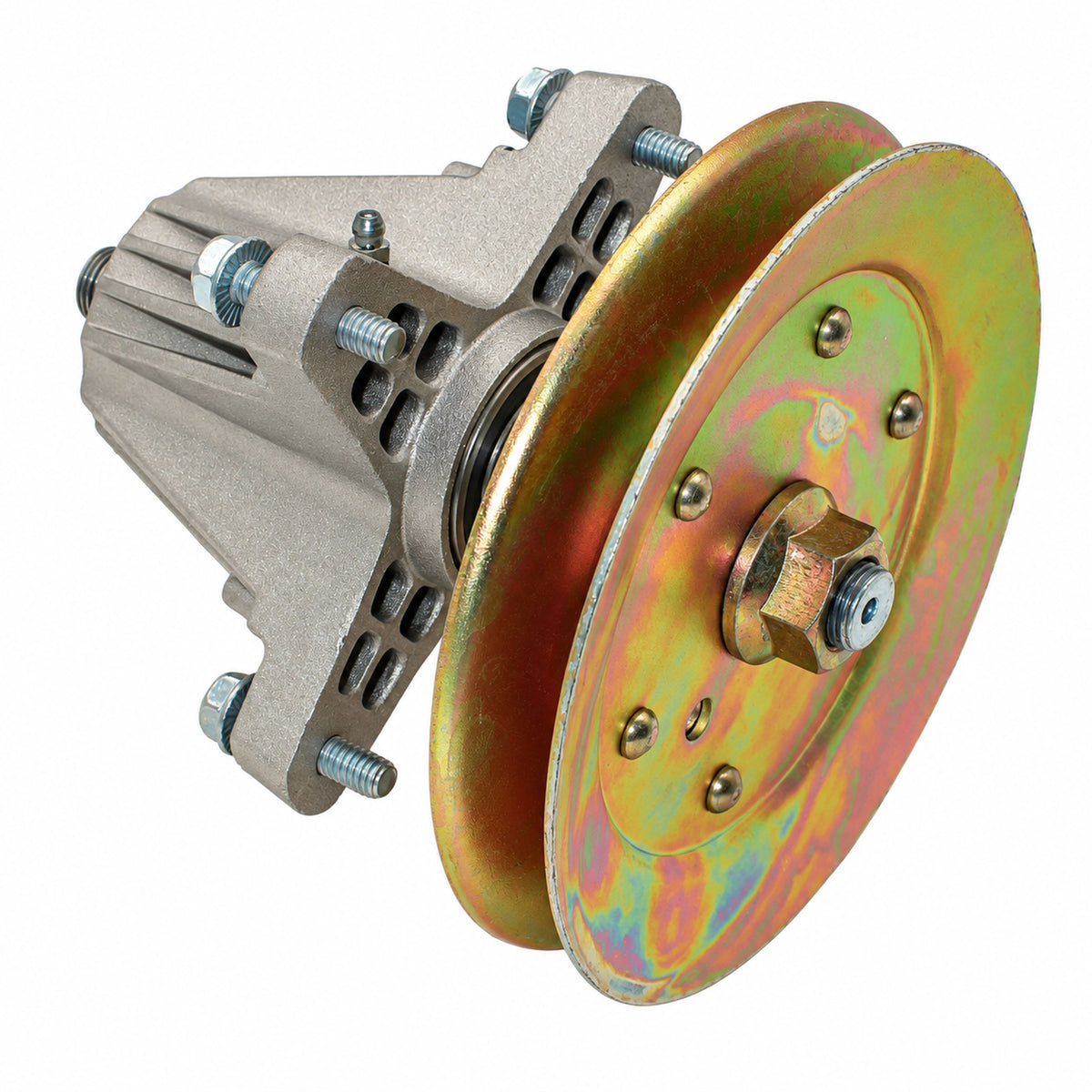

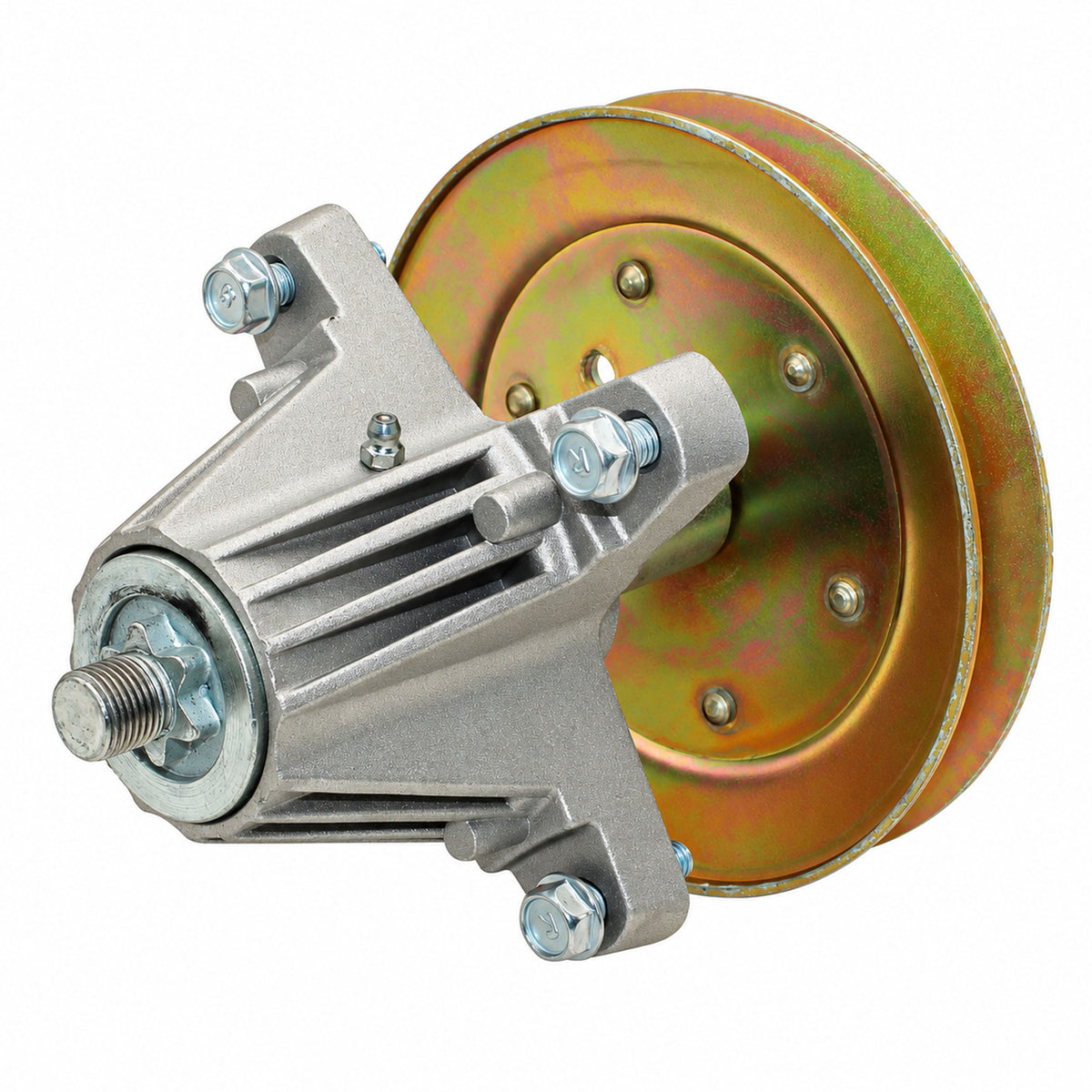

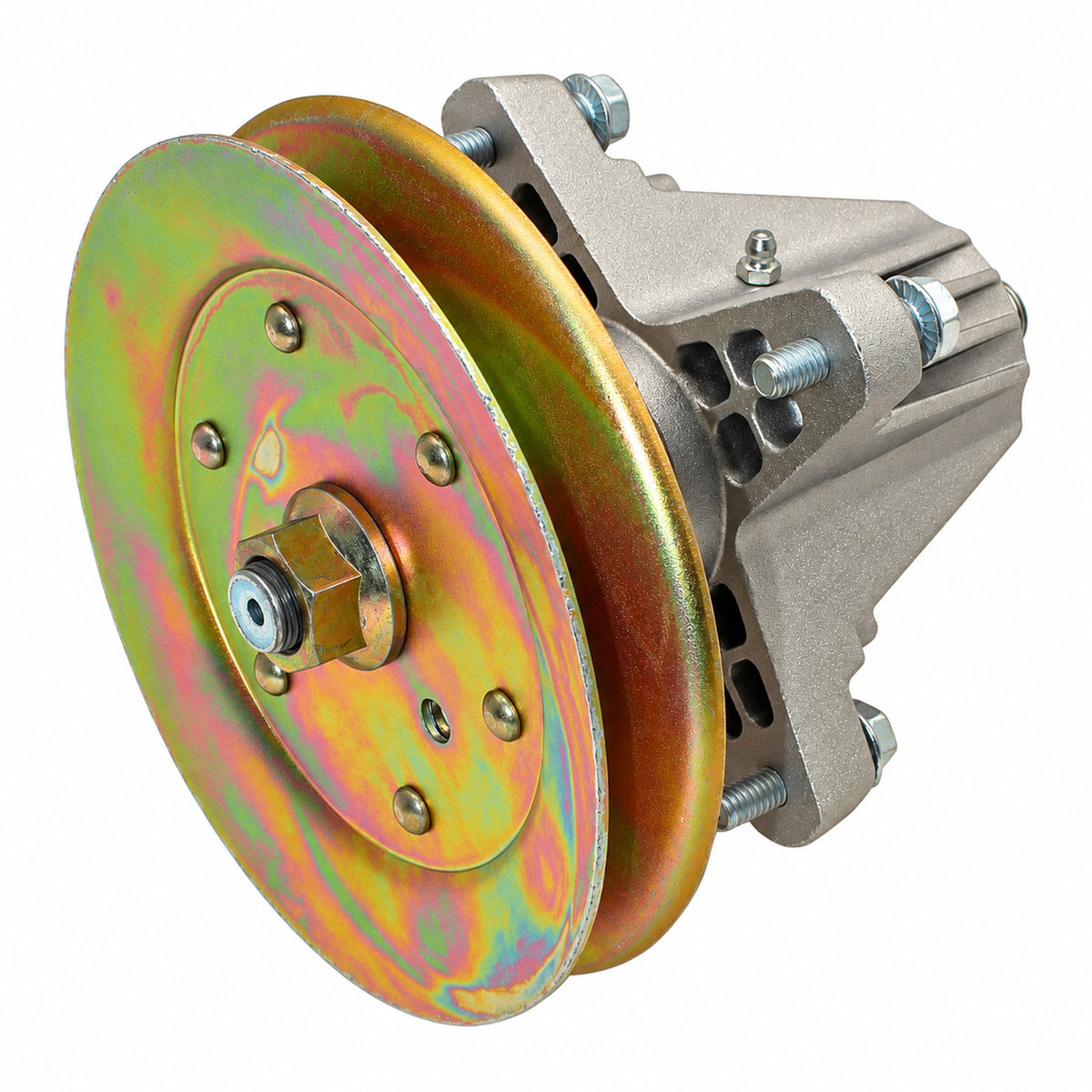

One New Aftermarket Replacement Spindle Assembly with Pulley for MTD Models: most 700 series, 2010 and up

Fits Cub Cadet Models: CC30 Mini Rider, LTX1040, LTX1042, EZT-L42, RZT-42, RZT-L42 and RZT-S42, 2011 and 2014

Used on Troy-Bilt Zero Turn Mowers.

- OD of Pulley: 6"
- Specially designed: to replace 6 pt. star spindle shaft
- Pulley included.
- No threads in housing, use self-tapping screws

Replaces Part Number: LAS20-0005, 618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 918-04822, 918-04822A, 918-04822B, 918-04889, 918-04889A, 918-04950, B1MT47

Models This Part Fits:

RIDER 76, 13CC26JD011, 13RX90AS056, 13RX90AS256, 13WX91AS010, KT725-3012, 13WX90AS209, LTX1045 RZT42, 17ARCACS011, 13AX90AS009, LTX1040, 700 series, M1642, 13WX90AS010, 21R707-0039-G1, 13AX90AS010, 13AX90AS209, 13AX9124010, 13WX90AS009, LTX1042

Additional Information:

Pulley diameter 6-1/8" Uses 6 point Star center hole blades Replaces Part Numbers: 2531-4, 285-868, 618-048, 618-04822, 618-04889, 618-04950, 82-058, 80-12-062, 918-04822, 918-04889, 918-04950

Reference Numbers:

618-04822, 61804822, 618-04950, 61804950, 918-04889A, 91804889A and 918-04822A, 91804822A, 918-04889A, 918-04822A, 618-04822A, 618-04950, 91804822, 918-04822, 918-04889B, 91804822B, 918-04822B, 618-04822, 618-04822A, 618-04889, 618-04889A, 618-04950, 618-04822,618-04822A,618-04889,618-04889A,618-04950,918-04822,918-04822A,918-04822B,918-04889,918-04889A,918-04950,B1MT47,B1MT69

Product Sub Group:

Spindles
View More: Spindles Replacement Parts
View full details
  • 5 stars: 4 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
D
Derek Archey (Troy, US)
Sears series zero turn spindle assembly

The part was exactly as described only better had a serviceable grease sert so I will probably never have to change the bearings on the spindle assembly ever again which is wonderful shipping was very fast part bit like a glove 😊

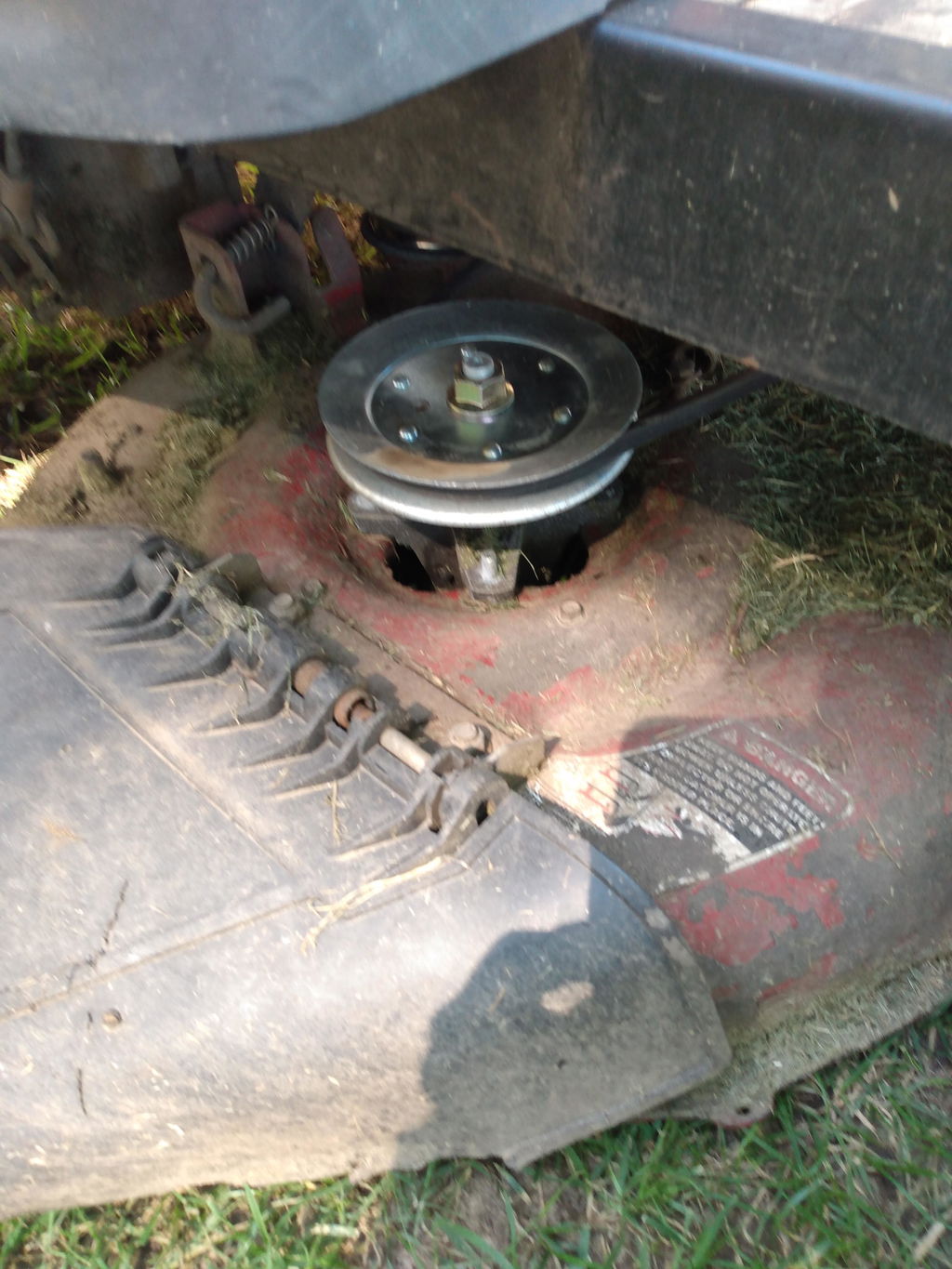

User picture
J
James Amos (Macon, US)

Spindle Assembly fits MTD 918-04822 918-04822A 918-04889 918-04889A, 918-04950

M
Maureen O'Leary (Tybee Island, US)
Perfect Spindle- easy assembly

Thank you so much! My husband is back in the saddle! The spindle works great! Quick and easy installation. You are our reliable parts destination!
Regards,
Maureen & Ed
PS: Now we need replacement blade belt!

K
Kenneth Hammond (McConnellsburg, US)
Great products

Very Fast Shipping thank you.
