One (1) New Spindle Blade & Pulley Made for 46" and 48" Decks

Name: One (1) New Spindle Blade & Pulley Made for 46" and 48" Decks
SKU: KT-LAS20-0024
Price: 57.0 USD
Availability: InStock

One (1) New Spindle Blade & Pulley Made for 46" and 48" Decks

£57.00 GBP

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

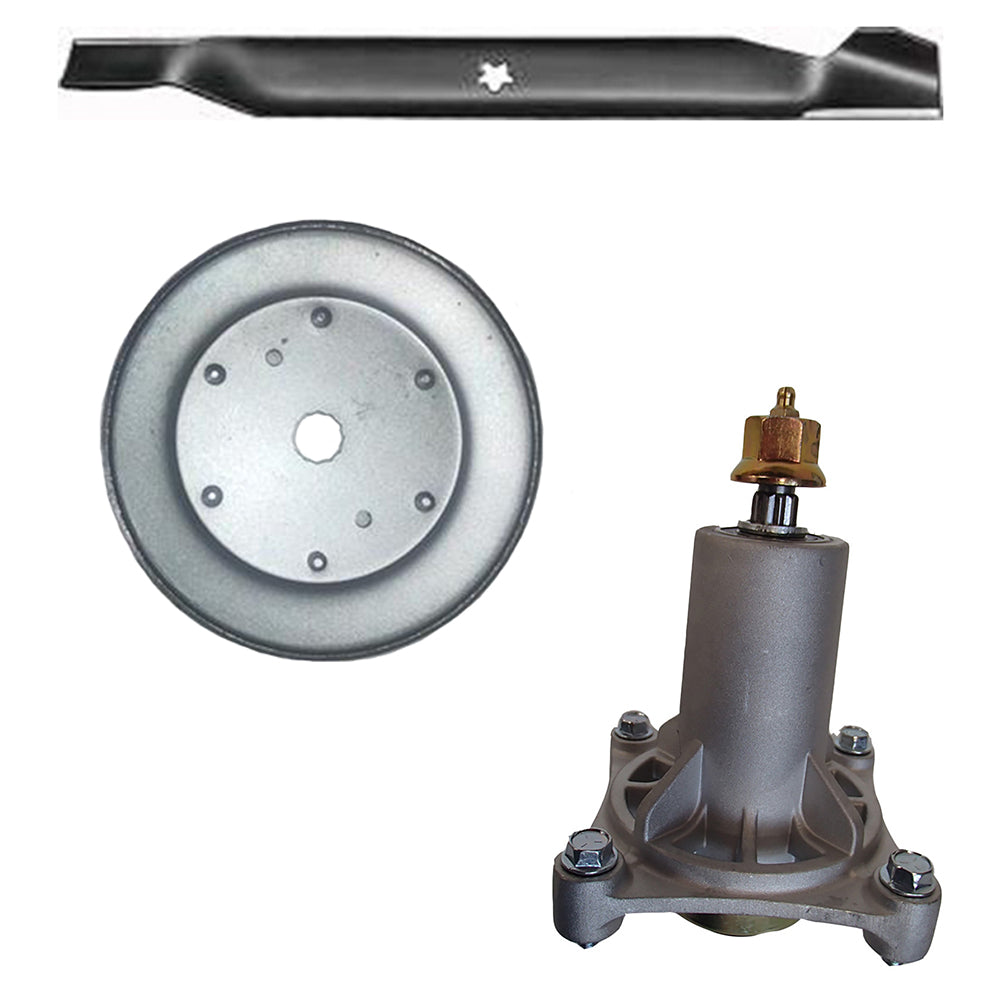

One New Aftermarket Replacement Kit of Spindle, Blade, & Pulley

Kit Includes:
(1) Spindle Assembly
(1) Lawn Mower Blade
(1) Drive Pulley

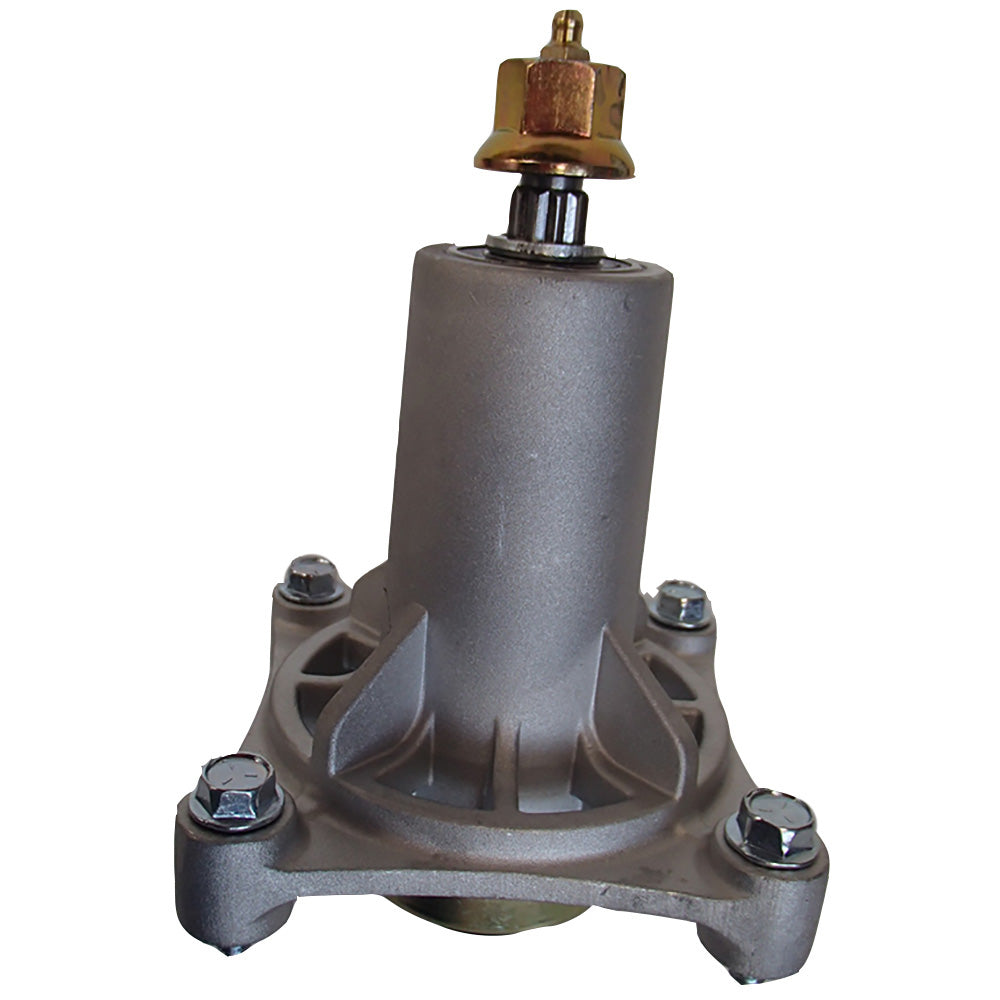

Spindle -
4-Bolt Long Housing
5 Point Star Center Hole
Threaded Mounting Holes include Bolts
Includes Blade Bolt & Washer (From QSI)

Fits models with 46", 48" and 54" Decks

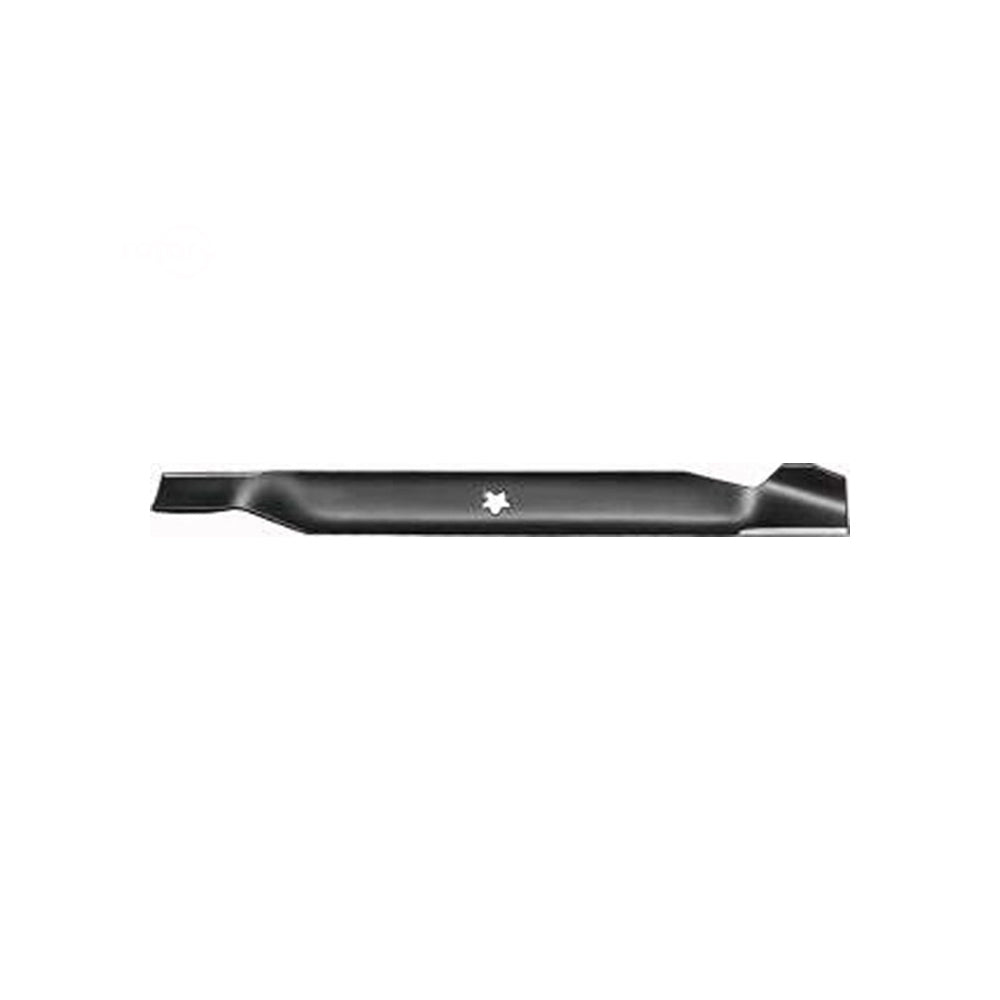

Lawn Mower Blade -
Notched Fits Hi-Lift Blade
21" Long
5 Point Star CH
2-1/4" Wide
Thickness 0.149"

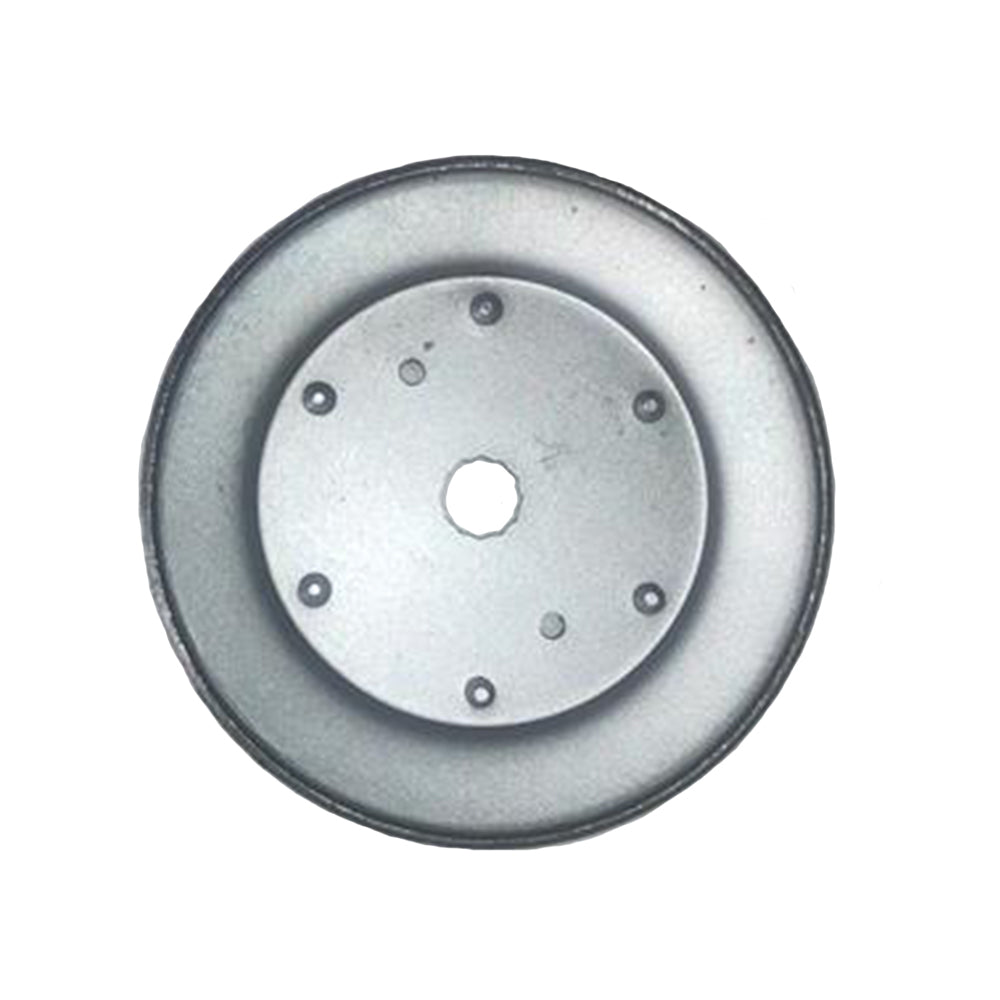

Drive Pulley -
Outer Diameter: 5-1/6"
Inner Diameter: 9/16"
Fits 42" Deck models
Steel

Models This Part Fits:

YTH24K54, GTH26K54, 42" Mower Decks, LGTH24V54

Additional Information:

(1) Spindle Assembly 4-Bolt Long Housing 5-Point Star Blade Mount Threaded Mounting Holes for Easy Installation Shaft is Splined for Spline-Type Pulleys Includes: Pulley Locknut, Blade Bolt/Washer, Spacer, 4 Mounting Bolts Replaces Part Number: 192870, 532187281, 532187292, 532192870 (1) Lawn Mower Blade Type: Notched HI-Lift Blade Length: 21" Center Hole: 5 Point Star Width: 2-1/4" Thickness: 0.149" Replaces Part Numbers: 532138971, 138971X431, 594892701, 917139775P, 917532139775, 954636867, 917777134149, 917539110460, 917532424752 (1) Drive Pulley Outer Diameter: 5-1/6" Inner Diameter: 9/16" Steel Replaces Part Numbers: 129861, 153535, 173436, 532173436, 532129861, 539112171, 532153535

Reference Numbers:

21546238, 21546299, 21549012, 532192870, 587819701, 21546095, 532138971, 21546127, 532173436, 532192870, 531307224, 532138971, PP24004, 532129861, 532153535, 532173436, 192870, 532187281, 532187292, 532192870, 539112057, 567253301, 587125401, 587253301, 587819701, 587820301, 532127843, 532138498, 532138971, 532129861, 532153535, 532173436, 539112171
