KT-L26932-WITHBUSHINGS - Load Control Shaft and Bushings Kit

KT-L26932-WITHBUSHINGS - Load Control Shaft and Bushings Kit

£76.00 GBP
£76.00 GBP
Sale Sold out
Shipping calculated at checkout.
Aftermarket KT-L26932-WITHBUSHINGS - Load Control Shaft and Bushings Kit

Tech Info:

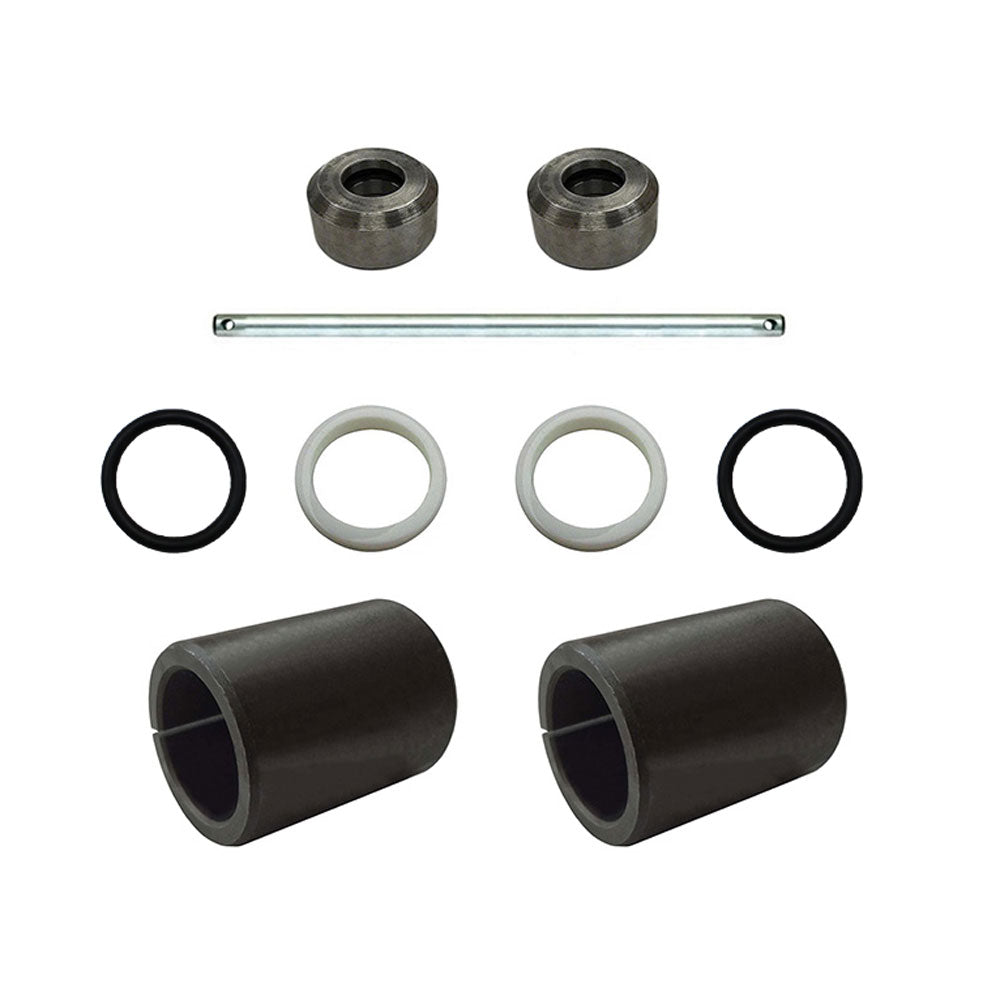

 -Kit Contains:
 -(1) Load Control Shaft
 -19.690" Long
 -0.815" Diameter
 -
 -Replaces Part Number(s): L26932, T26598
 -
 -(2) O-Rings
 -Inside Diameter 1
 -Outside Diameter 1 1/4
 -Standard Number 214
 -Width 1/8
 -
 -Replaces Part Number: A4730R
 -
 -(2) Rings
 -Inside Diameter .801"
 -Material Made With Teflon
 -Outside Diameter 1.001"
 -Thickness .190"
 -
 -Replaces Part Number: T22098
 -
 -(2) Outer Load Control Bushings
 -
 -Replaces Part Number: T22099
 -
 -(2) Bushings
 -Kit includes:
 -(1) Bushing
 -(1) Washer
 -(1) O-ring
 -
 -Replaces Part Number(s): A4730R, T22097, T22097, T22098


Fits John Deere:
 Tractor Models: 1020, 1030, 1120, 1530, 1630, 2040, 2240
 Replaces Part Number(s): L26932, T26598, A4730R, T22097, T22097, T22098, T22099, T22098, A4730R

Models This Part Fits:

300B, 2240, 1130, 1550, 302, 1750, 2040, 1030, 300, 301, 1120, 1850, 1020, 1630, 302A

Additional Information:

Includes: (1) Load Control Shaft: Length: 19.690" Diameter: 0.815" Replaces Part Numbers: L26932, T26598 (2) O-Ring: Width: 1/8" Inner Diameter: 1" Outer Diameter: 1-1/4" Replaces Part Numbers: A4730R (2) Washer: Thickness: .190" Inner Diameter: .801" Outer Diameter: 1.001" Replaces Part Numbers: T22098 (2) Outer Load Control Bushing: Height: 1.33" Inner Diameter: 0.81" Outer Diameter: 1.12" Replaces Part Numbers: T22099 (2) Bushing: Length: 0.96" Outer Diameter: 1.86" Inner Diameter: 0.88" Replaces Part Numbers: T22097

Reference Numbers:

T26598, A4730R, T22098, T22099, T22097, L26932, A4730R, T22098, T22099, T22097, L26932, T26598, L26932, T26598, A4730R, T22098, T22099, T22097
