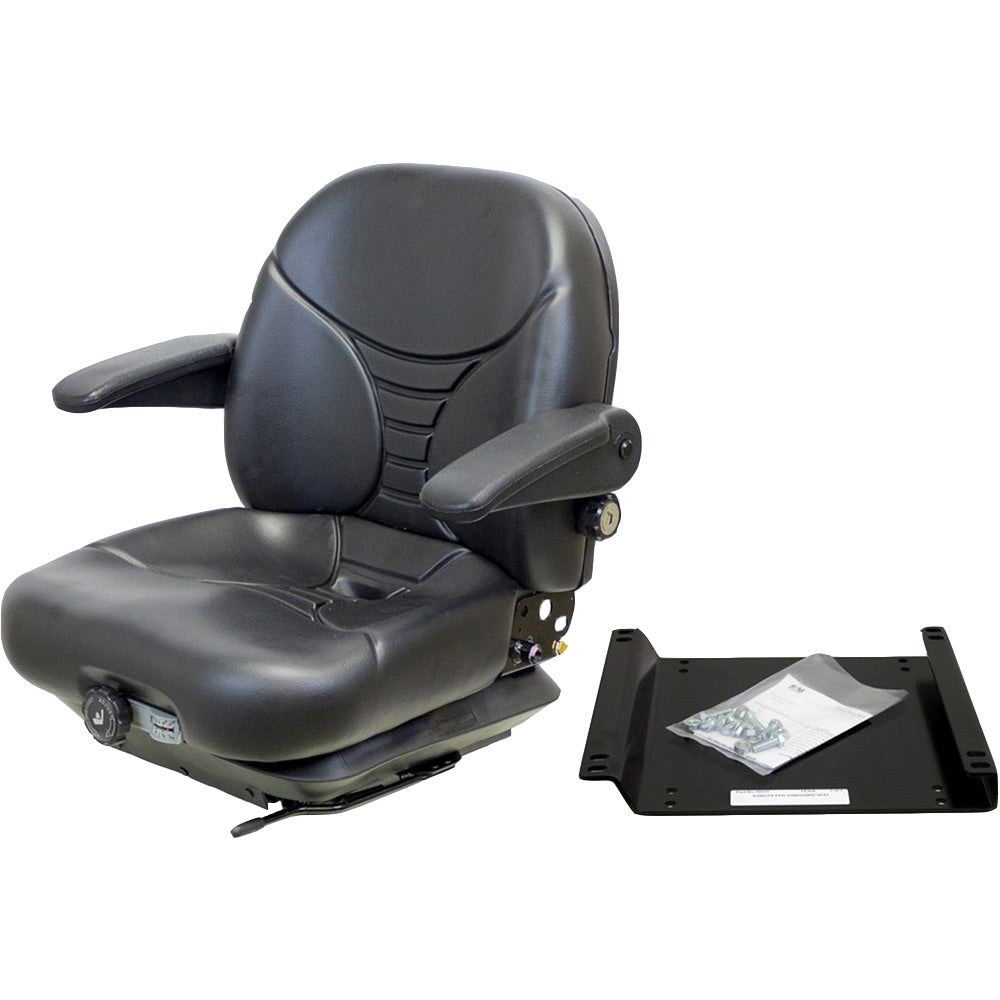

KM 242 Seat & Mechanical Suspension Kit

KM 242 Seat & Mechanical Suspension Kit

£723.00 GBP
£723.00 GBP
Sale Sold out
Shipping calculated at checkout.
One New Aftermarket KM 242 Seat & Mechanical Suspension Kit
Replaces the Original Vanguard Seat
Fits Kubota M Series: M4700, M4700DT, M4900, M4900DT, M5400, M5400DT, M5700, M5700DT, M5700HD, M6800/S, M6800DT/SDT, M6800HD, M8200, M8200DT, M8200HD, M9000, M9000DT, M9000DTL, M9000DTM, M9000HD

Tech Info
-Durable Black Vinyl covering
-Mechanical suspension with 2.36" suspension travel
-Seat width is 18.5"
-Contoured foam cushions to ensure operator comfort
-Drain hole prevents water build-up
-Backrest angle adjustment from 5° forward to 15° backward
-Adjustable lumbar support to help prevent lower back pain
-Fold-up armrests
-Safety belt fixation points for added safety
-Manual weight adjustment with a maximum allowable weight of 270 lbs
-Slide rails with 6" travel
-Comes standard with operator presence switch that meets OEM safety standards
-Conforms with ISO 796-EM9, SAE J1194, and FM-VSS302 for flammability

Models This Part Fits:

M4900DT, M9000DTL, M9000HD, M9000DTM, M6800S, M4700, M6800, M6800DT, M5700HD, M5700DT, M9000DT, M8200, M6800SDT, M9000, M5700, M6800HD, M4700DT, M8200DT, M5400DT, M4900, M5400, M8200HD

Reference Numbers:

6812
