One New Aftermarket Replacement Door Gas Strut Spring Cylinder Fits Case / David Brown Tractors

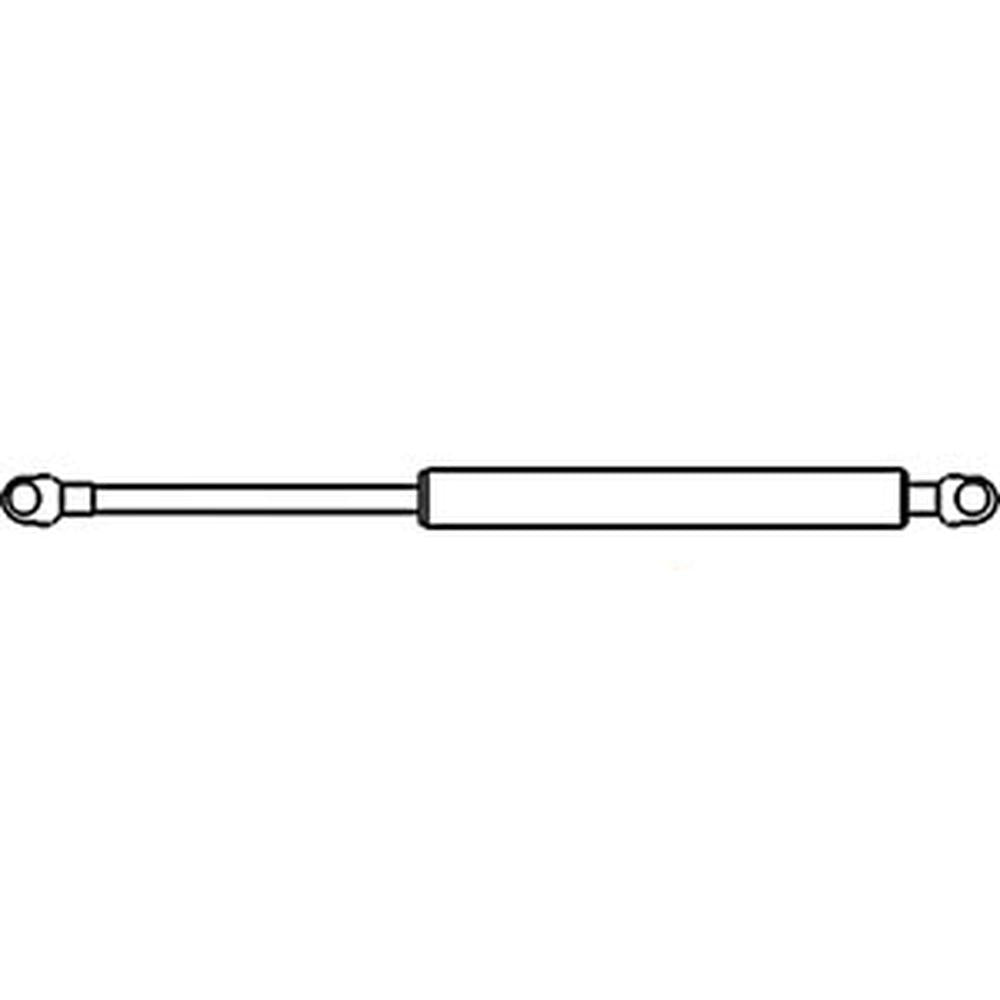

This cab door gas strut (spring cylinder) supports and holds open the tractor cab door on Fits Case and David Brown 1000-series tractors. The gas strut mounts between the door frame and the cab body, providing controlled resistance to keep the door open safely during operation and maintenance. Also reported to fit select Leyland tractor models.
Specifications
- Centre-to-Centre Length: 245mm (approx. 247mm per some sources)
- Ram Stroke: 80-85mm
- Cylinder Diameter: 18mm
- Ram Diameter: 8mm
- Pressure: 250N
- End Fitting A: Eyelet (metal), 6mm diameter, 10mm wide
- End Fitting B: Eyelet (metal), 6mm diameter, 14mm wide
Compatible Models
Fits Case / David Brown: 1194, 1294, 1394, 1494, 1594, 1694
Leyland: 255, 262, 270, 272, 282, 462, 472, 482, 602, 604, 702, 704, 802, 804
Replaces Part Number(s):
K303870, K303870-A, 12092806, 120/92806
Aftermarket Interchange Numbers
NTH478, S.19439, S19439, VPM1610, 65403000, V3427, 20/872-9, 872-9
New aftermarket replacement part - not remanufactured, not used.
